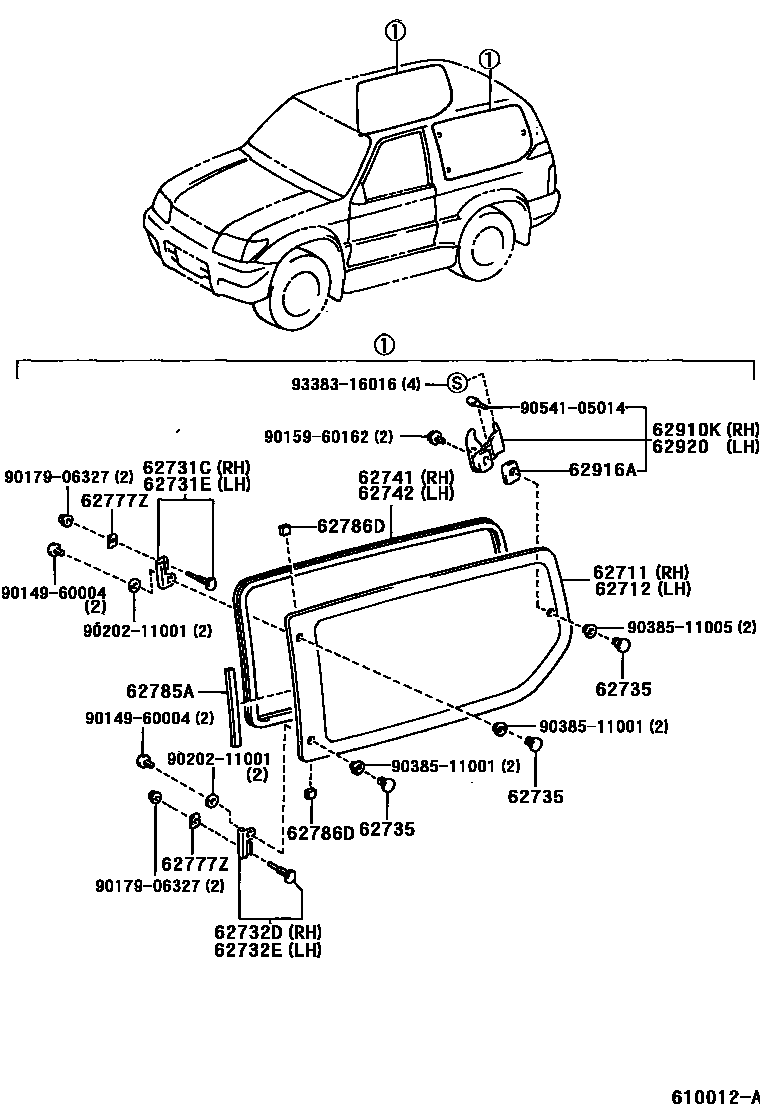

SIDE WINDOW

0001 1 0002 1

62711GLASS, QUARTER WINDOW, RH

main62710-60900iKZJ95,LJ95,RZJ95,VZJ95..ARL,CO,GCC,GEN199604-199906

*TEM,T=3.5,GREEN

main62711-60260iKZJ90,LJ90,RZJ90,VZJ90199604-199906

*TEM,T=4.0,GREEN

62712GLASS, QUARTER WINDOW, LH

main62712-60200iKZJ90,LJ90,RZJ90,VZJ90199604-199906

*TEM,T=4.0,GREEN

main62720-60900iRZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95199604-199906

*TEM,T=3.5,GREEN

62731CHINGE, QUARTER WINDOW, RH

main62731-60020iKZJ90,LJ90,RZJ90,VZJ90199604-199906

62731EHINGE, QUARTER WINDOW, LH

main62731-60020iRZJ90,VZJ90..CO,GCC199608-199906

main62732-60020iKZJ90,LJ90,RZJ90..GEN199604-199906

62732DHINGE, QUARTER WINDOW, NO.2, RH

main62732-60020iKZJ90,LJ90,RZJ90,VZJ90199604-199906

62732EHINGE, QUARTER WINDOW, LH

main62731-60020iKZJ90,LJ90,RZJ90..GEN199604-199906

main62732-60020iRZJ90,VZJ90..CO,GCC199608-199906

62735RETAINER, QUARTER WINDOW HINGE

main62735-89102iKZJ90,LJ90,RZJ90,VZJ90199604-199906

FRONT

main62735-95D00iKZJ90,LJ90,RZJ90,VZJ90199604-199906

REAR

main62735-95D00iKZJ95,LJ95,RZJ95,VZJ95199906

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-60070iKZJ95,LJ95,RZJ95,VZJ95199604-199906

main62741-60080iKZJ90,LJ90,RZJ90,VZJ90199604-199906

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-60060iKZJ95,LJ95,RZJ95,VZJ95199604-199906

main62742-60070iKZJ90,LJ90,RZJ90,VZJ90199604-199906

62777ZPLATE, QUARTER WINDOW RETAINER

main62777-60010iKZJ90,LJ90,RZJ90,VZJ90199604-199906

62785ASPACER, QUARTER WINDOW GLASS

main62785-60010iKZJ90,LJ90,RZJ90,VZJ90199604-199906

62786DSPACER, QUARTER WINDOW GLASS, NO.2

main62786-60010iKZJ90,LJ90,RZJ90,VZJ90199604-199906

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-60030-B0iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199910

MOON MIST,TRIM1#

sub62910-60030

main62910-60030-C0iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA)199906-200312

BLACK,TRIM1#,4#

sub62910-60030

main62910-60030-C0iRZJ90..CO;LJ95,RZJ95,VZJ95..(STD,VX)..(CO,GEN)199906

BLACK,TRIM1#

sub62910-60030

62916APAD, SIDE WINDOW LOCK

main62916-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-60030-B0iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199910

MOON MIST,TRIM1#

sub62910-60030

main62910-60030-C0iRZJ95..ARL199906-200312

BLACK,TRIM1#,4#

sub62910-60030

main62910-60030-C0iRZJ90..CO;LJ95,RZJ95,VZJ95..(STD,VX)..(CO,GEN)199906

BLACK,TRIM1#

sub62910-60030

9014960004

main90149-60004

9015960162

main90159-60162

9017906327

main90179-06327

9020211001

main90202-11001

9038511001

main90385-11001

9038511005

main90385-11005

9054105014

main90541-05014

9338316016

main93383-16016

23 parts on this diagram · 2 diagrams in section
