FLOOR MAT & SILENCER PAD

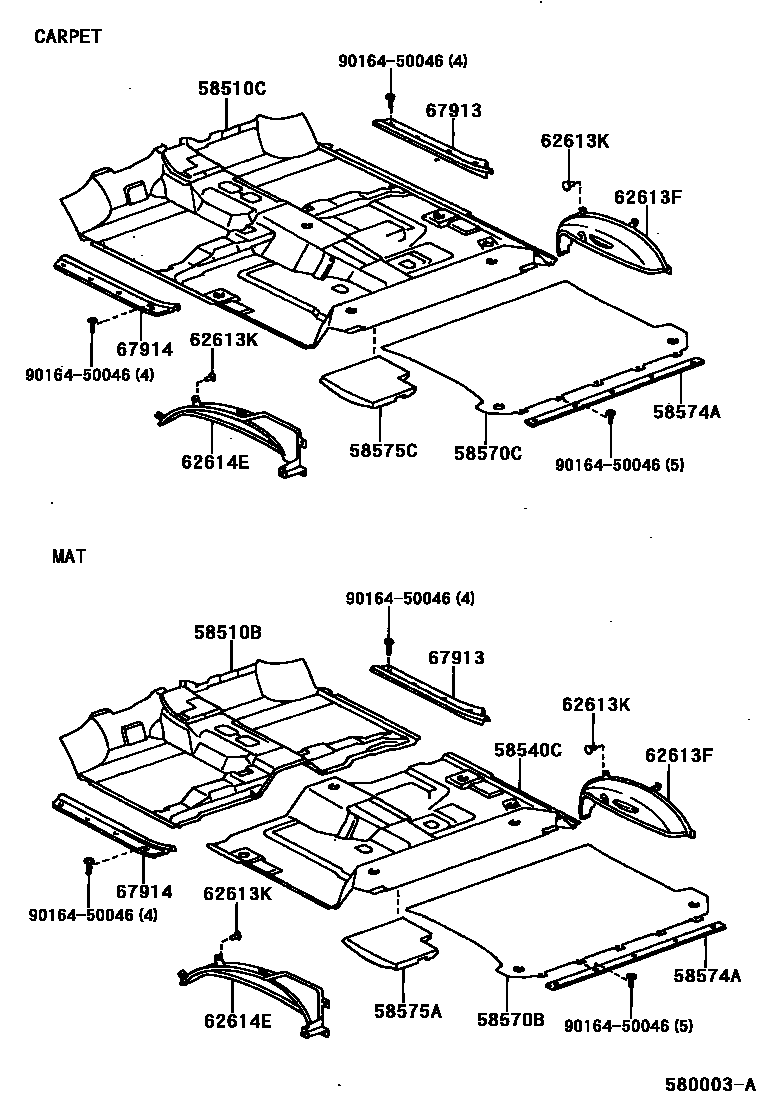

Parts diagram
58510BMAT, FRONT FLOOR, FRONT
main58510-6A390-B0i199604-199906
MD.MOON MIST,TRIM1#
main58510-6A400-B0i199604-200209
MD.MOON MIST,TRIM1#
main58510-6A560-B0i199604-199906
MD.MOON MIST,TRIM1#
main58510-6A570-B0i199604-200209
MD.MOON MIST,TRIM1#
main58510-6B271-B0i199906-200209
GRAY,TRIM1#
main58510-6B271-E0i199906-200209
OAK,TRIM4#
main58510-6B320-B0i199604-199906
W(REAR HEATER),MD.MOON MIST,TRIM1#
main58510-6B330-B0i199604-200209
W(REAR HEATER),MD.MOON MIST,TRIM1#
main58510-6B340-B0i199604-200209
W(REAR HEATER),MD.MOON MIST,TRIM1#
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-6A280-B0i199604-199701
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A281-B0i199701-199906
W(FRONT CONSOLE BOX & REAR HEATER),GRAY,TRIM1#
main58510-6A282-B0i199906-200209
W(FRONT SEPARATE SEAT & FRONT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH & REARHEATER),GRAY,TRIM1#
main58510-6A282-E0i199906-200209
W(FRONT SEPARATE SEAT & FRONT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH & REARHEATER),OAK,TRIM4#
main58510-6A290-B0i199604-199906
W(FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A300-B0i199604-199701
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A301-B0i199701-199906
W(FRONT CONSOLE BOX),GRAY,TRIM1#
main58510-6A302-B0i199906-200209
W(FRONT SEPARATE SEAT & FRONT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH),GRAY,TRIM1#
main58510-6A302-E0i199906-200209
W(FRONT SEPARATE SEAT & FRONT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH),OAK,TRIM4#
main58510-6A310-B0i199604-199701
W(FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A311-B0i199701-199906
W(WALK-IN SEAT),GRAY,TRIM1#
main58510-6A312-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT),GRAY,TRIM1#
main58510-6A312-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT),OAK,TRIM4#
main58510-6A320-B0i199604-199701
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A321-B0i199701-199906
W(FRONT CONSOLE BOX & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A321-B0i199808-199910
GRAY,TRIM1#
main58510-6A330-B0i199604-199701
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6A331-B0i199701-199906
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6A332-B0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH),GRAY,TRIM1#
main58510-6A332-E0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH),OAK,TRIM4#
main58510-6A370-B0i199604-199701
W(FRONT CONSOLE BOX & REAR HEATER),GRAY,TRIM1#
main58510-6A371-B0i199701-200209
W(FRONT CONSOLE BOX & REAR HEATER),GRAY,TRIM1#
main58510-6A371-E0i199906-200209
W(FRONT CONSOLE BOX & REAR HEATER),OAK,TRIM4#
main58510-6A380-B0i199608-199701
GRAY,TRIM1#
main58510-6A380-B0i199604-199701
W(FRONT CONSOLE BOX),GRAY,TRIM1#
main58510-6A381-B0i199701-200209
W(FRONT CONSOLE BOX),GRAY,TRIM1#
main58510-6A381-E0i199906-200209
W(FRONT CONSOLE BOX),OAK,TRIM4#
main58510-6A390-B0i199906-200209
MD.MOON MIST,TRIM1#
main58510-6A410-B0i199604-199701
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A411-B0i199701-199906
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A412-B0i199906-200209
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER & 6:4 SPLIT REAR NO.1 SEAT),GRAY,TRIM1#
main58510-6A412-E0i199906-200209
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER & 6:4 SPLIT REAR NO.1 SEAT),OAK,TRIM4#
main58510-6A420-B0i199604-199701
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A421-B0i199701-199906
GRAY,TRIM1#
main58510-6A422-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH),GRAY,TRIM1#
main58510-6A422-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH),OAK,TRIM4#
main58510-6A430-B0i199604-199701
W(FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A431-B0i199701-199906
W(WALK-IN SEAT),GRAY,TRIM1#
main58510-6A432-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT),GRAY,TRIM1#
main58510-6A432-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT),OAK,TRIM4#
main58510-6A440-B0i199604-199701
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6A441-B0i199701-199906
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6A442-B0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH),GRAY,TRIM1#
main58510-6A442-E0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH),OAK,TRIM4#
main58510-6A470-B0i199604-199701
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A471-B0i199701-200008
GRAY,TRIM1#
main58510-6A471-E0i199906-200008
OAK,TRIM4#
main58510-6A480-B0i199604-199701
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A481-B0i199701-199906
GRAY,TRIM1#
main58510-6A482-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH),GRAY,TRIM1#
main58510-6A482-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH),OAK,TRIM4#
main58510-6A530-B0i199604-199701
GRAY,TRIM1#
main58510-6A531-B0i199701-199906
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A532-B0i199906-200312
W(FRONT SEPARATE SEAT & FRONT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT & REARHEATER),GRAY,TRIM1#
main58510-6A532-E0i199906-200312
W(FRONT SEPARATE SEAT & FRONT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT & REARHEATER),OAK,TRIM4#
main58510-6A540-B0i199604-199701
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A541-B0i199701-199906
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A542-B0i199906-200209
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & 6:4 SPLIT REAR NO.1 SEAT),GRAY,TRIM1#
main58510-6A542-E0i199906-200209
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & 6:4 SPLIT REAR NO.1 SEAT),OAK,TRIM4#
main58510-6A550-B0i199604-199701
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A551-B0i199701-199906
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A552-B0i199906-200209
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A552-E0i199906-200209
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT),OAK,TRIM4#
main58510-6A630-B0i199604-199701
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A631-B0i199701-199906
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A632-B0i199906-200209
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A632-E0i199906-200209
W(FRONT CONSOLE BOX & FRONT SEPARATE SEAT & REAR HEATER),OAK,TRIM4#
main58510-6A640-B0i199604-199701
W(FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A641-B0i199701-199906
W(WALK-IN SEAT),GRAY,TRIM1#
main58510-6A642-B0i199906-200209
W(WALK-IN SEAT),GRAY,TRIM1#
main58510-6A642-E0i199906-200209
W(WALK-IN SEAT),OAK,TRIM4#
main58510-6A650-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A651-B0i199701-199906
W(REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A652-B0i199906-200209
W(REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A652-E0i199906-200209
W(REAR HEATER & WALK-IN SEAT),OAK,TRIM4#
main58510-6A660-B0i199604-199701
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A661-B0i199701-199906
GRAY,TRIM1#
main58510-6A662-B0i199906-200209
GRAY,TRIM1#
main58510-6A662-E0i199906-200209
OAK,TRIM4#
main58510-6A670-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A671-B0i199701-199906
W(REAR HEATER),GRAY,TRIM1#
main58510-6A672-B0i199906-200209
W(REAR HEATER),GRAY,TRIM1#
main58510-6A672-E0i199906-200209
W(REAR HEATER),OAK,TRIM4#
main58510-6A680-B0i199604-199701
W(FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A681-B0i199701-199906
W(FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A682-B0i199906-200209
W(FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A682-E0i199906-200209
W(FRONT SEPARATE SEAT & WALK-IN SEAT),OAK,TRIM4#
main58510-6A690-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A691-B0i199701-199906
W(FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A692-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A692-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),OAK,TRIM4#
main58510-6A700-B0i199604-199701
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A701-B0i199701-199906
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A702-B0i199906-200209
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A702-E0i199906-200209
W(FRONT SEPARATE SEAT),OAK,TRIM4#
main58510-6A710-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A711-B0i199701-199906
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A712-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A712-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR HEATER),OAK,TRIM4#
main58510-6A760-B0i199604-199906
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A770-B0i199604-199701
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6A771-B0i199701-199906
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6A772-B0i199906-200209
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6A772-E0i199906-200209
W(FRONT BENCH SEAT),OAK,TRIM4#
main58510-6A780-B0i199604-199701
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6A781-B0i199701-199906
GRAY,TRIM1#
main58510-6A782-B0i199906-200209
GRAY,TRIM1#
main58510-6A782-E0i199906-200209
OAK,TRIM4#
main58510-6A790-B0i199604-199701
W(FRONT SEPARATE SEAT & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A791-B0i199701-199906
W(WALK-IN SEAT),GRAY,TRIM1#
main58510-6A792-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT),GRAY,TRIM1#
main58510-6A792-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT),OAK,TRIM4#
main58510-6A800-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A801-B0i199701-199906
W(REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A802-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT & REAR HEATER),GRAY,TRIM1#
main58510-6A802-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT & REAR HEATER),OAK,TRIM4#
main58510-6A810-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A811-B0i199701-199906
W(REAR HEATER),GRAY,TRIM1#
main58510-6A812-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),GRAY,TRIM1#
main58510-6A812-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),OAK,TRIM4#
main58510-6A820-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A821-B0i199701-199906
W(REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A822-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT & REAR HEATER),GRAY,TRIM1#
main58510-6A822-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT & REAR HEATER),OAK,TRIM4#
main58510-6A830-B0i199604-199701
W(FRONT SEPARATE SEAT),GRAY,TRIM1#
main58510-6A831-B0i199701-199906
GRAY,TRIM1#
main58510-6A832-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH),GRAY,TRIM1#
main58510-6A832-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH),OAK,TRIM4#
main58510-6A840-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A841-B0i199701-199906
W(REAR HEATER),GRAY,TRIM1#
main58510-6A842-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),GRAY,TRIM1#
main58510-6A842-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),OAK,TRIM4#
main58510-6A850-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A851-B0i199701-199906
W(REAR HEATER & WALK-IN SEAT),GRAY,TRIM1#
main58510-6A852-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT & REAR HEATER),GRAY,TRIM1#
main58510-6A852-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT & REAR HEATER),OAK,TRIM4#
main58510-6A860-B0i199604-199701
W(FRONT SEPARATE SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6A861-B0i199701-199906
W(REAR HEATER),GRAY,TRIM1#
main58510-6A862-B0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),GRAY,TRIM1#
main58510-6A862-E0i199906-200209
W(FRONT SEPARATE SEAT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),OAK,TRIM4#
main58510-6B020-B0i199604-199701
W(FRONT BENCH SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6B021-B0i199701-199906
W(FRONT BENCH SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6B022-B0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),GRAY,TRIM1#
main58510-6B022-E0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),OAK,TRIM4#
main58510-6B030-B0i199604-199701
W(FRONT BENCH SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6B031-B0i199701-199906
W(FRONT BENCH SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6B032-B0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),GRAY,TRIM1#
main58510-6B032-E0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),OAK,TRIM4#
main58510-6B040-B0i199604-199701
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6B041-B0i199701-199906
W(FRONT BENCH SEAT),GRAY,TRIM1#
main58510-6B042-B0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH),GRAY,TRIM1#
main58510-6B042-E0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH),OAK,TRIM4#
main58510-6B050-B0i199604-199701
W(FRONT BENCH SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6B051-B0i199701-199906
W(FRONT BENCH SEAT & REAR HEATER),GRAY,TRIM1#
main58510-6B052-B0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),GRAY,TRIM1#
main58510-6B052-E0i199906-200209
W(FRONT BENCH SEAT & REAR NO.1 SEAT=6:4 BENCH & REAR HEATER),OAK,TRIM4#
main58510-6B170-B0i199604-199701
W(REAR HEATER),GRAY,TRIM1#
main58510-6B171-B0i199701-200008
W(REAR HEATER),GRAY,TRIM1#
main58510-6B171-E0i199906-200008
W(REAR HEATER),OAK,TRIM4#
main58510-6B270-B0i199604-199701
GRAY,TRIM1#
main58510-6B271-B0i199701-199910
GRAY,TRIM1#
main58510-6B280-B0i199604-199701
W(REAR HEATER),GRAY,TRIM1#
main58510-6B281-B0i199701-200209
W(REAR HEATER),GRAY,TRIM1#
main58510-6B281-E0i199906-200209
W(REAR HEATER),OAK,TRIM4#
main58510-6B730-B0i199906-200209
W(FRONT SEPARATE SEAT & FRONT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT),GRAY,TRIM1#
main58510-6B730-E0i199906-200209
W(FRONT SEPARATE SEAT & FRONT & REAR CONSOLE BOX & REAR NO.1 SEAT=6:4 SPLIT),OAK,TRIM4#
58540CMAT ASSY, FLOOR, REAR
main58540-60280-B0i199604-199701
MD.MOON MIST,TRIM1#
main58540-60281-B0i199701-199906
MD.MOON MIST,TRIM1#
main58540-60282-B0i199906-200209
MD.MOON MIST,TRIM1#
main58540-60290-B0i199604-200209
W(OPPOSING TYPE SEAT),MD.MOON MIST,TRIM1#
main58540-60300-B0i199604-199701
MD.MOON MIST,TRIM1#
main58540-60301-B0i199701-199906
MD.MOON MIST,TRIM1#
main58540-60302-B0i199906-200209
MD.MOON MIST,TRIM1#
main58540-60310-B0i199604-199701
W(REAR HEATER),MD.MOON MIST,TRIM1#
main58540-60311-B0i199701-199906
W(REAR HEATER),MD.MOON MIST,TRIM1#
main58540-60312-B0i199906-200209
W(REAR HEATER),MD.MOON MIST,TRIM1#
main58540-60320-B0i199604-200209
MD.MOON MIST,TRIM1#
main58540-60330-B0i199604-199906
W(REAR HEATER),MD.MOON MIST,TRIM1#
main58540-60340-B0i199604-200209
W(OPPOSING TYPE SEAT),MD.MOON MIST,TRIM1#
main58540-60350-B0i199604-200209
MD.MOON MIST,TRIM1#
main58540-60360-B0i199604-199906
W(REAR HEATER),MD.MOON MIST,TRIM1#
main58540-60370-B0i199604-199906
W(OPPOSING TYPE SEAT & REAR HEATER),MD.MOON MIST,TRIM1#
58570BMAT ASSY, REAR FLOOR
main58570-60280-B0i199604-200209
MD.MOON MIST,TRIM1#
main58570-60370-B0i199604-200209
W(OPPOSING TYPE SEAT),MD.MOON MIST,TRIM1#
main58570-60390-B0i199604-200209
W(OPPOSING TYPE SEAT),MD.MOON MIST,TRIM1#
main58570-60400-B0i199604-200209
MD.MOON MIST,TRIM1#
58570CCARPET ASSY, REAR FLOOR
main58570-60300-B0i199808-199906
GRAY,TRIM1#
main58570-60300-B0i199604-200209
W(THIRD SEAT),GRAY,TRIM1#
main58570-60300-E0i199906-200312
W(THIRD SEAT),OAK,TRIM4#
main58570-60310-B0i199604-199910
GRAY,TRIM1#
main58570-60310-E0i199906-200209
OAK,TRIM4#
main58570-60330-B0i199604-200312
W(DUAL AIR CONDITIONER & THIRD SEAT),GRAY,TRIM1#
main58570-60330-E0i199906-200312
W(DUAL AIR CONDITIONER & THIRD SEAT),OAK,TRIM4#
main58570-60340-B0i199604-200209
W/O(THIRD SEAT),GRAY,TRIM1#
main58570-60340-E0i199906-200209
W/O(THIRD SEAT),OAK,TRIM4#
main58570-60350-B0i199608-200209
W(DUAL AIR CONDITIONER & OPPOSING TYPE SEAT),GRAY,TRIM1#
main58570-60350-E0i199906-200209
W(DUAL AIR CONDITIONER & OPPOSING TYPE SEAT),OAK,TRIM4#
main58570-60360-B0i199604-200209
W(OPPOSING TYPE SEAT),GRAY,TRIM1#
sub58570-60360
main58570-60360-B0i199906-200209
GRAY,TRIM1#
sub58570-60360
main58570-60360-E0i199906-200209
OAK,TRIM4#
sub58570-60360
main58570-60360-E0i199906-200209
W(OPPOSING TYPE SEAT),OAK,TRIM4#
sub58570-60360
main58570-60460-B0i199604-199906
W/O(THIRD SEAT),GRAY,TRIM1#
main58570-60461-B0i199906-200004
W/O(THIRD SEAT),GRAY,TRIM1#
main58570-60461-E0i199906-200004
W/O(THIRD SEAT),OAK,TRIM4#
main58570-60463-B0i200004-200209
W/O(THIRD SEAT),GRAY,TRIM1#
main58570-60463-E0i200004-200209
W/O(THIRD SEAT),OAK,TRIM4#
main58570-60470-B0i199604-199906
W(THIRD SEAT),GRAY,TRIM1#
main58570-60471-B0i199906-200004
W(THIRD SEAT),GRAY,TRIM1#
main58570-60471-E0i199906-200004
W(THIRD SEAT),OAK,TRIM4#
main58570-60473-B0i200004-200209
W(THIRD SEAT),GRAY,TRIM1#
main58570-60473-E0i200004-200209
W(THIRD SEAT),OAK,TRIM4#
main58570-60480-B0i199604-199906
W(DUAL AIR CONDITIONER & THIRD SEAT),GRAY,TRIM1#
sub58570-60470
main58570-60481-B0i199906-200004
W(DUAL AIR CONDITIONER & THIRD SEAT),GRAY,TRIM1#
main58570-60481-E0i199906-200004
W(DUAL AIR CONDITIONER & THIRD SEAT),OAK,TRIM4#
main58570-60483-B0i200004-200209
W(DUAL AIR CONDITIONER & THIRD SEAT),GRAY,TRIM1#
main58570-60483-E0i200004-200209
W(DUAL AIR CONDITIONER & THIRD SEAT),OAK,TRIM4#
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
main58574-60030-B0i199604-199906
MD.MOON MIST,TRIM1#
sub58574-60030
main58574-60030-E0i199906-200312
OAK,TRIM4#
sub58574-60030
58575APAD, FRONT FLOOR, REAR A
main58575-60010i199604-199906
58575CPAD, FRONT FLOOR, FRONT
main58575-60010i199604-200209
62613FCOVER, QUARTER WHEEL HOUSE, RH
main62613-60280-B0i199604-199906
W(THIRD SEAT),MD.MOON MIST,TRIM1#
sub62613-60280
main62613-60280-E0i199906-200312
W(THIRD SEAT),OAK,TRIM4#
sub62613-60280
main62613-60410-B0i199604-199906
MD.MOON MIST,TRIM1#
sub62613-60410
main62613-60410-E0i199906-200209
OAK,TRIM4#
sub62613-60410
main62613-60420-B0i199604-200209
MD.MOON MIST,TRIM1#
sub62613-60420
main62613-60420-E0i199906-200209
OAK,TRIM4#
sub62613-60420
main62613-60430-B0i199604-200412
W(OPPOSING TYPE SEAT),MD.MOON MIST,TRIM1#
main62613-60430-E0i199906-200209
W(OPPOSING TYPE SEAT),OAK,TRIM4#
62613KCLIP (FOR QUARTER WHEEL HOUSE COVER)
main90467-05021-B1i199906-200209
LT.BLUISH GRAY,TRIM1#
sub90467-05021
sub90467-06177
main90467-05021-B1i199906
LT.BLUISH GRAY,TRIM11
sub90467-05021
sub90467-06177
main90467-05021-B3i199906
MD.MOON MIST,TRIM11
sub90467-05021
sub90467-06177
main90467-05021-B4i199604-199910
MOON MIST,TRIM10
sub90467-05021
sub90467-06177
main90467-05021-B4i199604-199910
MOON MIST,TRIM1#
sub90467-05021
sub90467-06177
main90467-05021-E1i199906-200209
MD.OAK,TRIM4#
sub90467-05021
sub90467-06177
main90467-05021-E1i199906-200312
MD.OAK,TRIM40
sub90467-05021
sub90467-06177
main90467-05021-E6i199906-200312
OAK,TRIM40
sub90467-05021
sub90467-06177
62614ECOVER, QUARTER WHEEL HOUSE, LH
main62614-60350-B0i199604-199906
W(THIRD SEAT),MD.MOON MIST,TRIM1#
sub62614-60350
main62614-60350-E0i199906-200312
W(THIRD SEAT),OAK,TRIM4#
sub62614-60350
main62614-60360-B0i199604-199906
MD.MOON MIST,TRIM1#
main62614-60360-E0i199906-200209
OAK,TRIM4#
main62614-60370-B0i199604-200209
MD.MOON MIST,TRIM1#
main62614-60370-E0i199906-200209
OAK,TRIM4#
main62614-60380-B0i199604-200412
W(OPPOSING TYPE SEAT),MD.MOON MIST,TRIM1#
main62614-60380-E0i199906-200209
W(OPPOSING TYPE SEAT),OAK,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-60020-B0i199604-199906
MD.MOON MIST,TRIM1#
sub67913-60021
sub67913-60020
main67913-60020-E0i199906-200312
OAK,TRIM4#
sub67913-60021
sub67913-60020
main67913-60030-B0i199604-199906
MD.MOON MIST,TRIM1#
main67913-60030-E0i199906-200209
OAK,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-60010-B0i199604-199906
MD.MOON MIST,TRIM1#
sub67914-60011
sub67914-60010
main67914-60010-E0i199906-200312
OAK,TRIM4#
sub67914-60011
sub67914-60010
main67914-60020-B0i199604-199906
MD.MOON MIST,TRIM1#
main67914-60020-E0i199906-200209
OAK,TRIM4#
9016450046
main90164-50046

14 parts on this diagram · 2 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
