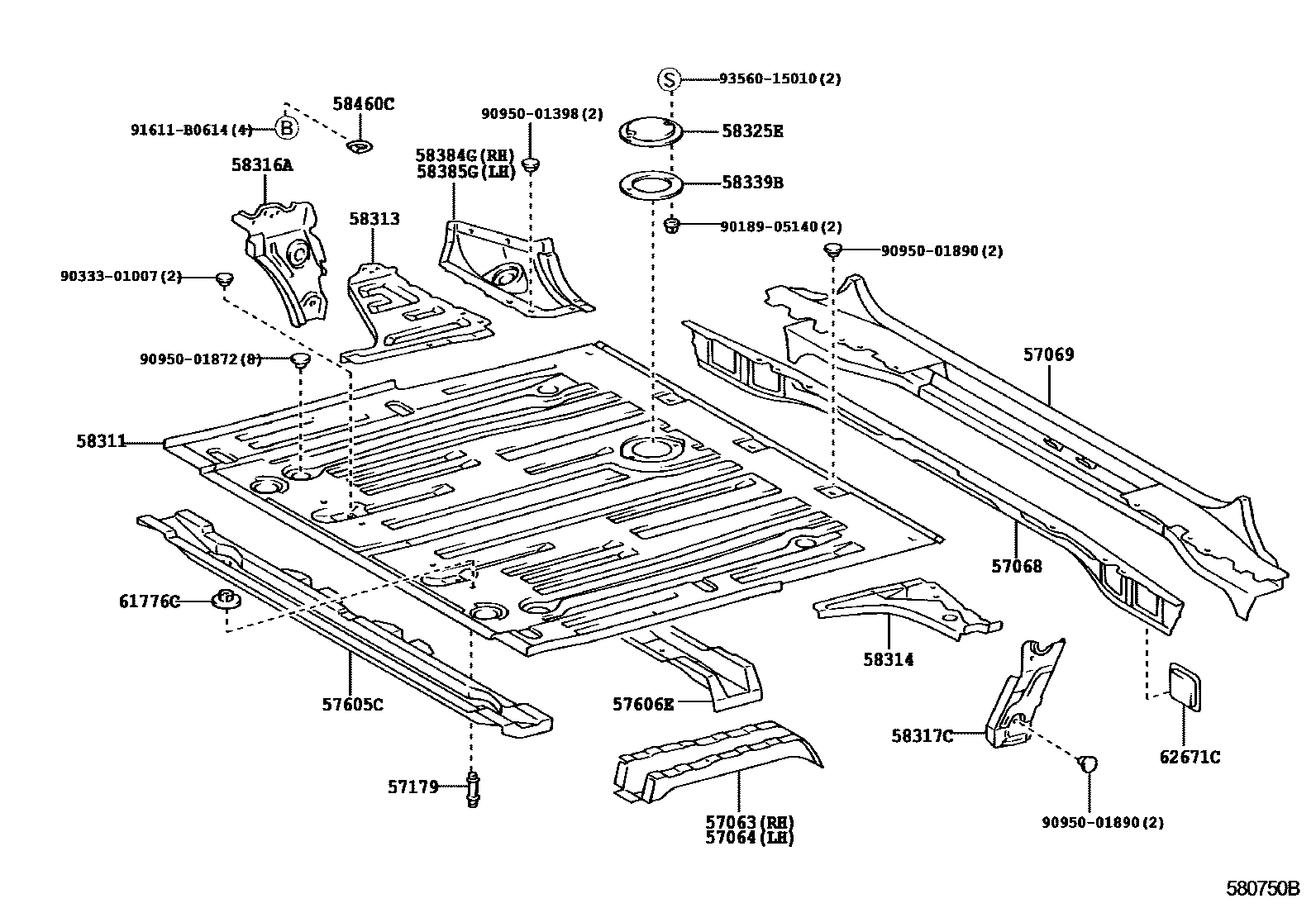

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57063BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH

main57063-60900iVZJ95..CO199808-199906

main57063-60900iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN)199604-200801

W(BENCH SEAT)

main57689-60030iKZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN199604-200412

main57689-60050iKZJ90,RZJ90,VZJ90..(GX,VX)..(GCC,GEN)199604-199910

57064BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR LH

main57063-60900iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(GCC,GEN,MA)199604-200801

W(BENCH SEAT)

main57063-60900iVZJ95..CO199808-199906

main57689-60030iKZJ95,LJ95,RZJ95,VZJ95199604-200412

main57689-60050iRZJ90..CO;LJ90,RZJ90..STD199604-199910

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-60010iKZJ95,LJ95,RZJ95,VZJ95..GCC,GEN199604-200412

main57068-60010iRZJ95..EFI..GEN;LJ95,RZJ95,VZJ95..(STD,VX)..(CO,GEN)199801-200310

W(OPPOSING TYPE SEAT)

main57068-60020iRZJ95,VZJ95..ARL199604-199906

main57068-60040iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

main57068-60050iLJ90,RZJ90..STD200004-200209

W(OPPOSING TYPE SEAT)

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-60010iKZJ95,LJ95;RZJ95..(GX,VX)..(GCC,GEN,MA);RZJ95,VZJ95..LHD..(STD,VX)..(CO,GEN)199604-200412

main57069-60010iRZJ95..ARL;VZJ95..ARL,GCC199801-200310

W(OPPOSING TYPE SEAT)

main57069-60020iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

57179BOLT, FLOOR CROSSMEMBER

main57179-60010iKZJ90,LJ90,RZJ90,VZJ90199604-199910

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-60110iKZJ90,LJ90,RZJ90,VZJ90199604-199910

main57652-60050iLJ90,RZJ90..STD199604-200209

W(OPPOSING TYPE SEAT)

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-60130iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200412

main57606-60140iRZJ95..GX..MA;KZJ95,RZJ95..ATM..(GCC,MA)199604-200312

W(DUAL AIR CONDITIONER)

58311PAN, REAR FLOOR

main58311-60351iKZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GCC,GEN)199604-200209

W(TRANSVERSE THIRD SEAT)

main58311-60380iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200412

main58311-60390iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

W(TRANSVERSE REAR SEAT)

main58311-60400iLJ90,RZJ90..STD199604-200209

sub58311-60390

sub90333-25001

58313PANEL, REAR FLOOR SIDE, RH

main58313-60140iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-200812

sub58313-60150

sub90333-25001

main58313-60150iLJ90,RZJ90..STD199604-200209

W(OPPOSING TYPE SEAT)

main58313-60900iKZJ95..ARL199604-200812

main58313-60901iRZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN)199604-200310

W(DUAL AIR CONDITIONER)

58314PANEL, REAR FLOOR SIDE, LH

main58314-60060iVZJ95..CO;RZJ95..ARL199801-200209

W(DUAL AIR CONDITIONER & OPPOSING TYPE SEAT)

main58314-60060iKZJ95,LJ95,RZJ95,VZJ95199604-199801

main58314-60070iVZJ95..GCC;KZJ95,LJ95,RZJ95..CBR,DSL,TD199604-200209

W(OPPOSING TYPE SEAT)

main58314-60070iRZJ95..GEN200209-200412

main58314-60080iKZJ90,LJ90,RZJ90,VZJ90199604-199910

sub58314-60090

sub90333-25001

main58314-60090iLJ90,RZJ90..STD199604-200209

W(OPPOSING TYPE SEAT)

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-60030iKZJ95,LJ95,RZJ95,VZJ95199604-200412

main58316-60030iRZJ95..ARL;VZJ95..ARL,GCC;RZJ95..CBR..GCC199801-200310

W(OPPOSING TYPE SEAT)

main58316-60040iRZJ90..CO;LJ90,RZJ90..STD199604-199910

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-60030iVZJ95..CO199604-200412

main58317-60030iRZJ95..ARL;VZJ95..ARL,GCC;RZJ95..CBR..GCC199801-200310

W(OPPOSING TYPE SEAT)

main58317-60040iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-90K00iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

58384GGUSSET, LOWER BACK, UPPER RH

main58384-60020iVZJ95..CO;RZJ9#..ARL,CO199604-200412

58385GGUSSET, LOWER BACK, UPPER LH

main58385-60020iRZJ95..ARL,GCC;LJ95,RZJ95..STD;RZJ95..EFI..GEN;KZJ90,LJ90,RZJ90,VZJ9#199604-200412

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35011iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

sub58460-35012

main58460-35012iKZJ9#,LJ9#,RZJ9#,VZJ9#199906-200209

61776CNUT, W/PLATE

main61776-60010iKZJ90,LJ90,RZJ90,VZJ90..GCC,GEN199604-199910

62671CCOVER, LOWER BACK PANEL

main62671-60010iRZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9#199604-200209

9018905140

main90189-05140

9033301007

main90333-01007

9095001398

main90950-01398

9095001872

main90950-01872

9095001890

main90950-01890

91611B0614

main91611-B0614

9356015010

main93560-15010

26 parts on this diagram · 2 diagrams in section
