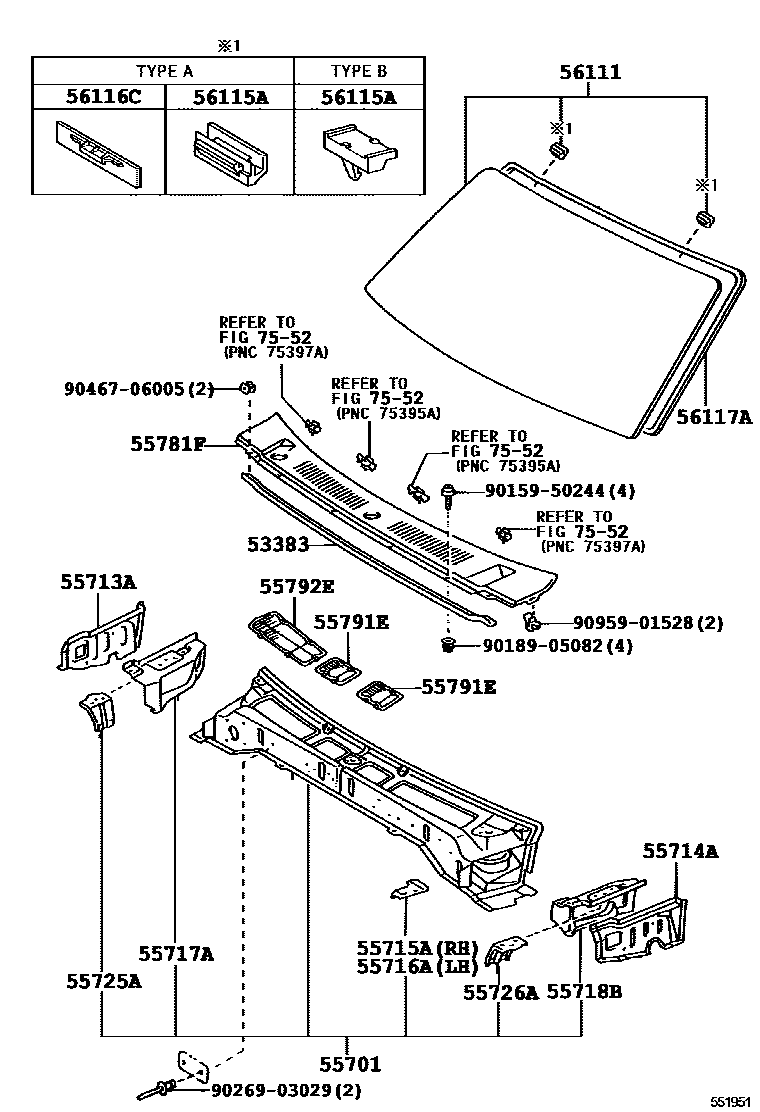

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

55701PANEL SUB-ASSY, COWL

main55700-6A510iLJ9#..LHD199604-199809

sub55700-6A511

main55700-6A511iLJ9#..LHD199809-200209

main55700-6A520iVZJ95..ARL199604-199809

sub55700-6A521

main55700-6A521iVZJ95..ARL199809-200209

main55700-6A540iVZJ9#..LHD199608-199809

sub55700-6A541

main55700-6A541iVZJ9#..LHD199809-199910

main55700-6A550iRZJ95..EFI199604-199809

sub55700-6A551

main55700-6A551iRZJ95..RHD199809-200412

main55700-6A560iRZJ90..EFI199604-199809

sub55700-6A561

main55700-6A561iRZJ9#..LHD199809-199910

main55700-6A570iRZJ95..RHD..CBR199604-199809

sub55700-6A571

main55700-6A571iRZJ95..RHD..CBR199809-199906

sub55700-6A551

main55700-6A580iRZJ9#..LHD..CBR199604-199809

sub55700-6A581

main55700-6A581iRZJ9#..LHD..CBR199809-199906

sub55700-6A561

main55700-6A591iKZJ95..ARL199909-200209

main55700-6A601iKZJ95..MA199910-200008

main55700-6A610iKZJ9#199604-199809

sub55700-6A611

main55700-6A611iKZJ9#199809-200209

main55700-6A620iLJ9#..RHD199604-199809

sub55700-6A621

main55700-6A621iLJ9#..RHD199809-200209

55713APANEL, COWL TOP SIDE, RH

main55713-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55714APANEL, COWL TOP SIDE, LH

main55714-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55715ABRACE, COWL TOP TO APRON, RH

main55715-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55716ABRACE, COWL TOP TO APRON, LH

main55716-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55717APANEL, COWL TOP SIDE, INNER RH

main55717-60020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-60020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-60020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55726-60020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55781FLOUVER, COWL TOP VENTILATOR

main55781-60080iKZJ95,LJ9#,RZJ95,VZJ95..RHD199604-200412

main55781-60090iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

55791ECOVER, HEATER DUCT HOLE

main55791-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

55792ECOVER, HEATER AIR DUCT HOLE, NO.2

main55792-60030iKZJ95,LJ9#,RZJ95,VZJ95..RHD199604-200412

main55792-60040iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

56111GLASS, WINDSHIELD

main56111-60130iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

*LAM,T=4.7,GREEN

main56111-60130iRZJ95..GCC;VZJ95..ATM..GCC199901-199906

*LAM,T=4.7,GREEN,CHINA SPEC

main56111-60170iVZJ95..ATM..VX..(ARL,GCC)199604-200310

*LAM,T=4.7,GREEN,W(TOP SHADE)

sub56111-60171

main56111-60340iRZJ95,VZJ9#..GCC199901-200209

*LAM,T=4.7,GREEN,W(VIN PLATE)

main56111-60350iVZJ9#..GCC199901-200209

*LAM,T=4.7,GREEN,W(TOP SHADE & VIN PLATE)

sub56111-60351

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iKZJ9#,LJ9#,RZJ9#,VZJ9#..(DSL,EFI,TD,TDEFI)..(ARL,CO,GCC,GEN)199604-200209

TYPE A:REFER ILLUST.

main56115-33020iRZJ95..CBR;RZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ95..ARL,CO,GEN199604-200209

TYPE B:REFER ILLUST.

main56115-33020iLJ95,RZJ95..RHD..GX..(DSL,EFI)..GEN199604-199906

MALAYSIA SPEC,TYPE B:REFER ILLUST.

main56115-33020iRZJ95..CBR;RZJ95..ARL;VZJ95..ATM..GCC;KZJ9#,LJ9#,RZJ90,VZJ95..ARL,CO,GEN199901-199906

W(TOP SHADE),TYPE B:REFER ILLUST.

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

TYPE A:REFER ILLUST.

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50020iKZJ9#,LJ9#,RZJ9#,VZJ9#199906-200001

L=3090

main56117-50020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200001

main56117-60060iRZJ95..ARL200001-200209

L=780,NO.1

sub56117-30280

main56117-60070iKZJ9#,LJ9#,RZJ9#,VZJ9#200001-200209

L=3090,NO.2

sub56117-64010

7552

9015950244

main90159-50244

9018905082

main90189-05082

9026903029

main90269-03029

9046706005

main90467-06005

9095901528

main90959-01528

23 parts on this diagram · 2 diagrams in section
