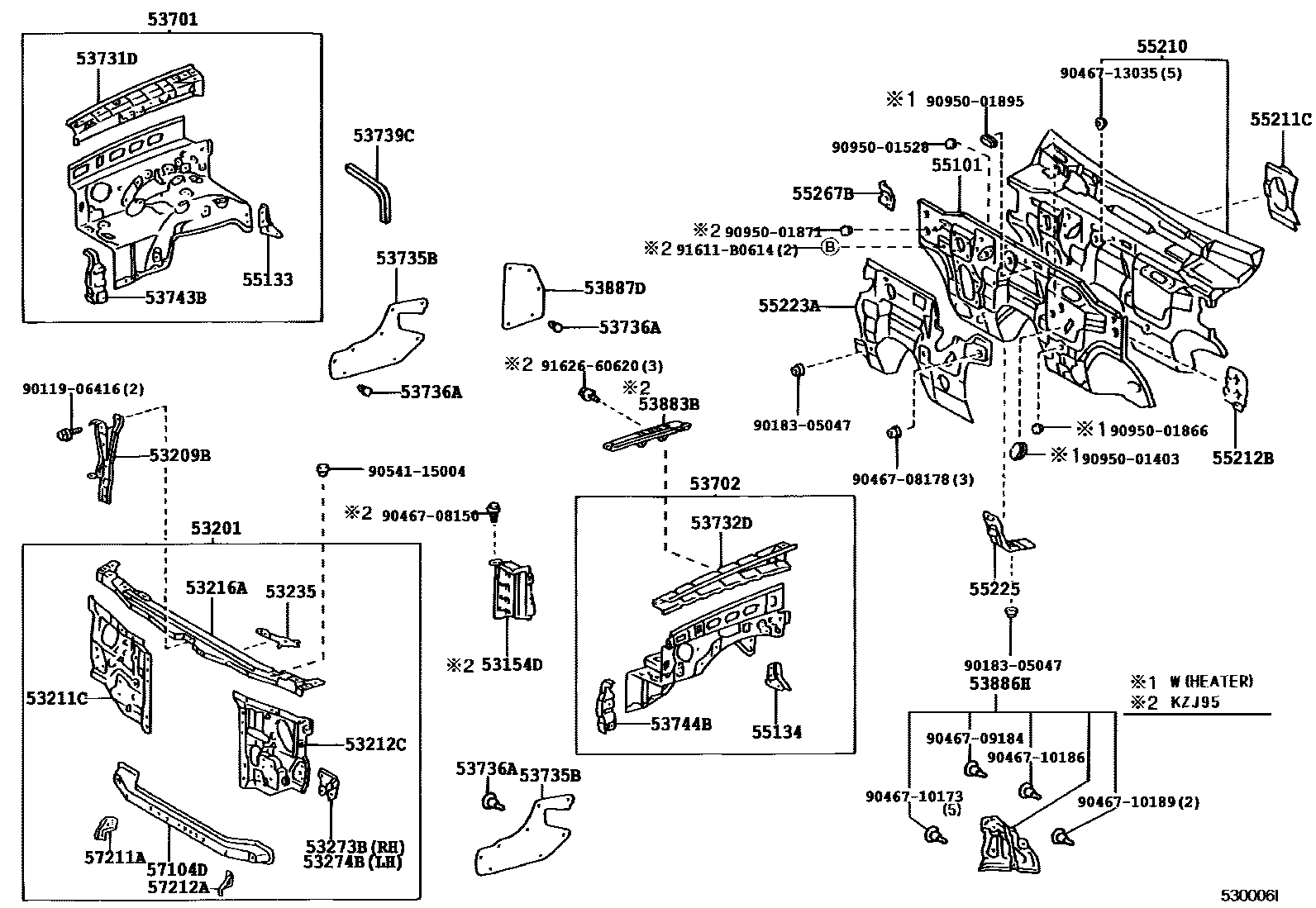

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-60020iKZJ95..RHD199909-200209

53201SUPPORT SUB-ASSY, RADIATOR

main53201-60060iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199811

main53201-60080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199811-200312

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

53211CSUPPORT, RADIATOR, RH

main53211-60900iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199811

main53211-60900iRZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90,VZJ90..GCC,GEN199811-199906

ROUND 2 TYPE SEALED BEAM

main53211-60901iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199811-200312

SCULAPTURE HEADLAMP

main53211-60901iRZJ95..MA;KZJ95..TDEFI..(GEN,MA)199910-200209

53212CSUPPORT, RADIATOR, LH

main53212-60900iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199811

main53212-60900iRZJ95..CBR..GEN;KZJ9#,LJ9#,RZJ90,VZJ90..GCC,GEN199811-199906

ROUND 2 TYPE SEALED BEAM

main53212-60901iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199811-200312

SCULAPTURE HEADLAMP

main53212-60901iRZJ95..MA;KZJ95..TDEFI..(GEN,MA)199910-200209

53216ASUPPORT, RADIATOR, UPPER

main53216-60050iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

53235BRACKET, HORN MOUNTING

main53235-60010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-60010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

53274BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53274-60010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-60550iRZJ95,VZJ95..RHD..(GX,VX)199604-199801

W(ABS)

sub53701-60551

sub88467-30270

sub88469-28010

sub88688-60620

sub88716-6A880

sub90099-32130

sub90179-06115

sub93315-14008

sub93319-14010

main53701-60551iRZJ95,VZJ95..ARL;RZJ95..RHD..GX..CBR199801-199901

W(ABS)

sub53701-60552

main53701-60552iRZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)199901-200209

W(ABS)

main53701-60552iRZJ95..VX199910-200209

main53701-60560iKZJ9#,LJ9#..LHD199604-199801

sub53701-60571

sub88467-30270

sub88469-28010

sub88688-60630

sub88716-6A761

sub88716-6A890

sub88718-60850

sub90099-32130

sub90179-06115

sub93319-14010

main53701-60571iKZJ9#,LJ9#..LHD199801-199901

sub53701-60572

main53701-60572iKZJ9#,LJ9#..LHD199901-200209

sub53701-60622

main53701-60590iRZJ9#,VZJ9#..LHD..(GX,VX)199604-199801

W(ABS)

sub53701-60591

sub88467-30270

sub88469-28010

sub88688-60630

sub88716-6A721

sub88716-6A761

sub88718-60850

sub90099-32130

sub90179-06115

sub93319-14010

main53701-60591iVZJ95..CO199808-199901

sub53701-60592

main53701-60591iRZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN)199801-199901

W(ABS)

sub53701-60592

main53701-60592iRZJ90..GX..GEN;RZJ95,VZJ9#..LHD..(GX,VX)199901-199910

W(ABS)

main53701-60610iRZJ9#,VZJ9#199604-199801

sub53701-60611

sub88467-30270

sub88469-28010

sub88688-60620

sub88688-60630

sub88716-6A721

sub88716-6A761

sub88716-6A880

sub88718-60850

sub90099-32130

sub90179-06115

sub93315-14008

sub93319-14010

main53701-60611iRZJ9#,VZJ90;VZJ95..ARL,GCC199801-199901

sub53701-60612

main53701-60612iVZJ95..ARL;RZJ9#..GX,STD;VZJ9#..MTM..GCC199901-200209

main53701-60620iLJ95..LHD199604-199801

W(BATTERY SUPPORT BRACKET)

sub53701-60621

sub88467-30270

sub88469-28010

sub88688-60630

sub88716-6A761

sub88716-6A890

sub88718-60850

sub90099-32130

sub90179-06115

sub93319-14010

main53701-60621iLJ95..LHD199801-199901

W(BATTERY SUPPORT BRACKET)

sub53701-60622

main53701-60622iLJ95..LHD199901-199906

W(BATTERY SUPPORT BRACKET)

main53701-60660iLJ9#..RHD199604-199801

sub53701-60661

sub88467-30270

sub88469-28010

sub88688-60620

sub88716-6A751

sub90099-32130

sub90179-06115

sub93315-14008

sub93319-14010

main53701-60661iLJ9#..RHD199801-199901

sub53701-60662

main53701-60662iLJ9#..RHD199901-200209

main53701-60670iKZJ9#199604-199801

W(ABS)

sub53701-60681

sub88467-30270

sub88469-28010

sub88688-60630

sub88716-6A761

sub88716-6A890

sub88718-60850

sub90099-32130

sub90179-06115

sub93319-14010

main53701-60681iKZJ9#199801-199901

W(ABS)

sub53701-60682

main53701-60682iKZJ9#..GEN199901-200209

W(ABS)

main53701-60702iKZJ95..MA199910-200209

main53701-60702iKZJ95..ARL199909-200209

W(ABS)

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-6A031iRZJ9#,VZJ9#199604-199801

sub53702-6A032

main53702-6A032iRZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN)199801-200001

sub53702-6A033

main53702-6A033iRZJ95..ARL200001-200209

main53702-6A072iLJ9#..RHD199801-200001

sub53702-6A073

main53702-6A073iKZJ95..RHD200001-200209

main53702-6A080iLJ9#..RHD199604-199608

sub53702-6A081

sub90174-06020

main53702-6A081iLJ9#..RHD199608-200001

sub53702-6A082

main53702-6A082iLJ9#..RHD200001-200209

main53702-6A111iKZJ9#,LJ9#..LHD199604-199801

sub53702-6A112

main53702-6A112iKZJ9#,LJ9#..LHD199801-200001

sub53702-6A113

main53702-6A113iKZJ9#,LJ9#..LHD200001-200209

sub53702-6A400

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10186iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-35010iKZJ9#,LJ9#,RZJ9#,VZJ9#199706-199807

sub53739-35011

main53739-35011iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199807-200209

main53739-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199706

sub53739-35010

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-60040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

53883BSEAL, FRONT FENDER, LH

main53883-60030iKZJ95..RHD199909-200209

53886HSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199807

sub53886-60011

main53886-60011iKZJ9#,LJ9#,RZJ9#,VZJ9#199807-199910

sub53886-60012

main53886-60012iKZJ9#,LJ9#,RZJ9#,VZJ9#199906-200004

sub53886-60013

main53886-60013iKZJ9#,LJ9#,RZJ9#,VZJ9#200004-200209

53887DSEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53887-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55101PANEL SUB-ASSY, DASH

main55101-6C780iRZJ95..GCC;KZJ9#,LJ9#,VZJ9#..LHD..MTM..(GCC,GEN)199604-200001

sub55101-6C781

sub87128-60090

main55101-6C781iVZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD..MTM200001

main55101-6C800iRZJ95,VZJ95..ATM..GCC199608-200001

sub55101-6C801

sub87128-60090

main55101-6C801iRZJ95,VZJ95..ATM..GCC200001-200209

sub55101-6D840

main55101-6C810iRZJ9#..LHD..GX..GEN199604-199906

W(ABS)

sub55101-6C820

main55101-6C820iVZJ95..MTM..CO199808-199906

sub55101-6C821

sub87128-60090

main55101-6C820iVZJ95..MTM..CO199604-200001

W(ABS)

sub55101-6C821

sub87128-60090

main55101-6C821iVZJ95..MTM..VX;KZJ9#,RZJ9#,VZJ90..LHD..MTM..(GX,VX)..(GCC,GEN)200001

W(ABS)

main55101-6C840iVZJ95..LHD..ATM199608-200001

W(ABS)

sub55101-6C841

sub87128-60090

main55101-6C841iRZJ95,VZJ95..LHD..ATM200001

W(ABS)

main55101-6C850iRZJ95..RHD..GEN199604-199906

sub55101-6C860

main55101-6C860iLJ9#,RZJ95..RHD..MTM199604-200412

main55101-6C870iVZJ95..MTM..ARL199604-200209

main55101-6C890iKZJ95..MA199604-200209

main55101-6D010iKZJ95..MTM..ARL200001-200209

main55101-6D020iKZJ95..MA199909-200209

main55101-6D030iRZJ9#..LHD..(CO,GEN)199604-199910

sub55101-6C780

main55101-6D540iVZJ95..ATM..ARL199909-200209

W(ACTIVE TRC)

main55101-6D550iKZJ95..ATM..ARL199909-200209

W(VSC)

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

55210INSULATOR ASSY, DASH PANEL

main55210-60050iLJ9#,RZJ95,VZJ95..RHD199604-199901

main55210-60051iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199901-200412

main55210-60060iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

55211CCOVER, DASH PANEL INSULATOR

main55211-35010iKZJ9#,LJ9#,RZJ9#..LHD199604-199605

sub55211-35011

main55211-35011iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD199605-199910

main55211-35020iLJ9#,RZJ95,VZJ95..RHD199604-199902

sub55211-35021

main55211-35021iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199902-200412

55212BCOVER, DASH PANEL INSULATOR, NO.2

main55212-35010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199807

sub55212-35020

main55212-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199807-200209

55223AINSULATOR, DASH PANEL, OUTER

main55223-35010iRZJ95..ARL;LJ9#,VZJ95..RHD199604-199807

sub55223-35011

main55223-35011iKZJ95,LJ9#,RZJ95,VZJ95..RHD199807-200004

sub55223-35012

main55223-35012iKZJ95,LJ9#,RZJ95,VZJ95..RHD200004-200412

main55223-60180iRZJ95..GCC;KZJ9#,LJ9#,VZJ9#..LHD199604-199807

sub55223-60181

main55223-60181iRZJ95..GCC;KZJ9#,LJ9#,VZJ9#..LHD199807-200004

sub55223-60182

main55223-60182iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD200004

55225INSULATOR, DASH PANEL HEAT

main55225-35060iRZJ95..RHD..GEN199604-199906

main55225-35070iRZJ9#..LHD..(CO,GEN)199604-199910

55267BCOVER, DASH PANEL INSULATOR, NO.3

main55267-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-60030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

57211ABRACKET, BODY MOUNTING, NO.1 RH

main57211-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

57212ABRACKET, BODY MOUNTING, NO.1 LH

main57212-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200312

9011906416

main90119-06416

9018305047

main90183-05047

9046708150

main90467-08150

9046708178

main90467-08178

9046709184

main90467-09184

9046710173

main90467-10173

9046710186

main90467-10186

9046710189

main90467-10189

9046713035

main90467-13035

9054115004

main90541-15004

9095001403

main90950-01403

9095001528

main90950-01528

9095001866

main90950-01866

9095001871

main90950-01871

9095001895

main90950-01895

91611B0614

main91611-B0614

9162660620

main91626-60620

50 parts on this diagram · 2 diagrams in section
