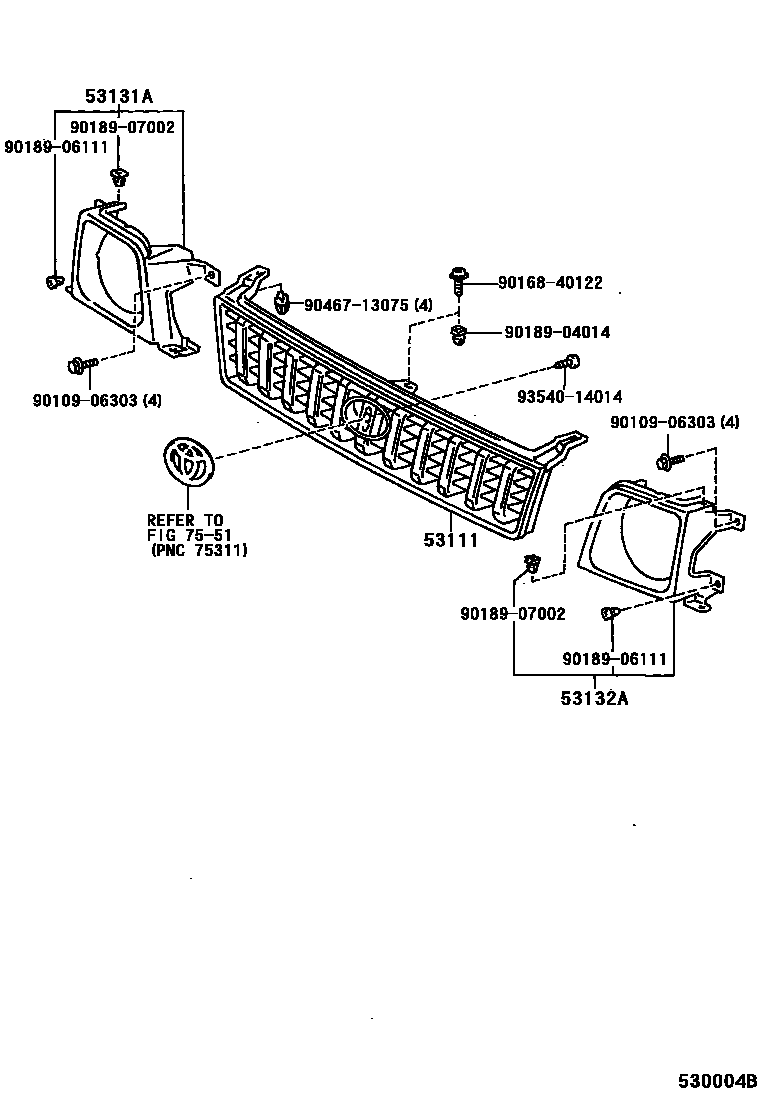

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-60290iRZJ90..CO199604-199910

UNPAINTED(BLACK)

main53111-60300iVZJ95..ATM..VX..(ARL,GCC)199604-199906

PAINTED(BLACK)

sub53111-60310

main53111-60310iRZJ95..ARL;RZJ95..LHD..GX;RZJ95..RHD..CBR;LJ95,VZJ95..GX,VX;KZJ9#,LJ90,RZJ90,VZJ90..LHD..(DSL,EFI,TD)199604-199910

CHROME PLATED

main53111-60380iRZJ95,VZJ95..ATM..GCC200206-200207

LIMITED EDITION(G.C.C.)

main53111-60380iRZJ95..ARL199906-200209

CHROME PLATED

main53111-60380iRZJ95,VZJ95..GCC200101-200106

50TH ANNIVERSARY LIMITED EDITION(G.C.C.)

main53111-60380iVZJ95..GCC200206-200207

SPECIAL EDITION(CHINA)

main53111-60390iRZJ95..GX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ95..(GX,STD)..(ARL,GEN)199906-200312

UNPAINTED(BLACK)

main53111-60400iVZJ95..GX200104-200106

LIMITED EDITION(AUSTRALIA)

sub53111-60390

main53111-60400iKZJ95,VZJ95..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA)

sub53111-60390

main53111-60400iRZJ95,VZJ95..ATM..GCC200106-200112

THE 2001 CAMPAIGN(CHINA) & CHROME PLATED

sub53111-60390

main53111-60400iLJ90..LHD;RZJ95..RHD..(STD,VX);RZJ95..GX..(GCC,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(GCC,GEN,MA)199906-200312

CHROME PLATED

sub53111-60390

main53111-60410iVZJ95..ATM..GCC199906-200209

PAINTED(BLACK)

sub53111-60390

53131ADOOR, HEADLAMP, RH

main53131-60040iKZJ9#,LJ9#,RZJ9#..GEN199604-199906

PAINTED(BLACK)

sub53131-60050

main53131-60060iLJ95,RZJ95..GX..GEN;KZJ9#,LJ90,RZJ90..LHD..(DSL,EFI,TD)199604-199906

CHROME PLATED

main53131-60060iVZJ90199608-199906

53132ADOOR, HEADLAMP, LH

main53132-60040iKZJ9#,LJ9#,RZJ9#..GEN199604-199906

PAINTED(BLACK)

sub53132-60050

main53132-60060iLJ95,RZJ95..GX..(CBR,DSL)..GEN;KZJ9#,LJ90,RZJ90..LHD..(DSL,EFI,TD)..GEN199604-199906

CHROME PLATED

main53132-60060iVZJ90199608-199906

7551

9010906303

main90109-06303

9016840122

main90168-40122

9018904014

main90189-04014

9018906111

main90189-06111

9018907002

main90189-07002

9046713075

main90467-13075

9354014014

main93540-14014

11 parts on this diagram · 2 diagrams in section
