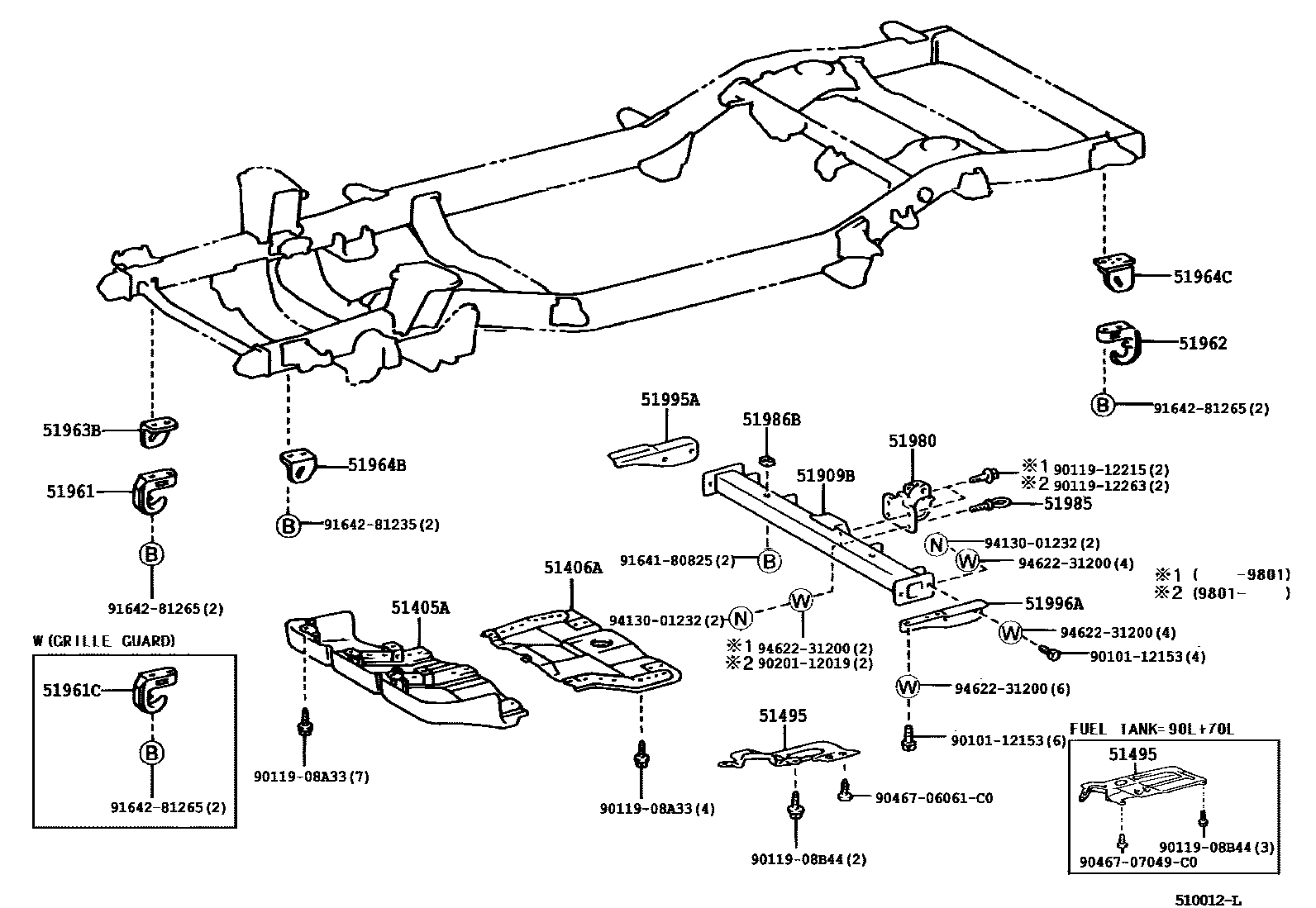

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35070iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199807

sub51405-35071

main51405-35071iKZJ9#..GEN199807-200412

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200412

51495COVER, TRANSMISSION UNDER

main51495-35010iKZJ95..GEN200008-200209

main51495-35010iRZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN)199707-200210

FUEL TANK=90L+70L

main51495-60320iRZJ95..ATM..ARL;VZJ95..ATM..(ARL,GCC)199704-200310

51909BTUBE SUB-ASSY, PINTLE HOOK SUPPORT

main51909-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199704-200312

51961HOOK, NO.1

main51961-35050iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199709

sub51961-35051

main51961-35051iKZJ9#,LJ9#,RZJ9#,VZJ9#199709-200209

51961CHOOK, FRONT

main51961-35050iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-199709

sub51961-35051

main51961-35051iKZJ95,RZJ95..MA199709-200209

51962HOOK, NO.2

main51961-35050iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199709

sub51961-35051

main51961-35051iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199709-200209

51963BHOOK, TRANSPORT, FRONT RH

main51963-35070iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51964BHOOK, TRANSPORT, FRONT LH

main51964-35050iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

51964CHOOK, TRANSPORT, REAR LH

main51963-35070iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

51980HOOK ASSY, PINTLE

main51980-60011iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199704-199801

sub51980-60012

sub90119-12263

sub90201-12019

main51980-60012iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199801-200312

51985HOOK, EYELET PINTLE

main51985-60011iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199704-200312

51986BRETAINER, PINTLE HOOK

main51986-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199704-200312

51995ABRACKET, PINTLE HOOK SUPPORT, RH

main51995-60010iKZJ90,LJ90,RZJ90,VZJ90..GCC,GEN199704-200209

main51995-60020iKZJ95,LJ95,RZJ95,VZJ95..GCC,GEN199704-200312

51996ABRACKET, PINTLE HOOK SUPPORT, LH

main51996-60010iKZJ90,LJ90,RZJ90,VZJ90..GCC,GEN199704-200209

main51996-60020iKZJ95,LJ95,RZJ95,VZJ95..GCC,GEN199704-200312

9010112153

main90101-12153

9011908A33

main90119-08A33

9011908B44

main90119-08B44

9011912215

main90119-12215

9011912263

main90119-12263

9020112019

main90201-12019

9046706061C0

main90467-06061C0

9046707049C0

main90467-07049C0

9164180825

main91641-80825

9164281235

main91642-81235

9164281265

main91642-81265

9413001232

main94130-01232

9462231200

main94622-31200

28 parts on this diagram · 2 diagrams in section
