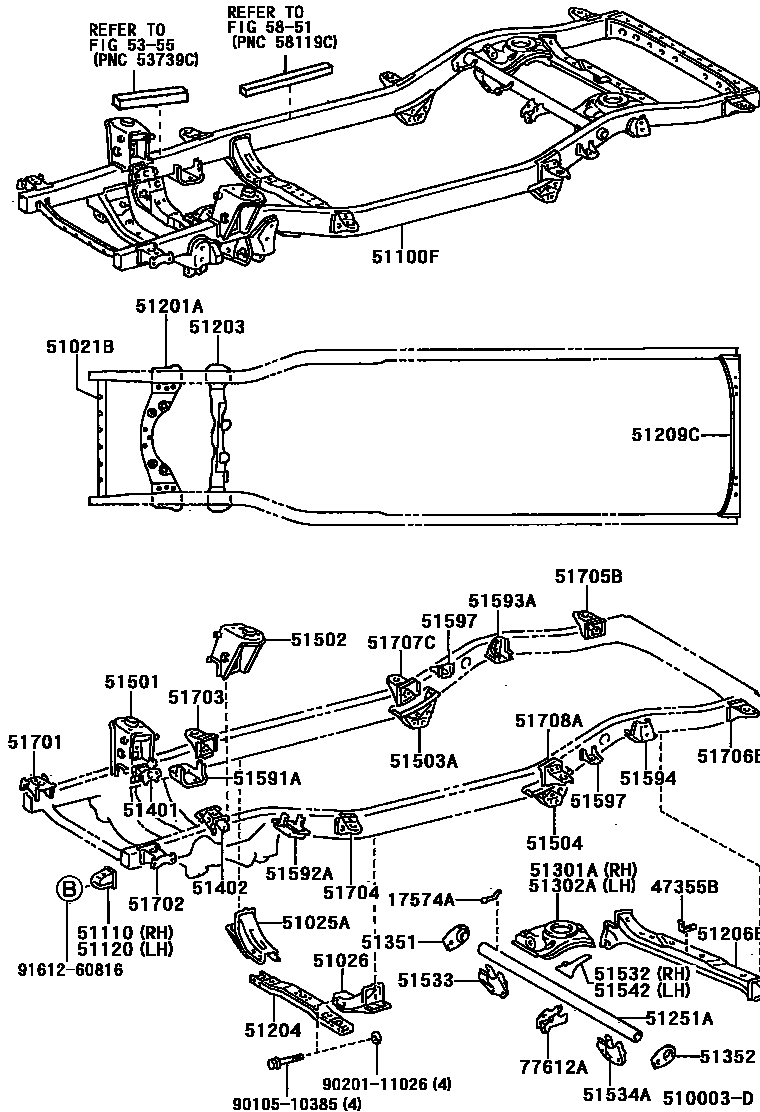

FRAME

0001 1 0002 1

17574ABRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-67010i3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN);1KZT,3L,3RZF,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

47355BBRACKET, FLEXIBLE HOSE, NO.5

main47355-35100iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA199604-200004

main47355-35110iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA200004-200412

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-35040iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199710

sub51021-60010

main51021-60010iKZJ9#,LJ9#,RZJ9#,VZJ9#199710-200209

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51100FFRAME SUB-ASSY

main51001-6A370iLJ90..RHD199604-199710

sub51001-6A371

sub52208-60031

main51001-6A371iLJ90..RHD199710-199808

sub51001-6A372

sub17572-62080

main51001-6A372iLJ90..RHD199808-199906

sub51001-6A373

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A373iLJ90..RHD199906-200209

main51001-6A380iLJ90..RHD199604-199710

W(FRONT BUMPER GUARD)

sub51001-6A381

sub52208-60031

main51001-6A381iLJ90..RHD199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A373

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A390iLJ90..LHD199604-199710

sub51001-6A391

sub52208-60031

main51001-6A391iLJ90..LHD199710-199808

sub51001-6A392

sub17572-62080

main51001-6A392iLJ90..LHD199808-199906

sub51001-6A393

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A393iLJ90..LHD199906-200209

main51001-6A400iLJ90..LHD199604-199710

W(FRONT BUMPER GUARD)

sub51001-6A401

sub52208-60031

main51001-6A401iLJ90..LHD199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A393

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A410iVZJ90199608-199710

sub51001-6A411

sub52208-60031

main51001-6A411iVZJ90199710-199808

sub51001-6A412

sub17572-62080

main51001-6A412iVZJ90199808-199906

sub51001-6A413

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A413iVZJ90199906-200209

sub51001-6A453

main51001-6A420iVZJ90199608-199710

W(WINCH)

sub51001-6A421

sub52208-60031

main51001-6A421iVZJ90199710-199808

W(WINCH)

sub51001-6A422

sub17572-62080

main51001-6A422iVZJ90199808-199906

W(WINCH)

sub51001-6A423

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A423iVZJ90199906-200209

W(WINCH)

main51001-6A430iVZJ90199608-199710

W(FRONT BUMPER GUARD)

sub51001-6A431

sub52208-60031

main51001-6A431iVZJ90199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A413

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A440iVZJ90199608-199710

W(WINCH & FRONT BUMPER GUARD)

sub51001-6A441

sub52208-60031

main51001-6A441iVZJ90199710-199808

W(WINCH & FRONT BUMPER GUARD)

sub51001-6A423

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A550iRZJ95..RHD..GEN199604-199710

sub51001-6A551

sub52208-60031

main51001-6A551iRZJ95..RHD..GEN199710-199808

sub51001-6A552

sub17572-62080

main51001-6A552iRZJ95..RHD..CBR199808-199906

sub51001-6A553

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A553iRZJ95..RHD..GEN199906-200412

sub51001-6A593

main51001-6A570iRZJ95..RHD..GEN199604-199710

W(FRONT BUMPER GUARD)

sub51001-6A571

sub52208-60031

main51001-6A571iRZJ95..RHD..GEN199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A572

sub17572-62080

main51001-6A572iRZJ95..EFI..GEN199808-199906

sub51001-6A573

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A573iRZJ95..GX..MA199910-200209

sub51001-6A553

main51001-6A590iRZJ95..MTM..ARL199604-199710

sub51001-6A591

sub52208-60031

main51001-6A591iRZJ95..MTM..ARL199710-199808

sub51001-6A592

sub17572-62080

main51001-6A592iRZJ95..MTM..ARL199808-199906

sub51001-6A593

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A593iRZJ95..MTM..ARL199910-200209

main51001-6A610iRZJ95..LHD199604-199710

W(WINCH)

sub51001-6A611

sub52208-60031

main51001-6A611iRZJ95..LHD199710-199808

W(WINCH)

sub51001-6A612

sub17572-62080

main51001-6A612iRZJ95..LHD199808-199906

W(WINCH)

sub51001-6A613

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A613iRZJ95..LHD..MTM199906-200312

W(WINCH)

main51001-6A630iRZJ95..LHD199604-199710

W(WINCH & FRONT BUMPER GUARD)

sub51001-6A631

sub52208-60031

main51001-6A631iRZJ95..LHD199710-199808

W(WINCH & FRONT BUMPER GUARD)

sub51001-6A613

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A650iRZJ95..GCC199604-199710

sub51001-6A651

sub52208-60031

main51001-6A651iRZJ95..GCC199710-199808

sub51001-6A652

sub17572-62080

main51001-6A652iRZJ95..GCC199808-199906

sub51001-6A653

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A653iRZJ95..MTM..GCC199906-200312

sub51001-6A613

sub51110-35010

sub51120-35010

main51001-6A670iRZJ95..GCC199604-199710

W(FRONT BUMPER GUARD)

sub51001-6A671

sub52208-60031

main51001-6A671iRZJ95..GCC199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A653

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A690iRZJ95..ATM199604-199710

sub51001-6A691

sub52208-60031

main51001-6A691iRZJ95..ATM199710-199808

sub51001-6A692

sub17572-62080

main51001-6A692iRZJ95..ATM199808-199906

sub51001-6A693

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A693iRZJ95..ATM..ARL199910-200209

main51001-6A710iVZJ95..ARL199604-199710

sub51001-6A711

sub52208-60031

main51001-6A711iVZJ95..ARL199710-199808

sub51001-6A712

sub17572-62080

main51001-6A712iVZJ95..ARL199808-199906

sub51001-6A713

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A713iVZJ95..ARL199906-200209

sub51002-6A064

sub51110-35010

sub51120-35010

main51001-6A730iKZJ95199604-199710

sub51001-6A731

sub52208-60031

main51001-6A731iKZJ95199710-199808

sub51001-6A732

sub17572-62080

main51001-6A732iKZJ95199808-199906

sub51001-6A733

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A733iKZJ95..GEN199906-200209

sub51003-6A490

main51001-6A750iKZJ95199604-199710

W(FRONT BUMPER GUARD)

sub51001-6A751

sub52208-60031

main51001-6A751iKZJ95199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A733

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A770iLJ95..RHD199604-199710

sub51001-6A771

sub52208-60031

main51001-6A771iLJ95..RHD199710-199808

sub51001-6A772

sub17572-62080

main51001-6A772iLJ95..RHD199808-199906

sub51001-6A773

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A773iLJ95..RHD199906-200209

main51001-6A790iLJ95..RHD199604-199710

W(FRONT BUMPER GUARD)

sub51001-6A791

sub52208-60031

main51001-6A791iLJ95..RHD199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A792

sub17572-62080

main51001-6A792iLJ95..RHD..GX199808-199906

W(FRONT BUMPER GUARD)

sub51001-6A793

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A810iLJ95..LHD199604-199710

sub51001-6A811

sub52208-60031

main51001-6A811iLJ95..LHD199710-199808

sub51001-6A812

sub17572-62080

main51001-6A812iLJ95..LHD199808-199906

sub51001-6A813

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A813iLJ95..LHD199906-200209

main51001-6A830iLJ95..LHD199604-199710

W(FRONT BUMPER GUARD)

sub51001-6A831

sub52208-60031

main51001-6A831iLJ95..LHD199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A813

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A850iVZJ95..GCC199608-199710

sub51001-6A851

sub52208-60031

main51001-6A851iVZJ95..GCC199710-199808

sub51001-6A852

sub17572-62080

main51001-6A852iVZJ95..GCC199808-199906

sub51001-6A853

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A853iVZJ95..GCC199906-200310

sub51001-6A863

sub51110-35010

sub51120-35010

main51001-6A860iVZJ95..GCC199608-199710

W(WINCH)

sub51001-6A861

sub52208-60031

main51001-6A861iVZJ95..GCC199710-199808

W(WINCH)

sub51001-6A862

sub17572-62080

main51001-6A862iVZJ95..GCC199808-199906

W(WINCH)

sub51001-6A863

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A862iVZJ95..CO199808-199910

sub51001-6A863

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51001-6A863iVZJ95..GCC199906-200310

W(WINCH)

main51001-6A863iVZJ95..CO199910-200004

main51001-6A890iVZJ95..GCC199608-199710

W(FRONT BUMPER GUARD)

sub51001-6A891

sub52208-60031

main51001-6A891iVZJ95..GCC199710-199808

W(FRONT BUMPER GUARD)

sub51001-6A853

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51002-6A010iVZJ95..GCC199608-199710

W(WINCH & FRONT BUMPER GUARD)

sub51002-6A011

sub52208-60031

main51002-6A011iVZJ95..GCC199710-199808

W(WINCH & FRONT BUMPER GUARD)

sub51001-6A863

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51002-6A403iKZJ95..ARL199909-200209

main51003-60860iRZJ90199604-199710

sub51003-60861

sub52208-60031

main51003-60861iRZJ90199710-199808

W(WINCH)

sub51003-60862

sub17572-62080

main51003-60862iRZJ90199808-199910

sub51003-60863

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51003-60863iRZJ90..GEN199906-200209

main51003-60870iRZJ90199604-199710

W(FRONT BUMPER GUARD)

sub51003-60871

sub52208-60031

main51003-60871iRZJ90199710-199808

W(FRONT BUMPER GUARD)

sub51003-60863

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51003-60880iKZJ90199604-199710

sub51003-60881

sub52208-60031

main51003-60881iKZJ90199710-199808

sub51003-60882

sub17572-62080

main51003-60882iKZJ90199808-199906

sub51003-60883

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51003-60883iKZJ90199906-200008

W(WINCH) OR ETHIOPIA OR VIETNAM SPEC

main51003-60890iKZJ90199604-199710

W(FRONT BUMPER GUARD)

sub51003-60891

sub52208-60031

main51003-60891iKZJ90199710-199808

W(FRONT BUMPER GUARD)

sub51003-60883

sub17572-62080

sub52203-35250

sub52217-35110

sub90119-10805

sub90201-10100

main51003-6A432iRZJ95..VX199910-200209

sub51001-6A693

main51003-6A442iKZJ95..MA199910-200209

main51003-6A480iKZJ90199906-200008

main51003-6A500iRZJ95..ATM..GCC199906-200209

W(WINCH)

sub51003-6A510

main51003-6A510iRZJ95..ATM..GCC199906-200209

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-35010iRZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC199604-200209

51120EXTENSION ASSY, SIDE RAIL, LH

main51120-35010iRZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC199604-200209

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-35261iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-35360iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

main51202-60190iKZJ95,LJ9#,RZJ95,VZJ95..RHD199604-200412

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-35320iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199708

sub51203-35321

main51203-35321iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199708-200209

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200004

sub51206-35050

sub47355-35110

main51206-35050iRZJ95..ARL200004-200412

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-60150iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51251ACROSSMEMBER, FRAME, NO.5

main51251-35100iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH

main51301-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200412

51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH

main51302-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200412

51351GUSSET, CROSSMEMBER, NO.5 RH

main51351-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51352GUSSET, CROSSMEMBER, NO.5 LH

main51351-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-35310iKZJ9#,LJ9#,VZJ9#..DSL,EFI,TD199604-199910

main51401-35320iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51401-35310iKZJ9#,LJ9#,VZJ9#199604-199910

main51401-35320iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35100iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35100iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51532REINFORCEMENT, REAR SPRING SUPPORT BRACKET, RH

main51532-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51533BRACKET, UPPER CONTROL LINK, RH

main51533-35020iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main51533-60020iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

51534ABRACKET, UPPER CONTROL LINK, LH

main51534-35020iKZJ95,LJ95,RZJ95,VZJ95199604-200209

main51534-60010iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

51542REINFORCEMENT, REAR SPRING SUPPORT BRACKET, LH

main51542-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51591ASUPPORT, STABILIZER, RH

main51591-35060iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51592ASUPPORT, STABILIZER, LH

main51592-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51593ABRACKET, REAR SPRING BUMPER, RH

main51593-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51594BRACKET, REAR SPRING BUMPER, LH

main51594-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51597BRACKET, REAR STABILIZER SUPPORT, FRONT

main51597-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-35140iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-35140iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35110iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199910

main51703-35160iRZJ95..ARL199906-200209

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51703-35110iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199910

main51704-35150iRZJ95..ARL199906-200209

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-35120iKZJ95,LJ95,RZJ95,VZJ95199604-199710

sub51705-35121

main51705-35121iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199710-200209

main51706-60040iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51705-35120iKZJ95,LJ95,RZJ95,VZJ95199604-199710

sub51705-35121

main51705-35121iRZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199710-200209

main51706-60040iRZJ90..GX;RZJ90..CBR;KZJ90,LJ90,VZJ90199604-199910

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-35070iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199710

sub51707-35071

main51707-35071iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199710-200209

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-35070iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199710

sub51708-35071

main51708-35071iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199710-200209

5355

5851

77612ABRACKET, FUEL TANK BAND

main77612-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

9010510385

main90105-10385

9020111026

main90201-11026

9161260816

main91612-60816

47 parts on this diagram · 2 diagrams in section
