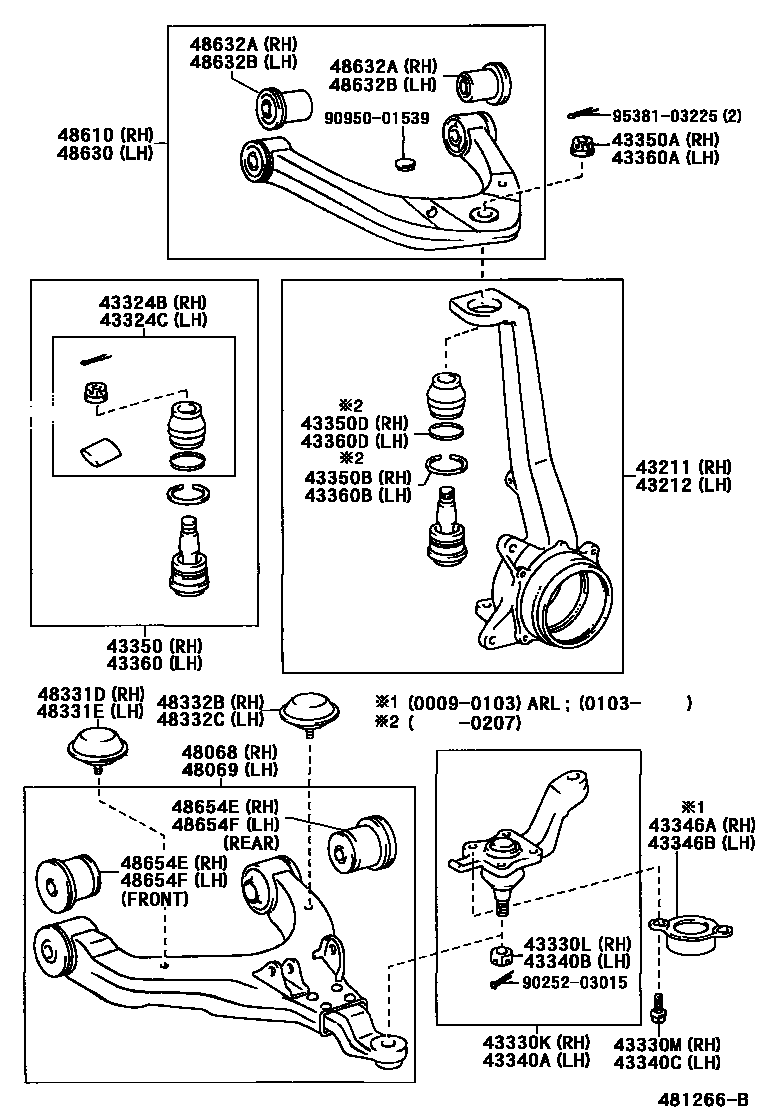

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-35070iVZJ9#..ARL,GCC;KZJ9#,LJ9#,RZJ9#..GX,STD199604-200105

sub43201-35071

main43201-35071iVZJ9#..ARL,GCC;KZJ95,LJ9#,RZJ9#..GX,STD200105-200209

main43201-35080iVZJ95..CO;RZJ95..ARL199604-200105

W(ABS)

sub43201-35081

main43201-35081iRZJ95..ARL200105-200209

W(ABS)

43212KNUCKLE, STEERING, LH

main43202-35060iVZJ9#..ARL,GCC;KZJ9#,LJ9#,RZJ9#..GX,STD199604-200105

sub43202-35061

main43202-35061iVZJ9#..ARL,GCC;KZJ95,LJ9#,RZJ9#..GX,STD200105-200209

main43202-35070iVZJ95..CO;RZJ95..ARL199604-200105

W(ABS)

sub43202-35071

main43202-35071iRZJ95..ATM;KZJ95,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)200105-200209

W(ABS)

43324BCOVER, FRONT UPPER BALL JOINT DUST, RH

main43324-39015iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43324CCOVER, FRONT UPPER BALL JOINT DUST, LH

main43324-39015iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39415iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200103

sub43330-39585

main43330-39585iRZJ95..ARL200103-200209

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16050iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-10406iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200009

main90105-10505iRZJ95..ARL200009-200105

GOLD

main90119-10933iKZJ95,RZJ9#..MTM..GX..(GCC,GEN)200009-200312

GREEN PAINTED

main90119-10933iRZJ95..ARL200105-200209

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39325iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200103

sub43340-39465

main43340-39465iKZJ95,LJ9#,RZJ9#,VZJ9#200103-200801

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16050iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-10406iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200009

main90105-10505iKZJ95,RZJ95,VZJ95..ARL200009-200105

GOLD

main90119-10933iKZJ95,RZJ95,VZJ95..ARL200009-200105

GREEN PAINTED

main90119-10933iKZJ95,RZJ95,VZJ95..ARL200105-200209

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-60010iRZJ95..ARL200009-200103

sub43346-60011

main43346-60011iKZJ95,LJ9#,RZJ9#,VZJ9#200103-200209

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-60010iRZJ95..ARL200009-200103

sub43346-60011

main43346-60011iRZJ95..ARL200103-200209

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-39016iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-14010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-39180iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43350DWIRE (FOR FRONT UPPER BALL JOINT RH)

main90522-43001iRZJ95..ARL200207-200209

sub90580-10001

main90580-10001iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200207

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-39016iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-14010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-39180iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

43360DWIRE (FOR FRONT UPPER BALL JOINT LH)

main90522-43001iRZJ95..ARL200207-200209

sub90580-10001

main90580-10001iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200207

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35080iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199803

sub48068-35081

main48068-35081iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199803-200209

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35080iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199803

sub48069-35081

main48069-35081iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199803-200209

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-35150iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199610

main48304-60090iKZJ9#,LJ9#,RZJ9#,VZJ9#199610-199902

main48304-60091iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199902-200209

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-35150iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199610

main48304-60090iKZJ9#,LJ9#,RZJ9#,VZJ9#199610-199902

main48304-60091iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199902-200209

48332BBUMPER, FRONT SPRING, NO.2 RH

main48305-35040iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199610

main48305-60060iKZJ9#,LJ9#,RZJ9#,VZJ9#199610-199902

main48305-60061iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199902-200209

48332CBUMPER, FRONT SPRING, NO.2 LH

main48305-35040iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199610

main48305-60060iKZJ9#,LJ9#,RZJ9#,VZJ9#199610-199902

main48305-60061iKZJ9#,LJ9#,RZJ9#,VZJ9#199902-200209

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-35020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-35080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-35080iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

FRONT

main48061-35050iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

REAR

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

FRONT

main48061-35050iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

REAR

9025203015

main90252-03015

9095001539

main90950-01539

9538103225

main95381-03225

35 parts on this diagram · 1 diagram in section
