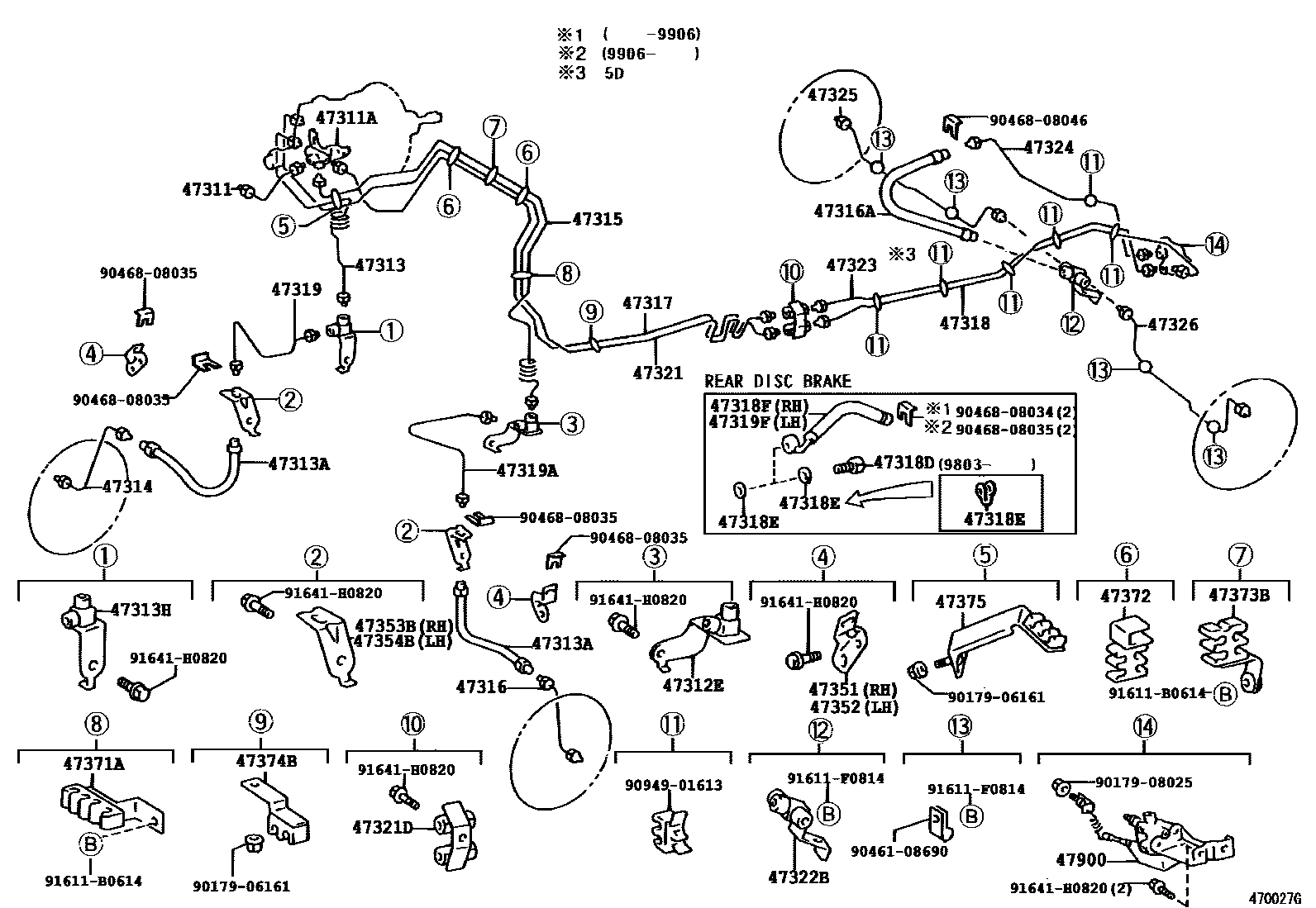

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ACTIVE TRC OR VSC) 0006 1W(ABS) 0007 1W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-35470iRZJ90..GX..GEN;KZJ9#,VZJ9#..LHD;RZJ95..LHD..GX..CBR199604-199910

W(ABS)

main47311-35480iRZJ9#..MTM..(CO,GCC)199906

main47311-60490iRZJ95..RHD..ATM;KZJ95,VZJ95..RHD;RZJ95..RHD..MTM..GX..(ARL,GEN)199906-200209

W(ABS)

main47311-60500iRZJ95..RHD..GX;KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN)199906-200209

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-13021iVZJ95..CO;RZJ95..MTM..GCC199906

W(ABS)

main90904-14006iRZJ9#..MTM..(CO,GCC)199906

47312TUBE, FRONT BRAKE, NO.2

main47312-60870iRZJ95,VZJ95..RHD..(GX,VX)199604-199807

main47312-60880iKZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN)199906-199910

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12040iKZJ9#,LJ9#,RZJ9#,VZJ9#199910

47313TUBE, FRONT BRAKE, NO.3

main47313-3D010iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN)199906-199910

main47313-3D020iRZJ95,VZJ95..RHD..(GX,VX)199604-199807

W(ABS)

main47313-3D021iRZJ95..ARL200201-200209

W(ABS)

main47313-3D040iKZJ9#,RZJ9#,VZJ9#..LHD..(GX,VX)..(GCC,GEN)199906-199910

W(ABS)

main47313-60260iRZJ95..RHD..(GX,STD);KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN)199906

main47313-60322iKZJ95,VZJ95..ATM..ARL199906-200209

W(VSC & ACTIVE TRC)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02862×2iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

main90947-02B14×2iRZJ95..ARL199910-200209

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90904-12041iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

47314TUBE, FRONT BRAKE, NO.4

main47314-35330iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47315TUBE, FRONT BRAKE, NO.5

main47315-35280iRZJ95,VZJ95..RHD..(GX,VX)199604-199807

W(ABS)

main47315-35300iVZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD199910

main47315-35310iRZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX)199910

W(ABS)

main47315-60390iLJ9#,RZJ95,VZJ95..RHD199604-199906

main47315-60402iRZJ95..RHD..(GX,STD);KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN)199906

main47315-60412iRZJ95..VX;RZJ95..RHD..(ARL,GEN);KZJ95,LJ9#,VZJ95..RHD199906

W(ABS)

main47315-60442iKZJ95,VZJ95..ATM..ARL199906-200209

W(VSC & ACTIVE TRC)

47316TUBE, FRONT BRAKE, NO.6

main47316-35250iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02869iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

main90947-02B15iRZJ95..ARL,MA;KZJ95,RZJ90,VZJ95..CO,MA199910-200008

main90947-02C59iKZJ95,LJ9#,RZJ9#,VZJ9#200008

47317TUBE, FRONT BRAKE, NO.7

main47317-35040iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199604-199910

main47317-60080iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47318TUBE, FRONT BRAKE, NO.8

main47318-35090iKZJ95,LJ95,RZJ95,VZJ95199604-199801

main47318-35091iVZJ95..CO199906-199910

main47318-60100iKZJ90,LJ90,RZJ90,VZJ90199604-199801

main47318-60101iKZJ90,LJ90,RZJ90,VZJ90199801-199906

main47318-60111iKZJ90,LJ90,RZJ90,VZJ90..GCC,GEN199906-199910

main47318-60121iKZJ95,LJ95,RZJ95,VZJ95199910

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iKZJ9#,RZJ9#,VZJ9#..GX,VX199604-199803

main90401-10058×2iRZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199803-200209

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010×4iKZJ9#,RZJ9#,VZJ9#..GX,VX199604-199803

main47389-50020×2iRZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199803-200209

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02614iRZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX199604-199906

main90947-02A07iRZJ95..ARL199910-200209

main90947-02A09iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC)

sub90947-02F25

47319TUBE, FRONT BRAKE, NO.9

main47313-3D050iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

47319ATUBE, FRONT BRAKE, NO.10

main47315-35320iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02615iRZJ90..CO199906-199910

main90947-02A08iRZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)199906

main90947-02A10iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC)

sub90947-02F26

47321TUBE, REAR BRAKE, NO.1

main47321-35750iVZJ95..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..LHD199910

main47321-60190iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main47321-60200iRZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX)199910

W(ABS)

main47321-60210iKZJ95,RZJ95..VX199910-200209

main47321-60261iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10166iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47322TUBE, REAR BRAKE, NO.2

main47322-35720iRZJ95,VZJ95..ARL;RZJ95..RHD..GX..CBR199807-200209

main47322-35730iRZJ90..GX..GEN;KZJ9#,RZJ95,VZJ9#..LHD..(GX,VX)199910

main47322-60811iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC)

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10236iKZJ95,VZJ95..ATM..ARL200008-200209

W(ACTIVE TRC OR VSC)

main90413-10263iKZJ9#,LJ9#,RZJ9#,VZJ9#199910-200008

main90413-10295iRZJ95..ARL200008-200209

main90904-12077iKZJ95,VZJ95..ATM..ARL199906-200008

W(ACTIVE TRC OR VSC)

47323TUBE, REAR BRAKE, NO.3

main47323-35160iKZJ95,LJ95,RZJ95,VZJ95199604-199801

main47323-35161iVZJ95..CO199906-199910

main47323-35220iKZJ95,VZJ95..ATM..ARL200008-200209

W(ACTIVE TRC OR VSC)

main47323-60600iKZJ90,LJ90,RZJ90,VZJ90199604-199801

main47323-60601iKZJ90,LJ90,RZJ90,VZJ90199801-199906

main47323-60611iKZJ90,LJ90,RZJ90,VZJ90..GCC,GEN199906-199910

main47323-60631iRZJ95..ARL199910-200209

main47323-60641iKZJ95,VZJ95..ATM..ARL199906-200008

W(ACTIVE TRC OR VSC)

47324TUBE, REAR BRAKE, NO.4

main47324-35240iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199801

main47324-35241iRZJ90,VZJ95..CO199906-199910

main47324-35280iKZJ95,LJ9#,RZJ9#,VZJ9#200008

main47324-60271iKZJ9#,LJ9#,RZJ9#,VZJ9#199910-200008

main47324-60291iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC)

47325TUBE, REAR BRAKE, NO.5

main47325-60190iVZJ95..CO199906-199910

W(REAR DISC BRAKE)

main47325-60200iKZJ9#,LJ9#,RZJ9#..CO,GCC,GEN199812-199906

main47325-60211iRZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)199910-200008

main47325-60221iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)199910-200008

W(REAR DRUM BRAKE)

main47325-60270iRZJ95..ATM;KZJ95,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)200008

main47325-60280iKZJ95,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)200008

W(REAR DRUM BRAKE)

47326TUBE, REAR BRAKE, NO.6

main47326-60191iRZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)199910-200008

main47326-60201iKZJ95,VZJ95..ATM..ARL199906-200008

W(ACTIVE TRC OR VSC)

main47326-60210iKZJ9#,RZJ9#,VZJ9#..GX,VX199604-199807

W(REAR DISC BRAKE)

main47326-60220iRZJ90..CO199906-199910

main47326-60231iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)199910-200008

W(REAR DRUM BRAKE)

main47326-60290iRZJ95..ARL200008-200209

main47326-60300iKZJ95,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)200008

W(REAR DRUM BRAKE)

main47326-60310iKZJ95,VZJ95..ATM..ARL200008-200209

W(ACTIVE TRC OR VSC)

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35270iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35310iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47351-60250iKZJ95,VZJ95..ATM..ARL199906-200209

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-35110iKZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN199906-199910

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-35100iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35300iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main47371-60140iRZJ95..ARL199910-200209

W(ABS)

47372CLAMP, BRAKE TUBE, NO.2

main47372-35150×2iRZJ95..LHD..GX;LJ9#,RZJ95..RHD;VZJ95..ATM..GCC;VZJ95..MTM..(ARL,GCC);KZJ9#,RZJ90,VZJ90..(GX,VX)..(ARL,GCC,GEN)199906-199910

W(ABS)

main47372-35170×2iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..(GCC,GEN)199604-199910

47373BCLAMP, BRAKE TUBE, NO.3

main47373-35060iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main47373-35070iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD..(GCC,GEN)199906-199910

main47373-35090iKZJ95,VZJ95..ATM..ARL199906-200209

W(ABS)

47374BCLAMP, BRAKE TUBE, NO.4

main47374-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

47375CLAMP, BRAKE TUBE, NO.5

main47375-35160iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD199910

main47375-35170iLJ9#,RZJ95,VZJ95..RHD199604-199906

main47375-60010iKZJ95,LJ9#,RZJ95,VZJ95..RHD199906

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-60220iKZJ90,RZJ90,VZJ90..EFI,TD199604-199801

W(ABS)

sub47900-60223

main47900-60221iRZJ90,VZJ90..(GX,VX)..(GCC,GEN)199906-200209

W(ABS)

sub47900-60222

main47900-60230iKZJ90,LJ90,RZJ90,VZJ90199604-199801

sub47900-60233

main47900-60231iKZJ90199906-200008

main47900-60232iRZJ90200209

main47900-60240iKZJ95,RZJ95,VZJ95..GX,VX199604-199801

W(ABS)

sub47900-60243

main47900-60241iKZJ95,RZJ95..VX199910-200209

main47900-60242iVZJ95..GCC200209-200310

W(ABS)

main47900-60250iKZJ95,LJ95,RZJ95,VZJ95199604-199801

sub47900-60253

main47900-60251iKZJ95..GEN199906-200008

main47900-60252iRZJ95..GEN200209-200412

9017906161

main90179-06161

9017908025

main90179-08025

9046108690

main90461-08690

9046808034

main90468-08034

9046808035

main90468-08035

9046808046

main90468-08046

9094901613

main90949-01613

91611B0614

main91611-B0614

91611F0814

main91611-F0814

91641H0820

main91641-H0820
