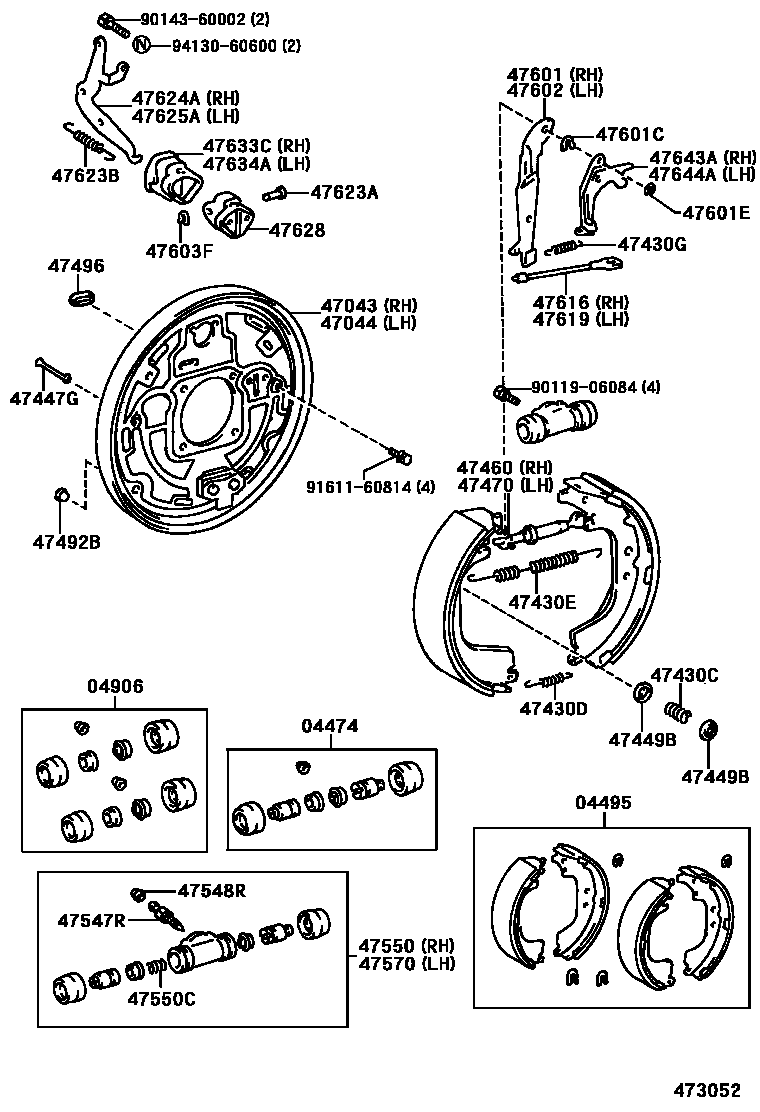

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-35100iKZJ9#,LJ9#,RZJ9#199604-199910

04495SHOE KIT, REAR BRAKE

main04495-35151iKZJ9#,LJ9#,RZJ9#199604-199910

sub04495-35230

main04495-35151iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)199906-200209

MARK NBK LN508

sub04495-35230

main04495-35230iRZJ9#200209

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35130iKZJ9#,LJ9#,RZJ9#199604-199910

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35180iKZJ9#,LJ9#,RZJ9#199604-199910

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35170iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-199910

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20604iKZJ9#,LJ9#,RZJ9#199604-199910

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iKZJ9#,LJ9#,RZJ9#199604-199910

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iKZJ9#,LJ9#,RZJ9#199604-199910

RH

main90506-26014iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-199910

LH

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031iKZJ9#,LJ9#,RZJ9#199604-199910

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iKZJ9#,LJ9#,RZJ9#199604-199910

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iKZJ9#,LJ9#,RZJ9#199604-199910

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iKZJ9#,LJ9#,RZJ9#199604-199910

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-60011iKZJ9#,LJ9#,RZJ9#199604-199910

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iKZJ9#,LJ9#,RZJ9#199604-199910

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iKZJ9#,LJ9#,RZJ9#199604-199910

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iKZJ9#,LJ9#,RZJ9#199604-199910

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iKZJ9#,LJ9#,RZJ9#199604-199910

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-35210iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-199910

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60009iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)199604-199910

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-35210iKZJ9#,LJ9#,RZJ9#199604-199910

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iKZJ95,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)200009

main47611-60010iKZJ9#,LJ9#,RZJ9#199604-200009

sub47611-35040

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iKZJ9#,LJ9#,RZJ9#199604-199910

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iKZJ9#,LJ9#,RZJ9#199604-199910

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-35040iKZJ95,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)200009

main47612-60010iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-200009

sub47612-35040

47603FWASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)

main90213-06013iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-199910

47616WIRE, PARKING BRAKE, RH

main47616-35030iKZJ9#,LJ9#,RZJ9#199604-199910

47619WIRE, PARKING BRAKE, LH

main47616-35030iKZJ9#,LJ9#,RZJ9#..(GX,STD)..(CO,GCC,GEN,MA)199604-199910

47623APIN(FOR PARKING BRAKE BELL CRANK)

main90249-08068iKZJ9#,LJ9#,RZJ9#199604-199910

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90905-06016iKZJ9#,LJ9#,RZJ9#199604-199910

47624ACRANK, PARKING BRAKE BELL, RH

main47624-35050iKZJ9#,LJ9#,RZJ9#199604-199910

47625ACRANK, PARKING BRAKE BELL, LH

main47625-35050iKZJ9#,LJ9#,RZJ9#199604-199910

47628BRACKET, REAR BRAKE BELLCRANK

main47628-35020iKZJ9#,LJ9#,RZJ9#199604-199910

47633CBOOT, REAR BRAKE BELLCRANK, RH

main47633-35020iKZJ9#,LJ9#,RZJ9#199604-199910

47634ABOOT, REAR BRAKE BELLCRANK, LH

main47633-35020iKZJ9#,LJ9#,RZJ9#199604-199910

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-60010iKZJ9#,LJ9#,RZJ9#199604-199910

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-60010iKZJ9#,LJ9#,RZJ9#199604-199910

9011906084

main90119-06084

9014360002

main90143-60002

9161160814

main91611-60814

9413060600

main94130-60600

40 parts on this diagram · 1 diagram in section
