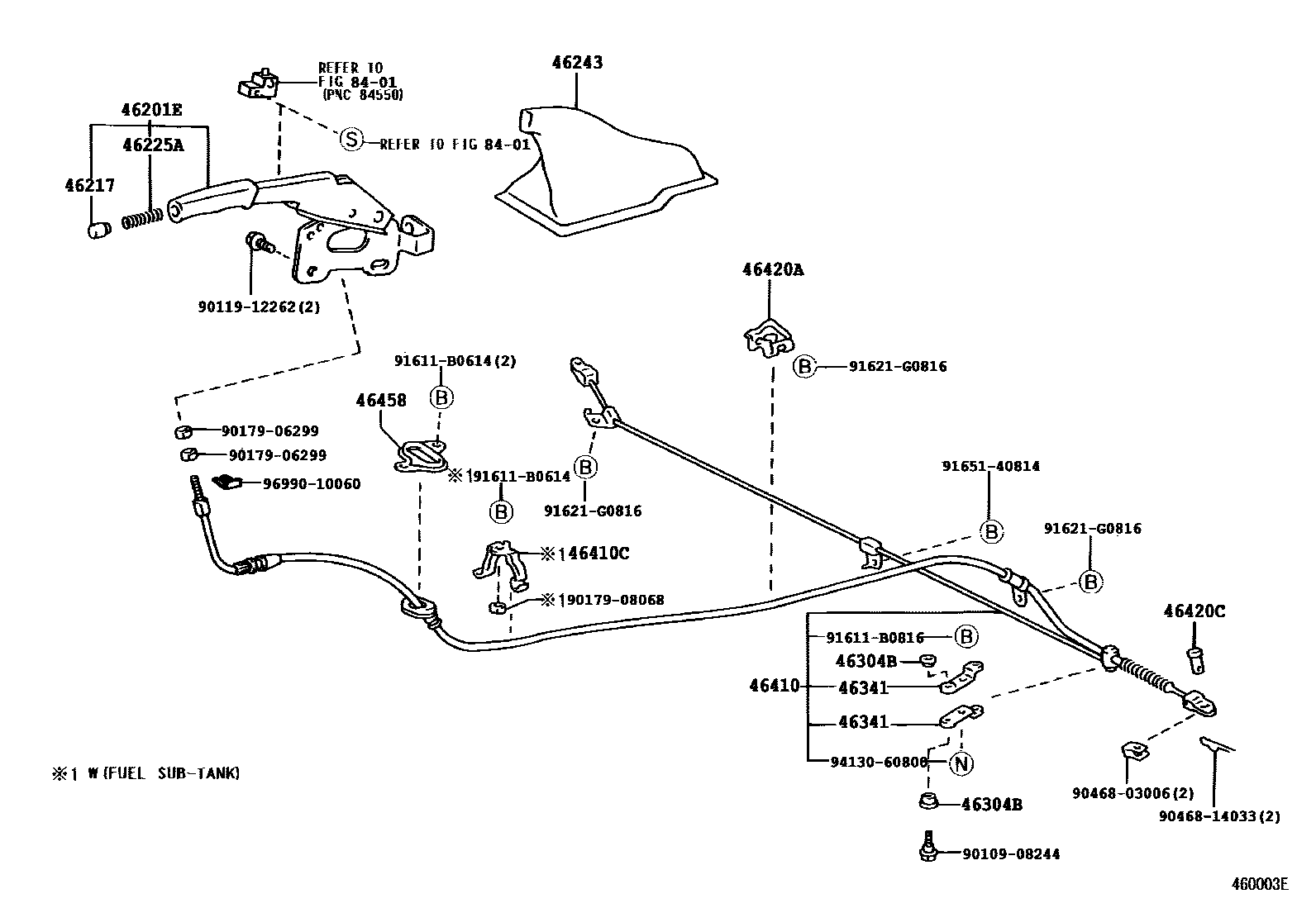

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-60010-C0iKZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN199604-199910

BLACK,TRIM1#

main46201-60010-C0iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN,MA)199906-200312

BLACK,TRIM1#,4#

main46201-60020-C0iKZJ95,RZJ95,VZJ95..ARL199906-200209

BLACK,TRIM1#,4#

main46201-60020-C0iRZJ95,VZJ95..ARL199604-199906

BLACK,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-C0iKZJ9#,LJ9#,RZJ9#,VZJ9#..GCC,GEN199604-199704

GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-16030-C0iKZJ9#,LJ9#,RZJ9#,VZJ9#..CO,GCC,GEN199704-199910

BLACK,TRIM1#

sub46217-16030

main46217-16030-C0iKZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(GCC,GEN,MA)199906-200312

BLACK,TRIM1#,4#

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,VZJ9#..CO,GCC,GEN199604-199910

46243COVER, PARKING BRAKE LEVER

main46243-60070-C0iLJ9#,RZJ9#..STD199604-200412

BLACK,TRIM1#

main46243-60070-C0iKZJ95,LJ95,RZJ95..MTM..GX..(GCC,GEN)199906-200312

BLACK,TRIM1#,4#

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12012iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

46341EQUALIZER, PARKING BRAKE

main46341-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60660iLJ90..RHD199604-200209

main46410-60670iLJ95,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200412

main46410-60680iKZJ90,LJ90,RZJ90,VZJ90..LHD199604-199910

main46410-60690iRZJ95..LHD..CBR;KZJ95,LJ95,VZJ95..LHD199604-199910

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-60010iRZJ95..ARL;RZJ95..RHD..CBR;LJ95,VZJ95..RHD199604-200209

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01A48iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08059iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

46458RETAINER, CABLE

main46458-60020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

8401

9010908244

main90109-08244

9011912262

main90119-12262

9017906299

main90179-06299

9017908068

main90179-08068

9046803006

main90468-03006

9046814033

main90468-14033

91611B0614

main91611-B0614

91611B0816

main91611-B0816

91621G0816

main91621-G0816

9165140814

main91651-40814

9413060800

main94130-60800

9699010060

main96990-10060

24 parts on this diagram · 4 diagrams in section
