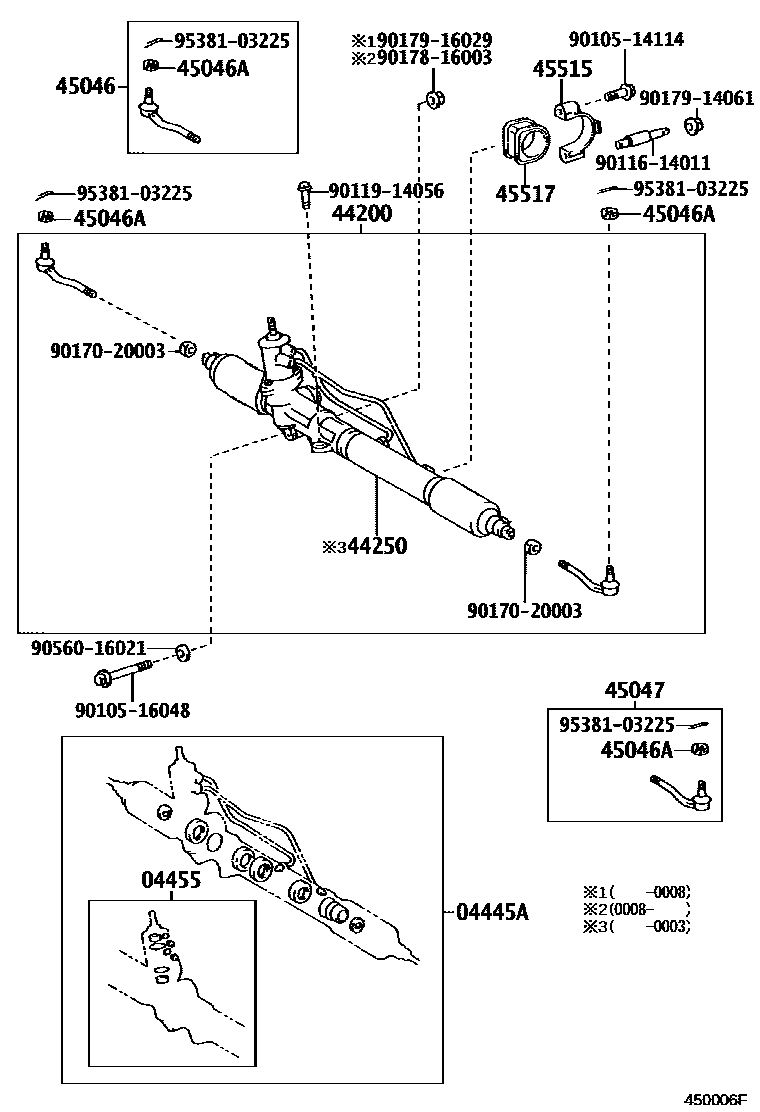

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-35160iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-35130iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

44200LINK ASSY, POWER STEERING

main44200-60012iLJ9#,RZJ95,VZJ95..RHD199604-199906

sub90170-20003

main44200-60022iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD199906-200812

sub44250-60022

sub90170-20003

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44200-60022iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD200003-200209

sub44250-60022

sub90170-20003

main44250-60010iLJ9#,RZJ95,VZJ95..RHD199604-199708

main44250-60011iLJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)199708-200003

main44250-60012iKZJ95,LJ9#,RZJ95,VZJ95..RHD199906-200003

main44250-60020iKZJ9#,LJ9#,RZJ9#,VZJ9#..LHD199604-199708

main44250-60021iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD199708-199910

sub44250-60022

45046END SUB-ASSY, TIE ROD, RH

main45046-39335iKZJ9#,LJ9#,RZJ9#,VZJ9#199906-200812

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

45047END SUB-ASSY, TIE ROD, LH

main45047-39215iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-35040iRZJ95..RHD..STD199906-200412

main45515-35050iRZJ9#..LHD..CBR;RZJ90,VZJ95..GX,VX;KZJ9#,LJ9#,VZJ90..LHD199604-199910

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-35010iRZJ95..ATM..GCC;RZJ95,VZJ95..(GX,VX)..(ARL,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN);KZJ95,LJ9#,RZJ90,VZJ90..(DSL,EFI,TDEFI)..(ARL,GCC,GEN,MA)199906-200209

9010514114

main90105-14114

9010516048

main90105-16048

9011614011

main90116-14011

9011914056

main90119-14056

9017020003

main90170-20003

9017816003

main90178-16003

9017914061

main90179-14061

9017916029

main90179-16029

9056016021

main90560-16021

9538103225

main95381-03225

19 parts on this diagram · 4 diagrams in section
