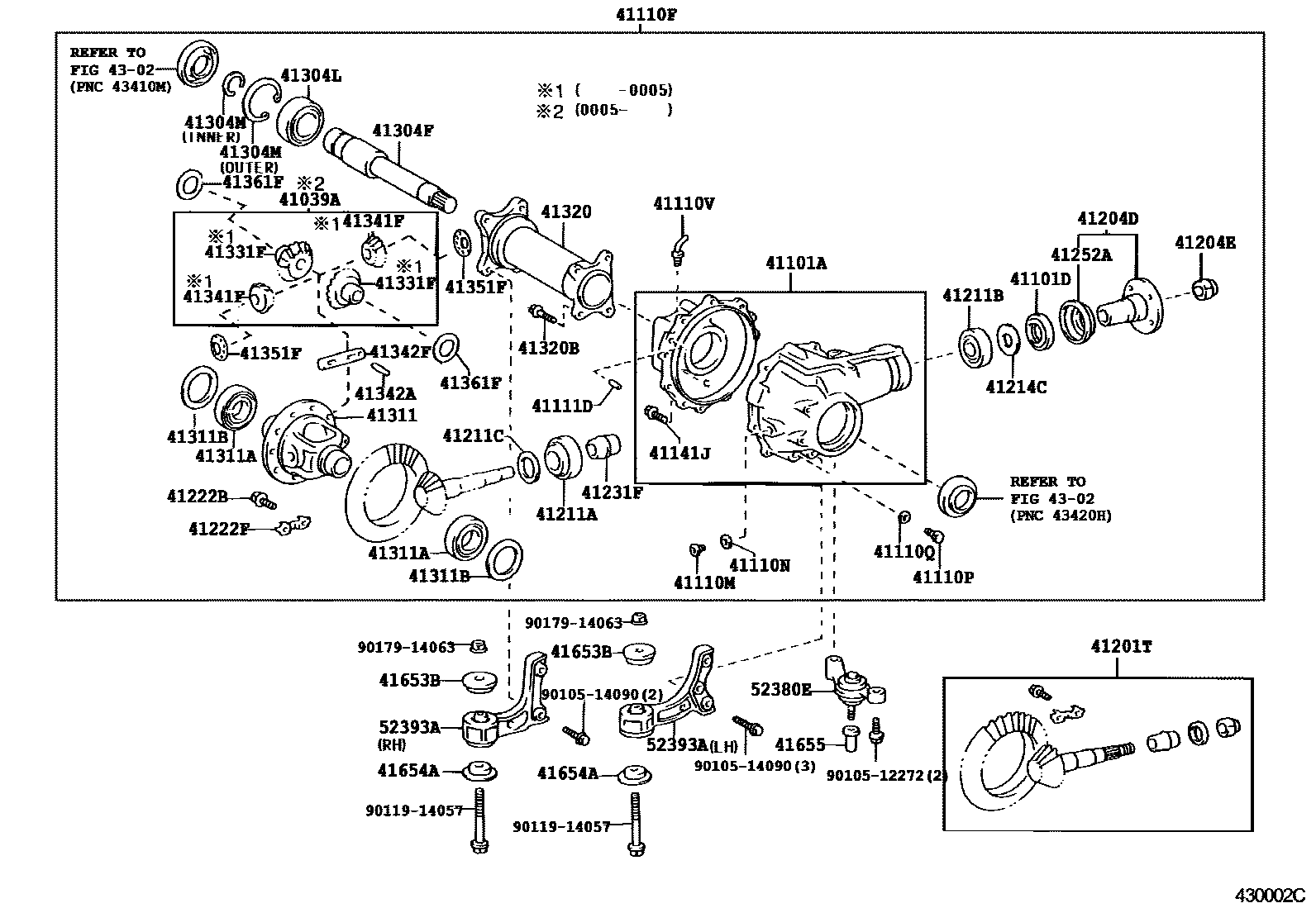

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

41039AGEAR KIT, DIFFERENTIAL

main41039-34050iVZJ95..MTM..CO¥13,900200005-200209

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35131iVZJ95..MTM..CO¥44,000199604-200209

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38049iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥430199604-200808

sub90311-38066¥420

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-35790iVZJ95..ATM¥167,000199604-200209

*FGR=41:10=4.100

main41110-35820iRZJ90..GX;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)¥167,000199604-200209

*FGR=41:9=4.555

main41110-3D100iKZJ95..ATM..ARL¥167,000199909-200209

*FGR=43:11=3.909

main41110-3D150iRZJ90..GEN;VZJ95..ATM;RZJ95..CBR;RZJ95..ARL¥167,000199604-200209

*FGR=43:10=4.300

main41110-3D180iKZJ95..ATM..ARL¥167,000199604-200209

*FGR=41:10=4.100

main41110-60620iKZJ95..MTM..ARL¥167,000200001-200209

*FGR=43:11=3.909

main41110-60630iVZJ9#..MTM¥167,000199604-200209

*FGR=41:10=4.100

main41110-60640iKZJ9#..MTM¥167,000199906-200209

*FGR=41:10=4.100

main41110-60650iVZJ9#..MTM¥167,000199604-199910

*FGR=43:10=4.300

main41110-60660iKZJ95..MA¥167,000199604-200209

*FGR=43:10=4.300

main41110-60670iKZJ9#..GEN¥167,000199906-200209

*FGR=43:10=4.300

main41110-60680iLJ9#¥167,000199604-200209

*FGR=39:8=4.875

main41110-6A240iVZJ95..MTM..CO¥167,000200112

*FGR=41:9=4.555

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥210199604-200209

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iVZJ95..MTM..CO¥100199604-200209

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥310199604-200209

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24003iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥200199604-200209

sub90430-24017¥100

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-08004iVZJ95..MTM..CO¥180199604-200209

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥130199604-200209

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-10391iVZJ95..MTM..CO¥170199604-200209

*10-1.25PX24.5-18

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80067iKZJ9#,VZJ9#..MTM..(ARL,GCC,GEN)¥64,500199604-200209

*FGR=41:10=4.100

sub41201-80502¥40,600

main41201-80078iKZJ95..ATM..ARL¥64,300199909-200209

*FGR=43:11=3.909

sub41201-80116¥64,500

main41201-80079iRZJ9#..GX,VX¥64,500199604-200209

*FGR=41:9=4.556

sub41201-80499¥53,700

main41201-80085iKZJ9#;VZJ95..ATM¥64,500199604-200209

*FGR=41:10=4.100

main41201-80096iLJ9#¥57,400199604-200209

*FGR=39:8=4.875

sub41201-80211¥57,500

main41201-80098iKZJ95..MA¥64,500199604-200209

*FGR=43:10=4.300

sub41201-80500¥44,800

main41201-80116iKZJ95..MTM..ARL¥64,500200001-200209

*FGR=43:11=3.909

sub41201-80501¥53,700

main41201-80117iVZJ95..MTM..CO¥64,500199604-200410

*FGR=43:10=4.300

sub41201-80498¥64,500

main41201-80497iVZJ95..MTM200410-200812

*FGR=41:9=4.556

main41201-80498iVZJ95..MTM¥64,500200410-200812

*FGR=43:10=4.300

main41201-80499iRZJ9#..GX¥53,700200209-200812

*FGR=41:9=4.556

main41201-80500iVZJ95..ATM;RZJ9#..ARL,GCC,GEN¥44,800200108-200812

*FGR=43:10=4.300

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35060iRZJ90..GX;RZJ9#..CBR;LJ9#,VZJ9#;RZJ95..RHD..GX..EFI..(ARL,GEN)¥5,900199604-200209

main41204-35070iKZJ9#¥7,400199604-200209

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-18020iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥190199604-200209

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35023iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥2,550199604-200209

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30022iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥1,850199604-200206

sub90366-30078¥2,200

main90366-30078iRZJ95..ARL¥2,200200206-200209

41211CGEAR, DIFFERENTIAL RING

main90201-35497iVZJ95..MTM..CO¥180199604-200209

OD=47,T=1.70

main90201-35498iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥180199604-200209

OD=47,T=1.73

main90201-35499iVZJ95..MTM..CO¥180199604-200209

OD=47,T=1.76

main90201-35500iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥180199604-200209

OD=47,T=1.79

main90201-35501iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥180199604-200209

OD=47,T=1.82

main90201-35502iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥180199604-200209

OD=47,T=1.85

main90201-35503iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥180199604-200209

OD=47,T=1.88

main90201-35504iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥180199604-200209

OD=47,T=1.91

main90201-35505iVZJ95..MTM..CO¥180199604-200209

OD=47,T=1.94

main90201-35506iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥180199604-200209

OD=47,T=1.97

main90201-35507iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥180199604-200209

OD=47,T=2.00

main90201-35508iVZJ95..MTM..CO¥180199604-200209

OD=47,T=2.03

main90201-35509iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥180199604-200209

OD=47,T=2.06

main90201-35510iVZJ95..MTM..CO¥180199604-200209

OD=47,T=2.09

main90201-35511iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥180199604-200209

OD=47,T=2.12

main90201-35512iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥180199604-200209

OD=47,T=2.15

main90201-35513iVZJ95..MTM..CO¥180199604-200209

OD=47,T=2.18

main90201-35514iVZJ95..MTM..CO¥180199604-200209

OD=47,T=2.21

main90201-35515iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥120199604-200209

OD=47,T=2.24,MARK 01

main90201-35516iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥120199604-200209

OD=47,T=2.27,MARK 02

main90201-35517iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥120199604-200209

OD=47,T=2.30,MARK 03

main90201-35518iVZJ95..MTM..CO¥120199604-200209

OD=47,T=2.33,MARK 04

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-35020iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥410199604-200209

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥120199604-200209

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥120199604-200209

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥580199604-200209

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥450199604-200209

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥11,600199604-200209

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90903-63008iVZJ95..MTM..CO¥2,790199604-200209

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-39023iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥240199604-200209

INNER

main90520-75002iVZJ95..MTM..CO¥240199805-200209

OUTER

main90521-86002iKZJ9#,LJ9#,RZJ9#,VZJ9#¥350199604-199805

OUTER

sub90520-75002¥240

41311CASE, FRONT DIFFERENTIAL

main41311-22060iVZJ95..MTM..CO¥15,500199604-200209

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90368-50006iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥2,940199604-200209

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50092iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥450199604-200209

T=2.01

main90564-50093iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥450199604-200209

T=2.04

main90564-50094iVZJ95..MTM..CO¥460199604-200209

T=2.07

main90564-50095iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥460199604-200209

T=2.10

main90564-50096iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥460199604-200209

T=2.13

main90564-50097iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥480199604-200209

T=2.16

main90564-50098iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥480199604-200209

T=2.19

main90564-50099iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥500199604-200209

T=2.22

main90564-50100iVZJ95..MTM..CO¥500199604-200209

T=2.25

main90564-50101iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥500199604-200209

T=2.28

main90564-50102iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥510199604-200209

T=2.31

main90564-50103iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥510199604-200209

T=2.34

main90564-50104iVZJ95..MTM..CO¥510199604-200209

T=2.37

main90564-50105iVZJ95..MTM..CO¥510199604-200209

T=2.40

main90564-50106iVZJ95..MTM..CO¥510199604-200209

T=2.43

main90564-50107iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥510199604-200209

T=2.46

main90564-50108iVZJ95..MTM..CO¥510199604-200209

T=2.49

main90564-50109iVZJ95..MTM..CO¥510199604-200209

T=2.52

main90564-50110iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥510199604-200209

T=2.55

main90564-50111iVZJ95..MTM..CO¥510199604-200209

T=2.58

main90564-50112iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥510199604-200209

T=2.61

main90564-50113iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥510199604-200209

T=2.64

main90564-50114iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥510199604-200209

T=2.67

main90564-50115iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥510199604-200209

T=2.70

main90564-50116iVZJ95..MTM..CO¥510199604-200209

T=2.73

main90564-50117iVZJ95..MTM..CO¥510199604-200209

T=2.76

main90564-50118iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥510199604-200209

T=2.79

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥15,300199604-200209

41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)

main90105-12292iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥220199604-200209

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-35070iKZJ9#,LJ9#,RZJ9#,VZJ9#¥5,700199604-200005

sub41331-35071¥5,700

41341FPINION, FRONT DIFFERENTIAL

main41341-30020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥2,830199604-200005

sub41341-30050¥2,830

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iVZJ95..MTM..CO¥160199604-200209

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥1,240199604-200005

sub41342-22021¥810

main41342-22021iRZJ95..ARL¥810200005-200209

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥140199604-200209

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iVZJ95..ARL,GCC;VZJ95..ATM..CO;KZJ9#,LJ9#,RZJ9#,VZJ90¥240199604-200209

T=1.0

main41361-30050iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥240199604-200209

T=1.1

main41361-30060iVZJ95..MTM..CO¥240199604-200209

T=1.2

main41361-30070iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥240199604-200209

T=1.3

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-35030iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥520199604-200412

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-26010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥700199604-200412

41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1

main41655-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥590199604-200412

4302

52380ESUPPORT ASSY, DIFFERENTIAL

main52380-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥4,280199604-200412

52393ASUPPORT, FRONT DIFFERENTIAL, NO.2

main52380-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)¥7,100199604-200412

RH

main52380-35050iRZJ95..RHD..STD¥7,200199604-200412

LH

9010512272

main90105-12272¥180

9010514090

main90105-14090¥190

9011914057

main90119-14057¥780

9017914063

main90179-14063¥180

46 parts on this diagram · 4 diagrams in section
