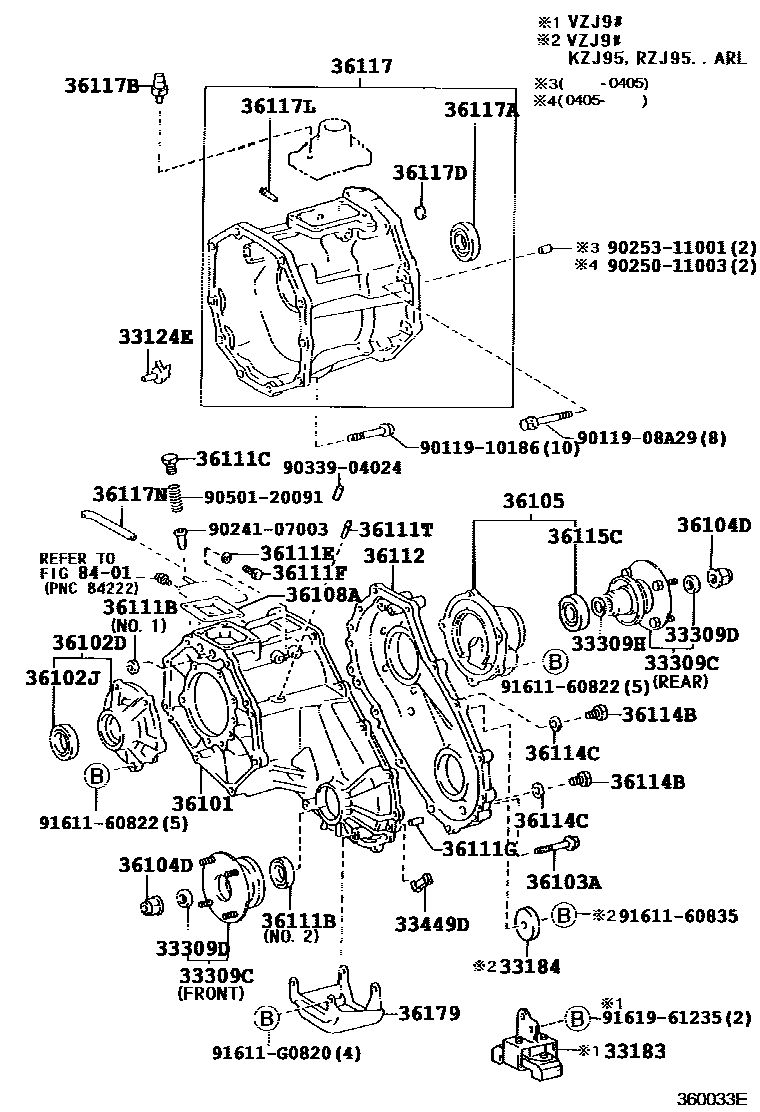

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1W/O(DIFFLOCK OR ABS) 0005 1 0006 1W(VSC) 0007 1 0008 1W(ACTIVE TRC)

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35020iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

main33124-35100iKZJ9#,VZJ9#..MTM199604-199910

main33124-36010iLJ9#199604-200208

33183DAMPER, TRANSFER DYNAMIC

main33183-34020iLJ9#199604-200209

main33183-34031iVZJ95199604-199607

main33183-35060iVZJ95200307

main33183-60020iVZJ9#199607-199705

sub33183-60021

main33183-60021iVZJ9#199705-200307

sub33183-35060

33184WEIGHT, DYNAMIC DAMPER

main33184-60010iRZJ95..ATM..GCC199604-200209

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35091iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

REAR

main33309-35100iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200807

FRONT

main33309-35102iRZJ90,VZJ95200807

FRONT

sub33309-35103

sub90311-41017

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

N=30,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

36101CASE SUB-ASSY, TRANSFER

main36111-35060iRZJ90..GX;RZJ95..RHD..GX..EFI..GEN;KZJ9#,LJ9#,RZJ9#..CBR,DSL,TD199604-199910

main36111-35070iVZJ9#;RZJ95..ARL199604-200209

main36111-35070iRZJ95..ATM..GCC200001-200209

W(215/80R 16 TIRE OR 265/70R16 TIRE)

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iKZJ95,RZJ95..ATM199604-200209

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35031iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200106

sub36102-35032

main36102-35032iRZJ95..ARL200106-200209

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40021iRZJ95..VX;VZJ95..ARL;VZJ95..MTM..GCC;RZJ95..ARL,GCC,GEN;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,GCC,GEN,MA199604-200812

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

*8-1.25PX55-30

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35030iRZJ95..ATM199604-199803

sub36108-35031

main36108-35031iKZJ95,RZJ95..ATM199803-200208

sub36128-35060

main36108-35060iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

main36128-35060iKZJ95,RZJ95..ATM200208-200209

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

NO.1

main90311-15008iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC),NO.1

main90311-41008iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200207

NO.2

sub90311-41011

main90311-41010iRZJ9#,VZJ95200209-200609

NO.2

sub90311-41012

main90311-41011iKZJ95,LJ9#,RZJ9#,VZJ9#200207-200209

NO.2

sub90311-41010

main90311-41012iRZJ90,VZJ95200609-200807

NO.2

main90311-41013iRZJ90,VZJ95200807

NO.2

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

sub90406-T0007

36112CASE, TRANSFER, REAR

main36112-35040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

main36112-35050iKZJ95,VZJ95..ATM..ARL199906-200209

W(ACTIVE TRC OR VSC)

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iRZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-200209

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

sub90311-41020

36117ADAPTER, TRANSFER

main36107-35160iKZJ9#,VZJ9#..MTM199604-199910

main36107-35170iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

main36107-60010iLJ9#199604-200208

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-40007iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200208

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03075iKZJ9#,LJ9#,VZJ9#..MTM199604-200208

main90930-03114iRZJ9#..MTM199604-200209

36117DPLUG(FOR TRANSFER ADAPTER)

main90331-21003iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iRZJ95..ARL199604-200209

sub90406-T0007

36117NHOSE(FOR TRANSFER ADAPTER)

main90447-08126iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

main90904-45005iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

36179PROTECTOR, TRANSFER CASE LOWER

main36179-35010iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

8401

9011908A29

main90119-08A29

9011910186

main90119-10186

9024107003

main90241-07003

9025011003

main90250-11003

9025311001

main90253-11001

9033904024

main90339-04024

9050120091

main90501-20091

9161160822

main91611-60822

9161160835

main91611-60835

91611G0820

main91611-G0820

9161961235

main91619-61235

44 parts on this diagram · 8 diagrams in section
