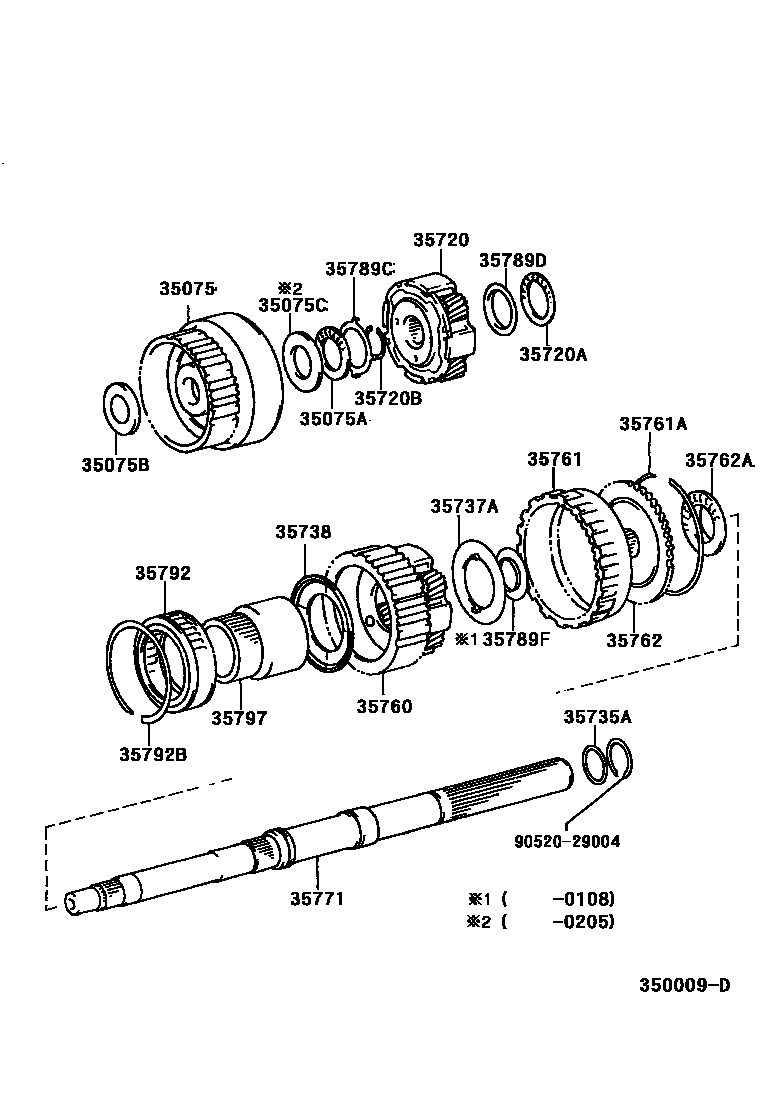

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35075GEAR SUB-ASSY, FRONT PLANETARY RING

main35075-50010iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

main90374-32004iKZJ95,RZJ95,VZJ95..ATM199604-200205

sub90374-35004

main90374-35004iKZJ95,RZJ95,VZJ95..ATM200205-200209

35075BRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT)

main35789-30120iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35075CRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR RR)

main35789-30130iVZJ95..ATM;RZJ95..ATM..ARL199604-200205

35720GEAR ASSY, FRONT PLANETARY

main35720-30080iKZJ95,RZJ95,VZJ95..ATM199604-200209

main35720-35030iKZJ95..ATM200108-200209

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-35001iKZJ95,RZJ95,VZJ95..ATM..(ARL,GCC)199604-200209

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90520-24026iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-30020iKZJ95,RZJ95,VZJ95..ATM..(ARL,GCC)199604-200209

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30030iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35739-30030iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35760GEAR ASSY, REAR PLANETARY

main35705-30010iKZJ95,RZJ95,VZJ95..ATM..(ARL,GCC)199604-200209

35761GEAR, REAR PLANETARY RING

main35761-30020iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90521-99024iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35762FLANGE, REAR PLANETARY RING GEAR

main35762-30040iKZJ95,RZJ95,VZJ95..ATM199604-200209

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-38003iKZJ95,RZJ95,VZJ95..ATM199906-200209

main90374-39001iRZJ95,VZJ95..ATM199604-199906

sub90374-38003

35771SHAFT, OUTPUT

main35073-35030iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-30080iKZJ95,RZJ95,VZJ95..ATM..(ARL,GCC)199604-200209

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-30100iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-30160iVZJ95..ATM;RZJ95..ATM..ARL199604-200108

35792CLUTCH, 1 WAY, NO.2

main35792-14020iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-87001iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35797RACE, 1 WAY CLUTCH INNER

main35797-50010iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

9052029004

main90520-29004

23 parts on this diagram · 1 diagram in section
