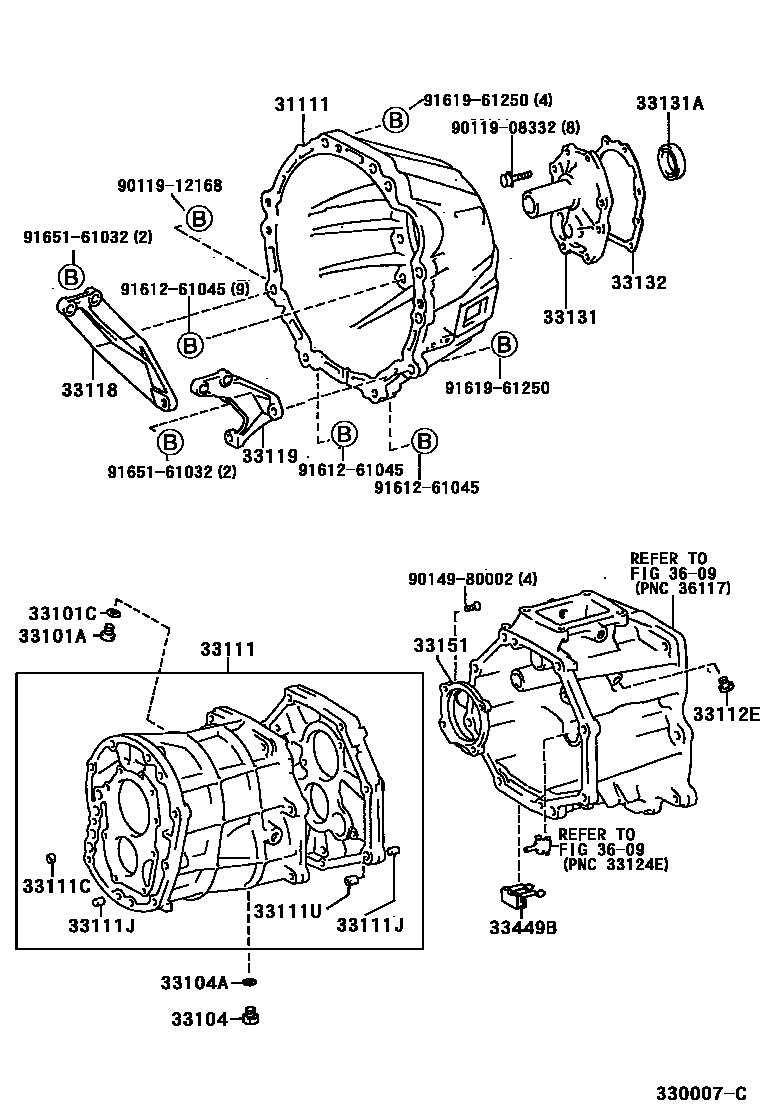

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G52 0002 1R150F 0003 1W56 0004 1R150F,R151F

31111HOUSING, CLUTCH

main31111-35070iRZJ95..RHD..STD199604-200412

main31111-35090iVZJ9#..MTM199604-200209

main31111-35101iKZJ9#199604-200209

sub31111-35102

main31111-60280iLJ9#199604-200209

sub31111-60281

sub31126-60110

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200412

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKZJ9#..GEN199604-200412

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKZJ95..MTM..TDEFI199604-200209

main90341-18057iLJ9#199604-200209

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

33111CASE, MANUAL TRANSMISSION

main33101-30071iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200412

main33101-35050iLJ9#199604-200209

sub33101-35051

main33101-60040iVZJ95..MTM..CO199604-200209

sub33101-60041

main33101-60050iKZJ95..MTM..TDEFI200001-200209

sub33101-60051

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLJ9#199604-200209

OD=14

main96411-41800iRZJ9#..MTM..(CO,GCC)199604-200412

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iRZJ95..RHD..STD199604-200412

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iLJ9#199604-200209

L=14,OD=15

33112EPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-12008iLJ9#199604-200209

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLJ9#199604-200209

33119PLATE, STIFFENER, LH(MTM)

main33119-60060iLJ9#199604-200209

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLJ9#199604-200209

main33131-30080iRZJ9#..MTM..(CO,GCC)199604-200412

main33131-35031iKZJ9#..GEN199604-200209

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLJ9#,RZJ9#..MTM199604-200209

main90311-32012iKZJ9#,VZJ9#..MTM199604-200706

main90311-32022iVZJ95..MTM200706

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLJ9#199604-200209

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200010

main33151-30051iRZJ95..MTM..ARL200010-200412

main33151-35020iKZJ95,VZJ9#..MTM..(EFI,TDEFI)..(ARL,GCC,GEN)199604-200209

main33151-35030iLJ9#199604-200209

33449BMAGNET, TRANSMISSION

main33449-26010iLJ9#199604-200208

main33449-30010iRZJ95..RHD..STD199604-200412

REAR

main33449-30020iRZJ95..RHD..STD199604-200412

FRONT

main33449-35030iVZJ95..MTM..CO199604-200209

3609

9011908332

main90119-08332

9011912168

main90119-12168

9014980002

main90149-80002

9161261045

main91612-61045

9161961250

main91619-61250

9165161032

main91651-61032

24 parts on this diagram · 4 diagrams in section
