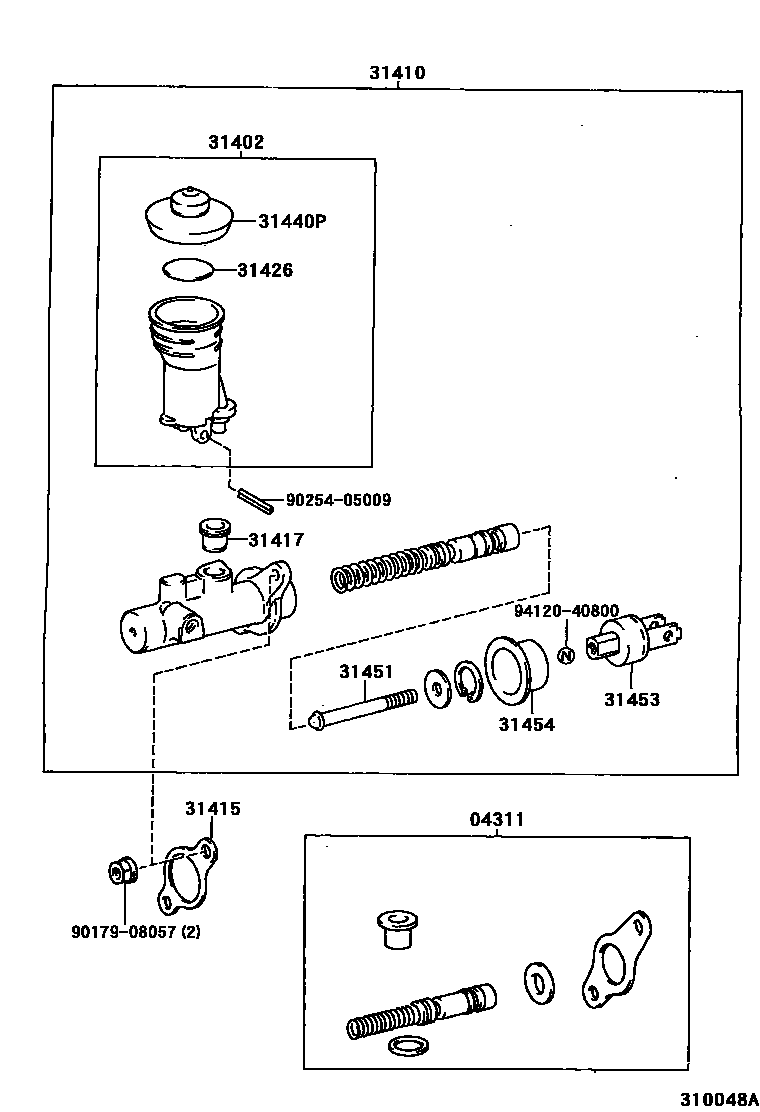

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iKZJ9#,LJ9#,RZJ9#,VZJ9#..MTM199604-200209

main04311-60150iRZJ95..RHD..MTM199604-199710

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35120iKZJ9#..GEN199604-200412

main31402-35140iVZJ95..MTM..CO200010-200209

main31402-60070iKZJ95..MTM..ARL200001-200209

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35310iRZJ95..RHD..STD199604-200412

main31410-35320iRZJ95..LHD..GEN;KZJ95,LJ9#,RZJ90..GEN200008-200209

main31410-60560iKZJ95..MTM..ARL200001-200209

main31410-60570iRZJ95..LHD;KZJ9#,LJ9#,RZJ90199604-199702

sub31410-60571

main31410-60571iRZJ95..LHD..MTM;KZJ9#,LJ9#,RZJ90..CO,GEN199702-200008

main31410-60580iVZJ9#..MTM..(ARL,GCC)199604-200209

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iKZJ9#,LJ9#,RZJ9#,VZJ9#..MTM199604-200412

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iKZJ9#,LJ9#,RZJ9#,VZJ9#..MTM199604-200412

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iVZJ95..MTM..CO199604-200412

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iRZJ95..LHD..STD;RZJ95..MTM..GX..(ARL,GEN,MA);KZJ95,LJ9#,RZJ90..MTM..(DSL,EFI,TDEFI)..(ARL,GEN)199604-200412

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iVZJ9#..MTM199604-200209

main31451-35080iRZJ95..LHD..MTM;KZJ9#,LJ9#,RZJ90..CO,GEN199702-200008

main31451-36040iLJ9#,RZJ90..GEN;RZJ95..LHD..GEN199604-200412

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iRZJ95..LHD..MTM;KZJ9#,LJ9#,RZJ90..CO,GEN199702-200008

main31404-35011iLJ9#,RZJ90..GEN;RZJ95..LHD..GEN199604-200310

sub31404-35013

main31404-35013iRZJ95..GEN200310-200412

main31453-35010iVZJ9#..MTM199604-200209

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iRZJ95..LHD..STD;RZJ95..MTM..GX..(ARL,GEN,MA);KZJ95,LJ9#,RZJ90,VZJ9#..MTM..(DSL,EFI,TDEFI)..(ARL,GCC,GEN)199604-200412

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 3 diagrams in section
