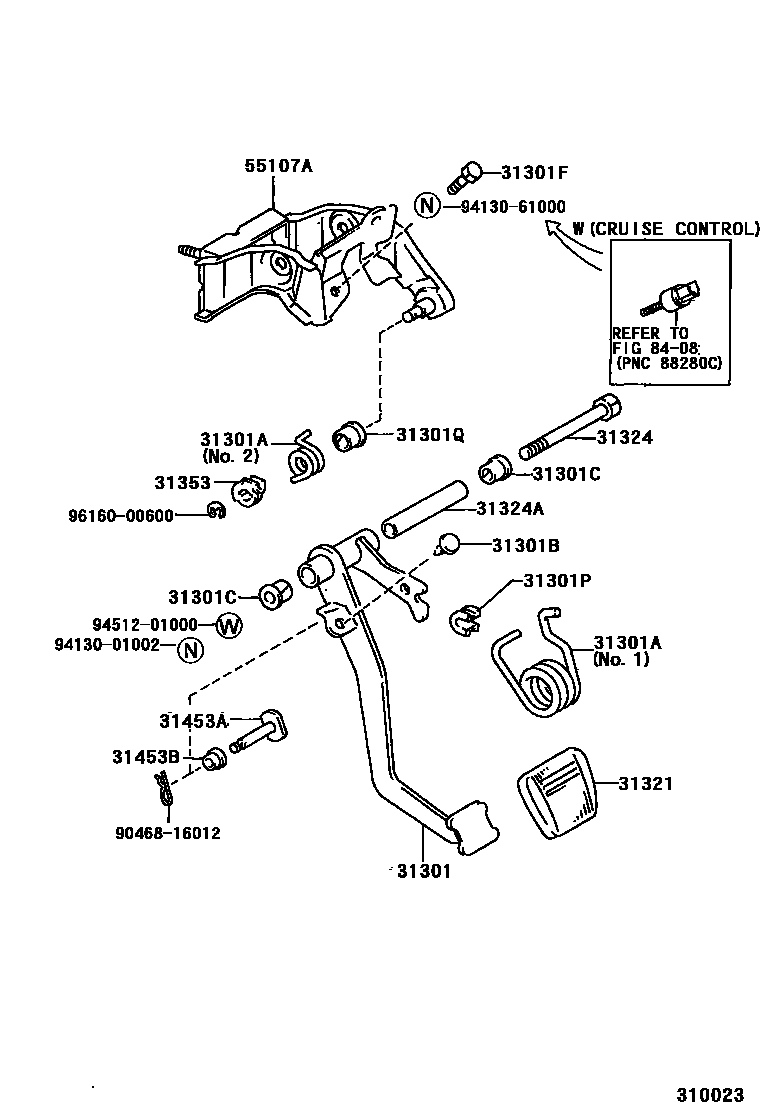

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-60190iLJ9#,RZJ95..RHD..MTM199604-200209

sub31301-60240

main31301-60200iLJ9#,RZJ9#..LHD..MTM199604-199910

main31310-60050iKZJ95,VZJ95..MTM..ARL199906-200209

sub31301-60240

main31310-60060iKZJ9#,VZJ9#..MTM..(GCC,GEN)199604-199910

main31310-60190iVZJ95..MTM..ARL199604-199906

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14030iRZJ90..GX;LJ9#,RZJ9#..CBR,DSL;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

main90949-03017iKZJ9#,VZJ9#..MTM199604-199910

NO.2

main90949-03044iVZJ95..MTM..ARL199604-200209

NO.1

main90949-03045iKZJ9#,VZJ9#..LHD..MTM199604-199910

NO.1

main90949-03051iKZJ95..MTM..ARL200001-200209

NO.1

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKZJ9#,LJ9#,RZJ9#,VZJ9#..MTM199604-200209

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN)199604-200209

main90386-13020iLJ9#,RZJ9#..MTM199604-199606

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iKZJ9#,VZJ9#..MTM199604-199910

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-13015iKZJ9#,VZJ9#..MTM199604-199910

31321PAD, CLUTCH PEDAL

main31321-14020iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

31324SHAFT, CLUTCH PEDAL

main90101-10177iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..MTM..(DSL,EFI,TD);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10082iKZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN)199604-200209

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iKZJ9#,VZJ9#..MTM199604-199910

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-34010iLJ9#,RZJ95..RHD..(CBR,DSL);RZJ95,VZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

L=27

main47148-35030iRZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD..MTM199604-199910

L=28.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iKZJ9#,LJ9#,RZJ9#,VZJ9#..MTM..(ARL,GCC,GEN)199604-200209

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-35070iVZJ95..MTM..ARL199604-200008

sub55107-60170

main55107-60110iLJ9#,RZJ95..RHD..(CBR,DSL);RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200412

main55107-60120iRZJ90..GX;LJ9#,RZJ9#..LHD..(CBR,DSL)199604-199910

sub55107-60130

main55107-60130iKZJ9#,VZJ9#..LHD..MTM199604-199910

main55107-60170iKZJ95,VZJ95..MTM..ARL200008-200209

8408

9046816012

main90468-16012

9413001002

main94130-01002

9413061000

main94130-61000

9451201000

main94512-01000

9616000600

main96160-00600

20 parts on this diagram · 9 diagrams in section
