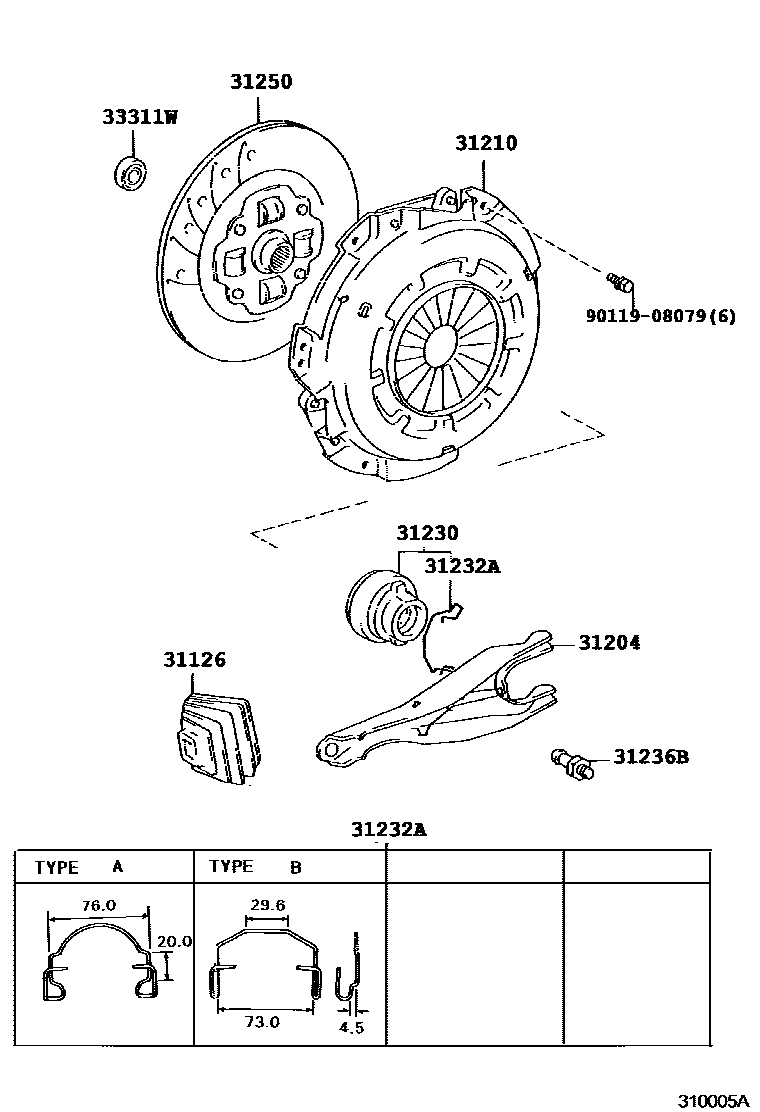

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iLJ9#199604-200209

main31126-26020iRZJ9#..MTM199604-200209

main31126-34010iVZJ9#..MTM199604-199910

main31126-60080iKZJ9#199604-200103

sub31126-60081

main31126-60081iKZJ95..MTM200103-200209

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZJ9#..MTM199604-200209

main31204-35031iVZJ9#..MTM199604-199910

main31204-35050iLJ9#199604-200209

main31204-60090iKZJ9#..MTM199604-200209

31210COVER ASSY, CLUTCH

main31210-26090iKZJ9#..GEN199808-200008

sub31210-26130

main31210-26170iRZJ9#200407-200602

sub31210-26171

main31210-26171iRZJ90200603-200707

sub31210-26172

main31210-26172iRZJ90200708

main31210-35100iLJ9#199604-199911

sub31210-35101

main31210-35101iLJ9#199911-200209

sub31210-35102

main31210-35200iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200407

sub31210-26170

main31210-35210iVZJ9#..MTM199604-200510

sub31210-35290

main31210-35260iKZJ95..GEN200008-200209

sub31210-35270

main31210-35290iVZJ95..MTM200511-200707

sub31210-35291

main31210-35291iVZJ95..MTM200708

main31210-60170iKZJ9#199604-199808

sub31210-60171

main31210-60200iKZJ95..MTM..ARL200001-200209

sub31210-60201

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLJ9#199604-200209

sub31230-35061

main31230-35090iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

sub31230-35091

main31230-35091iRZJ9#..MTM199906

main31230-35110iVZJ9#..MTM199604-199910

main31230-60170iKZJ9#..MTM199604-200209

31232ACLIP, RELEASE BEARING HUB

main31232-35020iVZJ9#..MTM199604-200209

TYPE A:REFER TO ILLUSTRATION

main31232-35020iLJ9#,RZJ9#..MTM199906

TYPE A:REFER ILLUST.

main31232-35030iVZJ9#..MTM199604-200008

TYPE B:REFER TO ILLUSTRATION

main31232-35030iLJ9#199906-200209

TYPE B:REFER ILLUST.

main31232-35040iRZJ90..GX;RZJ9#..CBR;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200209

TYPE B:REFER TO ILLUSTRATION

main31232-35040iRZJ9#..MTM199906

TYPE B:REFER ILLUST.

main31232-36030iKZJ9#..MTM199604-200209

TYPE A:REFER TO ILLUSTRATION

main31232-60030iKZJ9#..MTM199604-200209

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-26010iLJ9#200109-200209

main31236-30060iRZJ90..GX;LJ9#,RZJ9#..CBR,DSL;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN)199604-200110

main31236-35030iVZJ9#..MTM199604-199910

main31236-60060iKZJ9#..MTM199604-200209

31250DISC ASSY, CLUTCH

main31250-26171iKZJ9#..MTM199808-200209

sub31250-26172

main31250-26230iRZJ9#200407

sub31250-26231

main31250-35221iLJ9#199604-199906

sub31250-35222

main31250-35222iLJ9#199906-199911

main31250-35340iKZJ9#199604-199701

sub31250-35341

main31250-35341iKZJ9#199701-199808

sub31250-35342

main31250-35350iVZJ9#..MTM199604-199703

sub31250-35351

main31250-35351iVZJ9#..MTM199703-199805

sub31250-35352

main31250-35352iVZJ9#..MTM199805-200508

sub31250-35353

main31250-35353iVZJ95..MTM200509-200510

sub31250-60410

main31250-35400iRZJ9#..MTM199708-200407

sub31250-26230

main31250-35410iLJ9#199911-200209

main31250-37060iRZJ9#..MTM199604-199708

sub31250-35400

main31250-60410iVZJ95..MTM200511

sub31250-60411

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKZJ9#,LJ9#,VZJ9#..MTM199604-200812

sub90363-12024

main90363-12018iRZJ9#..MTM200006-200812

main90363-12018iRZJ95..MTM..ARL200006-200209

NSK

main90363-12020iRZJ95..MTM..ARL200006-200209

NACHI

9011908079

main90119-08079

9 parts on this diagram · 4 diagrams in section
