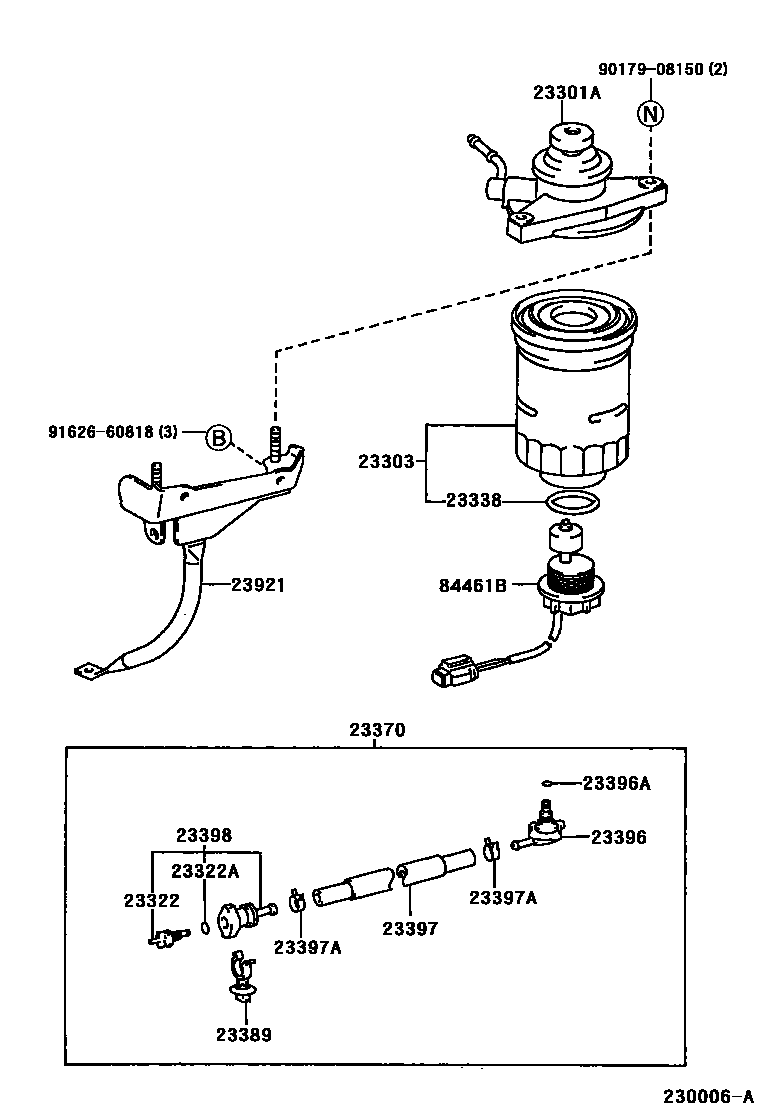

FUEL FILTER

0001 1 0002 1 0003 1

23301ACAP ASSY, FUEL FILTER

main23380-30020i1KZTE..KZJ95..RHD200008-200209

sub23380-30021

main23380-30060i3L..LJ9#..LHD200008-200209

sub23380-30061

main23380-67120i3L..LJ9#..RHD199604-199906

main23380-67160i1KZT..KZJ9#199604-199906

main23380-67170i3L..LJ95..LHD199604-199906

W(FUEL HEATER)

main23380-67260i1KZTE..KZJ95199906-200008

sub23380-67261

main23380-67310i1KZT..KZJ9#199906-200008

sub23380-67311

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1KZT..KZJ9#199604-199906

main23390-64480i1KZ#..KZJ9#199906-200209

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i1KZT..KZJ9#199604-200209

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KZT..KZJ9#199604-200209

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KZT..KZJ9#199604-200209

23370COCK ASSY, FUEL FILTER DRAIN

main23370-67010i1KZT..KZJ9#199604-200209

23389CLAMP, FUEL FILTER

main23389-67140i3L..LJ9#199604-200209

23396COCK, FUEL FILTER DRAIN

main23396-67140i3L..LJ9#199604-200209

23396ARING, O(FOR DRAIN COCK)

main23344-54010i1KZT..KZJ9#199604-200209

23397HOSE, FUEL FILTER DRAIN

main23397-67140i1KZT..KZJ9#199604-200209

23397ACLIP, HOSE(FOR DRAIN HOSE)

main90099-35036i1KZ#..KZJ9#199604-200209

23398VALVE, FUEL FILTER DRAIN

main23398-67140i1KZT..KZJ9#199604-200209

23921SUPPORT, FUEL FILTER

main23921-67050i3L..LJ9#..RHD199604-200209

main23921-67060i1KZ#..KZJ9#..GEN199604-200209

main23921-75020i3RZF..RZJ9#199604-199906

84461BSWITCH, LEVEL WARNING

main84461-60060iKZJ9#199604-200209

9017908150

main90179-08150

9162660818

main91626-60818

16 parts on this diagram · 3 diagrams in section
