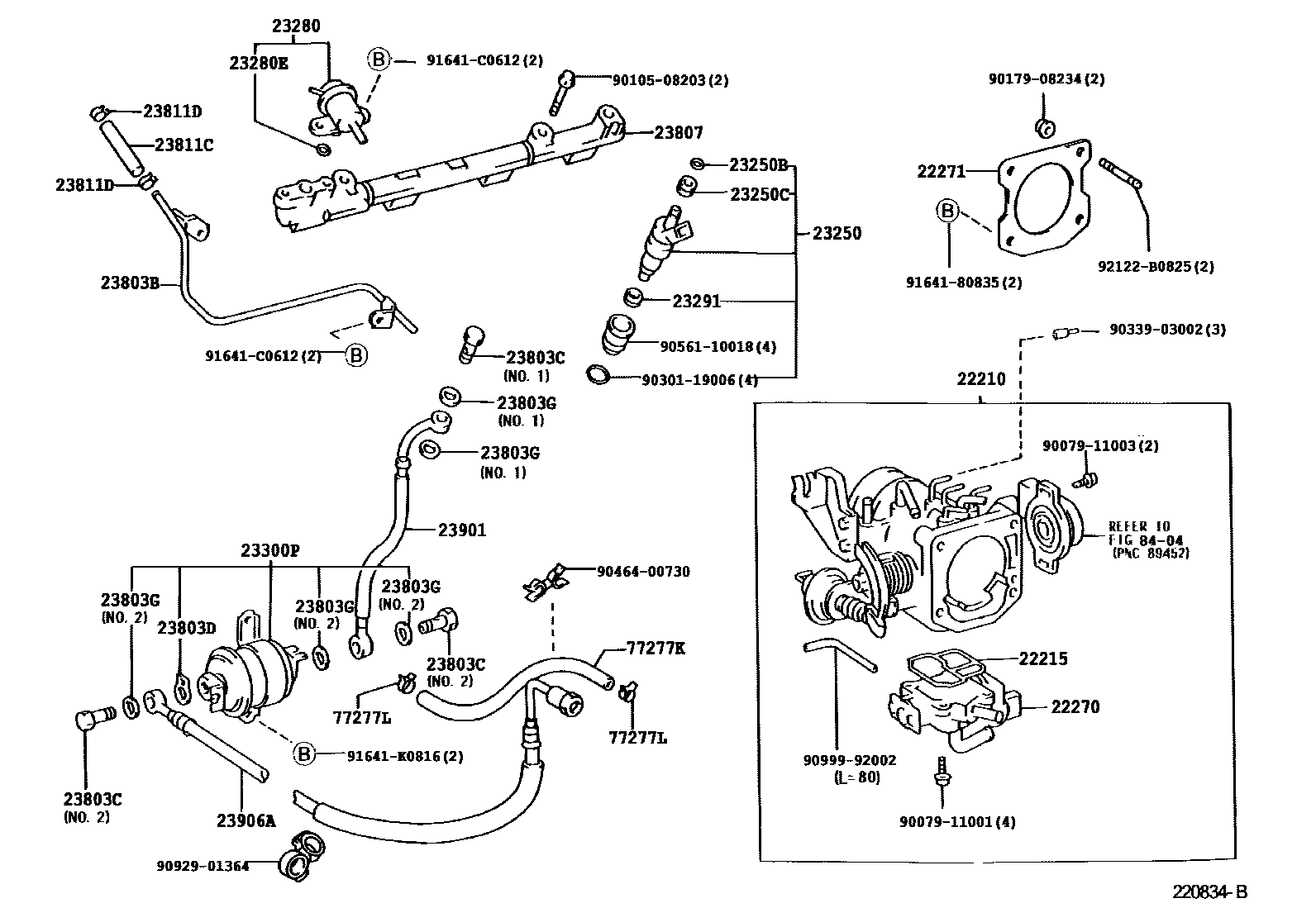

FUEL INJECTION SYSTEM

0001 1 0004 1 0005 1CHINA SPEC 0006 1 0007 1 0008 1

22210BODY ASSY, THROTTLE

main22210-62220i5VZFE..VZJ95..ATM..(ARL,GCC)199604-199906

W(CRUISE CONTOROL)

main22210-62230i5VZFE..VZJ95..ATM..CO199906

main22210-62250i5VZFE..VZJ95..MTM..CO199906

main22210-62260i5VZFE..VZJ9#..MTM..(ARL,GCC)199906-200209

W(CRUISE CONTOROL)

main22210-75130i3RZFE..RZJ9#..MTM199604-199906

main22210-75180i3RZFE..RZJ95..ATM..ARL199604-200209

main22210-75260i3RZFE..RZJ95..RHD..STD;3RZFE..RZJ95..MTM..GCC199906-200412

22215GASKET, THROTTLE BODY COVER

main22215-62180i5VZFE..VZJ9#199604-199910

main22215-75050i3RZFE..RZJ95..MTM..GCC200001

CHINA SPEC

main22215-7A680i3RZFE..RZJ90..STD;3RZFE..RZJ95..LHD..GEN;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..RHD..GX..GEN199906-200209

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-62050i5VZFE..VZJ9#199906

main22270-75030i3RZFE..RZJ95..RHD..ATM199910-200209

main22270-75040i3RZFE..RZJ90..GX..GEN;3RZFE..RZJ95..MTM..(ARL,MA)199906-200209

main22270-75051i3RZFE..RZJ95..RHD..STD;3RZFE..RZJ95..MTM..GCC199906-200412

22271GASKET, THROTTLE BODY

main22271-62040i5VZFE..VZJ9#199906

main22271-75020i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)199906-200209

23250INJECTOR ASSY, FUEL

main23209-62030×6i5VZFE..VZJ95..CO199906-199910

main23209-62040×6i5VZFE..VZJ9#199906

main23209-79095×4i3RZFE..RZJ9#199604-199906

main23209-79145×4i3RZFE..RZJ90..STD;3RZFE..RZJ95..GCC,GEN199906-200412

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i5VZFE..VZJ9#199604-199812

NO.1 & NO.2

main90301-07024×4i3RZFE..RZJ9#..MTM..(CO,GCC)199906

main90301-07037×6i5VZFE..VZJ95200607

NO.2

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i5VZFE..VZJ9#199604-199906

23280REGULATOR ASSY, FUEL PRESSURE

main23280-62030i5VZFE..VZJ9#199604-199910

main23280-75020i3RZFE..RZJ9#..MTM..(CO,GCC)199906

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i5VZFE..VZJ9#199604-199812

main90301-07024i5VZFE..VZJ9#199812-199910

main90301-07037i3RZFE..RZJ90200607

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×6i5VZFE..VZJ9#199906

main23291-62010×6i5VZFE..VZJ95..CO199906-199910

main23291-73010×4i3RZFE..RZJ95..RHD..STD199906-200412

23300PFILTER, FUEL(FOR EFI)

main23300-62030i5VZFE..VZJ9#199604-199910

main23300-79446i3RZFE..RZJ95..ATM199604-199906

main23300-79525i3RZFE..RZJ9#..GCC,GEN199906-199910

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-62010i5VZFE..VZJ9#199604-199910

main23803-75020i3RZFE..RZJ95..RHD..STD199906-200412

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-12033i3RZFE..RZJ95..RHD..STD199906-200412

NO.1

main90401-12097×2i3RZFE..RZJ9#..MTM..(CO,GCC)199906

NO.2

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-12017i3RZFE..RZJ9#199604-199905

main90430-12026i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)199906-200209

23803GGASKET(FOR FUEL HOSE)

main23279-74010×2i3RZFE..RZJ9#..MTM..(CO,GCC)199906

NO.1

main90430-12026×3i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)199906-200209

NO.2

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75020i3RZFE..RZJ9#199604-199708

main23807-75021i3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199708-200209

main23807-75022i3RZFE..RZJ95..GEN200309-200412

23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)

main95333-06020i5VZFE..VZJ9#199604-199910

sub95337-06020

main95334-06012i3RZFE..RZJ95..RHD..STD199906-200412

L=200(*H,L=120)

23811DCLIP, HOSE(FOR FUEL HOSE)

main90467-11065×2i5VZFE..VZJ9#199906

main96135-41100×2i3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

main96135-51100×2i3RZFE..RZJ95..RHD..STD199906-200412

23901TUBE SUB-ASSY, FUEL

main23901-75030i3RZFE..RZJ9#199604-199708

main23901-75031i3RZFE..RZJ9#199708-199905

main23901-75050i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)199906-200209

23906AHOSE SUB-ASSY, FUEL

main23906-75040i3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

77277KHOSE, FUEL(FOR RETURN HOSE)

main23273-62030iVZJ9#199906

main23273-75040iRZJ9#199906

77277LCLIP, HOSE(FOR RETURN HOSE)

main96135-41100×2iVZJ9#199604-199910

main96135-51100×2iRZJ9#199906

8404

9007911001

main90079-11001

9007911003

main90079-11003

9010508203

main90105-08203

9017908234

main90179-08234

9030119006

main90301-19006

9033903002

main90339-03002

9046400730

main90464-00730

9056110018

main90561-10018

9092901364

main90929-01364

9099992002

main90999-92002

9164180835

main91641-80835

91641C0612

main91641-C0612

91641K0816

main91641-K0816

92122B0825

main92122-B0825

37 parts on this diagram · 6 diagrams in section
