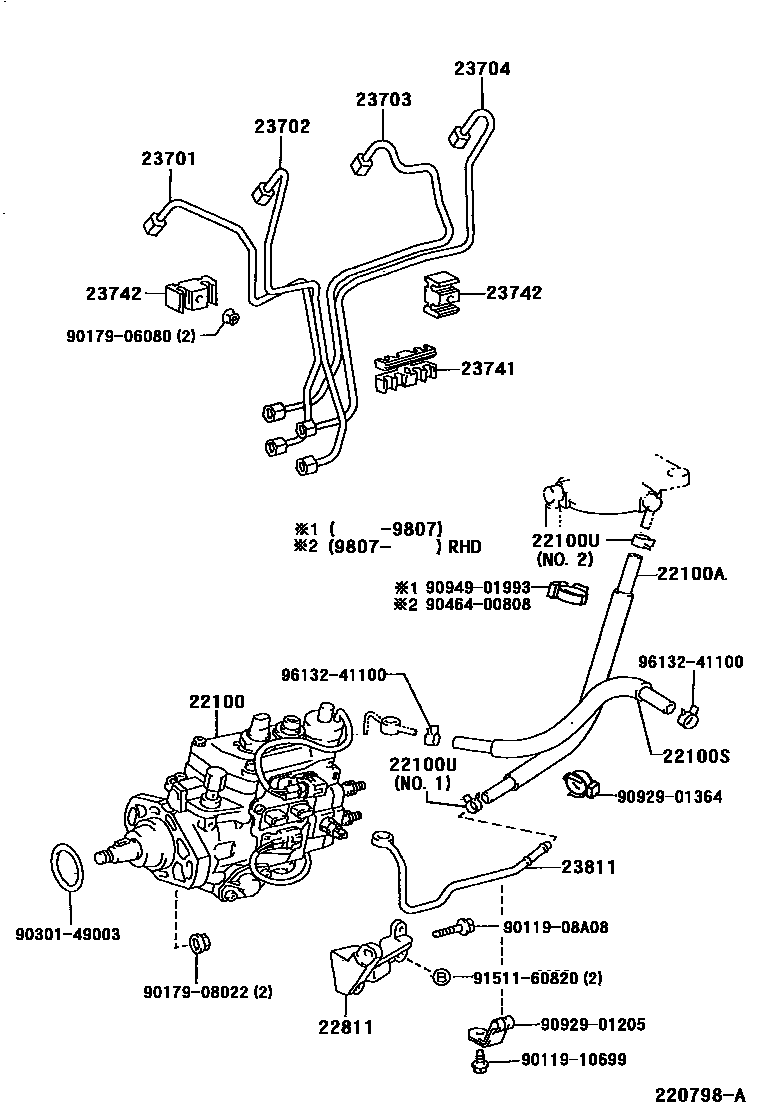

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
W(HIGH ALTITUDE COMPENSATOR)
W(AUTOMATIC COLD START DIVICE)
W(HIGH ALTITUDE COMPENSATOR)
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
L=700
L=700
L=550
L=600
L=600
L=550
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)
NO.2
NO.1
22811STAY, INJECTION PUMP, NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
9011908A08
9011910699
9017906080
9017908022
9030149003
9046400808
9092901205
9092901364
9094901993
9151160820
9613241100
23 parts on this diagram · 3 diagrams in section
