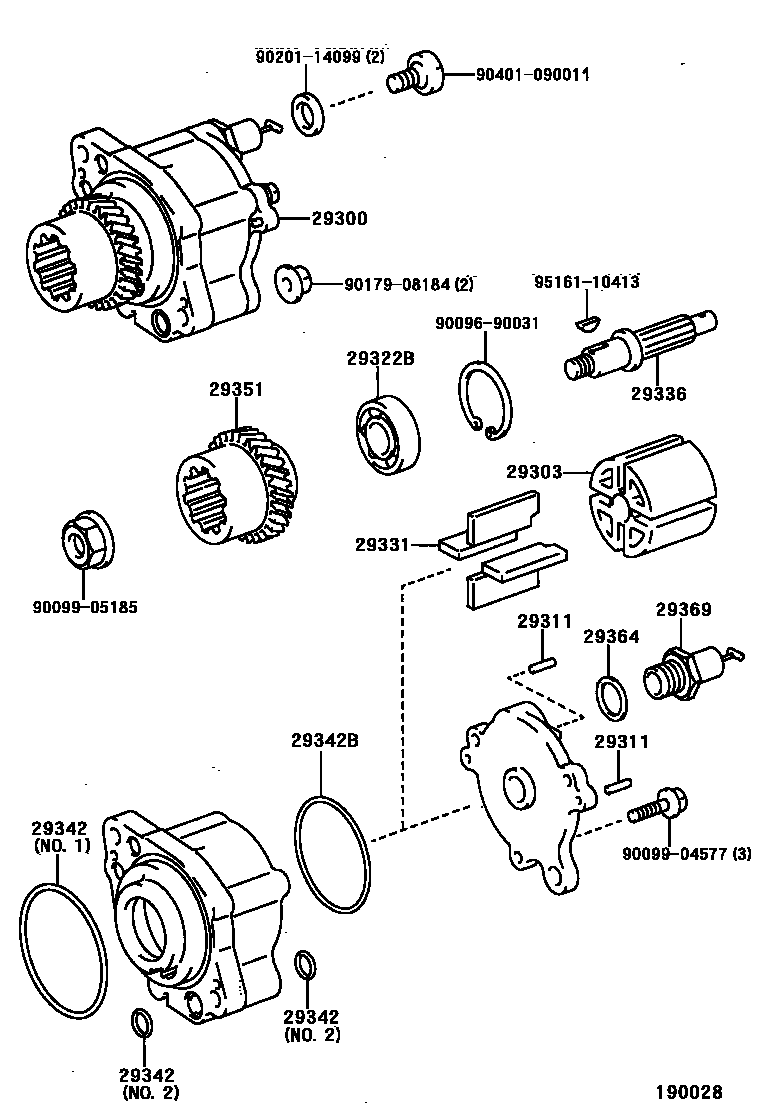

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54140i3L..LJ9#199604-199608

sub29300-54180

main29300-54150i3L..LJ9#199906-200209

main29300-54170i3L..LJ9#199608-199805

main29300-67020i1KZ#..KZJ9#199906-200209

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1KZT..KZJ9#199604-199906

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i1KZT..KZJ9#199604-199906

29322BBEARING, VACUUM PUMP

main90099-10166i3L..LJ9#199604-199612

main90099-10185i1KZT..KZJ9#199604-199906

main90099-10199i3L..LJ9#199612-199906

29331BLADE, VACUUM PUMP, A

main29331-54130×5i3L..LJ9#199906-200209

main29331-64030×5i3L..LJ9#199604-199906

main29331-67020×5i1KZT..KZJ9#199604-199906

29336SHAFT, VACUUM PUMP

main29336-58050i1KZ#..KZJ9#199906-200209

main29336-64031i3L..LJ9#199906-200209

29342PACKING, VACUUM PUMP

main29342-67020i1KZ#..KZJ9#199906-200209

NO.1

main29342-68010×2i1KZ#..KZJ9#199906-200209

NO.2

29342BRING, O

main29342-58010i1KZT..KZJ9#199604-199906

main29342-64030i3L..LJ9#199604-199906

29351GEAR, VACUUM PUMP

main29351-67020i1KZT..KZJ9#199604-199906

29364WASHER, VACUUM PUMP

main29364-66010i1KZT,3L..KZJ9#,LJ9#199604-199906

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KZT,3L..KZJ9#,LJ9#199604-199906

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017908184

main90179-08184

9020114099

main90201-14099

9040109001

main90401-09001

9516110413

main95161-10413

18 parts on this diagram · 2 diagrams in section
