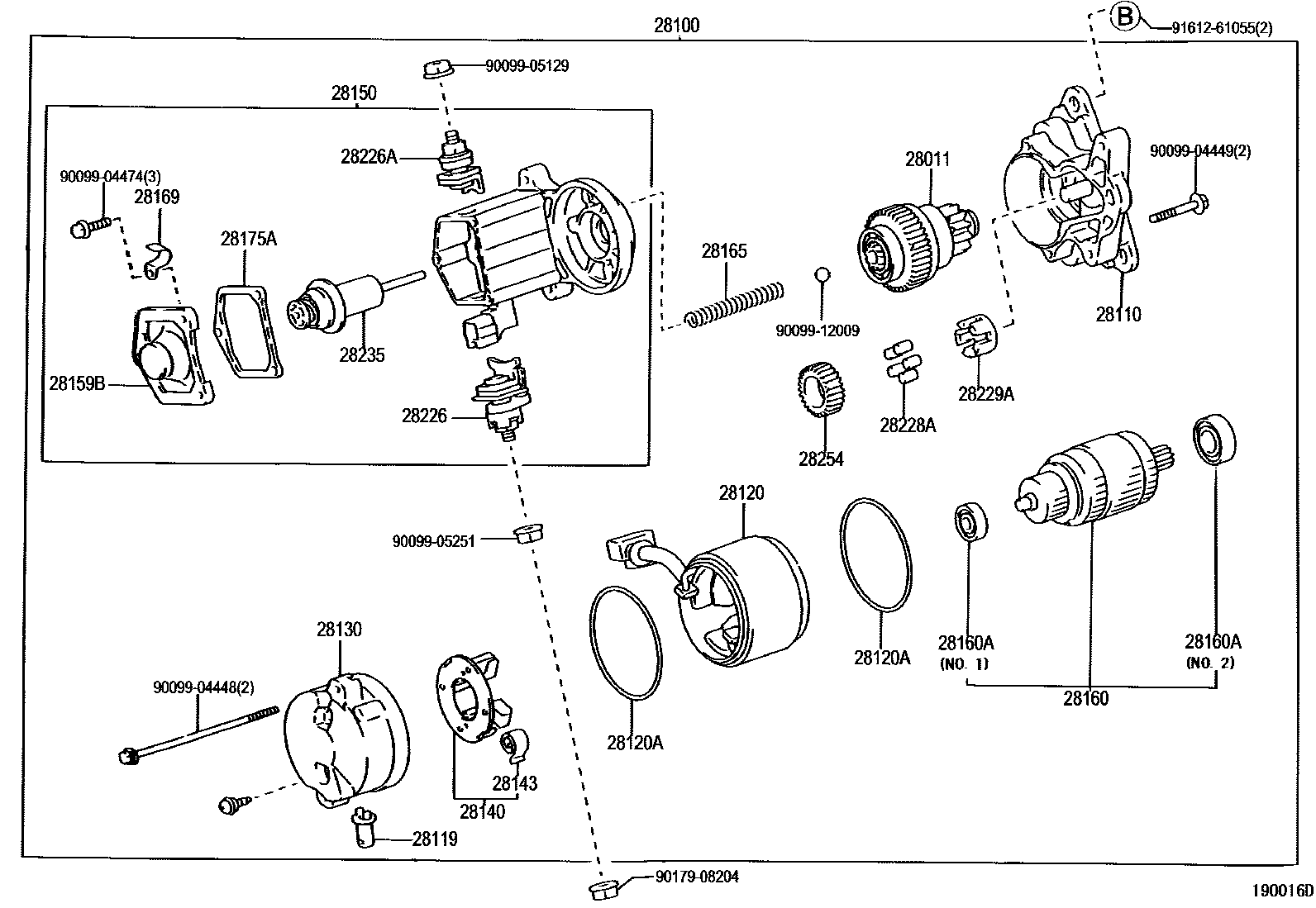

STARTER

0001 112V 1.2KW,1.4KW,2.0KW 0002 112V 2.2KW 0003 112V 2.7KW 0004 112V 2.0KW,2.7KW 0005 112V 1.2KW,1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-54010i3L..LJ95..LHD199604-199906

12V 2.7KW

main28011-54380i3L..LJ9#199604-199906

12V 2.0KW

main28011-67020i1KZTE..KZJ95..ATM199909-200209

main28011-67030i1KZ#..KZJ9#..MTM199906-200209

main28011-75120i3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28011-76070i3RZFE,5VZFE..RZJ9#,VZJ9#199906

12V 1.2KW,1.4KW

28100STARTER ASSY

main28100-54380i3L..LJ9#199906-200209

12V 2.0KW

main28100-54390i3L..LJ95..LHD199604-199906

12V 2.7KW

main28100-62040i5VZFE..VZJ95..ATM..GCC199906-200209

12V 1.2KW

main28100-62050i5VZFE..VZJ95..ATM..GCC199906-200310

12V 1.4KW

main28100-67050i1KZT..KZJ9#199604-199906

12V 2.2KW

sub28100-67051

main28100-67070i1KZTE..KZJ95..ATM199909-200209

12V 2.7KW

sub28100-30050

main28100-75090i3RZFE..RZJ95..GCC199906-200312

12V 1.4KW

sub28100-75091

main28100-75120i3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28100-75130i3RZFE..RZJ95..MTM..GCC199906-200209

12V 1.2KW

28110HOUSING ASSY, STARTER DRIVE

main28110-54380i3L..LJ9#199906-200209

12V 2.0KW

main28110-62050i5VZFE..VZJ9#199604-199910

main28110-67040i1KZTE..KZJ95..ATM199909-200209

main28110-67050i1KZT..KZJ9#199604-199906

main28110-75090i3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

12V 1.2KW,1.4KW

main28110-75120i3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28115-54011i3L..LJ95..LHD199604-199906

12V 2.7KW

28119COVER, STARTER END FRAME

main28199-46080×2i1KZT..KZJ9#199604-199906

12V 2.7KW,NO.2

main28199-54190×2i3L..LJ95..LHD199604-199906

12V 2.7KW,NO.1

main28199-74110i3L..LJ9#199604-199906

12V 2.0KW,NO.2

28120YOKE ASSY, STARTER

main28120-16180i3RZFE..RZJ95..MTM..GCC;5VZFE..VZJ95..ATM..GCC199906-200209

12V 1.2KW

main28120-54380i3L..LJ9#199906-200209

12V 2.0KW

main28120-56081i3L..LJ95..LHD199604-199906

12V 2.7KW

main28120-64040i1KZ#..KZJ9#..MTM199906-200209

main28120-66040i3RZFE..RZJ95..GCC;5VZFE..VZJ95..ATM..GCC199906-200312

12V 1.4KW

main28120-67020i1KZTE..KZJ95..ATM199909-200209

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i3RZ#,5VZFE..RZJ9#,VZJ9#199604-199906

main90099-64040i1KZ#..KZJ9#..MTM199906-200209

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-54380i3L..LJ9#199906-200209

12V 2.0KW

main28130-54430i3L..LJ95..LHD199604-199906

12V 2.7KW

main28130-64170i3RZFE..RZJ95..GCC199906-200312

12V 1.4KW

main28130-65060i5VZFE..VZJ9#..ARL,GCC199906-200209

12V 1.2KW

main28130-65070i5VZFE..VZJ95..ATM..GCC199906-200310

12V 1.4KW

main28130-67020i1KZTE..KZJ95..ATM199909-200209

main28130-75120i3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28130-75130i3RZFE..RZJ95..MTM..GCC199906-200209

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-35060i5VZFE..VZJ95..ATM..GCC199906-200310

12V 1.4KW

main28140-54380i3L..LJ9#;3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28140-64040i1KZ#..KZJ9#..MTM199906-200209

main28140-65060i5VZFE..VZJ95..CO199808-199910

main28140-76060i3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ9#..ARL,CO,GEN,MA199906

12V 1.2KW

main28140-76070i3RZF..RZJ9#199604-199906

12V 1.4KW

main28140-77090i1KZTE..KZJ95..ATM199909-200209

28143SPRING, STARTER BRUSH

main28143-54380×4i3L..LJ9#;3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28143-76060×4i3RZFE,5VZFE..RZJ90,VZJ9#..GX,VX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

12V 1.2KW

main90099-17112×4i3RZF..RZJ9#;5VZFE..VZJ95..ATM..GCC199604-199906

12V 1.4KW

main90099-17115×4i1KZ#..KZJ9#..MTM199906-200209

28150SWITCH ASSY, MAGNET STARTER

main28150-54380i3L..LJ9#199604-199906

12V 2.0KW

main28150-54390i3L..LJ95..LHD199604-199906

12V 2.7KW

main28150-62050i5VZFE..VZJ9#199604-199910

main28150-67050i1KZT..KZJ9#199604-199906

main28150-67070i1KZTE..KZJ95..ATM199909-200209

main28150-75120i3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28150-75130i3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

12V 1.2KW,1.4KW

28159BCOVER, MAGNET SWITCH

main28159-10040i1KZ#..KZJ9#..MTM199906-200209

main28159-17030i1KZTE..KZJ95..ATM199909-200209

main28159-54380i3L..LJ9#;3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28159-55050i3RZFE,5VZFE..RZJ9#,VZJ9#199906

12V 1.2KW,1.4KW

main28159-56310i3L..LJ95..LHD199604-199906

12V 2.7KW

28160ARMATURE ASSY, STARTER

main28160-54140i3L..LJ95..LHD199604-199906

12V 2.7KW

main28160-54380i3L..LJ9#199604-199906

12V 2.0KW

main28160-64041i1KZT..KZJ9#199604-199906

main28160-74070i3RZFE..RZJ95..GCC;5VZFE..VZJ95..ATM..GCC199906-200312

12V 1.4KW

main28160-75120i3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28160-76060i3RZFE..RZJ95..ATM..GCC;5VZFE..VZJ95..MTM..GCC;3RZFE,5VZFE..RZJ90,VZJ90;3RZFE,5VZFE..RZJ95,VZJ95..ARL,CO,GEN,MA199906

12V 1.2KW

28160ABEARING, STARTER ARMATURE

main28253-54070i1KZT..KZJ9#199906-200008

NO.1

main90099-10107i1KZTE..KZJ95..ATM199909-200209

12V 2.7KW,NO.1

main90099-10119i3L..LJ95..LHD199604-199906

12V 2.7KW,NO.2

main90099-10143i1KZT..KZJ9#199906-200008

NO.2

main90099-10196i3RZFE,5VZFE..RZJ9#,VZJ9#..ARL,GCC,GEN199906-200412

12V 1.2KW,1.4KW,NO.1

main90099-10197i3RZFE..RZJ90..GX;3L,3RZF,5VZFE..LJ9#,RZJ9#,VZJ9#;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

NO.2

main90099-10208i3L..LJ9#;3RZF..RZJ95..GCC199604-199906

12V 2.0KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1KZ#..KZJ9#..MTM199906-200209

main28165-76070i3L,3RZFE,5VZFE..LJ9#,RZJ9#,VZJ9#199906

12V 1.2KW,1.4KW

main28165-77090i3L..LJ95..LHD199604-199906

12V 2.7KW

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-54380i3L..LJ9#199906-200209

12V 2.0KW

main28169-55050i3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

12V 1.2KW,1.4KW

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i1KZT..KZJ9#199604-199906

main28175-54380i3L..LJ9#;3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28175-55050i3RZFE..RZJ90..GX;3RZF,5VZFE..RZJ9#,VZJ9#;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

12V 1.2KW,1.4KW

main28175-56310i1KZTE..KZJ95..ATM199909-200209

28226STARTER KIT, BATTERY TERMINAL

main28226-22050i3RZFE..RZJ9#199906

main28226-54320i3L..LJ95..LHD199604-199906

12V 2.7KW

main28226-54380i3L..LJ9#199906-200209

12V 2.0KW

sub28226-54340

main28226-64200i3RZFE..RZJ90..GX;3RZF,5VZFE..RZJ9#,VZJ9#;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

12V 1.2KW,1.4KW

main28226-76100i1KZ#..KZJ9#..MTM199906-200209

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i1KZTE..KZJ95..ATM199909-200209

main28226-72010i3RZF..RZJ95..GCC;1KZT,3L..KZJ9#,LJ9#199604-199906

12V 2.0KW,2.2KW

main28226-74070i3RZFE..RZJ90..GX;3RZF,5VZFE..RZJ9#,VZJ9#;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

12V 1.2KW,1.4KW

28228AROLLER, STARTER CLUTCH

main28228-26040×5i3RZFE,5VZFE..RZJ95,VZJ95;1KZ#,3L,3RZFE,5VZFE..KZJ9#,LJ9#,RZJ90,VZJ90..MTM199906

12V 1.2KW,1.4KW

main28228-56080×5i1KZTE..KZJ95..ATM199909-200209

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i1KZT..KZJ9#199604-199906

main28229-56080i3L..LJ95..LHD199604-199906

12V 2.7KW

main28229-74070i3RZFE..RZJ90..GX;3L,3RZF,5VZFE..LJ9#,RZJ9#,VZJ9#;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

12V 1.2KW,1.4KW

28235PLUNGER, MAGNET SWITCH

main28235-17030i1KZTE..KZJ95..ATM199909-200209

main28235-35080i1KZT..KZJ9#199604-199906

main28235-54380i3L..LJ9#;3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28235-55050i3RZFE,5VZFE..RZJ9#,VZJ9#199906

12V 1.2KW,1.4KW

28254PINION, STARTER IDLE GEAR

main28254-64040i1KZT..KZJ9#199604-199906

main28254-64130i3L..LJ9#;3RZF..RZJ95..GCC199604-199906

12V 2.0KW

main28254-74070i3RZFE,5VZFE..RZJ9#,VZJ9#199906

12V 1.2KW,1.4KW

main28254-77090i1KZTE..KZJ95..ATM199909-200209

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908204

main90179-08204

9161261055

main91612-61055

30 parts on this diagram · 5 diagrams in section
