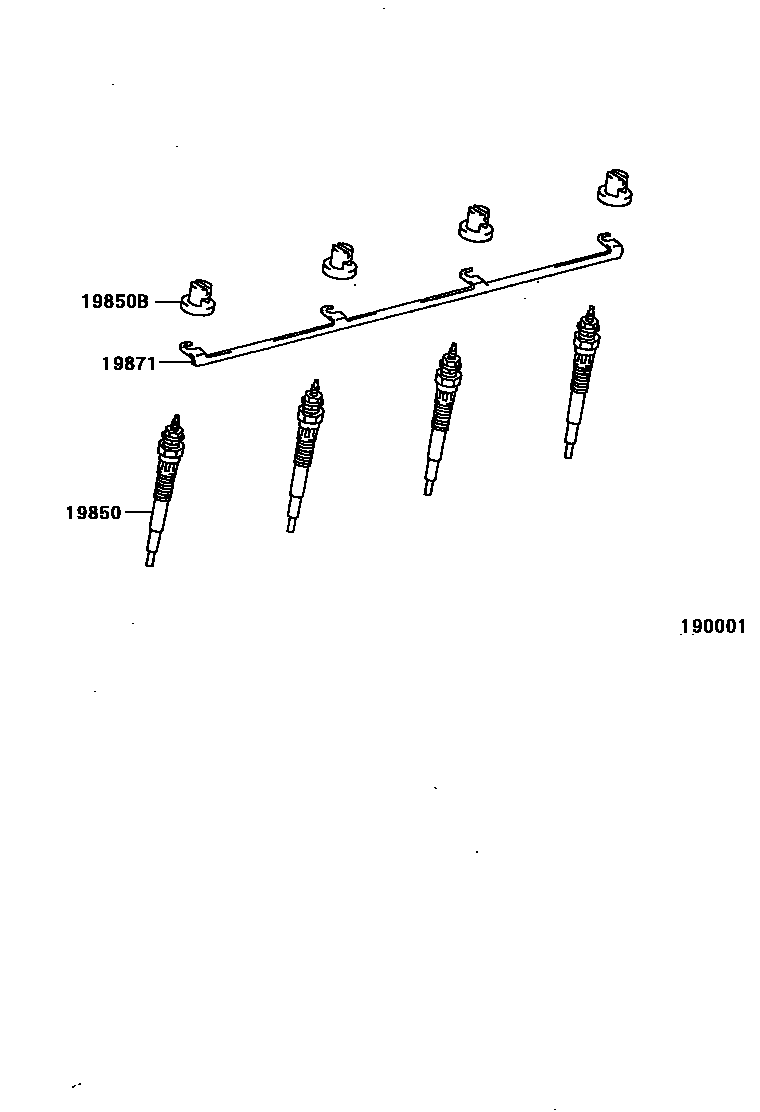

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0007 1 0008 1CHINA SPEC 0009 1

19850PLUG ASSY, GLOW

main19850-05010i3L..LJ9#199901-200209

*BV-GV=12V-11V,(L)

main19850-54090i3L..LJ9#199604-199901

*BV-GV=12V-11V

main19850-54120i3L..LJ9#..STD;3L..LJ95..LHD..GX199901-199906

*BV-GV=12V-11V,(J)

main19850-54120i3L..LJ95..RHD..GX199604-199906

*BV-GV=12V-11V,W(AUTOMATIC COLD START DIVICE)

main19850-54140i3L..LJ9#199906-200209

*BV-GV=12V-11V,MARK 19850-54140

main19850-67030i1KZ#..KZJ9#199604-200209

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1KZT..KZJ9#199604-200209

19871CONNECTOR, GLOW PLUG NO.1

main19871-54020i3L..LJ9#199604-200209

main19871-67030i1KZ#..KZJ9#199604-200209

3 parts on this diagram · 7 diagrams in section
