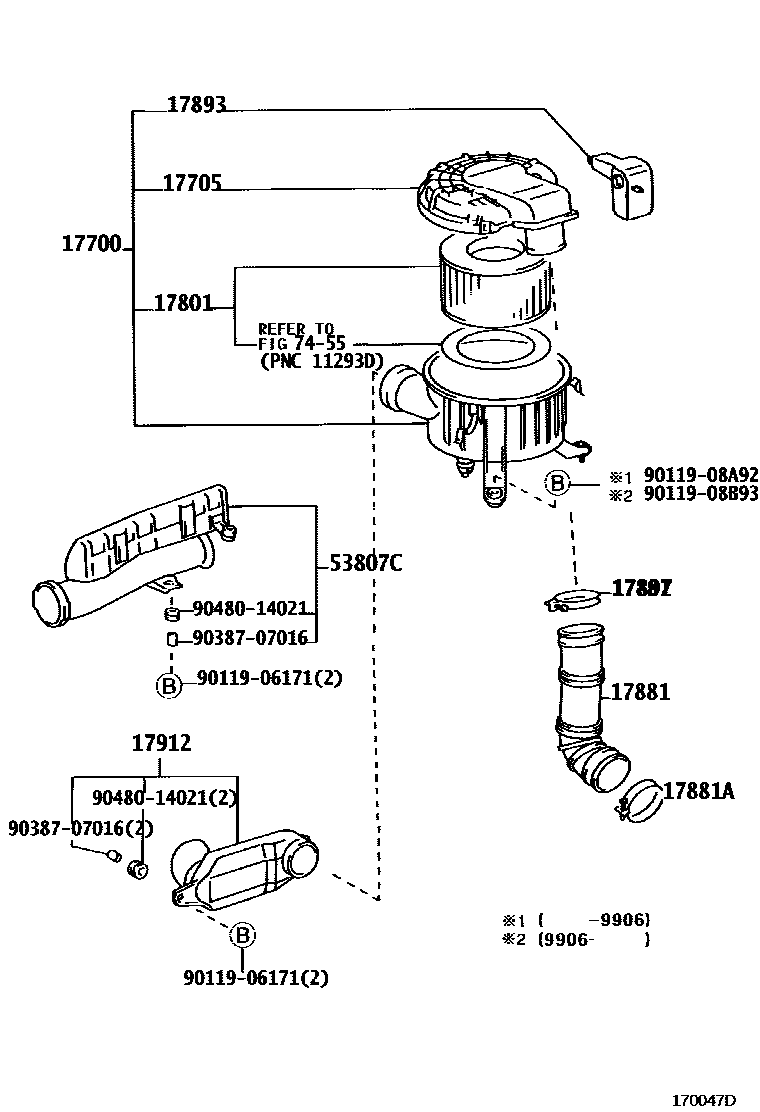

AIR CLEANER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1W(HOT AIR INTAKE) 0009 1 0012 1 0013 1CHINA SPEC 0014 1 0016 1

17700CLEANER ASSY, AIR

main17700-5B010i3L..LJ9#..RHD199604-199903

sub17700-5B011

main17700-5B011i3L..LJ9#..RHD199903-200209

sub17700-5B021

main17700-5B020i3L..LJ9#..RHD199604-199903

W(WARNING SENSOR)

sub17700-5B021

main17700-5B021i3L..LJ9#..RHD199903-200209

W(AIR CLEANER PLUGGING WARNING)

main17700-5B021i1KZTE..KZJ95..ARL199909-200209

main17700-5B030i3L..LJ9#..LHD199604-200209

sub17700-5B040

main17700-5B040i3L..LJ9#..LHD199604-200209

W(AIR CLEANER PLUGGING WARNING)

main17700-62060i5VZFE..VZJ9#199604-199910

main17700-62070i5VZFE..VZJ9#..ARL,GCC199604-199906

W(WARNING SENSOR)

main17700-62110i5VZFE..VZJ95..CO199910

main17700-62120i5VZFE..VZJ9#..ARL,GCC199906-200310

main17700-67150i1KZT..KZJ9#199604-200008

W(WARNING SENSOR)

main17700-67160i1KZT..KZJ9#199604-200008

main17700-67190i1KZTE..KZJ95..GEN200008-200209

main17700-75150i3RZF..RZJ9#199604-199906

main17700-75160i3RZF..RZJ9#199604-199906

W(HOT AIR INTAKE)

main17700-75170i3RZFE..RZJ95..GCC200001-200312

CHINA SPEC

main17700-75170i3RZFE..RZJ9#199604-200209

W(WARNING SENSOR)

main17700-75180i3RZF..RZJ9#199604-199906

W(WARNING SENSOR)

main17700-75190i3RZF..RZJ9#199604-199906

W(HOT AIR INTAKE & WARNING SENSOR)

main17700-75200i3RZFE..RZJ9#199604-199910

main17700-75300i3RZFE..RZJ90..STD;3RZFE..RZJ95..GEN199906-200209

main17700-75310i3RZFE..RZJ95..MTM..GCC199906-200412

W(WARNING SENSOR)

17705CAP SUB-ASSY, AIR CLEANER

main17705-54360i3L..LJ9#..RHD199604-199903

W(WARNING SENSOR)

main17705-54370i3L..LJ9#..LHD199604-200209

W(AIR CLEANER PLUGGING WARNING)

main17705-62050i5VZFE..VZJ95..CO199604-199910

main17705-62060i5VZFE..VZJ9#..ARL,GCC199604-199906

W(WARNING SENSOR)

main17705-62080i5VZFE..VZJ95..CO199910

main17705-62090i5VZFE..VZJ9#..ARL,GCC199906-200310

main17705-67100i3L..LJ9#..LHD199604-200209

sub17705-54370

sub90339-03002

main17705-67110i1KZTE..KZJ95..GEN200008-200209

main17705-67120i1KZT..KZJ9#199604-200008

W(WARNING SENSOR)

main17705-67130i1KZT..KZJ9#199604-200008

main17705-67150i3L..LJ9#..RHD199903-200209

sub17705-67160

sub90339-03002

main17705-67160i3L..LJ9#..RHD199903-200209

W(AIR CLEANER PLUGGING WARNING)

main17705-67160i1KZTE..KZJ95..ARL199909-200209

main17705-75100i3RZF..RZJ9#199604-199906

main17705-75110i3RZF..RZJ9#199604-199906

W(HOT AIR INTAKE)

main17705-75120i3RZFE..RZJ95..GCC200001-200312

CHINA SPEC

main17705-75120i3RZFE..RZJ95..ARL;3RZFE..RZJ90..GX..GEN199604-200209

W(WARNING SENSOR)

main17705-75130i3RZF..RZJ9#199604-199906

W(WARNING SENSOR)

main17705-75140i3RZF..RZJ9#199604-199906

W(HOT AIR INTAKE & WARNING SENSOR)

main17705-75150i3RZFE..RZJ9#199604-199910

main17705-75230i3RZFE..RZJ90..STD;3RZFE..RZJ95..GEN199906-200209

main17705-75240i3RZFE..RZJ90..STD;3RZFE..RZJ95..GEN;3RZFE..RZJ95..ATM..GCC199906-200412

W(WARNING SENSOR)

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-58010i3RZ#..RZJ9#199604-200209

main17801-62010i5VZFE..VZJ9#199604-199910

main17801-67060i1KZ#..KZJ9#..GEN199604-200209

main17801-67080i3L..LJ9#..RHD199903-200209

17881HOSE, AIR CLEANER, NO.1

main17881-54600i3L..LJ9#..RHD199604-200209

main17881-54610i3L..LJ9#..LHD199604-200209

main17881-62110i5VZFE..VZJ9#199604-199612

sub17881-62111

sub12261-62050

main17881-62111i5VZFE..VZJ9#199612-199910

main17881-62160i5VZFE..VZJ9#199906

main17881-67060i1KZT..KZJ9#199604-200209

main17881-67070i1KZTE..KZJ95..RHD199909-200209

main17881-75080i3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i3L..LJ9#..RHD199604-200209

main96111-10670i3L..LJ9#..LHD199604-200209

NO.2

main96111-10690i1KZ#..KZJ9#..GEN199604-200209

main96111-10830i5VZFE..VZJ9#199604-200209

NO.1

main96111-10900i5VZFE..VZJ9#199604-200209

main96111-10900i5VZFE..VZJ9#199604-199910

NO.2

17893RESONATOR, INTAKE AIR

main17893-62040i5VZFE..VZJ9#199604-199910

main17893-62070i5VZFE..VZJ9#..ARL,GCC199906-199910

main17893-67020i1KZ#..KZJ9#..GEN199604-200209

main17893-75040i3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199604-200209

17897CLAMP, HOSE(FOR AIR CLEANER)

main96111-10780i1KZT..KZJ9#199604-200209

main96111-10830i1KZTE..KZJ95..RHD199909-200209

17912DUCT, COOL AIR INTAKE, NO.2

main52820-35010i1KZ#..KZJ9#..GEN199604-200209

53807CDUCT SUB-ASSY, FRONT FENDER AIR, RH

main53807-35020iRZJ9#199604-200209

main53807-35070iVZJ9#..ARL,GCC199906-199910

main53807-60020iKZJ9#199604-200209

main53807-60030iVZJ9#199604-199910

7455

9011906171

main90119-06171

9011908A92

main90119-08A92

9011908B93

main90119-08B93

9038707016

main90387-07016

9048014021

main90480-14021

15 parts on this diagram · 12 diagrams in section
