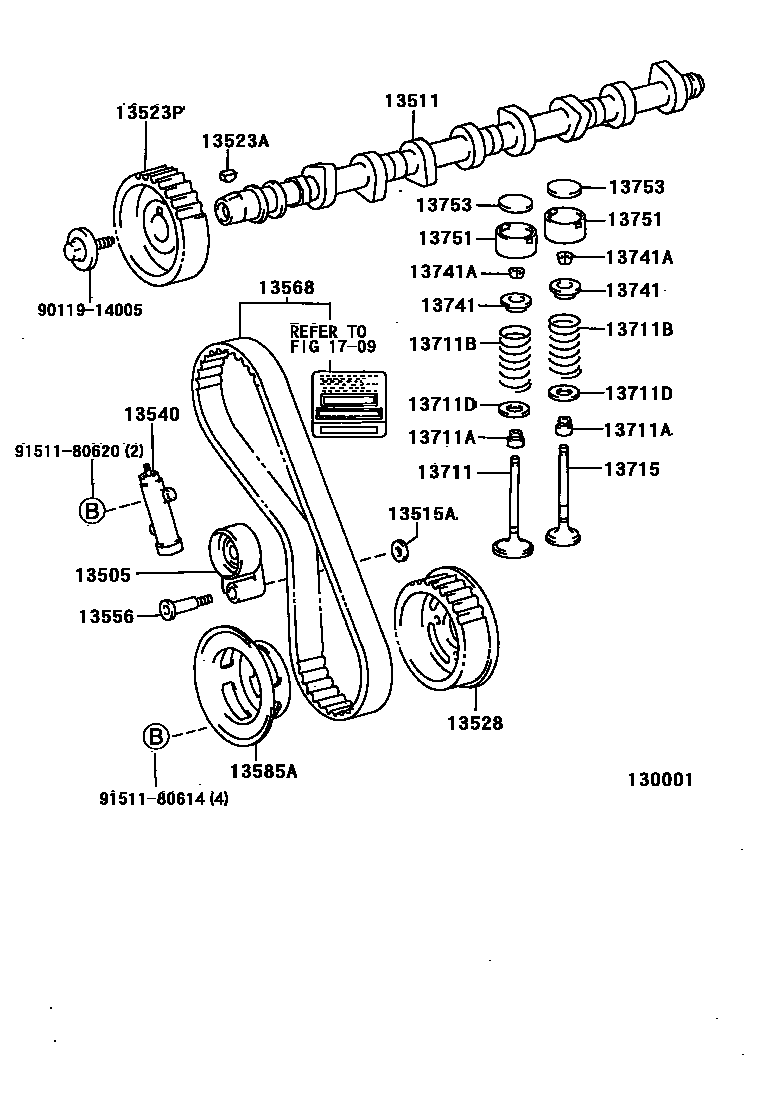

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13515GEAR, DISTRIBUTOR DRIVE
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
RH
LH
13528GEAR, CAMSHAFT DRIVE
13540TENSIONER ASSY, CHAIN, NO.1
main13540-75020i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)¥4,120199604-200412
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13585AFLANGE, CAMSHAFT TIMING PULLEY, NO.1
13711VALVE, INTAKE
LEADED GASOLINE SPEC
CHINA SPEC
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02090i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)¥450199604-200412
NO.1
NO.1
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
LEADED GASOLINE SPEC
main13715-76030i3RZFE..RZJ90..STD;3RZFE..RZJ95..LHD..GEN;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..RHD..GX..GEN¥5,100199906-200412
LEADED GASOLINE SPEC
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50,MARK=T01
T=2.60,MARK=T06
T=2.70,MARK=T11
T=2.80,MARK=T16
T=2.90,MARK=T21
T=3.00,MARK=T26
T=3.10,MARK=T31
T=3.20,MARK=T36
T=3.30,MARK=T41
T=2.55,MARK=T42
T=2.65,MARK=T43
T=2.75,MARK=T44
T=2.85,MARK=T45
T=2.95,MARK=T46
T=3.05,MARK=T47
T=3.15,MARK=T48
T=3.25,MARK=T49
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709
9011914005
9151180614
9151180620
25 parts on this diagram · 4 diagrams in section
