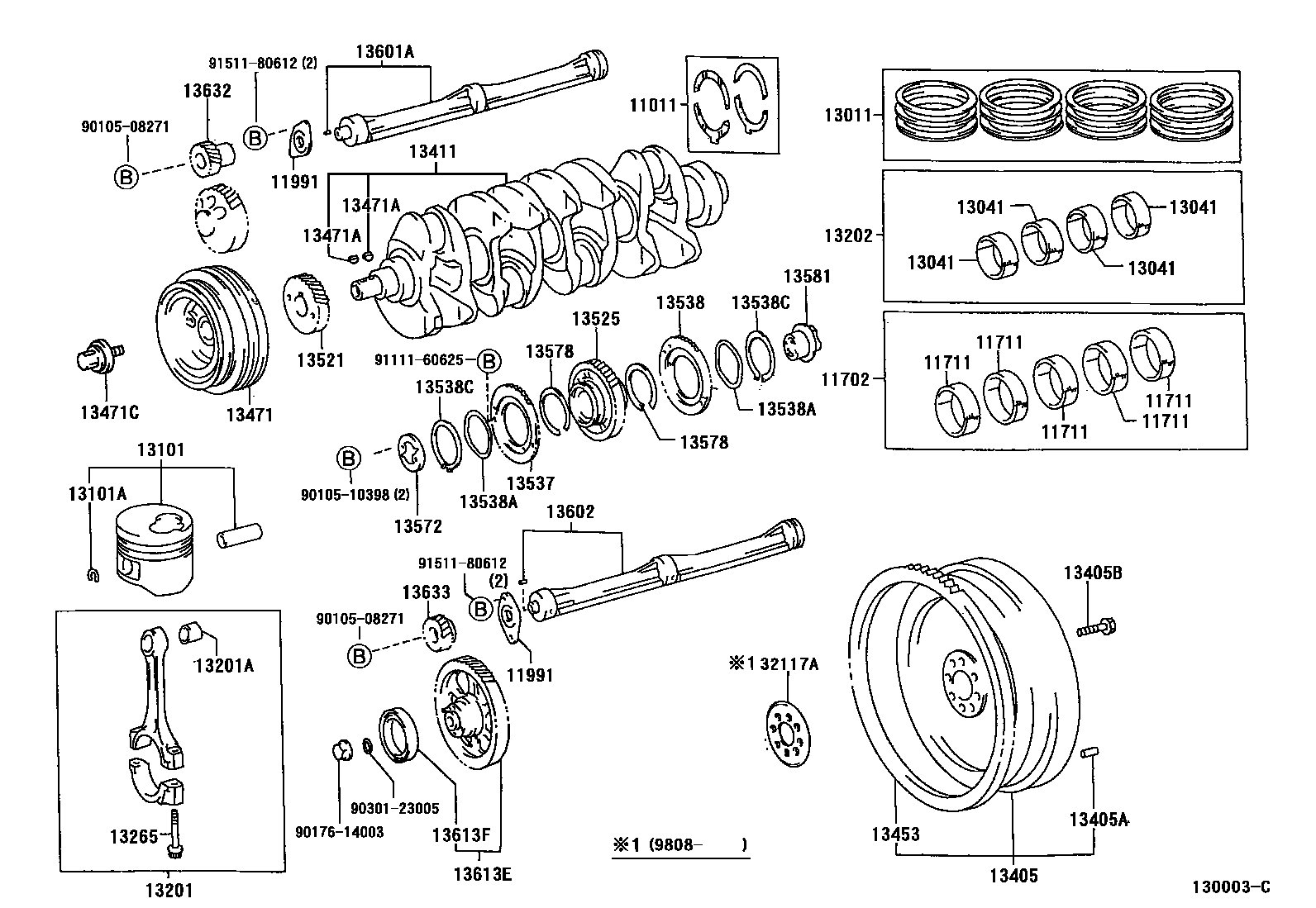

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD
STD
O/S 0.125
O/S 0.250
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK 1,NO.2
sub11071-75022
MARK 2,NO.2
sub11071-75022
MARK 3,NO.2
sub11071-75022
MARK1,NO.2
MARK2,NO.2
MARK3,NO.2
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK 6,NO.1,REFER R/M
MARK 1,NO.1
sub11701-75022
MARK 2,NO.1
sub11701-75022
MARK 3,NO.1
sub11701-75022
MARK1,NO.1
MARK2,NO.1
MARK3,NO.1
11991WASHER, BALANCESHAFT THRUST
13011RING SET, PISTON
STD
STD,CHINA OEM SPEC
STD,SAUDI ARABIA SPEC
STD
STD
STD,LEADED GASOLINE SPEC
STD
STD
STD
STD,CHINA SPEC
STD,SAUDI ARABIA SPEC
STD,CHINA OEM SPEC
STD
STD
O/S 0.50
O/S 0.50,CHINA SPEC
O/S 0.50,SAUDI ARABIA SPEC
O/S 0.50
O/S 0.50,LEADED GASOLINE SPEC
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50,SAUDI ARABIA SPEC
O/S 0.50,CHINA SPEC
O/S 0.50,CHINA OEM SPEC
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4
sub13041-75022
main13041-75021-05i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)199701-200411
MARK 5
sub13041-75022
MARK 6
sub13041-75022
MARK4
MARK5
MARK6
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
13201ABUSH(FOR CONNECTING ROD SMALL END)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
L=23,OD=8
L=18,OD=8
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
main13453-20010i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..MTM..GX..(ARL,GEN,MA)199604-200412
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13525GEAR, IDLE, NO.1
sub13508-67011
13537GEAR, IDLE SUB, NO.1
13538GEAR, IDLE SUB, NO.2
13538AWASHER, WAVE
13538CRING, SHAFT SNAP
13572PLATE, IDLE GEAR THRUST
13578SPRING, IDLE GEAR
13581SHAFT, IDLE GEAR, NO.1
13613FBEARING, RADIAL BALL
13632GEAR, BALANCESHAFT DRIVEN, NO.1
13633GEAR, BALANCESHAFT DRIVEN, NO.2
32117ASPACER, FLYWHEEL PLATE
9010508271
main90105-08271
9010510398
main90105-10398
9017614003
main90176-14003
9030123005
main90301-23005
9111160625
main91111-60625
9151180612
main91511-80612
42 parts on this diagram · 4 diagrams in section
