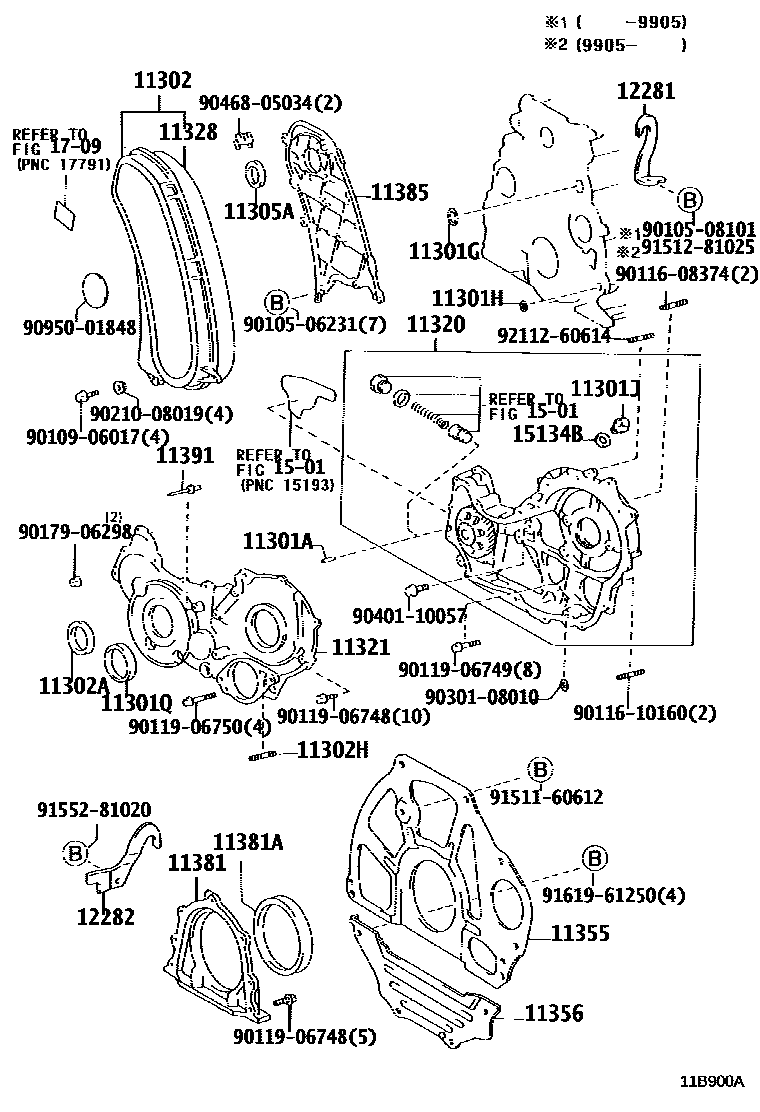

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-75020i3RZ#..RZJ9#199604-199704

sub11301-75021

main11301-75021i3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199704-200209

main11311-54052i3L..LJ9#199604-200209

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i1KZT..KZJ9#199604-200209

L=18,OD=8

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i1KZT..KZJ9#199610-200209

main96721-24022i1KZT..KZJ9#199604-199610

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i1KZT..KZJ9#199610-200209

main96721-24010i1KZT..KZJ9#199604-199610

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i1KZ#..KZJ9#199604-200209

11301QSEAL, TYPE T OIL(FOR INJECTION PUMP)

main90311-58006i1KZT..KZJ9#199604-200209

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-67010i1KZT..KZJ9#199604-199704

sub11302-67020

main11302-67020i1KZT..KZJ9#199704-200209

main11321-54020i3L..LJ9#199604-200209

sub11321-54021

main11321-62900i5VZFE..VZJ9#199604-199910

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50017i1KZ#..KZJ9#199604-200209

sub90311-50051

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08376i1KZT..KZJ9#199604-200209

sub90116-08377

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32017i3L..LJ9#199604-199812

sub90311-32020

main90311-32019i3L..LJ9#199703-200209

11320CASE ASSY, TIMING GEAR

main11320-67010i1KZT..KZJ9#199604-200209

11321CASE, TIMING GEAR

main11321-67031i1KZT..KZJ9#199604-200006

sub11321-67032

main11321-67032i1KZ#..KZJ9#200006-200209

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54021i3L..LJ9#199604-200209

main11328-67020i1KZT..KZJ9#199604-200209

main11328-75020i3RZ#..RZJ9#199604-199904

sub11328-75021

main11328-75021i3RZF..RZJ9#;3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN)199904-200209

11355PLATE, REAR END

main11355-54120i3L..LJ9#199604-200209

main11355-65011i5VZFE..VZJ9#199604-199910

main11355-67010i1KZ#..KZJ9#199604-200209

main11355-75010i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)199604-200412

11356PLATE, REAR END, NO.2

main11356-67030i1KZT..KZJ9#199604-200209

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i3L..LJ9#199604-199909

sub11381-54030

sub90116-08404

main11381-54030i3L..LJ9#199909-200209

main11381-62010i5VZFE..VZJ9#199604-199910

main11381-67020i1KZT..KZJ9#199604-200209

main11381-75010i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)199604-200412

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-85007i3L..LJ9#199604-199703

main90311-85008i3L..LJ9#199703-200209

main90311-88003i3RZFE..RZJ9#199604-200009

main90311-88004i3RZFE..RZJ9#200009-200212

ARS

sub90311-88005

main90311-88005i3RZFE..RZJ95..ARL200009-200212

NOK

sub90311-88006

main90311-88005i3RZFE..RZJ9#200212

sub90311-88006

main90311-92006i5VZFE..VZJ9#199604-199910

sub90311-92009

main90311-95008i1KZ#..KZJ9#199604-200209

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i3L..LJ9#199604-200209

main11382-67010i1KZ#..KZJ9#199604-200209

11391POINTER, TIMING

main11391-54020i3L..LJ9#199604-200209

main11391-67010i1KZT..KZJ9#199604-200209

12281HANGER, ENGINE, NO.1

main12281-67040i1KZT..KZJ9#199604-199905

main12281-67070i1KZT..KZJ9#199905-200209

12282HANGER, ENGINE, NO.2

main12282-54060i3L..LJ9#199605-200209

main12282-62030i5VZFE..VZJ9#199604-199906

main12282-62050i5VZFE..VZJ9#199906

main12282-67030i1KZT..KZJ9#199604-200209

main12282-75020i3RZFE..RZJ90..GEN;3RZFE..RZJ95..LHD..STD;3RZFE..RZJ95..ATM..GCC;3RZFE..RZJ95..(GX,VX)..(ARL,GEN,MA)199604-200412

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i1KZ#..KZJ9#199604-200209

1709

9010506231

main90105-06231

9010508101

main90105-08101

9010906017

main90109-06017

9011608374

main90116-08374

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

9017906298

main90179-06298

9021008019

main90210-08019

9030108010

main90301-08010

9040110057

main90401-10057

9046805034

main90468-05034

9095001848

main90950-01848

9151160612

main91511-60612

9151281025

main91512-81025

9155281020

main91552-81020

9161961250

main91619-61250

9211260614

main92112-60614

43 parts on this diagram · 5 diagrams in section
