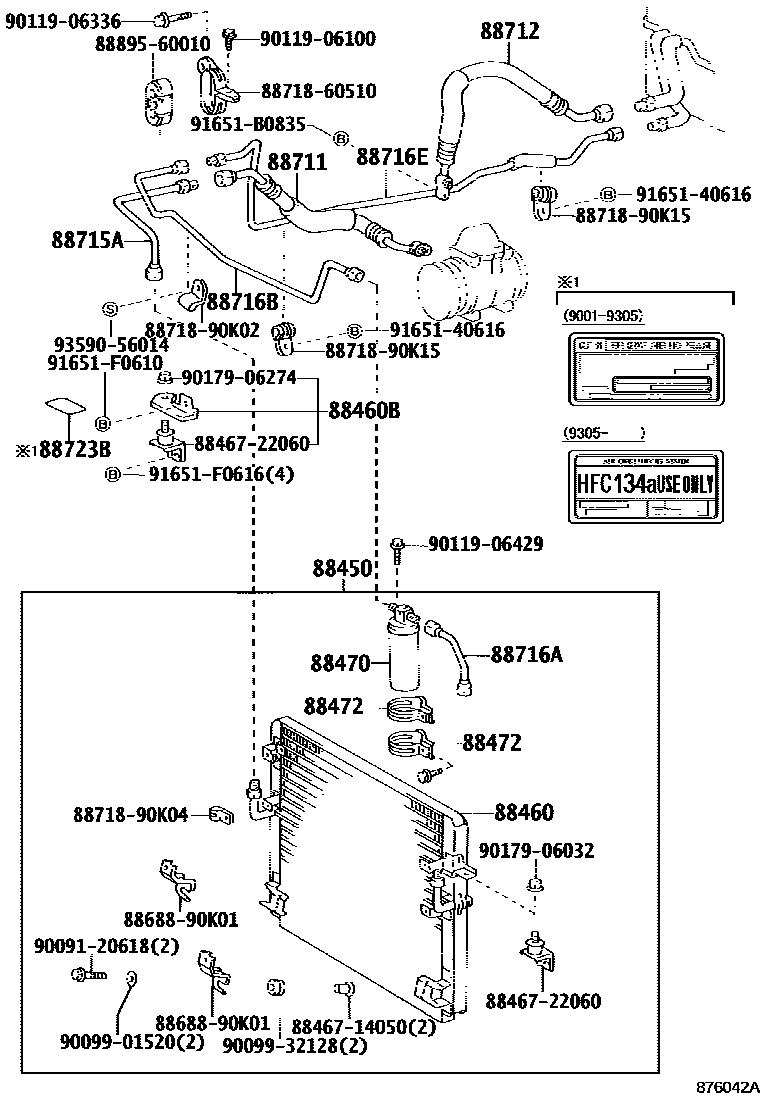

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0004 1MAKER OPTION:W(REAR COOLER) 0006 1MAKER OPTION 0010 1MAKER OPTION:W(REAR COOLER) 0011 1DEALER OPTION 0013 1MAKER OPTION 0014 1MAKER OPTION 0015 1DEALER OPTION 0016 1MAKER OPTION 0018 1MAKER OPTION 0020 1MAKER OPTION 0021 1MAKER OPTION 0022 1MAKER OPTION 0024 1MAKER OPTION 0025 1DEALER OPTION 0026 1MAKER OPTION 0027 1MAKER OPTION 0028 1DEALER OPTION 0029 1DEALER OPTION 0030 1MAKER OPTION:W(REAR COOLER) 0031 1O-RING

88450CONDENSER ASSY, W/RECEIVER

main88450-60031iFJ75,HZJ75,PZJ75..PIC..(GCC,GEN)199001-199305

main88450-60041iFJ75,HZJ75..HT199001-199201

main88450-60060iFZJ7#..(HT,SOT)..CBR199201-199305

main88450-60070iFZJ75..PIC..(GCC,GEN)199201-199305

88460CONDENSER ASSY, COOLER

main88340-60010iFJ7#,HZJ7#,PZJ7#..HT,SOT199001-199305

main88340-60020iFJ75..ARL..IV;HZJ75,PZJ75..PIC..(GCC,GEN)199001-199305

main88460-60080iLJ7#,RJ7#199001-199305

main88460-60100iFZJ7#..HT,SOT199201-199305

main88460-60110iFZJ75..PIC..(ARL,GCC,GEN)199201-199305

main88460-60120iKZJ7#199305-199604

main88460-60130iFZJ7#..HT,SOT199305-199501

main88460-60140iFZJ75..PIC..(ARL,GCC,GEN)199305-199501

main88460-60150iRJ70..SOT199305-199604

main88460-60180iHZJ70..SOT199305-200808

main88460-60190iHZJ75..GEN199305-200808

88460BBRACKET, COOLER CONDENSER, NO.1

main88409-60020iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199305-200808

main88409-90K01iFJ75,HZJ75..HT..ARL;FJ7#,HZJ75,PZJ7#..GCC,GEN199001-199101

sub88409-60010

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iFJ7#,HZJ7#,PZJ70,73..ARL199001-199305

sub04884-33110

main88470-20070iFJ75..GEN..CBU;FJ70,73,HZJ75,PZJ7#..GCC,GEN199001-199305

main88471-12020iLJ7#,RJ7#199001-199305

sub88471-12060

main88471-16040iFZJ7#..ARL,GCC,GEN199201-199305

sub88471-16050

main88471-34010iFZJ71..RHD;HZJ79..GCC,GEN;FZJ71,HDJ7#..ARL,GCC;FZJ74,78,79,HZJ71,78..(GCC,GEN)..CBU199305-200808

main88471-60010iRJ70..SOT199305-199604

main88471-90K01iFJ75,HZJ75..HT..(GCC,GEN)199001-199201

*ODAC

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iFJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-199305

main88472-60080iLJ7#,RJ7#199001-199305

main88472-60090iFZJ71..GCC;FZJ71..RHD;HZJ79..GCC,GEN;FZJ74,78,79,HZJ71,78..(GCC,GEN)..CBU199305-200808

main88472-60100iLJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX199305-199604

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-60150iFJ7#..GCC199001-199201

main88711-60160iHZJ75..GCC199001-199305

main88711-60170iRJ77..GCC199004-199305

main88711-60180iLJ7#199001-199305

main88711-60190iRJ7#..ARL,GEN199001-199212

sub88711-60170

main88711-60200iFJ7#..ARL,GEN199001-199208

main88711-60210iPZJ7#199001-199305

main88711-60220iHZJ7#..ARL,GEN199001-199305

main88711-60250iFZJ70,75..RHD..GEN199201-199305

main88711-60260iFZJ7#..LHD199201-199305

main88711-60270iKZJ7#199305-199604

main88711-60280iLJ7#..STD;LJ79..LHD..LX199305-199604

main88711-60290iRJ70..SOT199305-199604

main88711-60300iHZJ70..ARL199305-200007

main88711-60310iPZJ7#199305-199401

main88711-60320iFZJ73,75..(PIC,SOT)..EFI199305-200405

main88711-60380iFZJ71,78,79..RHD..GEN199305-200701

main88711-60540iFZJ71..GCC;FZJ74,78,79..LHD..CBU199908-200808

main88711-60550iHZJ78,79..ARL199908-200701

main88711-60610iHDJ7#200108-200701

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-60190iPZJ7#..RHD199001-199305

main88712-60200iPZJ70,75..LHD199001-199305

main88712-60210iHZJ7#..RHD..(ARL,GEN)199001-199305

main88712-60220iHZJ75..LHD199001-199305

main88712-60230iLJ7#..RHD199001-199305

main88712-60240iLJ7#..LHD199001-199305

main88712-60250iRJ7#..RHD199001-199305

main88712-60260iRJ7#..LHD199001-199305

main88712-60270iFJ7#..RHD..(ARL,GEN)199001-199208

sub88712-60620

main88712-60280iFJ7#..LHD199001-199208

main88712-60300iFJ75..LHD..HT199001-199201

*ODAC

main88712-60330iHZJ75..HT..4F199001-199201

*ODAC

main88712-60440iFZJ70,75..RHD..GEN199201-199305

main88712-60450iFZJ7#..LHD199201-199305

main88712-60460iKZJ77..RHD199305-199604

main88712-60470iKZJ7#..LHD199305-199604

sub88720-60060

main88712-60480iRJ7#..LHD..HT199305-199604

main88712-60490iFZJ70..SOT199305-200405

main88712-60500iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

main88712-60510iPZJ7#..RHD199305-199401

main88712-60520iLJ7#..LHD199305-199604

sub88720-60070

main88712-60530iLJ7#..RHD..STD199305-199604

main88712-60550iHZJ7#..LHD199305-199908

main88712-60560iPZJ70,75..LHD199305-199401

main88712-60570iRJ77..RHD199305-199604

main88712-60600iFZJ75..ARL..IV;FZJ70,75..RHD..GEN199305-199908

main88712-60870iFZJ79..GEN..IV;FZJ71..LHD..GEN199908-200808

main88712-60880iHZJ71,78,79..RHD..GEN199908-200701

main88712-60890iHZJ71,78,79..LHD199908-200701

main88712-6A030iFZJ71,78,79..RHD..GEN199908-200701

main88712-6A170iHDJ7#200108-200701

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-60030iLJ7#,RJ7#199001-199305

main88715-60040iFJ75..ARL;FJ75..GEN..CBU;FJ70,73,HZJ7#,PZJ7#..ARL,GCC,GEN199001-199305

main88715-60050iFZJ7#..ARL,GCC,GEN199201-199305

main88715-60070iKZJ7#199305-199604

main88715-60080iLJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX199305-199604

main88715-60090iFZJ7#..ARL,GCC,GEN199305-199501

main88715-60091iFZJ70..LX199501-200808

main88715-60100iHZJ7#..HT..GEN;HZJ75..ARL,GCC;HZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU199305-200701

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-60520iLJ7#,RJ7#199001-199305

main88716-60550iFJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-199305

main88716-6A050iFZJ7#..ARL,GCC,GEN199201-199305

main88716-6A110iRJ70..SOT199305-199604

main88716-6A290iFZJ78,79..ARL199305-200808

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-60470iLJ7#,RJ7#..RHD199001-199305

main88716-60490iLJ7#,RJ7#..LHD199001-199305

main88716-60500iFJ7#,HZJ7#,PZJ7#..RHD..(ARL,GEN)199001-199305

main88716-60590iFJ75..HT..GCC199001-199201

DUAL AIR CONDITIONER

main88716-60590iFJ75..GEN..CBU;FJ70,73,HZJ75,PZJ70,75..LHD199201-199305

main88716-60890iFZJ70,75..RHD..(ARL,GEN)199201-199305

main88716-6A030iFZJ7#..LHD199201-199305

main88716-6A120iKZJ77..RHD199305-199604

main88716-6A150iKZJ7#..LHD199305-199604

main88716-6A160iLJ7#,RJ7#..LHD..HT199305-199604

main88716-6A180iFZJ70,75..RHD..(ARL,GEN)199305-199501

main88716-6A181iFZJ70,75..RHD..(ARL,GEN)199501-199908

main88716-6A200iFZJ73..STD..GEN199305-199501

SINGLE AIR CONDITIONER

main88716-6A201iFZJ73,75..(PIC,SOT)..EFI199501-200808

main88716-6A201iFZJ73..STD..GEN..CBR199501-199908

SINGLE AIR CONDITIONER

main88716-6A220iHZJ70..ARL199305-200701

main88716-6A240iHZJ71,78,79..LHD199305-200701

main88716-6A260iLJ72,RJ77..RHD;LJ79..RHD..STD199305-199604

main88716-6B120iFZJ71,78,79..RHD..GEN199908-200701

main88716-6B230iFZJ78,79..ARL199908-200605

main88716-6B330iHDJ7#200108-200701

main88716-90K05iFJ75..HT..GCC199001-199201

SINGLE AIR CONDITIONER

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-60480iLJ7#,RJ7#..RHD199001-199305

main88716-60510iFJ7#,HZJ7#,PZJ7#..RHD..(ARL,GEN)199001-199305

main88716-60570iLJ7#,RJ7#..LHD199001-199305

main88716-60580iFJ75..GEN..CBU;FJ70,73,HZJ75,PZJ70,75..LHD199001-199305

main88716-60620iFJ75..RHD..HT..GEN199001-199201

*ODAC

main88716-60662iFJ75,HZJ75..LHD..HT199001-199201

*ODAC

main88716-60800iHZJ75..HT..5F..GEN199001-199201

*ODAC

main88716-6A010iFZJ70,75..RHD..(ARL,GEN)199201-199305

main88716-6A040iFZJ7#..LHD199201-199305

main88716-6A130iKZJ77..RHD199305-199604

main88716-6A170iRJ70..SOT199305-199604

main88716-6A190iFZJ70,75..RHD..(ARL,GEN)199305-199501

main88716-6A210iFZJ73..EFI199305-200405

main88716-6A230iHZJ75..ARL;HZJ7#..RHD..HT..GEN;HZJ75..RHD..GEN..IV199305-200007

main88716-6A250iHZJ7#..LHD199305-199908

main88716-6A270iLJ72,RJ77..RHD;LJ79..RHD..STD199305-199604

main88716-6B130iFZJ79..GEN..IV;FZJ71..LHD..GEN199908-200808

main88716-6B140iHZJ71,78,79..RHD..GEN199908-200701

main88716-6B150iHZJ71,78,79..LHD199908-200701

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iFZJ79..GEN..IV;FZJ71..LHD..GEN199305-200808

main88723-22050iFJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN199001-199305

main88723-30040iFJ75,HZJ75..HT..(GCC,GEN)199001-199201

*ODAC

main88723-30040iFJ75,HZJ75..HT..ARL199001-199108

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8846722060CUSHION, COOLER CONDENSER, NO.1

main88467-22060

8868890K01BRACKET, COOLER DIAPHRAGM

main88688-90K01

8871860510PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-60510

8871890K02PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K02

8871890K04PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K04

8871890K15PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90K15

8889560010HOLDER, FUSE

main88895-60010

9009120618

main90091-20618

9009901520

main90099-01520

9009932128

main90099-32128

9011906100

main90119-06100

9011906336

main90119-06336

9011906429

main90119-06429

9017906032

main90179-06032

9017906274

main90179-06274

9165140616

main91651-40616

91651B0835

main91651-B0835

91651F0610

main91651-F0610

91651F0616

main91651-F0616

9359056014

main93590-56014

33 parts on this diagram · 21 diagrams in section
