HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

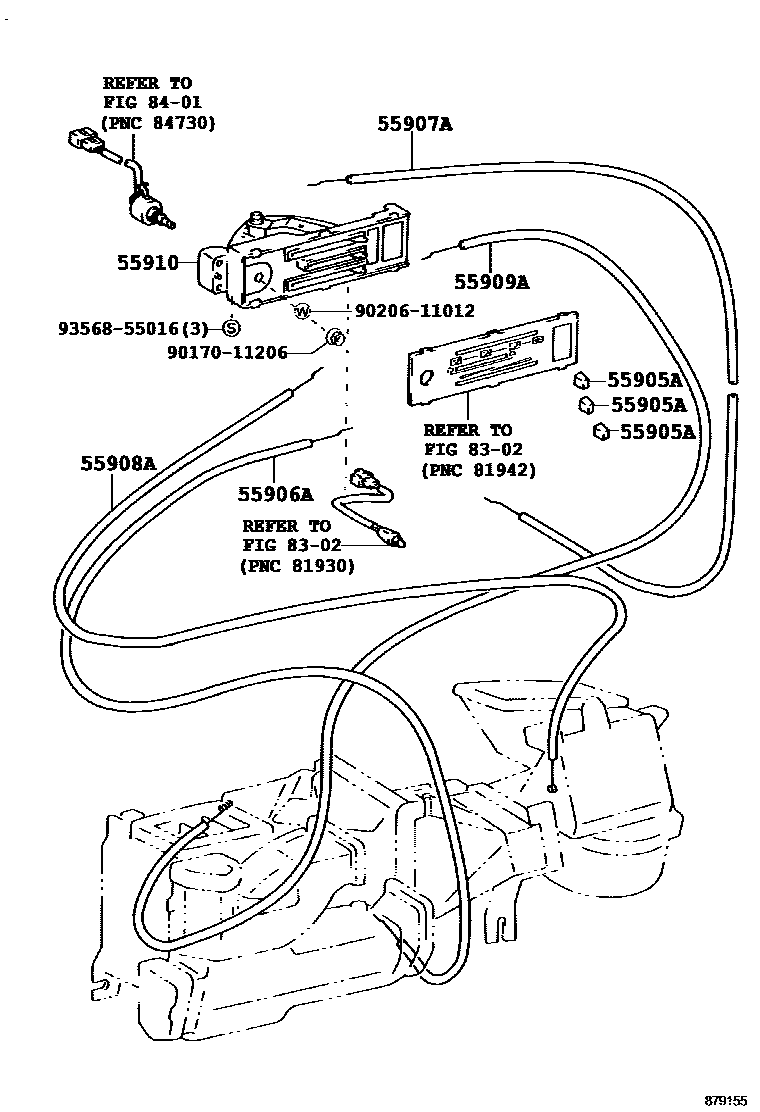

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1AIR DUCT

55905AKNOB, HEATER CONTROL

main55905-89110×2iFZJ78,79..ARL199908-200605

W(BOOST VENTILATER),DEF-VENT,WARM-COOL

main55905-95J01iPZJ70,73;PZJ75..4F;RJ70..SOT199305-199401

FRESH-RECIRC

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-90K00iFZJ75,HZJ75..SA199305-199911

main55906-90K01iLJ72..LX;LJ72..SOT;HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FZJ71,74,78,79,HZJ71,79,LJ77,PZJ70,75,RJ7#..LHD199210-199305

W(REAR HEATER)

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-60040iLJ7#..RHD199001-199305

main55907-60050iKZJ7#,LJ7#..LHD199305-199604

main55907-90K01iRJ70..SOT;PZJ70,75..LHD199305-199401

main55907-90K02iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90K00iHZJ78..LX;HZJ79..ARL..CBU199908-200108

main55908-90K01iKZJ7#,LJ7#,RJ7#..LHD..HT199305-199604

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-90K02iPZJ7#..RHD..CBU199305-199401

main55909-90K03iFZJ70,75..GEN..CBU..EFI199305-200106

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-60220iFZJ78,79..ARL200304-200605

main55910-60230iFZJ71,74,78,79,HZJ7#..GCC,GEN200304-200701

W(BOOST VENTILATOR)

main55910-90K02iHZJ78..LX;HZJ79..ARL..CBU199908-200108

main55910-90K03iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200304

W(BOOST VENTILATOR)

8302

8401

9017011206

main90170-11206

9020611012

main90206-11012

9356855016

main93568-55016

11 parts on this diagram · 5 diagrams in section
