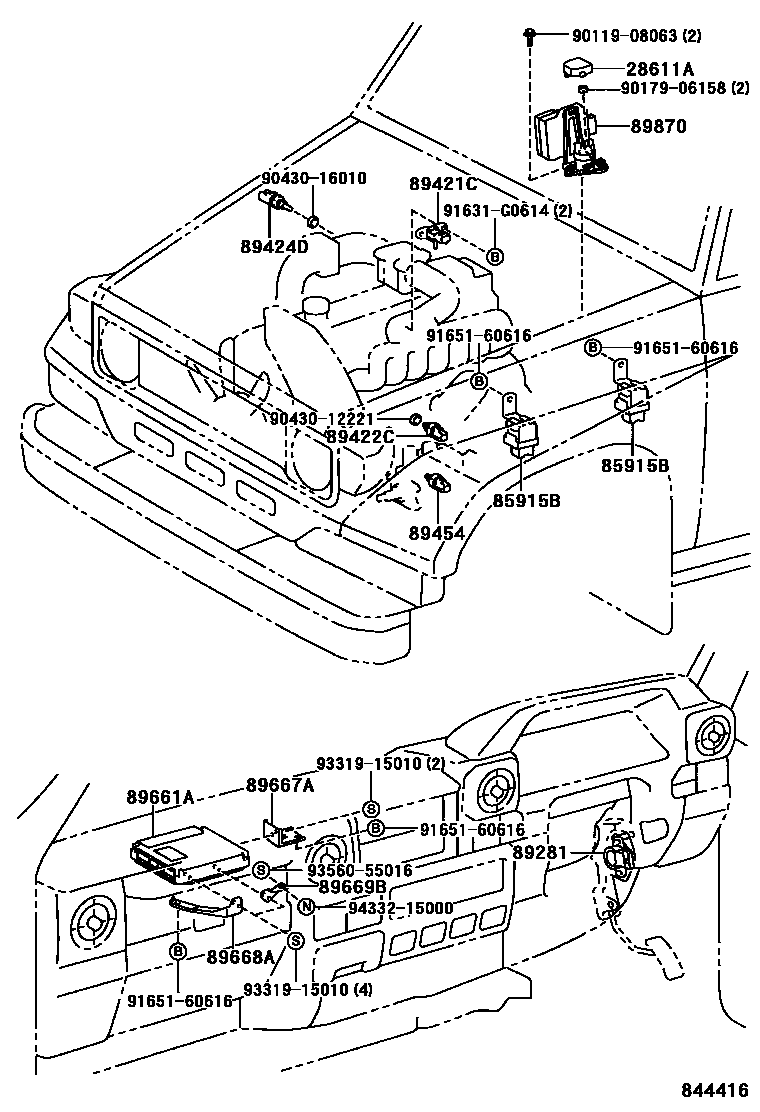

ELECTRONIC CONTROLED DIESEL (ECD)

28611ACOVER, INTAKE HEATER RELAY

main28611-55010i1HDFTE..HDJ7#200108-200701

85915BRELAY, MAIN (FOR DIESEL TURBO)

main85915-60050iHDJ7#200108-200701

89281SENSOR, ACCEL POSITION

main89281-60010iHDJ7#200108-200701

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20210iHDJ7#200108-200701

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iHDJ7#200108-200701

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iHDJ7#200108-200701

89454SENSOR, FUEL TEMPERATURE

main89454-60010iHDJ7#200108-200701

89661ACOMPUTER, ENGINE CONTROL

main89666-60380iHDJ7#200108-200701

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-60170iHDJ7#200108-200701

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60230iHDJ7#200108-200207

sub89668-60232

main89668-60232iHDJ7#200207-200701

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-60080iHDJ7#200108-200701

89870DRIVER ASSY, SPILL VALVE CONTROL

main89870-60050iHDJ7#200108-200405

sub89870-60051

main89870-60051iHDJ7#200406-200701

9011908063

main90119-08063

9017906158

main90179-06158

9043012221

main90430-12221

9043016010

main90430-16010

91631G0614

main91631-G0614

9165160616

main91651-60616

9331915010

main93319-15010

9356055016

main93560-55016

9433215000

main94332-15000

21 parts on this diagram · 1 diagram in section
