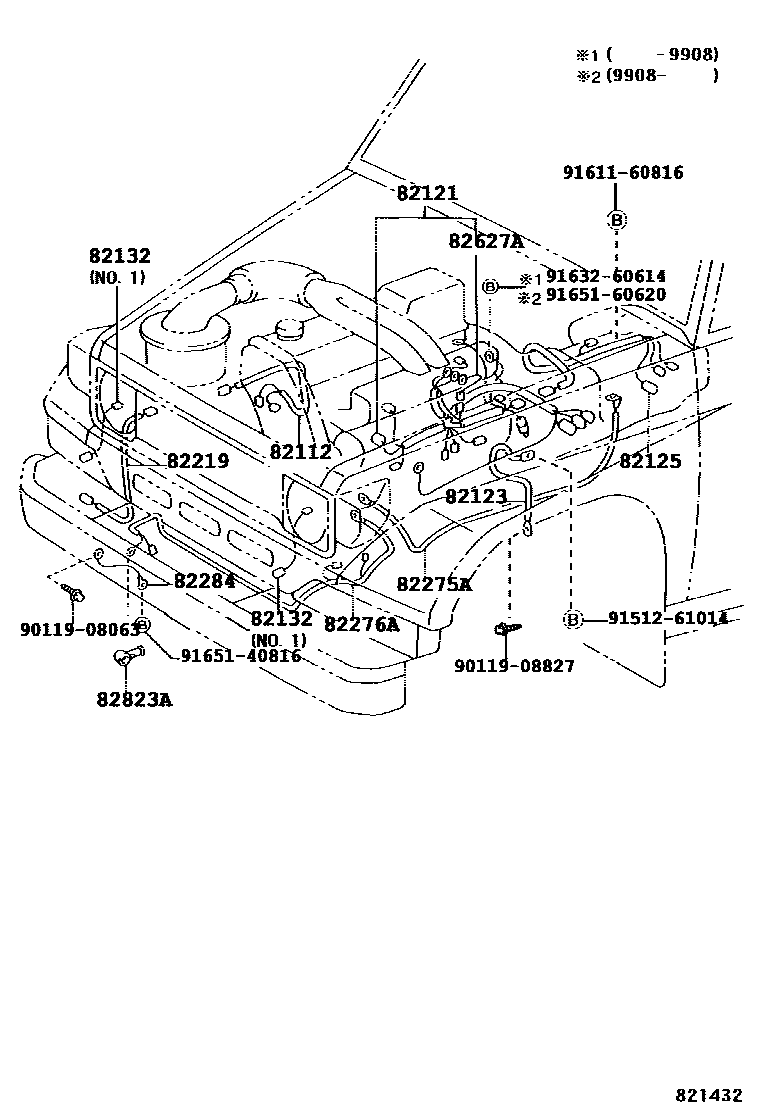

WIRING & CLAMP

0001 1ENGINE & TRANSMISSION WIRE 0002 1ENGINE & TRANSMISSION WIRE 0003 1ENGINE & TRANSMISSION WIRE 0004 1ENGINE & TRANSMISSION WIRE 0005 1ENGINE & TRANSMISSION WIRE 0006 1ENGINE & TRANSMISSION WIRE 0007 1COWL & INSTRUMENT PANEL WIRE 0008 1ROOF,DOOR,FLOOR WIRE 0010 1ROOF,DOOR,FLOOR WIRE 0012 1ROOF,FLOOR,FRAME WIRE 0013 1FOR PAKISTAN GOVERNMENT 0016 1FOR PAKISTAN GOVERNMENT 0019 1CLAMP & BRACKET 0020 1CLAMP & BRACKET 0021 1CLAMP & BRACKET 0022 1CLAMP & BRACKET 0023 1GROMMET & BRACKET 0024 1CLAMP & BRACKET

82112WIRE, ENGINE ROOM, NO.2

main82112-60020iPZJ70..LHD¥5,300199001-199108

W(*FFA),FR DIFF LOCK MOTOR

main82112-60020iHZJ75..GCC;FJ7#,PZJ75..LHD¥5,300199001-199108

FR DIFF LOCK MOTOR

main82112-60020iHZJ75..GCC;FJ7#,PZJ75..LHD¥5,300199001-199108

W(*FFA)

main82112-60021iHZJ75..GCC;PZJ70,75..LHD;FZJ7#..GCC,GEN¥5,300199108-199208

main82112-60021iHZJ75..ARL,GEN;FJ70,75,HZJ70,PZJ7#..RHD..(ARL,GEN)¥5,300199108-199208

W(*FFA)

main82112-60022iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥5,300199208-200007

W(*FFA)

main82112-60022iFZJ75..LX;FZJ7#..GEN..CBR;FZJ75..STD..ARL¥5,300199305-199908

main82112-60023iHZJ78..LX;HZJ79..ARL..CBU¥5,100199908-200701

main82112-60040iHZJ70..ARL¥1,450199001-200701

W(AIR CONDITIONER)

main82112-90K01iRJ70..ARL¥460199001-199108

main82112-90K02iRJ70..ARL;FJ7#,HZJ7#,PZJ7#..RHD..MTM..(ARL,GEN)¥2,320199001-199208

W(ONE TOUCH 2-4 SELECTOR)

82121WIRE, ENGINE

main82121-60180iPZJ70..SOT¥25,700199001-199108

BANGLADESH SPEC

main82121-60181iPZJ70..SOT¥12,600199108-199208

BANGLADESH SPEC

main82121-60182iPZJ70..SOT¥12,600199208-199401

BANGLADESH SPEC

main82121-60200iLJ70,77¥9,400199001-199108

main82121-60201iLJ70,77¥10,900199108-199208

main82121-60202iLJ77¥10,900199208-199305

main82121-60210iLJ72,79¥6,000199004-199108

main82121-60211iLJ72,79¥9,200199108-199208

main82121-60212iLJ72,79¥9,200199208-199305

main82121-60213iLJ7#¥8,900199305-199604

main82121-60220iHZJ75..PIC..4F..CBU¥30,300199001-199108

BANGLADESH SPEC

main82121-60221iHZJ75..PIC..4F..CBU¥15,600199108-199208

BANGLADESH SPEC

main82121-60221iHZJ7#..ARL¥15,600199108-199208

main82121-60222iHZJ75..ARL¥12,600199208-199608

BANGLADESH SPEC

main82121-60222iHZJ70..ARL¥12,600199305-199501

main82121-60223iHZJ7#..RHD..(PIC,SOT)..GEN..CBU¥13,200199608-199805

BANGLADESH SPEC

main82121-60230iHZJ75..PIC..4F..CBU¥9,400199001-199108

BANGLADESH SPEC & W(AIR CONDITIONER)

main82121-60231iHZJ75..PIC..4F..CBU¥10,900199108-199201

BANGLADESH SPEC & W(AIR CONDITIONER)

main82121-60231iHZJ75,PZJ7#..GCC,GEN,SA¥10,900199108-199208

main82121-60232iHZJ75,PZJ7#..GCC,GEN,SA¥10,900199208-199608

main82121-60233iHZJ7#..GCC,GEN,SA¥9,100199608-199806

main82121-60260iFZJ7#..GCC¥12,600199201-199208

main82121-60261iFZJ7#..GCC¥12,600199208-199501

main82121-60262iFZJ7#..GCC¥5,100199501-199908

main82121-60270iFZJ7#..GEN,SA¥10,900199201-199208

main82121-60271iFZJ70..SOT;FZJ75..RHD..IV..CBR¥10,900199208-199911

main82121-60360iFZJ70,75..EFI¥35,800199208-199501

main82121-60361iFZJ75..ARL¥34,000199501-199908

main82121-60390iKZJ7#¥14,800199305-199604

main82121-60800iFZJ73,75..(PIC,SOT)..GEN..EFI¥34,100199709-200405

main82121-6A121iHZJ79..RHD..GEN¥21,400200006-200408

MALAYSIA SPEC FOR CKD

main82121-6A130iHZJ75..ARL¥13,400199805-199911

main82121-6A130iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥13,400199805-200007

BANGLADESH SPEC

main82121-6A131iHZJ79..ARL..IV;HZJ78..STD..ARL¥18,600199908-200701

main82121-6A131iHZJ79..ARL¥18,600200207-200701

PNG SPEC

main82121-6A260iFZJ78,79..ARL¥32,000199908-200701

main82121-6A270iFZJ71,74,78,79..LHD¥32,000199908-200701

main82121-6A281iHZJ78..LHD¥21,400200207-200308

CHINA SPEC

main82121-6A281iHZJ78,79..ARL¥21,400200207-200701

main82121-6A480iFZJ78..GCC¥61,200200108-200507

W(IMMOBILIZER)

main82121-6A480iFZJ71,74,78..GCC¥61,200200007-200108

SAUDI ARABIA SPEC

main82121-6A490iFZJ78,79..GCC¥52,900200108-200701

SAUDI ARABIA SPEC

main82121-6A490iFZJ79..GEN..IV;FZJ71,78..LHD..GEN¥52,900200104-200701

CKD VENEZUELA SPEC

main82121-6A490iFZJ78,79..GCC¥52,900200308-200701

GCC(EXCEPT SAUDI ARABIA) SPEC

main82121-6A490iFZJ79..IV;FZJ71,78..LHD..GEN¥52,900200701-200808

main82121-6A490iFZJ78,79..LHD..GEN..CBU¥52,900200010-200207

CHINA SPEC

main82139-60010iHDJ7#¥52,900200108-200701

main82139-60020iFZJ71,74..HT..GCC¥61,200200108-200507

SAUDI ARABIA SPEC & W(IMMOBILIZER)

main82139-60020iFZJ71,74..GCC¥61,200200308-200507

GCC(EXCEPT SAUDI ARABIA) SPEC & W(IMMOBILIZER)

main82139-60020iFZJ71,74..GCC¥61,200200507-200701

GCC(EXCEPT SAUDI ARABIA) SPEC

main82139-60020iFZJ71,74..GCC¥61,200200507-200701

SAUDI ARABIA SPEC

main82139-60110iFZJ78,79..LHD..GEN..CBU¥52,900200207-200701

PERU SPEC

main82139-60110iFZJ78,79..LHD..GEN..CBU¥52,900200207-200308

CHINA SPEC

main82139-60120iFZJ78,79..ARL¥52,900200207-200605

82123WIRE, ENGINE, NO.3

main82123-60110iFZJ7#¥2,320199201-199305

sub82123-60111¥2,320

main82123-60111iFZJ73,75..(PIC,SOT)..GEN..EFI¥2,320199711-200405

main82123-60112iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN¥2,730199908-200808

main82123-60190iKZJ7#¥2,320199305-199604

main82123-60230iHZJ78..LX;HZJ79..ARL..CBU¥2,750199908-200701

main82123-90K05iLJ7#,RJ7#¥2,320199001-199604

main82123-90K07iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥2,320199001-200007

main90980-07003iFJ7#,HJ75¥910199001-199208

82125WIRE, TRANSMISSION

main82125-60100iFJ70,73..5F..GCC¥6,000199001-199108

main82125-60101iFJ70,73..5F..GCC¥6,800199108-199201

main82125-60110iFJ75..GCC¥7,100199001-199108

main82125-60111iFJ75..GCC¥6,800199108-199201

main82125-60120iLJ7#,PZJ70,73,RJ7#¥6,000199001-199108

main82125-60121iLJ7#,PZJ70,73,RJ7#¥6,000199108-199305

main82125-60122iKZJ7#,LJ7#,RJ7#..HT¥3,470199305-199604

main82125-60130iPZJ75¥6,000199001-199108

main82125-60131iPZJ75¥6,000199108-199208

main82125-60132iPZJ75¥6,000199208-199305

main82125-60133iPZJ75..4F¥5,700199305-199501

main82125-60150iFJ70,73,HZJ73..4FC¥6,000199001-199108

main82125-60151iFJ70,73..4FC¥6,000199108-199201

main82125-60160iFJ70,73,HZJ70,73..MTM..(ARL,GEN)¥6,000199001-199108

main82125-60161iFJ70,73,HZJ70..MTM..(ARL,GEN)¥6,800199108-199208

main82125-60162iHZJ70..ARL¥6,800199208-200007

main82125-60163iHZJ71¥7,500199908-200701

main82125-60170iHZJ75;FJ75,HJ75..ARL,GEN,SA¥7,100199001-199108

main82125-60171iHZJ75;FJ75..ARL,GEN,SA¥6,800199108-199208

main82125-60172iHZJ75..RHD..PIC..GEN..CBU¥6,800199208-200007

main82125-60173iHZJ78,79¥9,200199908-200209

sub82125-60174¥6,100

main82125-60174iHZJ78,79¥6,100200209-200701

main82125-60210iFZJ73..CBR;FZJ70..HT..CBR¥9,300199201-200405

main82125-60211iFZJ71,74¥21,400199908-200701

main82125-60220iFZJ70,73..GEN..CBR¥16,000199201-199908

W(ONE TOUCH2-4 SELECTOR)

main82125-60221iFZJ71,74..GEN¥21,400199908-200701

W(2-4 SELECTOR)

main82125-60230iFZJ75¥10,900199201-199208

main82125-60231iFZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU¥16,000199208-200405

main82125-60232iFZJ79..GEN..IV;FZJ78..LHD..GEN¥23,900199908-200808

main82125-60240iFZJ75..GCC,GEN¥15,600199201-199208

W(ONE TOUCH2-4 SELECTOR)

main82125-60241iFZJ75..ARL;FZJ75..GEN..CBR¥16,000199208-199908

W(ONE TOUCH2-4 SELECTOR)

main82125-60242iFZJ78,79..GEN¥24,000199908-200701

W(2-4 SELECTOR)

main82125-60250iFZJ75..ARL¥16,000199305-199908

W(MECHANICAL WINCH)

main82125-60250iFZJ75..EFI¥16,000199208-199305

W(MECHAICAL WINCH)

main82125-60260iFZJ75..EFI¥17,000199208-199908

W(ELECTRIC WINCH)

main82125-60490iHZJ71..SOT¥7,500199908-200701

BANGLADESH SPEC

main82125-60500iHZJ79..RHD..GEN¥7,500199908-200701

BANGLADESH SPEC

main82125-60530iHDJ7#¥9,100200108-200701

main82125-60540iHDJ7#¥14,600200108-200701

W(2-4 SELECTOR)

82132WIRE, COWL, NO.2

main82132-60011iHZJ79..RHD..GEN¥1,670200006-200308

NO.2

main82132-60011iHZJ79..RHD..GEN¥1,670200006-200701

main82132-60020iFZJ78,79,HZJ79..GCC¥1,450200308-200701

NO.3

main82132-60020iFZJ71,74..HT..GCC¥1,450200308-200507

main82132-60030iLJ7#,RJ7#..GCC,GEN¥2,320199001-199208

NO.1

main82132-60031iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT¥2,320199208-199604

NO.1

main82132-60040iFZJ75..HT;FJ75..HT..GCC;FJ75,HZJ75..GEN;FZJ75..PIC..GEN;FJ70,73,FZJ70,73,PZJ7#..GCC,GEN¥2,320199001-199208

NO.1

main82132-60041iFZJ75..HT..GCC;HZJ75..GEN..IV;FZJ75..GEN..CBU;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL)¥2,320199208-200701

NO.1

main82132-60050iFJ7#,FZJ7#,HZJ75,PZJ7#..GCC,GEN¥2,320199001-199208

W(WINCH),NO.1

main82132-60051iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥2,320199208-200701

W(WINCH),NO.1

82219WIRE, THERMO SENSOR

main82219-90K00iFJ70,73,HZJ70,73,LJ70,PZJ70,73,RJ70..HT;FJ73,75,HZJ75,PZJ75..(PIC,SOT)..(ARL,GEN)¥1,440199001-199908

main82219-90K01iFJ70,73,FZJ70,73,PZJ70..HT..(GCC,GEN);FJ73,75,FZJ75,HZJ75,PZJ75..(PIC,SOT)..GEN¥2,320199001-199908

W(WINCH)

main82219-90K01iFZJ75,HZJ75..PIC..GCC¥2,320199305-199908

82275ACABLE, BATTERY TO MAGNET SWITCH

main82275-60030iFJ7#..LHD¥3,230199001-199108

main82275-60031iFZJ71,74,78,79..LHD¥3,210199108-200701

main82275-90K01iHZJ71,78,79..GCC,GEN¥3,430199001-200701

main82275-90K02iRJ70..SOT¥4,710199001-200701

82276ACABLE, MAGNET SWITCH TO WINCH

main82276-60030iRJ7#..GEN¥10,200199001-199604

main82276-60040iFZJ70..SOT;FZJ75..RHD..IV..CBR¥4,280199001-200701

82284WIRE, EARTH

main82284-60030iLJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT..GEN¥3,190199001-199604

main82284-60040iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ70,HZJ7#..HT..(GCC,GEN);FZJ73,75..(GCC,GEN)..CBU..CBR¥4,580199001-200701

82627AWIRE, FUSIBLE LINK

main82627-60010iFZJ70,75..GEN..CBU..EFI¥2,320199208-200405

TYPE C:REFER TO ILLUSTRATION

main82627-60020iHZJ79..IV;HZJ71,78..HT;HZJ79..LHD..GEN..CBU¥2,320199208-200701

TYPE A:REFER TO ILLUSTRATION

main82627-60040iRJ70..SOT¥510199208-199604

TYPE E:REFER TO ILLUSTRATION

main82627-60070iFZJ71,74,78,79..STD..GCC¥510199208-200007

TYPE B:REFER TO ILLUSTRATION

main82627-60100iHDJ7#¥2,290200108-200701

TYPE B:REFER TO ILLUSTRATION

main82627-60110iHDJ7#¥2,290200108-200701

TYPE D:REFER TO ILLUSTRATION

main90982-08115iHZJ71..SOT¥640199706-200611

FOR PAKISTAN GOVERNMENT

main90982-08206iHZJ7#..HT..ARL;HZJ75..ARL..IV;HZJ75,PZJ70..RHD..(PIC,SOT)..(ARL,GEN)..CBU¥780199001-199208

GLOW RESISTER

main90982-08231iRJ70;FJ7#,RJ77..GCC,GEN,SA199001-199208

main90982-08232iHJ75¥610199001-199108

BATTERY

main90982-08235iFZJ7#;FJ7#..ARL¥910199001-199208

ALTERNATOR=12V 65A

main90982-08236iHZJ7#,LJ7#,PZJ7#¥1,070199001-199208

main90982-08261iLJ70,77¥740199001-199208

L=110

82823ACAP, TERMINAL, NO.2

main82823-90300iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ70,HZJ7#..HT..(GCC,GEN);FZJ73,75..(GCC,GEN)..CBU..CBR¥220199001-200701

9011908063

main90119-08063¥120

9011908827

main90119-08827¥90

9151261014

main91512-61014¥90

9161160816

main91611-60816¥230

9163260614

main91632-60614¥120

9165140816

main91651-40816¥80

9165160620

main91651-60620¥80

18 parts on this diagram · 18 diagrams in section
