CAUTION PLATE

33621APLATE, CONTROL LEVER CAUTION

main33621-60290iFJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN)199001-199108

35519PLATE, AUTOMATIC TRANSMISSION CAUTION

main35519-60010iFJ70,73,HZJ73..4FC199001-199108

main35519-60011iFJ70,73..4FC199108-199201

36369LABEL, TRANSFER INFORMATION

main36369-60120iFZJ7#199201-199608

main36369-60130iFJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM199001-199108

main36369-60160iFJ70,73,HZJ73..4FC199001-199108

W(*60)

main36369-60230iHZJ7#..ARL,GEN199108-199608

W(*60)

main36369-60240iFJ70,73..4FC199108-199201

main36369-60270iPZJ75..5F;HZJ70..ARL199108-199608

main36369-60370iFZJ78,79..ARL199608-200808

main36369-60430iHZJ78..LX;HZJ79..ARL..CBU199608-200701

main36369-60510iFZJ71,74,78,79..GCC,GEN199908-200701

W(A.D.D)

main36369-60530iHZJ71,78,79..GCC,GEN199908-200701

W(A.D.D)

41991APLATE, CAUTION

main41991-60060iFJ7#,HZJ7#,PZJ7#..ARL,GCC,GEN199001-199002

sub41991-60061

main41991-60061iHZJ78..LX;HZJ79..ARL..CBU199002-200701

main41991-60080iLJ70,RJ70199001-199002

sub41991-60081

main41991-60081iRJ7#..LX..GEN199002-199604

sub41991-60082

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iFZJ7#,HZJ7#..GCC,GEN200508-200701

*111

main74511-48030iFZJ78,79..ARL200508-200701

*111

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010iKZJ77,LJ79,RJ77199004-199604

74535BPLATE, TAIL GATE CAUTION

main74535-90K01iFZJ75,79,HZJ75,79,PZJ75..PIC..(GCC,GEN)..CBU199001-200701

74536ALABEL, FUEL TANK CAP INFORMATION

main74536-60010iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU199908-200808

W(*FST)

main74536-60010iHZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;HZJ75..RHD..(ARL,GEN);FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#..ARL,GCC,199001-200007

74537APLATE, SPARE WHEEL SERVICE HOLE CAP CAUTION

main74537-90K00iFJ75,FZJ75,79,HZJ75,79,PZJ75..PIC..(ARL,GCC,GEN)..CBU199001-200701

74538BLABEL, FUEL TANK SYSTEM CAUTION

main74538-60010iFZJ78,79;FZJ75..ARL199208-200808

74543RLABEL, REAR SEAT CAUTION

main74543-60240iFZJ74..STD..GEN200007-200808

74547BLABEL, JACK CARRIER INFORMATION

main74547-90K00iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199108-199308

74552PLATE, SAFETY CAUTION

main74552-60480iFJ70,73,FZJ70,73..GCC199001-199208

W(7.00-16-8 LUG TIRE),7.50R16 TIRE

main74552-60480iPZJ70..LHD199105-199208

W(7.00-16-8 LUG TIRE)

main74552-60480iFJ70,73,PZJ70,73..GEN199001-199105

main74552-60500iFJ75..RHD..GEN;HZJ75,PZJ75..GEN;FJ75..LHD..HT..4F;FJ75..LHD..5F..GEN199001-199208

W(7.00-16-8 LUG TIRE)

main74552-60500iFJ75,FZJ75,HZJ75..GCC199001-199208

W(7.00-16-8 LUG TIRE),7.50R16 TIRE

main74552-60510iFJ75..LHD..PIC..4F199001-199208

ALGERIA SPEC

main74552-60692iFJ75,HZJ75..ARL199001-199208

main74552-60693iFZJ75,HZJ75..ARL199208-199608

main74552-60694iFZJ75,HZJ75..ARL199608-199908

main74552-60791iFJ70,73..GCC199001-199201

W(7.00-16-8 LUG TIRE),7.50-16-6,8 TIRE

main74552-60800iFJ75..HT..GCC199001-199201

W(9.00-15-6 SAND TIRE),7.50-16-8PRLT TIRE

main74552-60800iFJ75,HZJ75..GCC199001-199201

W(7.00-16-8 LUG TIRE),7.50-16-8PRLT TIRE

main74552-60811iRJ77..GCC199004-199604

main74552-60840iFJ75,HZJ75..PIC..GCC199001-199201

W(9.00-15-6 SAND TIRE),9.00-15,16 SAND TIRE

main74582-60520iFZJ70,73..GCC199201-199809

main74582-60520iFZJ70,73..GCC199201-199208

W(7.00-16-8 LUG TIRE),7.50R16-6,8 TIRE

main74582-60521iFZJ70,73..GCC199809-199908

main74582-60530iHZJ75..GCC199201-199809

main74582-60530iHZJ75..GCC199201-199208

W(7.00-16-8 LUG TIRE),235/95R15C TIRE

main74582-60531iHZJ75..GCC199809-199908

main74582-60540iFZJ75..GCC199201-199809

main74582-60541iFZJ75..GCC199809-199908

main74582-60680iFZJ75,HZJ75,PZJ75..LHD..GEN..CBU199208-199908

ALGERIA SPEC

main74582-60690iPZJ70..LHD199208-199908

ALGERIA SPEC

74559APLATE, FUEL CAUTION

main74559-14050iFZJ78,79..GCC199908-200808

W(*FST)

main74559-14050iFZJ74..STD..GEN200109-200808

main74559-20090iFJ75,FZJ75..ARL199001-199908

W(*FST)

main74559-20090iFZJ70..EFI199305-200405

main74559-27010iHZJ78..LHD199001-200308

CHINA SPEC

main74559-27010iHZJ75,78..LHD..HT;PZJ70,75..LHD..4F..CBU199001-200308

CHINA SPEC & W(*FST)

main74559-28010iFZJ78,79..LHD..GEN..CBU199308-200010

CHINA SPEC

main74559-28010iFZJ71,78,79..LHD..STD..GEN..CBU199908-200010

CHINA SPEC & W(*FST)

main74559-89101iPZJ70,73;PZJ75..4F199001-200701

W(*FST)

main74559-89101iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199305-200007

main74579-26010iFZJ78,79..LHD..GEN..CBU200010-200308

CHINA SPEC & W(*FST)

sub74579-33010

main74579-26010iFZJ78,79..LHD..GEN..CBU200010-200308

CHINA SPEC

sub74579-33010

74567APLATE, E.C.E APPROVED NUMBER

main74567-20261iHDJ7#200207-200701

main74567-25041iHZJ78,79..ARL200207-200701

74574ALABEL, THROTTLE KNOB INFORMATION

main74574-60070iHDJ7#200108-200701

74575CLABEL, THROTTLE KNOB INFORMATION, NO.2

main74575-60010iHDJ7#200108-200701

74582PLATE, LOAD SENSING VALVE MARKING

main47939-60150iFJ75,HJ75..SA199001-199108

main47939-60170iFJ75,FZJ75,HZJ75..SA199108-199208

main47939-60290iFZJ75,HZJ75..SA199208-199911

main47939-60440iFZJ78,HZJ78..LHD..GEN200010-200308

CHINA SPEC

main47939-60470iFZJ79,HZJ79..RHD..GEN200002-200701

main47939-60480iFZJ79..LHD..GEN..CBU200010-200308

CHINA SPEC

74582APLATE, SAFETY CAUTION

main74552-6A020iHDJ79..STD200405

MUSTER(AUSTRALIA)

main74552-6A020iHDJ79..LX200108-200701

W(265/70R16 TIRE)

main74552-6A170iFZJ79..LX200207-200701

W(265/70R16 TIRE)

main74582-60290iLJ70,RJ70..ARL199001-199208

main74582-60300iFJ70,73,HZJ70,73,PZJ70,73..ARL199001-199208

main74582-60301iFZJ70,HZJ70..ARL199208-199308

main74582-60500iFZJ71,74..GCC199908-200701

main74582-60510iFZJ78..GCC199908-200701

main74582-60580iFZJ79..GCC199908-200701

main74582-60730iFZJ70,HZJ70..ARL199308-199501

main74582-60760iHZJ79..GCC199908-200701

main74582-60770iHDJ78;HZJ78..STD..ARL199908-200701

main74582-60780iFZJ79..ARL199908-200701

main74582-60840iHZJ71..LHD199908-200701

main74582-60850iFZJ78,79,HZJ78,79..LHD..GEN..CBU199908-200701

86995BPLATE, CAUTION

main86995-90K01iFZJ73;FZJ70,75,HZJ7#..(PIC,SOT)..(GCC,GEN)199001-200701

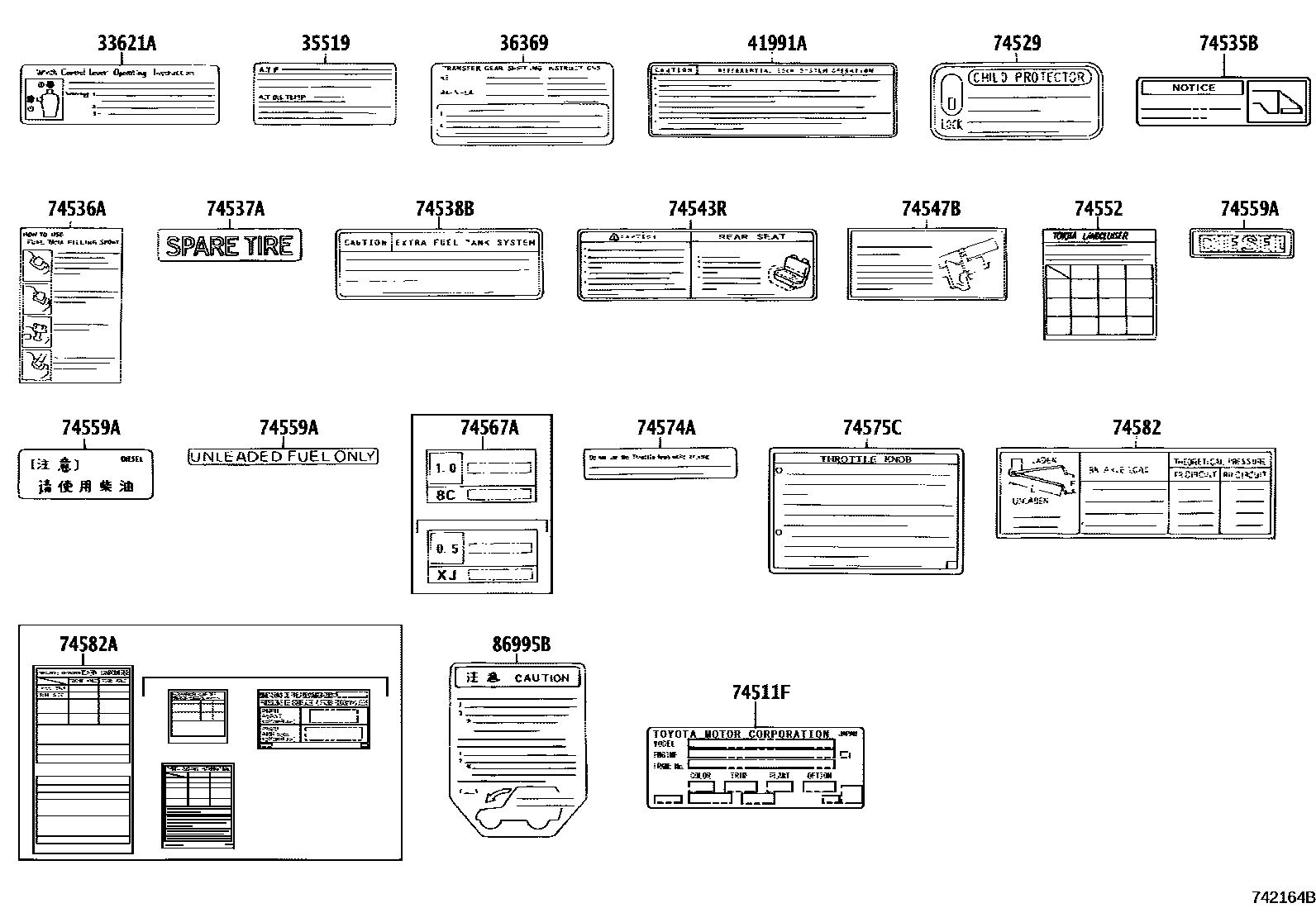

20 parts on this diagram · 1 diagram in section
