REAR BODY SIDE PANEL
65313PANEL, FLOOR FRONT CORNER, RH
HEVY DEUTY PACKAGE
HEVY DEUTY PACKAGE
65314PANEL, FLOOR FRONT CORNER, LH
HEVY DEUTY PACKAGE
HEVY DEUTY PACKAGE
65315PANEL, FLOOR REAR CORNER, RH
W(*FST)
W(TARPAULIN & *FST)
W(REAR PARALLEL SEAT & *FST)
(HEAVY DUTY PACKAGE & W(*FST)) OR (HEAVY DUTYPACKAGE & W(*FST & TARPAULIN))
sub65037-90K03
sub90950-01528
HEAVY DUTY PACKAGE & W(*FST) OR HEAVY DUTY PACKAGE & W(*FST & TARPAULIN)
sub65037-90K03
sub90950-01528
HEVY DEUTY PACKAGE & W(*FST & REAR PARALLEL SEAT)
HEAVY DUTY PACKAGE & W(REAR PARALLEL SEAT & TARPAULIN)
HEAVY DUTY PACKAGE & W(*FST & TARPAULIN)
W(TARPAULIN)
HEAVY DUTY PACKAGE & W(TAPAULIN)
HEAVY DUTY PACKAGE & W(REAR PARALLEL SEAT)
HEVY DEUTY PACKAGE & W(TARPAULIN)
sub65315-37010
65316PANEL, FLOOR REAR CORNER, LH
main65316-60010iHZJ75..LHD..PIC..GEN..CBU;HZJ75..PIC..(ARL,GCC)..CBU;FZJ75..PIC..(GCC,GEN)..CBU199009-200701
W(TARPAULIN & *FST)
W(REAR PARALLEL SEAT)
W(TARPAULIN) OR W(*FST & TARPAULIN)
HEVY DEUTY PACKAGE & W(REAR PARALLEL SEAT)
HEAVY DUTY PACKAGE & W(TARPAULIN & *FST)
HEAVY DUTY PACKAGE & W(TARPAULIN)
(HEAVY DUTY PACKAGE & W(TARPAULIN)) OR (HEAVY DUTY PACKAGE & W(*FST & TARPAULIN))
sub65316-37010
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
W(FUEL SUB TANK)
W(TARPAULIN & REAR PARALLEL SEAT)
W(TARPAULIN)
W(TARPAULIN & *FST)
W(OVER FENDER)
W(OVER FENDER & REAR PARALLEL SEAT & TARPAULIN)
W(FUEL SUB TANK & OVER FENDER & REAR PARALLEL SEAT & TARPAULIN)
W(FUEL SUB TANK & OVER FENDER)
W(OVER FENDER & TARPAULIN)
W(FUEL SUB TANK & OVER FENDER & TARPAULIN)
W(REAR PARALLEL SEAT & TARPAULIN)
W(TARPAULIN & REAR PARALLEL SEAT)
W(REAR PARALLEL SEAT & *FST)
W(TARPAULIN & REAR PARALLEL SEAT & *FST)
W(*FST)
W(TARPAULIN)
W(TARPAULIN & *FST)
W(SIDE STAKE)
W(SIDE STAKE & *FST)
6552
65577RETAINER, TAIL GATE LATCH FEMALE
65577ARETAINER, TAIL GATE FEMALE
65601APANEL SUB-ASSY, REAR BODY SIDE, LH
W(TARPAULIN & REAR PARALLEL SEAT)
W(TARPAULIN)
W(OVER FENDER)
W(OVER FENDER & REAR PARALLEL SEAT & TARPAULIN)
W(OVER FENDER & TARPAULIN)
W(TARPAULIN & REAR PARALLEL SEAT)
W(REAR PARALLEL SEAT)
(HEAVY DUTY PACKAGE & W(TARPAULIN)) OR W(TARPAULIN & *FST)
W(TARPAULIN)
W(SIDE STAKE)
65651PANEL, WHEEL HOUSE
W(TARPAULIN) OR W(*FST & TARPAULIN)
W(TARPAULIN & REAR PARALLEL SEAT)
W(TARPAULIN)
W(TARPAULIN) OR W(TARPAULIN & *FST)
HEVY DEUTY PACKAGE & W(TARPAULIN) OR HEVY DEUTY PACKAGE & W(*FST & TARPAULIN)
sub65605-90K00
HEAVY DUTY PACKAGE & W(TARPAULIN & REAR PARALLEL SEAT)
sub65605-90K00
HEVY DEUTY PACKAGE & W(REAR SEAT)
sub65605-90K00
HEVY DEUTY PACKAGE & W(TARPAULIN) OR HEVY DEUTY PACKAGE & W(*FST & TARPAULIN)
HEAVY DUTY PACKAGE
HEAVY DUTY PACKAGE OR W(TARPAULIN & REAR PARALLEL SEAT & *FST)
sub65651-37010
65651CPANEL, WHEEL HOUSE
W(TARPAULIN) OR W(TARPAULIN & *FST)
W(TARPAULIN) OR W(*FST & TARPAULIN)
W(REAR SEAT)
(HEAVY DUTY PACKAGE & W(TARPAULIN)) OR (HEAVY DUTY PACKAGE & W(*FST & TARPAULIN)
sub65606-90K00
HEVY DUTY PACKAGE & W(REAR SEAT)
sub65606-90K00
HEAVY DUTY PACKAGE & W(TARPAULIN)
sub65606-90K00
HEAVY DUTY PACKAGE
sub65651-37010
65812ABOW, TOP, NO.2
65830PANEL ASSY, REAR BODY SIDE, UPPER RH
65840PANEL ASSY, REAR BODY SIDE, UPPER LH
65847SUPPORT, SIDE UPPER PANEL
66052STAKE SUB-ASSY, SIDE, RH
66053STAKE SUB-ASSY, SIDE, LH
66153ALATCH, TAIL GATE FEMALE, RH
main66153-95012iHZJ75..LHD..PIC..GEN..CBU;HZJ75..PIC..(ARL,GCC)..CBU;FZJ75..PIC..(GCC,GEN)..CBU199001-200007
66154ALATCH, TAIL GATE FEMALE, LH
66225ASUPPORT, BAFFLE RUBBER
9015880004
main90158-80004
9017908123
main90179-08123
9017908148
main90179-08148
9054009060
main90540-09060
9165140820
main91651-40820
9326018016
main93260-18016
9326018020
main93260-18020
9326018030
main93260-18030
9461310800
main94613-10800

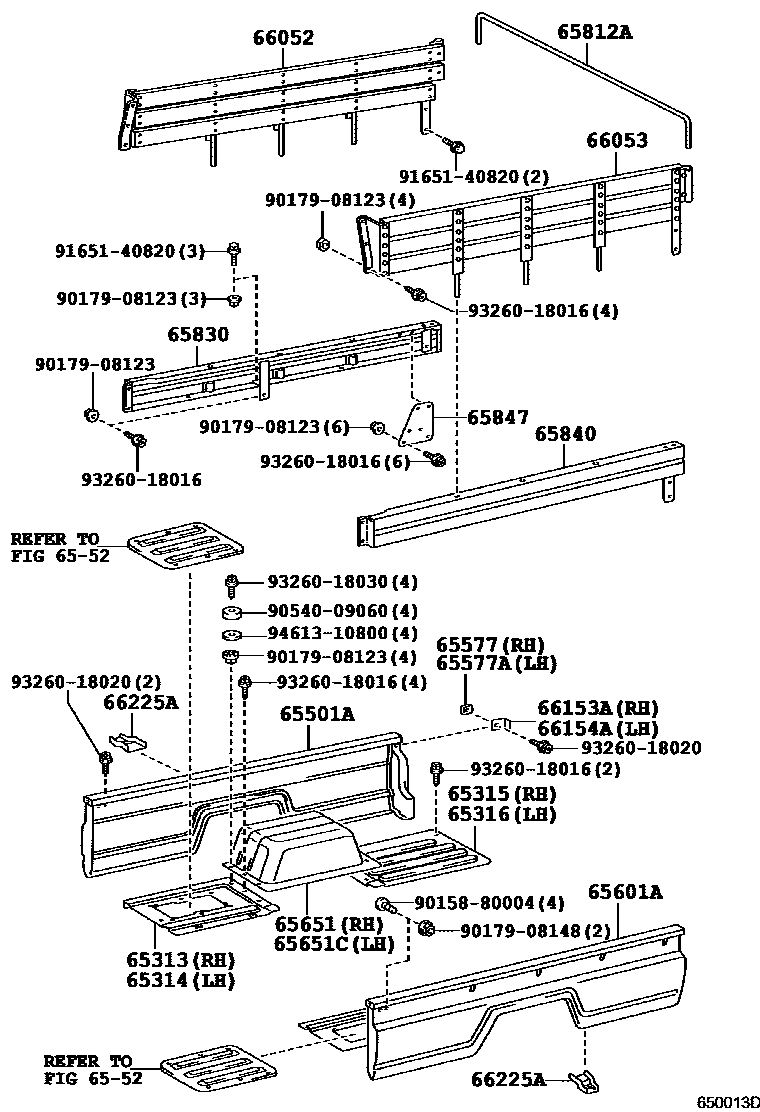

29 parts on this diagram · 2 diagrams in section
