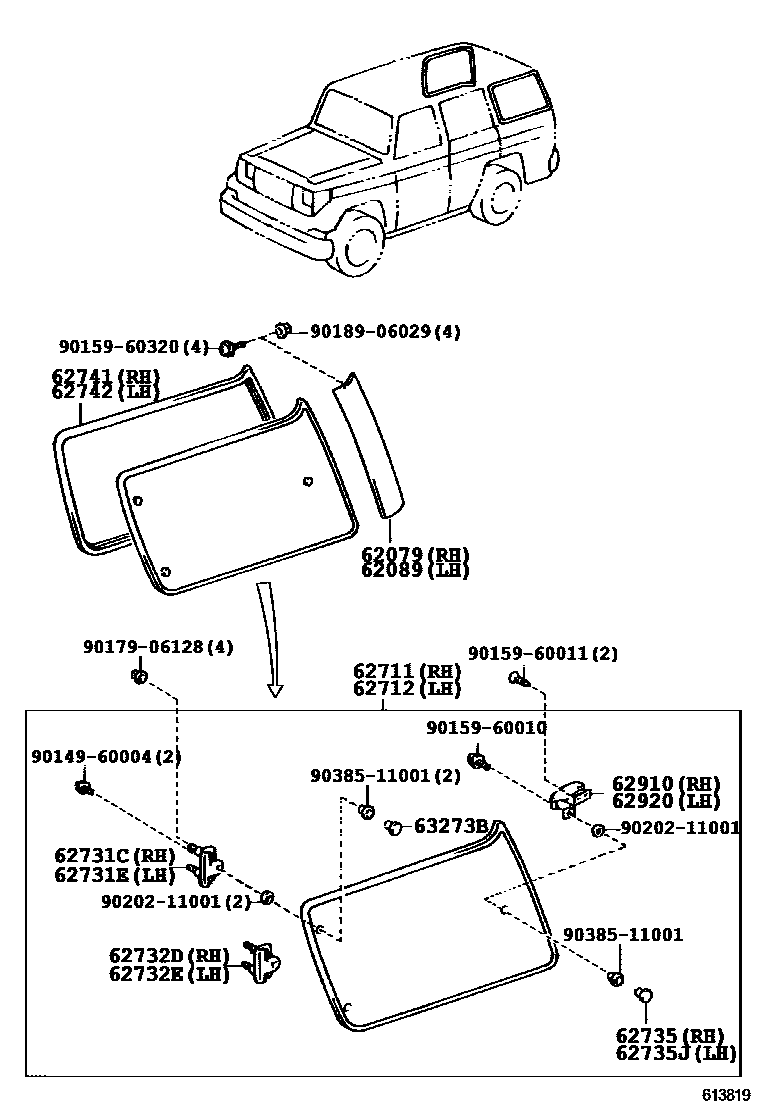

SIDE WINDOW

0001 1 0002 1 0003 1

62079DEFLECTOR SUB-ASSY, QUARTER WINDOW, RH

main62079-60010iLJ77,79,RJ77199004-199604

62089DEFLECTOR SUB-ASSY, QUARTER WINDOW, LH

main62089-60010iLJ77,79,RJ77199004-199604

62711GLASS, QUARTER WINDOW, RH

main62710-60090iLJ77,79,RJ77..GEN199004-199305

*TEM,T=4.0

main62710-60091iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN199305-199604

*TEM,T=4.0

sub62710-60660

main62710-60100iLJ77,79,RJ77..LX199004-199305

*TT,T=4.0,BLUE

main62710-60101iKZJ77,LJ79,RJ77199305-199604

*TT,T=4.0,BLUE

sub62710-60660

main62711-60370iFZJ70,HZJ70..HT..STD199608-200701

*TEM,T=4.0,GREEN

main62711-60420iFZJ78..GCC,GEN;HDJ78,HZJ78..STD199608-200701

*TEM,T=3.5,GREEN

main62711-90K00iFJ70,FZJ70,HZJ70,LJ72,PZJ70,RJ70..HT..STD199001-199608

*TEM,T=3.5

sub62711-60370

main62711-90K01iPZJ70..RHD..HT..GEN199001-199608

*TT,T=3.5

sub62711-60370

main62711-90K07iFJ75,FZJ75,HZJ75,PZJ75..HT..STD199001-199608

*TEM,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-60300iFZJ70,HZJ70..HT..STD199608-200701

*TEM,T=3.5,GREEN

main62712-60350iFZJ75,HZJ75..HT..STD199608-200701

*TEM,T=3.5,GREEN

main62712-90K00iFJ70,FZJ70,HZJ70,LJ72,PZJ70,RJ70..HT..STD199001-199608

*TEM,T=3.5

sub62712-60300

main62712-90K01iPZJ70..HT..STD199001-199608

*TT,T=3.5

sub62712-60300

main62712-90K07iFJ75,FZJ75,HZJ75,PZJ75..HT..STD199001-199608

*TEM,T=3.5

sub62712-60350

main62720-60050iLJ77,79,RJ77..GEN199004-199305

*TEM,T=4.0

sub62720-60060

main62720-60051iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN199305-199604

*TEM,T=4.0

sub62720-60560

main62720-60060iLJ77,79,RJ77199004-199305

*TT,T=4.0,BLUE

main62720-60061iKZJ77,LJ79,RJ77199305-199604

*TT,T=4.0,BLUE

sub62720-60560

62731CHINGE, QUARTER WINDOW, RH

main62731-60010iLJ77,79,RJ77199004-199604

62731EHINGE, QUARTER WINDOW, LH

main62731-60010iLJ77,79,RJ77199004-199604

62732DHINGE, QUARTER WINDOW, NO.2, RH

main62732-60010iLJ77,79,RJ77199004-199604

62732EHINGE, QUARTER WINDOW, LH

main62732-60010iLJ77,79,RJ77199004-199604

62735RETAINER, QUARTER WINDOW HINGE

main62735-14010iLJ77,79,RJ77199004-199604

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-14010iLJ77,79,RJ77199004-199604

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-60060iLJ77,79,RJ77199004-199604

main62741-60100iFZJ70199910-200808

W(SLIDE WINDOW)

main62741-90K00iPZJ70..HT..STD199001-200701

main62741-90K01iPZJ70..LX199001-199908

W(REAR QUARTER SLIDE WINDOW)

sub62741-60100

main62741-90K01iPZJ70..HT..STD199001-199910

W(SLIDE WINDOW)

sub62741-60100

main62741-90K03iFZJ78..ARL199001-200701

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-60060iKZJ77,LJ79,RJ77199004-199604

main62741-90K03iFZJ78..ARL199001-200701

main62742-60090iFZJ71..LHD..GEN199910-200808

W(SLIDE WINDOW)

main62742-90K00iLJ72,RJ70..HT..STD199001-200701

main62742-90K01iLJ72,RJ70..HT..STD199001-199908

W(REAR QUARTER SLIDE WINDOW)

sub62742-60090

main62742-90K01iFZJ70..GEN..EFI199305-199910

sub62742-60090

main62742-90K01iFZJ71,HZJ71..HT199908-199910

W(SLIDE WINDOW)

sub62742-60090

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-60010iLJ77,79,RJ77199004-199604

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-60010iLJ77,79,RJ77199004-199604

63273BRETAINER, ROOF WINDOW HINGE

main63273-95701iLJ77,79,RJ77199004-199604

9014960004

main90149-60004

9015960010

main90159-60010

9015960011

main90159-60011

9015960320

main90159-60320

9017906128

main90179-06128

9018906029

main90189-06029

9020211001

main90202-11001

9038511001

main90385-11001

23 parts on this diagram · 3 diagrams in section
