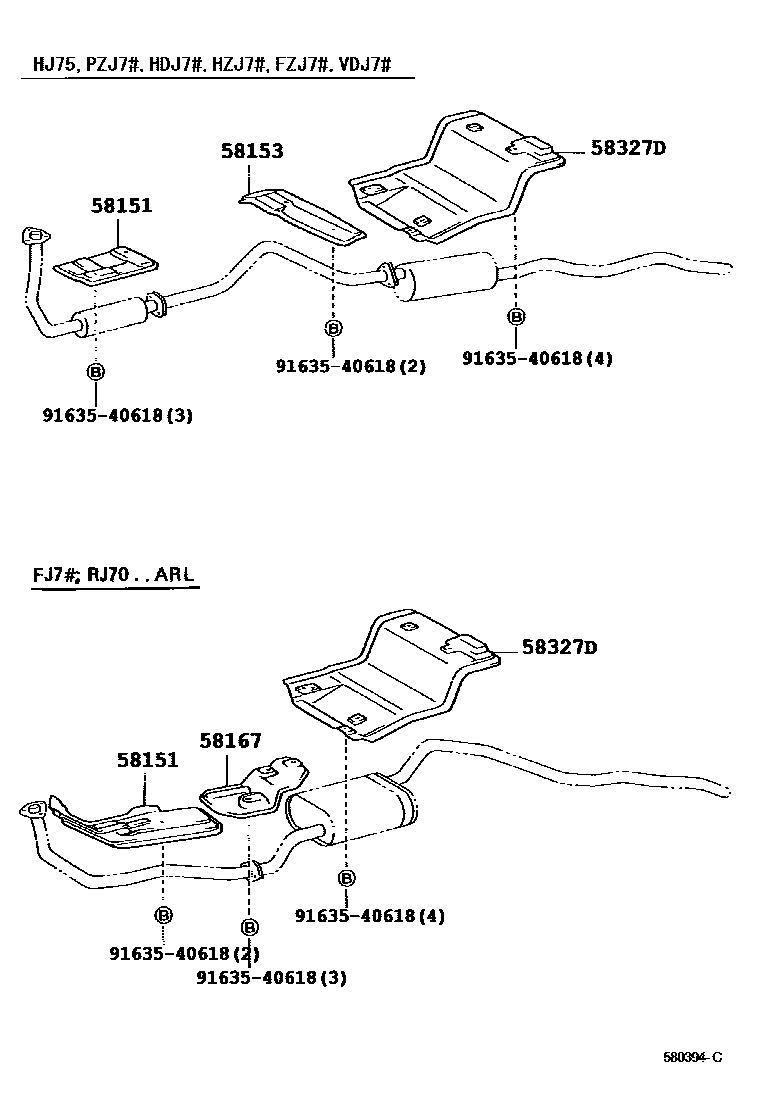

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-60040iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV199208-200701

main58151-60050iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199709-200808

main58151-60050iFZJ73..STD..GEN..CBR199705-199908

COLUMBIA SPEC

main58151-90K00iFZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#199001-199208

main58151-90K01iRJ7#..HT199001-199604

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58042-60020iFZJ71,74..GCC200109-200808

SAUDI ARABIA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC

main58042-60020iFZJ73..STD..GEN..CBR199705-199908

COLUMBIA SPEC

main58042-60020iFZJ70..EFI199709-200405

main58153-90K01iFZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN)199001-200701

58167INSULATOR, FRONT FLOOR HEAT, NO.1 SUB

main58167-90K01iRJ70..ARL199001-199108

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-60030iPZJ70,73;RJ70..SOT199108-200808

main58327-90K00iFJ70,73,HZJ70,73,LJ7#,PZJ70,73,RJ7#199001-199108

sub58327-60030

9163540618

main91635-40618

5 parts on this diagram · 2 diagrams in section
