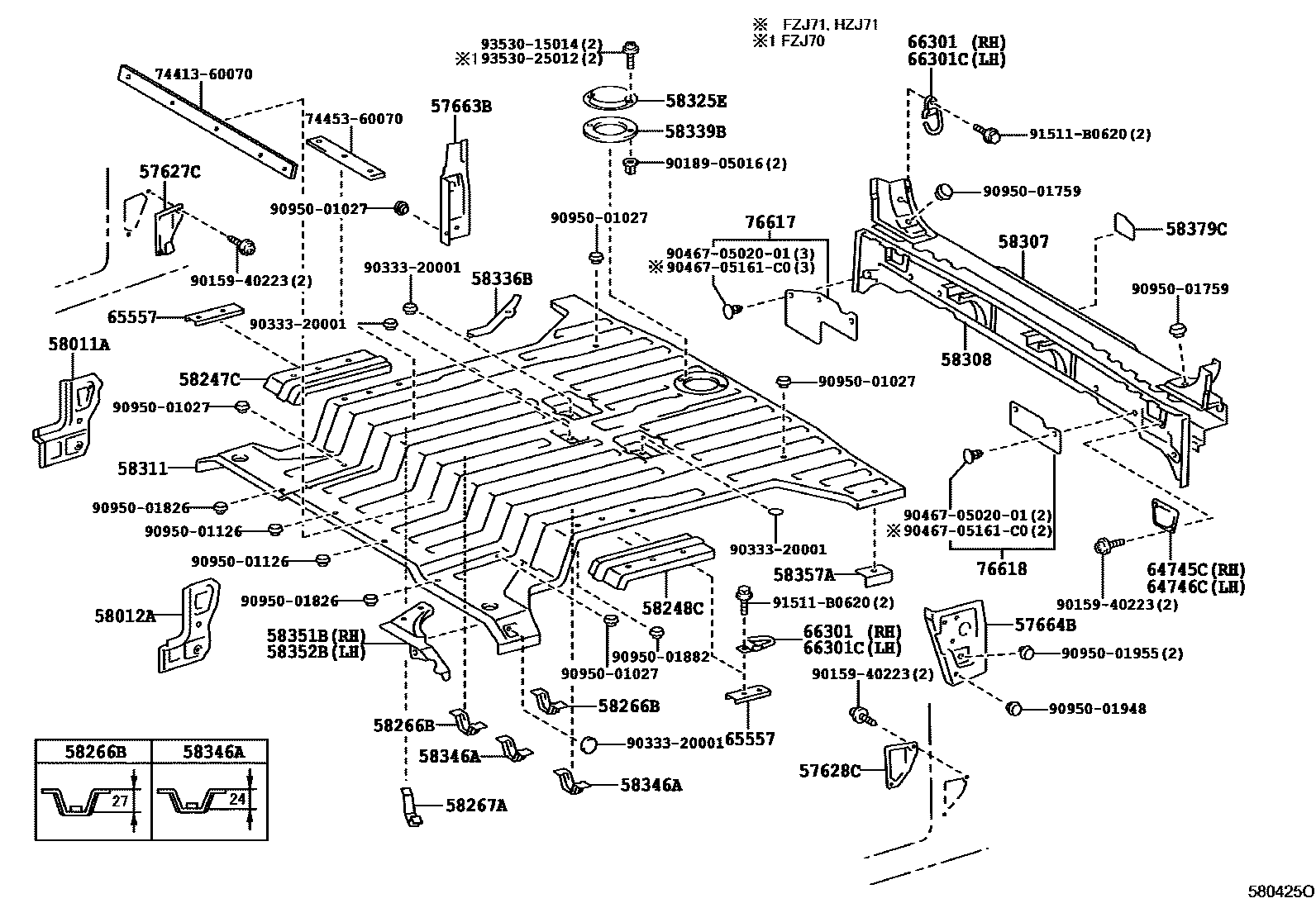

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0004 1 0006 1 0009 1

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-60020iKZJ70,LJ72,RJ70..HT199001-200808

main57627-60030iFZJ73..EFI199001-200701

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-60010iHZJ70..SOT199001-200808

main57628-60020iFJ73,FZJ73,HZJ73,PZJ73199001-200701

57663BPANEL, REAR FLOOR SIDE, REAR RH

main57663-60010iLJ79..LHD..LX;KZJ77,RJ77..LX199004-199604

W(*MR)

sub57663-60060

main57663-60020iLJ77,79,RJ77199004-199604

sub57663-60021

main57663-60030iFZJ78..LHD200712-200808

main57663-60040iFZJ78..LHD..GEN200606-200711

sub57663-60030

main57663-60050iFZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71200606-200808

main57663-90K00iFZJ73..CBR;FZJ70,HZJ70..HT..(GCC,GEN)199001-200605

sub57663-60050

main57663-90K01iFZJ75,HZJ75..HT199001-200605

sub57663-60040

57664BPANEL, REAR FLOOR SIDE, REAR LH

main57664-90K02iFZJ71..LHD..GEN199001-200808

main58306-60010iLJ79..LHD..LX;KZJ77,RJ77..LX199004-199604

W(*MR)

main58306-60020iLJ77,79,RJ77199004-199604

main58306-90K01iFZJ78..ARL199001-200808

58011APANEL SUB-ASSY, FLOOR PANEL SIDE, RH

main58011-60010iFJ75,FZJ75,HZJ75,PZJ75..HT..GEN199108-199908

W(FR & RR HEATER)

sub58011-60011

sub90950-01958

main58011-60010iFZJ78,HZJ78..GEN199908-200701

W(*FFRS)

sub58011-60011

sub90950-01958

main58011-60030iFJ75,HZJ75..HT..ARL199001-199201

W(REAR PARALLEL SEAT)

sub58011-60031

sub90950-01958

main58011-60030iFJ75,FZJ75,HZJ75,PZJ75..HT199201-200808

sub58011-60031

sub90950-01958

main58011-60031iFZJ78..ARL199908-200701

W/O(*ELR)

main58011-90K00iFZJ70..GEN..EFI199001-200808

main58011-90K01iFZJ73..CBR199001-200701

main58011-90K03iFJ75,HZJ75,PZJ75..HT..GEN199001-199108

W(FR & RR HEATER)

sub58011-60010

main58011-90K05iFJ75,HZJ75..HT..ARL199001-199201

sub58011-60030

58012APANEL SUB-ASSY, FLOOR PANEL SIDE, LH

main58012-60010iHZJ71;FZJ71..GCC;FZJ71..RHD199001-200808

main58012-60020iFZJ73..EFI199001-200701

main58012-60060iFZJ78,HZJ78..STD..(ARL,GEN)199908-200808

W(REAR PARALLEL SEAT)

sub58012-60061

sub90950-01958

main58012-60060iHDJ78..STD200108-200701

sub58012-60061

sub90950-01958

main58012-60061iHZJ78..LX200009-200701

W/O(*ELR)

main58012-90K05iFZJ75,HZJ75..HT199001-200106

58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-90K00iKZJ70,LJ72,RJ70199001-200808

58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-90K02iPZJ70..HT199001-200808

58266BBRACKET, FUEL TUBE CLAMP

main58266-90K00iKZJ70,LJ72,RJ70..HT199001-200808

main58266-90K00iFZJ74..GCC200207-200308

SAUDI ARABIA SPEC & W/O(REAR SEAT)

58267ABRACKET, FUEL TUBE CLAMP, NO.2

main58267-60030iFZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71199001-200808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-60030iHZJ70..SOT199706-199811

FOR PAKISTAN GOVERNMENT

main58307-60040iRJ77..GCC199305-199308

NO.1

sub58307-60050

main58307-60040iLJ77,79,RJ77199004-199305

sub58307-60050

main58307-60050iLJ79..LHD199108-199604

USSR SPEC

main58307-60060iLJ79..STD;KZJ77,RJ77;LJ79..LHD..LX199004-199604

W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR)

main58307-60070iPZJ70,73;RJ70..SOT199001-200808

W(AUXILIARY FUEL TANK 1 PIECE,BACK DOOR)

main58307-60080iFJ70,73,FZJ70,73,HZJ70,73,LJ70,72,PZJ70,73,RJ70199001-199305

NO.1

sub58307-60090

main58307-60080iFJ70..RHD..GEN;FJ70..(4FC,5F)..GEN;FJ73,LJ70,72,PZJ70,RJ70..HT..GEN199001-199305

sub58307-60090

main58307-60080iFZJ73..STD..GEN199305-199308

COLOMBIA SPEC

sub58307-60090

main58307-60090iKZJ70,RJ70..LX199305-199908

NO.4

main58307-60090iLJ72..LHD..HT..STD199108-199305

USSR SPEC

main58307-60090iFZJ73..LX..GEN199305-199608

NO.1

main58307-60090iFZJ70,73,HZJ70,KZJ70,LJ72,PZJ70,73,RJ70199305-199401

NO.3

main58307-60090iPZJ70..HT;FZJ70,LJ72..GEN199308-200701

main58307-60090iFZJ70..SOT199401-200006

NO.2

main58307-60090iFZJ73..STD..GEN199308-199611

COLOMBIA SPEC

main58307-60100iPZJ75..HT199001-200006

sub58307-60110

main58307-60110iHDJ78199908-200808

main58307-60210iHZJ71..SOT200609-200611

FOR PAKISTAN GOVERNMENT

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-60090iLJ79..LHD..LX199305-199308

NO.1

main58308-60090iLJ77,79,RJ77199004-199604

main58308-60100iLJ79..LHD199108-199604

USSR SPEC

main58308-90K00iFZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ70,72,PZJ70,73,RJ70199001-200701

main58308-90K01iFZJ78..LHD..GEN199001-200808

58311PAN, REAR FLOOR

main58311-60160iFZJ70..GCC199108-199908

W(*FFRS W/*SBE)

sub58311-60161

main58311-60160iFZJ70,HZJ70..ARL199305-199501

NEW ZEALAND SPEC & W(*FFRS W/*SBE)

sub58311-60161

main58311-60160iFZJ71,HZJ71..HT199908-200701

W(*FFRS & *SBE)

sub58311-60161

main58311-60160iFJ70,FZJ70,HZJ70..ARL199201-199305

NEW ZEALAND SPEC

sub58311-60161

main58311-60160iFZJ70,HZJ70..LX199305-199908

W(*FFRS)

sub58311-60161

main58311-60160iFJ70,FZJ70,LJ70,72,PZJ70,RJ70..LHD..LX199108-199305

W(*FFRS W/ *SBE)

sub58311-60161

main58311-60160iLJ70..ARL199108-199208

sub58311-60161

main58311-60161iFZJ71..LX200701-200808

main58311-60170iKZJ70,LJ72,RJ70..HT199108-199908

W(*FFRS & CENTER SEAT BELT)

main58311-60170iFZJ70..SOT199108-199501

W(*FFRS W/*SBE)

main58311-60170iFZJ70..GCC199501-199608

W(*FFRS)

main58311-60170iFJ70..SOT;FJ70,LJ70,PZJ70,RJ70..LX..GEN199108-199201

W(*FFRS W/O *SBE)

main58311-60170iFZJ71,HZJ71..HT..STD..GEN199908-200701

W(FRONT SEPARATE SEAT & *FFRS) OR W(*FFRS)

main58311-60230iRJ77..GCC;LJ79,RJ77..STD199004-199306

W(3RD PARALLEL SEAT)

sub58311-60231

sub55161-90K00

sub58348-60010

main58311-60231iRJ77..GCC;LJ79,RJ77..STD199306-199604

W(3RD PARALLEL SEAT)

main58311-60240iRJ77..GCC199004-199306

W(3RD SEAT(*FFRS))

sub58311-60241

sub55161-90K00

sub58348-60010

main58311-60241iRJ77..GCC199306-199604

W(3RD SEAT(*FFRS))

main58311-60290iFZJ73..LX199305-200701

W(*FFRS & *SBE)

main58311-60290iFJ73,FZJ73..LX199108-199305

W(*FFRS W/ *SBE)

main58311-60300iFZJ73..LX199108-200701

main58311-60300iFZJ74..STD..GEN200109-200408

COLOMBIA SPEC & W(REAR SEAT BELT)

main58311-60300iFJ73..STD..GEN199108-199305

COLUMBIA SPEC

main58311-60300iFZJ73..STD..GEN199305-199611

COLOMBIA SPEC

main58311-60580iFZJ71..LHD..STD..GEN200109-200701

COLOMBIA SPEC & W(REAR SEAT BELT)

sub58311-60581

main58311-60581iFZJ71..LHD..STD..GEN200701-200808

COLOMBIA SPEC & W(REAR SEAT BELT)

main58311-90K00iRJ70..SOT;PZJ70..STD199001-200701

main58311-90K00iFJ70..SOT199001-199201

W(REAR PARALLEL SEAT)

main58311-90K00iHZJ70..SOT199706-199811

FOR PAKISTAN GOVERNMENT

main58311-90K02iLJ70,RJ70..ARL199001-199108

W(*FFRS W/*SBE)

sub58311-60160

main58311-90K02iFJ70,PZJ70..ARL199001-199108

W(*FFRS W/ *SBE)

sub58311-60160

main58311-90K07iFZJ74..LX..GCC199001-200701

main58311-90K08iLJ72..HT..STD;FJ70,LJ70..GEN;PZJ70,RJ70..HT..GEN199001-199108

W(*FFRS W/*SBE)

sub58311-60170

main58311-90K08iLJ72..LX199004-199108

W(*FFRS W/O *SBE)

sub58311-60170

main58311-90K09iFJ73..LHD..LX199001-199108

W(*FFRS W/ *SBE)

sub58311-60290

main58311-90K11iFJ73..LHD..LX199001-199108

sub58311-60300

main58311-90K11iFJ73..STD..GEN199105-199108

COLUMBIA SPEC

sub58311-60300

main58311-90K46iFJ75,HZJ75..HT..(GCC,GEN)199001-199201

W(DUAL *AIC)

main58311-90K47iFZJ75,HZJ75..HT..STD..ARL199001-199908

W(*FFRS W/*SBE)

main58311-90K47iFZJ78,HZJ78..ARL,GEN;FZJ75,HZJ75..LX..ARL199208-200701

W(*FFRS & *SBE)

main58311-90K48iPZJ75..RHD..HT199001-200701

W(*FFRS)

main58311-90K48iPZJ75..LHD..HT199305-199401

W(*FFRS) OR ZIMBABWE SPEC

main58311-90K48iPZJ75..RHD..HT199001-199305

W(*FFRS W/O *SBE)

main58311-90K49iFZJ78..ARL199001-200808

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-60030iFZJ75,HZJ75..HT199208-200808

main58325-90K00iPZJ70,73;RJ70..SOT199001-200808

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-90K00iRJ70..SOT;PZJ7#..HT,SOT199001-200808

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-60030iFZJ75..GEN..CBU..EFI199208-200808

main58339-90K00iFZJ70..GEN..EFI199001-200808

58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main55161-90K00iKZJ77,LJ79,RJ77199306-199604

main58346-60010iLJ77,79,RJ77199004-199306

main58346-90K00iLJ70,72,RJ70;FJ70..LX..GCC;FJ70,PZJ70..GEN199001-199108

W(*FFRS W/*SBE)

main58346-90K00iFJ70,HZJ70,PZJ70..STD..(ARL,GCC)199001-199108

W(*AFT)

main58346-90K00iFJ70,HZJ70,PZJ70..STD..(ARL,GCC)199001-199108

W(FRONT BENCH NR *SBE)

main58346-90K00iFJ73,FZJ73,HZJ73,PZJ73199001-200808

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-90K00iFJ70,FZJ70,HZJ70,LJ70,72,PZJ70,RJ70199001-200106

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58352-90K00iFJ70,FZJ70,HZJ70,LJ70,72,PZJ70,RJ70199001-200106

58357AREINFORCEMENT, JACK CARRIER

main58357-90K01iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200808

58379CPROTECTOR, BODY LOWER BACK

main58379-60010iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199109-200808

64745CCOVER, LOWER BACK SERVICE HOLE, RH

main64745-90K00iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200808

64746CCOVER, LOWER BACK SERVICE HOLE, LH

main64746-90K00iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200808

65557RETAINER, ROPE HOOK

main65557-90K00iFZJ70,HZJ70..ARL;FZJ70,73..STD..CBR;FJ70,73,FZJ71,74,HZJ71,LJ72,PZJ70,73,RJ70..STD199001-200808

66301HOOK SUB-ASSY, ROPE

main66301-90K02iFJ70..STD..(ARL,GEN);LJ72,PZJ70,RJ70..HT..STD199001-199908

W(*FFRS)

main66301-90K02iFJ73..STD..GEN199105-199908

COLOMBIA SPEC

main66301-90K02iLJ77,79,RJ77;FJ70,73,FZJ70,73,HZJ70,LJ72,PZJ70,73,RJ70..STD199001-200408

main66301-90K02iFZJ70,HZJ70..ARL199305-199501

NEW ZEALAND SPEC

main66301-90K02iFZJ70..SOT;FZJ70,HZJ70..ARL199401-200808

NO.2

main66301-90K02iFZJ74..LX..GCC200207-200507

SAUDI ARABIA SPEC

66301CHOOK SUB-ASSY, ROPE, LH

main66301-90K02iFJ70..ARL,GEN;FJ70..LX..GCC;FJ73,HZJ73,LJ70,72,PZJ70,73,RJ70..HT199001-199005

NO.2

main66302-90K00iFJ70..ARL,GEN;FJ70..LX..GCC;FJ73,HZJ73,LJ70,72,PZJ70,73,RJ70..HT199005-200408

main66302-90K00iFJ73..STD..GEN199105-199908

COLOMBIA SPEC

main66302-90K00iLJ77,79,RJ77;FJ70,73,FZJ70,73,HZJ70,LJ72,PZJ70,73,RJ70..STD199005-200808

NO.2

main66302-90K00iFZJ74..LX..GCC200207-200507

SAUDI ARABIA SPEC

main66302-90K00iFZJ70,KZJ70,LJ72..GEN;FZJ73,HZJ70,RJ70..HT..(GCC,GEN)199305-199501

NEW ZEALAND SPEC

main66302-90K00iLJ72..RHD;KZJ70,RJ70199508-199604

W(FRONT SEPARATE SEAT)

76617MUDGUARD, LOWER BACK PANEL, FRONT RH

main76617-90K01iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200808

76618MUDGUARD, LOWER BACK PANEL, FRONT LH

main76618-90K01iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT199001-200808

7441360070BOLT, BATTERY CLAMP

main74413-60070

7445360070SUPPORT, BATTERY CARRIER

main74453-60070

9015940223

main90159-40223

9018905016

main90189-05016

9033320001

main90333-20001

904670502001

main90467-0502001

9046705161C0

main90467-05161C0

9095001027

main90950-01027

9095001126

main90950-01126

9095001759

main90950-01759

9095001826

main90950-01826

9095001882

main90950-01882

9095001948

main90950-01948

9095001955

main90950-01955

91511B0620

main91511-B0620

9353015014

main93530-15014

9353025012

main93530-25012

45 parts on this diagram · 4 diagrams in section
