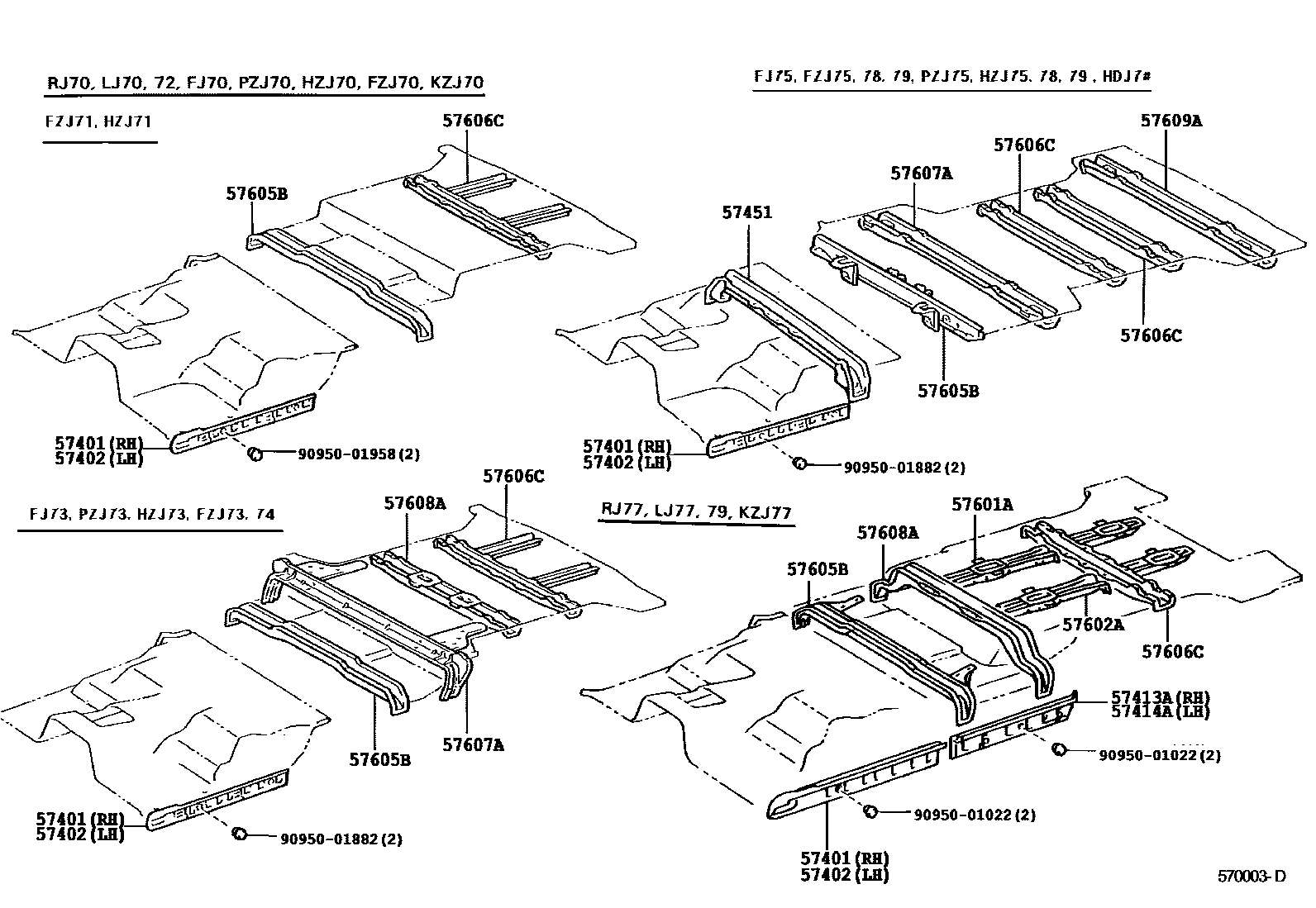

FLOOR MEMBER

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-60040iKZJ77,LJ79,RJ77199305-199604

main57401-90K00iHZJ78..LX;HZJ79..ARL..CBU199908-200108

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-60060iKZJ77,LJ79,RJ77199305-199604

main57402-90K00iFZJ73,75..(PIC,SOT)..GEN..EFI199305-200405

main57402-90K01iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,LJ70,72,PZJ7#,RJ70199001-199305

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-60020iKZJ77,LJ79,RJ77199305-199604

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-60020iLJ77,79,RJ77199004-199305

57451MEMBER, FRONT FLOOR CROSS

main57408-60030iFZJ78..GCC;HZJ78,79..LHD;FZJ79..LHD..CBU199908-200701

main57408-60040iHZJ78..LX;HZJ79..ARL..CBU199908-200108

sub57408-60070

main57408-60050iHDJ7#..LX200108-200701

sub57408-60080

main57408-90K03iFZJ75..GEN..IV..EFI199805-200405

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-60050iLJ77,79,RJ77199004-199305

main57601-60060iLJ79..STD;KZJ77,RJ77;LJ79..LHD..LX199305-199308

W(FRONT SEPARATE SEAT W/*SBE & AUXILIARY FUEL TANK)

sub57601-60171

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-60020iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN199308-199401

W(FRONT SEPARATE SEAT W/*SBE)

main57602-60030iLJ79..LHD199108-199305

USSR SPEC

sub57602-60120

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-60070iLJ72,RJ70..HT..STD199305-199604

main57605-60090iFZJ70..LX;FZJ70..GCC;HZJ70..LHD;FZJ73..STD..CBR199510-199908

W(FRONT BENCH SEAT W/*SBE)

main57605-60160iHZJ70..SOT199706-199711

FOR PAKISTAN GOVERNMENT

main57605-90K09iHZJ78..LX199908-200108

sub57605-60290

main57605-90K10iFZJ74..LX;FZJ71,HZJ71..HT..GEN199908-200006

W(FRONT SEPARATE SEAT W/*SBE)

sub57605-60210

main57605-90K11iFJ70,FZJ70,HZJ70,PZJ70..ARL;FZJ71,HZJ71,LJ79,RJ77..RHD..STD199001-199305

W(FRONT BENCH SEAT W/*SBE)

sub57605-60220

main57605-90K12iFJ73..STD..GEN199105-199108

W(FRONT BENCH SEAT W/*SBE) OR COLUBBIA SPEC

main57605-90K17iFJ73,PZJ73..STD..GEN199004-199108

main57605-90K20iFZJ74..STD..GEN200109-200408

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-60090iLJ77,79,RJ77..LX..GEN199004-199305

W(FRONT SEPARATE SEAT) OR W(FR0NT BENCH SEAT)

main57606-60100iFJ70,FZJ70..STD..GEN;LJ72,PZJ70,RJ70..HT..STD..GEN199004-199305

W(*FFRS) & W/O REAR SEAT BELT

main57606-60120iLJ79..LHD..LX;KZJ77,RJ77..LX..GEN199305-199604

W(FRONT SEPARATE SEAT OR FRONT BENCH SEAT)

main57606-90K04iHZJ71..HT;FZJ71..RHD199908-200701

W(*FFRS)

main57606-90K05iFZJ73..CBR;FZJ70,HZJ70..HT..STD..(GCC,GEN)199305-199908

main57606-90K08iFJ70,LJ70,PZJ70,RJ70..LHD..LX199001-199004

W(*FFRS) & W/O REAR SEAT BELT

main57606-90K10iFZJ75..GEN..CBU..EFI199305-200106

FRONT

main57606-90K11iFZJ78..ARL199908-200605

W(REAR SEAT BELT(NR 2-8)),REAR

main57606-90K12iPZJ75..HT199305-199401

REAR

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-90K00iFZJ73..LX199305-199908

main57607-90K03iFZJ73..STD..CBR199305-199908

main57607-90K06iFZJ78..ARL199908-200605

W(REAR SEAT BELT)

main57607-90K08iFZJ78..ARL199908-200605

W/O(REAR SEAT)

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-60020iLJ77,79,RJ77..GEN199004-199305

W(*AFT)

main57608-60030iKZJ77,RJ77..LX..GEN199308-199401

W(FRONT SEPARATE SEAT W/*SBE),NO.1

main57608-90K09iFJ73..STD..GEN199105-199208

COLUMBIA SPEC

main57655-90K03iFZJ73..STD..CBR;FJ73,FZJ74,PZJ73..STD199001-199305

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-90K03iPZJ75..HT199305-199401

main57609-90K04iHZJ78..STD..ARL200006-200701

W(TRANSVERSE REAR SEAT)

9095001022

main90950-01022

9095001882

main90950-01882

9095001958

main90950-01958

15 parts on this diagram · 1 diagram in section
