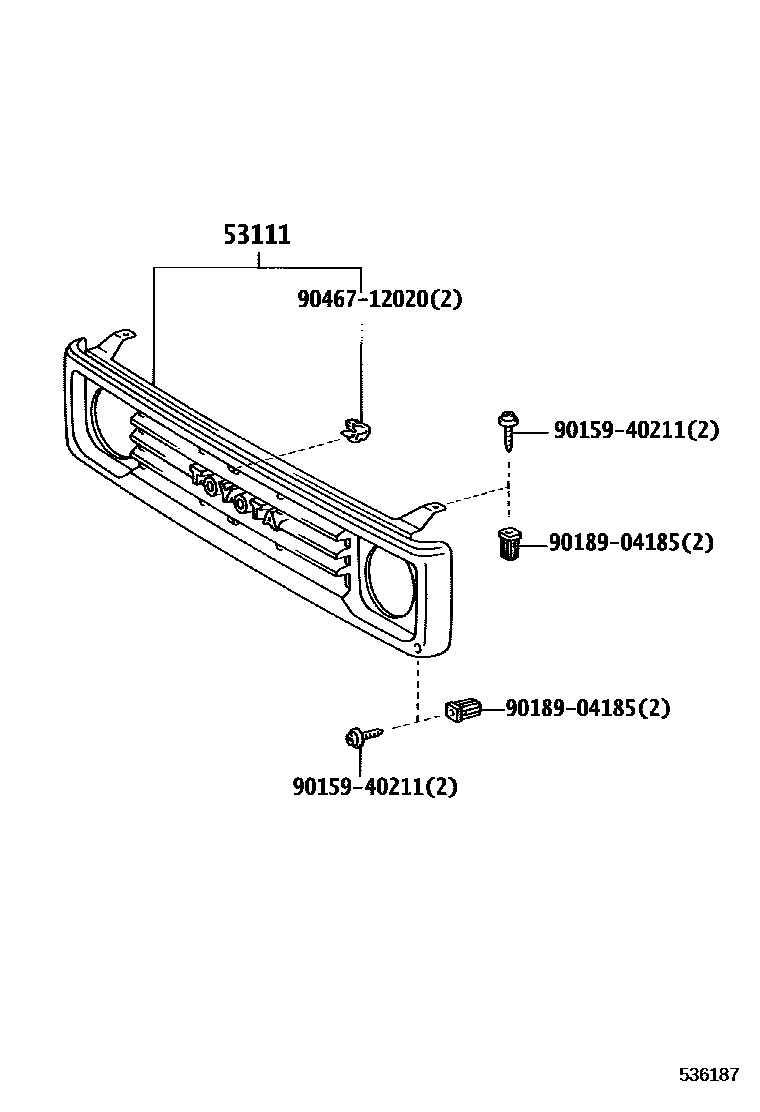

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

53111GRILLE, RADIATOR

main53101-60030iFJ7#,FZJ7#..STD;FJ73,FZJ75..LX..ARL199001-199305

NO PAINT REQ.

main53101-60040iFZJ7#..LX..CBR199305-199501

PLATED

main53101-60050iHZJ75..STD..GCC;HZJ75..ARL,GEN,SA;HZJ70,PZJ75..5F..STD199305-199501

NO PAINT REQ.

main53101-60060iHZJ75,PZJ7#..STD..(GCC,GEN)199305-199401

PLATED

main53101-60070iLJ7#,RJ7#..HT..STD199305-199604

NO PAINT REQ.

sub53101-60080

main53101-60090iLJ7#,RJ7#..LX..(GCC,GEN)199001-199305

PLATED

sub53101-60100

main53101-60150iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199501-200007

NO PAINT REQ.

main53101-60160iHZJ75..GEN..IV;HZJ7#..HT..STD..GEN;HZJ75..LHD..PIC..STD..CBU;FZJ7#..STD..(GCC,GEN)..CBR199501-199908

PLATED

main53101-60220iHZJ70..SOT199809-199811

FOR PAKISTAN GOVERNMENT

main53101-60240iHZJ78..LX;HZJ79..ARL..CBU199908-200108

NO PAINT REQ.

main53101-60250iFZJ71..LX;FZJ79..GEN..IV199908-200808

PLATED

main53101-60340iHZJ71..SOT200609-200611

FOR PAKISTAN GOVERNMENT

9015940211

main90159-40211

9018904185

main90189-04185

9046712020

main90467-12020

4 parts on this diagram · 4 diagrams in section
