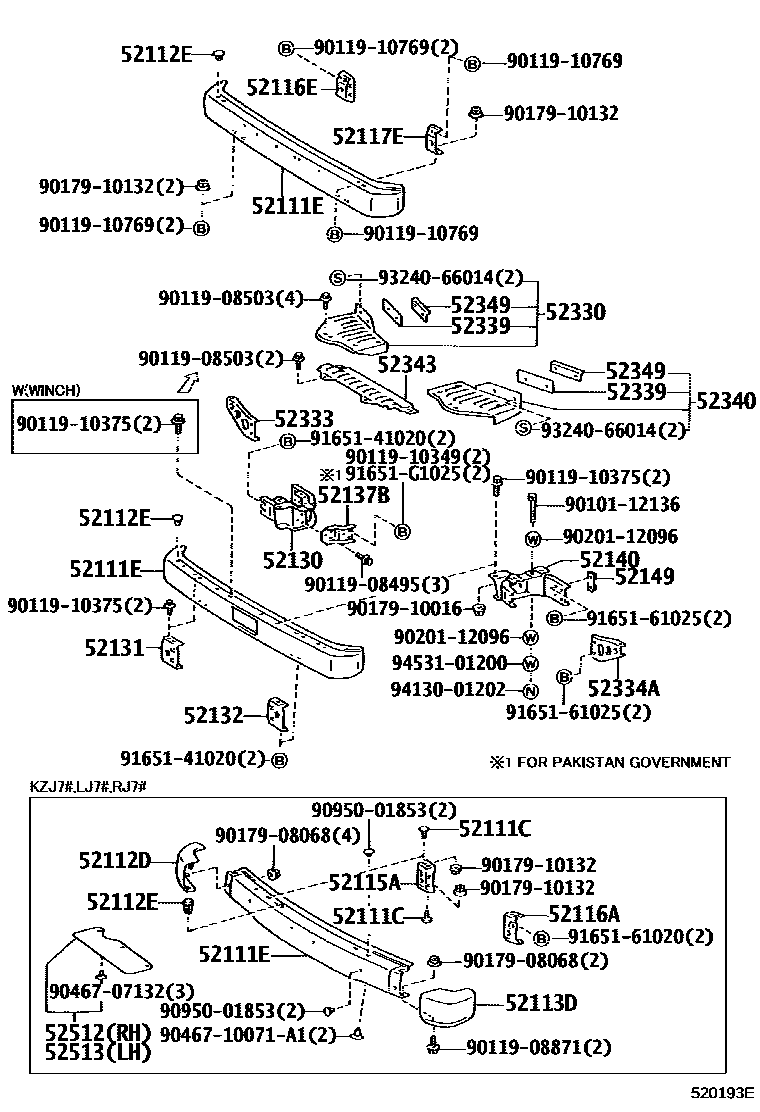

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0004 1 0005 1 0006 1

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-10021iLJ7#,RJ7#..STD199001-199604

CHROME PACKAGE

main90112-10021iLJ70,RJ70..LX..GEN199001-199604

main90112-10022iLJ7#,RJ7#..STD199001-199604

main90112-10022iLJ70,RJ70..LX..GEN199001-199201

W/O CHROME PACKAGE

52111EBAR, FRONT BUMPER

main52101-60090iFZJ70,75..STD..GEN..CBU..EFI199001-200808

NO PAINT REQ.

main52101-60090iFJ70,73,PZJ70..LX..GEN199001-199208

NO PAINT REQ.,BUMPER PAINTING

main52101-60100iFZJ70..LX199001-200808

PLATED

main52101-60110iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..STD..CBU;FZJ70,75,HZJ70..(HT,PIC)..STD..(GCC,GEN)..CBU;FZJ73,HZJ75..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL)199001-200808

NO PAINT REQ.,W(WINCH)

main52101-60120iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ70,HZJ7#..HT..(GCC,GEN);FZJ73,75..(GCC,GEN)..CBU..CBR199001-200808

PLATED,W(WINCH)

main52101-60130iFJ75,HZJ75..PIC..STD..GCC199001-199108

NO PAINT REQ.

sub52101-60131

main52101-60131iFZJ75,HZJ75..PIC..STD..GCC199108-200808

NO PAINT REQ.,W(FRONT BUMPER GUARD)

main52101-60131iFZJ75,HZJ75..PIC..STD..GCC199108-200701

NO PAINT REQ.

main52101-60140iFJ75,HZJ75..PIC..GCC199001-199108

PLATED

sub52101-60141

main52101-60141iFZJ79,HZJ79..GCC199108-200808

PLATED,W(FRONT BUMPER GUARD)

main52101-60141iHZJ79..GEN;FZJ71,78..GCC;FZJ79..GEN..CBU;FZJ71,78..RHD..GEN;FZJ74,HZJ71,78..GCC,GEN199108-200701

PLATED

main52101-60161iHZJ71..SOT199706-200611

FOR PAKISTAN GOVERNMENT

main52111-60310iLJ70,RJ70..RHD;RJ70..LHD..STD;LJ72,79,RJ77..STD199001-199305

NO PAINT REQ.

sub52111-60450

sub90950-01854

main52111-60320iLJ7#,RJ7#..LX..(GCC,GEN)199001-199305

PLATED

sub52111-60460

sub90950-01853

main52111-60320iLJ70,RJ70..RHD;RJ70..LHD..STD;LJ72,79,RJ77..STD199001-199305

PLATED,CHROME PACKAGE

sub52111-60460

sub90950-01853

main52111-60330iLJ70,77..GEN199001-199201

NO PAINT REQ.,W(*EW)

sub52111-60490

sub90950-01854

main52111-60330iLJ72,79,RJ7#..LX..GEN199001-199201

NO PAINT REQ.,BUMPER PAINTING & W(WINCH)

sub52111-60490

sub90950-01854

main52111-60330iLJ72,79,RJ7#..STD199001-199305

NO PAINT REQ.,W(WINCH)

sub52111-60490

sub90950-01854

main52111-60340iLJ70,77..GEN199001-199305

PLATED,CHROME PACKAGE & W(WINCH)

sub52111-60500

sub90950-01853

main52111-60340iLJ72,79,RJ7#..STD199001-199305

PLATED,W(*EW)

sub52111-60500

sub90950-01853

main52111-60340iLJ72,79,RJ7#..LX..GEN199001-199305

PLATED,W(WINCH)

sub52111-60500

sub90950-01853

main52111-60450iRJ70..SOT199305-199604

NO PAINT REQ.

main52111-60460iKZJ7#,LJ79,RJ7#..LX199305-199604

PLATED

main52111-60460iRJ70..SOT199305-199604

PLATED,CHROME PACKAGE

main52111-60490iRJ70..SOT199305-199604

NO PAINT REQ.,W(*EW)

main52111-60500iLJ79..LHD..LX;KZJ7#,RJ7#..LX..GEN199305-199604

PLATED,W(*EW)

main52111-60500iLJ79..LHD..LX;KZJ7#,RJ7#..LX..GEN199305-199604

PLATED,CHROME PACKAGE & W(*EW)

52112DEXTENSION, FRONT BUMPER, RH

main52102-60060iLJ7#,RJ7#199001-199604

NO PAINT REQ.

main52102-60140iRJ7#..LX;LJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX199305-199604

NO PAINT REQ.,W(WIDE TIRE)

52112EPLUG, HOLE(FOR FRONT BUMPER EXTENSION)

main90950-01608iHZJ78..GEN;FJ75,FZJ75,HZJ75..LX..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-200808

W(FRONT BUMPER SIDE STEP)

main90950-01608iHZJ78..GEN;FJ75,FZJ75,HZJ75..LX..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-200007

CHROME PACKAGE

main90950-01608iHZJ78..GEN;FJ75,FZJ75,HZJ75..LX..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-199908

W(*EW)

main90950-01608iHZJ78..GEN;FJ75,FZJ75,HZJ75..LX..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-199604

CHROME PACKAGE & W(WINCH)

main90950-01608iFJ75,FZJ75,HZJ75..PIC..STD..GCC199001-199908

W(WINCH)

main90950-01608iFZJ79,HZJ79..GEN;FZJ71,74,78,HZJ71,78..GCC,GEN;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..(GCC,GEN)199001-200311

52113DEXTENSION, FRONT BUMPER, LH

main52103-60060iLJ70,RJ70199001-199604

NO PAINT REQ.

main52103-60140iRJ7#..LX;LJ79..STD;KZJ7#,LJ72;LJ79..LHD..LX199305-199604

NO PAINT REQ.,W(WIDE TIRE)

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-60020iLJ7#,RJ7#199001-199305

SR

main52115-60020iKZJ7#,LJ7#,RJ7#199305-199604

main52115-60030iLJ72,79,RJ7#..GEN199001-199302

W(WINCH)

sub52115-60031

main52115-60030iLJ70,77..GEN199001-199302

W(*EW)

sub52115-60031

main52115-60030iRJ77..GCC199208-199302

W(FRONT BUMPER GUARD)

sub52115-60031

main52115-60031iLJ77199302-199305

W(WINCH)

sub52115-60032

main52115-60031iRJ77..GCC199302-199305

W(*EW)

sub52115-60032

main52115-60031iRJ77..GCC199302-199305

W(FRONT BUMPER GUARD)

sub52115-60032

main52115-60032iLJ79..STD;KZJ7#,LJ72;RJ77..LX..GEN;LJ79,RJ70..LHD..LX199305-199604

W(WINCH)

main52115-60032iRJ7#..STD199305-199604

W(*EW)

main52115-60032iLJ79..STD;KZJ7#,LJ72;RJ77..LX..GEN;LJ79,RJ70..LHD..LX199305-199604

W(FRONT BUMPER GUARD)

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60050iLJ70,RJ70199001-199305

SL

main52116-60050iKZJ7#,LJ7#,RJ7#199305-199604

main52116-60060iLJ72,79,RJ7#..GEN199001-199302

W(WINCH)

sub52116-60061

main52116-60060iRJ77..GCC199208-199302

W(FRONT BUMPER GUARD)

sub52116-60061

main52116-60060iLJ70,77..GEN199001-199302

W(*EW)

sub52116-60061

main52116-60061iLJ72,79,RJ7#..GEN199302-199305

W(*EW)

sub52116-60062

main52116-60061iRJ77..GCC199302-199305

W(WINCH)

sub52116-60062

main52116-60061iRJ77..GCC199302-199305

W(FRONT BUMPER GUARD)

sub52116-60062

main52116-60062iRJ77..GCC199305-199604

W(FRONT BUMPER GUARD)

main52116-60062iRJ7#..STD199305-199604

W(*EW)

main52116-60062iLJ79..STD;KZJ7#,LJ72;RJ77..LX..GEN;LJ79,RJ70..LHD..LX199305-199604

W(WINCH)

52116EGUSSET, FRONT BUMPER, UPPER RH

main52116-60020iHZJ75..RHD;FJ75..HT..GCC;FZJ70,73..CBR;FZJ75..ARL..IV;FZJ70,HZJ70..ARL;FZJ75..(GEN,SA)..CBR;FZJ75..HT..(ARL,GCC);HZJ75..LHD..GEN..CBU;FJ75,FZJ79,HZJ78,79..ARL,GEN,S199001-200808

52117EGUSSET, FRONT BUMPER, UPPER LH

main52117-60010iHZJ75..RHD;FJ75..HT..GCC;FZJ70,73..CBR;FZJ75..ARL..IV;FZJ70,HZJ70..ARL;FZJ75..(GEN,SA)..CBR;FZJ75..HT..(ARL,GCC);HZJ75..LHD..GEN..CBU;FJ75,FZJ79,HZJ78,79..ARL,GEN,S199001-200808

52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-60050iFJ70..LX..GCC;FJ75..PIC..GCC;FJ73,HZJ75..(HT,PIC)..GCC199001-199210

W(WINCH)

sub52130-60051

main52130-60050iFJ70..4FC;FZJ73..LX..GCC;FZJ7#..STD..GEN199001-199210

W(*EW)

sub52130-60051

main52130-60051iHZJ75,PZJ7#..STD..GEN;FZJ7#..(HT,SOT)..STD..GCC199210-200007

W(WINCH)

sub52130-60100

main52130-60051iFZJ75,HZJ75..PIC..GCC;FZJ70,73,PZJ70..LX..GEN199210-199908

W(*EW)

sub52130-60100

main52130-60071iHZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

main52130-60080iFZJ7#..(HT,SOT)..GCC199201-199908

W(FRONT BUMPER GUARD)

main52130-60090iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main52130-60100iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

W(FRONT BUMPER SIDE STEP)

52131RETAINER, FRONT BUMPER SIDE, RH

main52131-60050iFJ75..HT..GCC;FJ70,73..5F..LX..GEN;FJ75,HZJ75,PZJ7#..GEN;FJ70,73..STD..(GCC,GEN)199001-200007

W(WINCH)

main52131-60050iFJ70..4FC;FZJ7#..STD..GEN199001-199908

W(*EW)

main52131-60050iFZJ70,73,PZJ70..LX;FZJ75,HZJ75..PIC..GCC199201-199908

W(WINCH OR FRONT BUMPER GUARD)

main52131-60050iHZJ70..SOT199706-199811

FOR PAKISTAN GOVERNMENT

main52131-60110iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

52132RETAINER, FRONT BUMPER SIDE, LH

main52132-60030iFZJ75..LHD..IV..CBR;FZJ73..STD..GEN..CBR;FZJ70,75..(HT,PIC)..STD..GEN..CBU199001-199908

W(*EW)

main52132-60030iFJ70..LX..GCC;FJ75..PIC..GCC;FJ73,HZJ75..(HT,PIC)..GCC199001-200007

W(WINCH)

main52132-60030iFZJ70,73,PZJ70..LX;FZJ75,HZJ75..PIC..GCC199201-199908

W(WINCH OR FRONT BUMPER GUARD)

main52132-60030iHZJ70..SOT199706-199811

FOR PAKISTAN GOVERNMENT

main52132-60080iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

52137BPLATE, FRONT BUMPER BRACKET, NO.1

main52137-90K00iFJ75..HT..GCC;FJ70,73..5F..LX..GEN;FJ75,HZJ75,PZJ7#..GEN;FJ70,73..STD..(GCC,GEN)199001-200007

W(WINCH)

main52137-90K00iFJ70..4FC;FZJ75..PIC..GEN;FZJ7#..(HT,SOT)..STD..CBR199001-199908

W(*EW)

main52137-90K00iHZJ70..SOT199706-199811

FOR PAKISTAN GOVERNMENT

main52137-90K00iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-60050iFZJ75,HZJ75..PIC..GCC;FZJ70,73,PZJ70..LX..GEN199001-200007

W(WINCH)

sub52140-60100

main52140-60050iFJ70..4FC;FZJ73..LX..GCC;FZJ7#..STD..GEN199001-199908

W(*EW)

sub52140-60100

main52140-60071iHZJ70..SOT199706-200611

FOR PAKISTAN GOVERNMENT

main52140-60080iFZJ7#..(HT,SOT)..GCC199201-199908

W(FRONT BUMPER GUARD)

main52140-60090iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main52140-60100iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

W(FRONT BUMPER SIDE STEP)

52149BRACKET, FRONT BUMPER, INNER

main52149-60010iPZJ70..STD;FJ7#,HZJ75,PZJ73,75..GEN199001-200007

W(WINCH)

main52149-60010iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200610

main52149-60010iFJ70..4FC;FZJ75..PIC..GEN;FZJ7#..(HT,SOT)..STD..CBR199001-199908

W(*EW)

main52149-60010iHZJ70..SOT199706-199811

FOR PAKISTAN GOVERNMENT

52330STEP ASSY, FRONT BUMPER SIDE, RH

main52330-60010iFZJ75,HZJ75..PIC..GCC199001-199908

W(*EW)

main52330-60010iHZJ78..GEN;FJ75,FZJ75,HZJ75..PIC..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-200007

W(WINCH)

main52330-60010iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main52330-60020iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

W(FOG LAMP)

main52330-60020iHZJ78..GEN;FJ75,FZJ75,HZJ75..PIC..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-200007

W(WINCH & FOG LAMP)

main52330-60020iHZJ78..GEN;FJ75,FZJ75,HZJ75..PIC..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-199908

W(*EW & FOG LAMP)

52333BRACKET, FRONT BUMPER STEP MOUNTING, RH

main52333-90K00iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ70,HZJ7#..HT..(GCC,GEN);FZJ73,75..(GCC,GEN)..CBU..CBR199001-200701

52334ABRACKET, FRONT BUMPER STEP MOUNTING, LH

main52334-90K00iHZJ75..GEN..IV;FZJ75..LHD..IV..CBR;HZJ75..LHD..PIC..CBU;FZJ70,HZJ7#..HT..(GCC,GEN);FZJ73,75..(GCC,GEN)..CBU..CBR199001-200701

52339SEAL, FRONT BUMPER STEP

main52339-60010iFZJ7#,HZJ75,PZJ7#..GCC,GEN199001-200808

RH

main52339-90K00iFZJ7#,HZJ75,PZJ7#..GCC,GEN199001-200808

LH

52340STEP ASSY, FRONT BUMPER SIDE, LH

main52340-60010iFZJ75,HZJ75..PIC..GCC199001-199908

W(*EW)

main52340-60010iHZJ75,PZJ7#..GEN199001-200007

W(WINCH)

main52340-60010iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main52340-60020iFZJ75,HZJ75..PIC..GCC199001-200808

W(FOG LAMP)

main52340-60020iHZJ78..GEN;FJ75,FZJ75,HZJ75..PIC..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-200007

W(WINCH & FOG LAMP)

main52340-60020iHZJ78..GEN;FJ75,FZJ75,HZJ75..PIC..GCC;FZJ71,74,78,79,HZJ71,79..GCC,GEN199001-199908

W(*EW & FOG LAMP)

52343STEP, FRONT BUMPER, CENTER

main52343-60010iFZJ79,HZJ79..GCC199001-200701

52349RETAINER, FRONT BUMPER STEP SEAL

main52349-90K00iFZJ70..SOT;FZJ75..RHD..IV..CBR199001-200701

52512FILLER, FRONT BUMPER, RH

main52502-60010iKZJ7#,LJ7#,RJ7#199305-199604

52513FILLER, FRONT BUMPER, LH

main52503-60010iKZJ7#,LJ7#,RJ7#199305-199604

9010112136

main90101-12136

9011908495

main90119-08495

9011908503

main90119-08503

9011908871

main90119-08871

9011910349

main90119-10349

9011910375

main90119-10375

9011910769

main90119-10769

9017908068

main90179-08068

9017910016

main90179-10016

9017910132

main90179-10132

9020112096

main90201-12096

9046707132

main90467-07132

9046710071A1

main90467-10071A1

9095001853

main90950-01853

9165141020

main91651-41020

9165161020

main91651-61020

9165161025

main91651-61025

91651G1025

main91651-G1025

9324066014

main93240-66014

9413001202

main94130-01202

9453101200

main94531-01200

45 parts on this diagram · 5 diagrams in section
