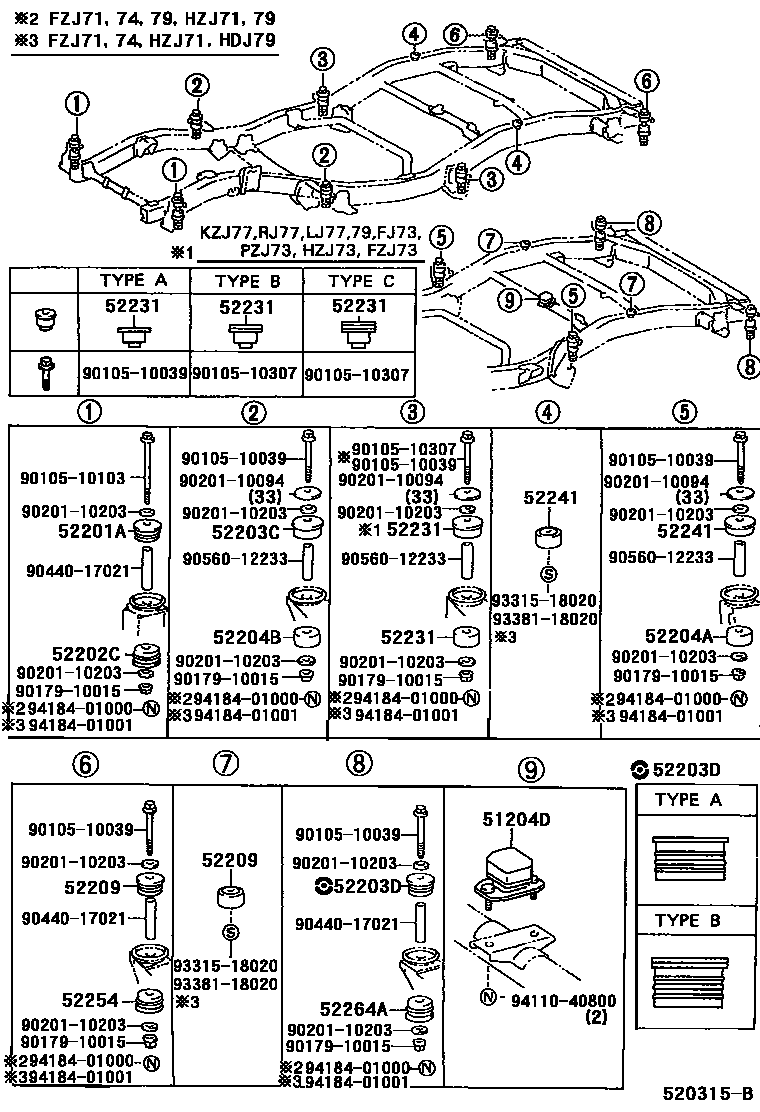

CAB MOUNTING & BODY MOUNTING

0001 1 0003 1

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22100iPZJ73199001-199002

main51204-22140iPZJ73199002-199401

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-25020iFZJ70,75..GEN..CBU..EFI199001-200808

52202CCUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER

main52202-25020iFJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200405

main52202-60050iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU199908-200808

52203CCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-60020iFJ75,FZJ75,HZJ75,PZJ75..HT199001-200808

main52203-60030iFZJ75,HZJ75..SA199001-200808

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52201-60030iFJ73,HZJ73,LJ77,79,PZJ73,RJ77199001-199010

main52201-60030iFZJ73..EFI199010-200701

TYPE A

main52201-60040iFZJ73..CBR199010-200701

TYPE B

main52203-60030iHZJ78..LX199001-200808

52204ACUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER

main52204-60030iPZJ73,75..HT,SOT199001-200405

main52204-60070iHZJ78..LX199908-200808

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-60020iFZJ75..GEN..CBU..EFI199001-200106

main52204-60030iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200405

main52204-60070iHZJ79..ARL..CBU199908-200808

main52204-60080iHZJ78..LX199908-200808

52209CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER

main52201-60030iFZJ70,HZJ70..HT..(GCC,GEN)199001-200808

main52209-60020iFZJ74199001-200808

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52203-60020iFZJ75..GEN..IV..EFI199001-200405

UPPER

main52203-60030iFZJ78..ARL199001-200808

UPPER

main52204-60020iPZJ75..PIC..4F199001-200405

LOWER

main52204-60030iFZJ75,HZJ75..HT199001-200106

LOWER

main52204-60070iFZJ78..ARL199908-200808

LOWER

main52205-60040iFZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV199908-200808

UPPER

main52206-60040iHZJ79..ARL..CBU199908-200808

LOWER

main52207-60010iFJ70,73,HZJ70,73,LJ70,PZJ70,73,RJ70199001-199004

UPPER

main52207-60030iFZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71199004-200808

UPR,TYPE A

main52207-60040iFZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71199005-200808

UPR,TYPE B

main52207-60050iFZJ73..EFI199005-200808

UPR,TYPE C

main52208-60010iFZJ70..GEN..EFI199001-200808

LOWER

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52203-60030iFZJ75..GEN..CBU..EFI199001-200808

main52209-60020iFZJ71..LHD..GEN199001-200808

52254CUSHION, BODY MOUNT, NO.5 LOWER

main52202-60020iFJ70,FZJ70,HZJ70,LJ70,72,PZJ70,RJ70199001-200808

52264ACUSHION, BODY MOUNT, NO.6 LOWER

main52202-60020iFJ73,FZJ73,HZJ73,LJ77,79,PZJ73,RJ77199001-200701

main52204-60030iPZJ75..HT199001-200106

main52204-60070iFZJ78..LHD..GEN199908-200808

9010510039

main90105-10039

9010510103

main90105-10103

9010510307

main90105-10307

9017910015

main90179-10015

9020110094

main90201-10094

9020110203

main90201-10203

9044017021

main90440-17021

9056012233

main90560-12233

9331518020

main93315-18020

9338118020

main93381-18020

9411040800

main94110-40800

9418401000

main94184-01000

9418401001

main94184-01001

25 parts on this diagram · 2 diagrams in section
