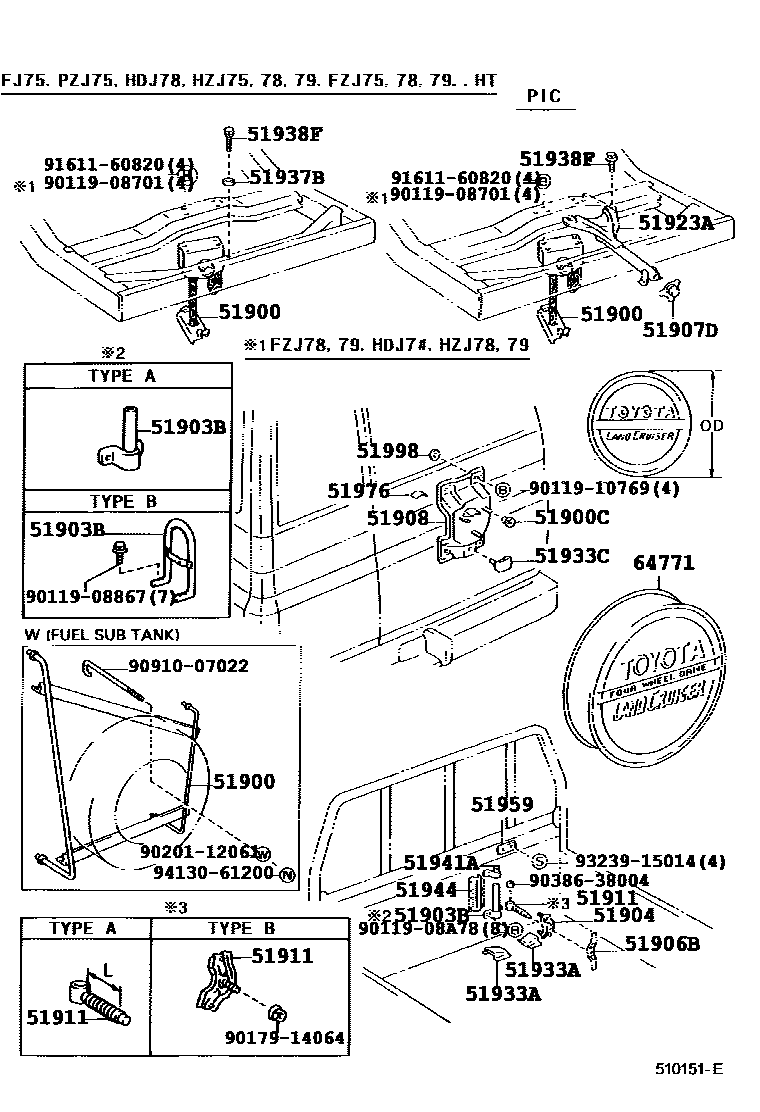

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-60090iPZJ75..4F¥8,800199001-200405

main51900-60120iHDJ79..LX¥7,200200108-200109

W(265/70R16 TIRE & 7JJ ALUMINUM WHEEL)

main51900-60270iFZJ78,79..ARL¥4,440200109-200808

main51931-60080iFZJ75,HZJ75,PZJ75..IV¥7,400199305-200701

W(FUEL SUB TANK)

51900CNUT, SPARE WHEEL, HUB

main90942-01007iFZJ75..HT..GEN;FJ7#,FZJ70,73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT¥230199001-200405

main90942-01101iHZJ78..STD;FZJ71,74,78,HZJ71..GCC,GEN¥460199908-200701

W(SPARE WHEEL TIRE W/KEY LOCK)

main90942-01101iHDJ78¥460199908-200808

main90942-01103iFZJ71,74,HZJ71¥590199908-200701

W(ALUMINUM WHEEL)

main90942-01103iFZJ71,74,HZJ71¥590199908-200701

W(SPARE WHEEL TIRE W/KEY LOCK & ALUMINUM WHEEL)

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-60140iFZJ79,HZJ79..(GCC,GEN)..CBU¥16,700199908-200701

TYPE B:REFER TO ILLUSTRATION

main51903-90K00iHZJ75..LHD..PIC..GEN..CBU;HZJ75..PIC..(ARL,GCC)..CBU;FZJ75..PIC..(GCC,GEN)..CBU¥2,610199001-200701

TYPE A:REFER TO ILLUSTRATION

51904BRACKET SUB-ASSY, SPEARE WHEEL CARRIER

main51904-60050iFZJ79,HZJ79..(GCC,GEN)..CBU¥1,380199908-200701

YELLOW MARK

main51904-60070iFZJ79..LX¥1,310200207-200701

WHITE MARK

main51904-90K01iFJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN)..CBU¥2,290199001-200007

51906BHANDLE SUB-ASSY, SPARE WHEEL CARRIER

main51906-60070iFZJ79..LX¥2,740200207-200701

W(265/70R16 TIRE & 7JJ ALUMINUM WHEEL)

main51906-90K06iFZJ79,HZJ79..(GCC,GEN)..CBU¥2,740199001-200701

51907DBRACKET SUB-ASSY, SPARE WHEEL SERVICE HOLE CAP

main51907-90K00iFJ75,FZJ75,79,HZJ75,79,PZJ75..PIC..(ARL,GCC,GEN)..CBU¥1,140199001-200701

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-60070iFZJ73..EFI¥9,400199608-200405

main51908-60140iHZJ78..LX¥10,400199908-200704

sub51908-60160¥6,500

main51908-60160iFZJ71..LHD..GEN¥6,500200704-200808

main51908-90K05iRJ70..SOT;PZJ7#..HT,SOT¥5,700199001-199608

sub51908-60070¥9,400

51911BOLT ASSY, SPARE WHEEL MOUNTING

main51901-60020iHZJ79..ARL..CBU¥1,160199908-200108

main51901-60020iFZJ79,HZJ79..(GCC,GEN)..CBU¥1,160199908-200701

TYPE A:REFER TO ILLUSTRATION

main51901-60030iFZJ79,HZJ79..(GCC,GEN)..CBU¥2,760199908-200701

TYPE B:REFER TO ILLUSTRATION

main51901-60040iFZJ79..LX¥1,390200207-200701

TYPE A:REFER TO ILLUSTRATION,L=111

main51901-90K02iFJ75,FZJ75,HZJ75,PZJ75..PIC..(GCC,GEN)..CBU¥3,710199001-199305

TYPE A:REFER TO ILLUSTRATION,L=69

main51901-90K03iHZJ75..LHD..PIC..GEN..CBU;HZJ75..PIC..(ARL,GCC)..CBU;FZJ75..PIC..(GCC,GEN)..CBU¥3,420199001-200007

TYPE A:REFER TO ILLUSTRATION,L=54

51923AGUIDE, SPARE WHELL CARRIER HANDLE

main51923-60010iFJ75,FZJ75,79,HZJ75,79,PZJ75..PIC..(ARL,GCC,GEN)..CBU¥6,200199001-200701

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-90K00iPZJ75..LHD..PIC..CBU¥380199305-199908

W(GUARD FRAME)

main51933-90K00iFJ75,FZJ75,79,HZJ75,79,PZJ75..PIC..(ARL,GCC,GEN)..CBU¥380199001-200701

51933CSTOPPER, SPARE WHEEL

main51933-90K01iFZJ75..HT..GEN;FJ70,75,FZJ70,73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT¥310199001-200808

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iHZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT¥440199001-200808

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12121iFZJ75,HZJ75..HT¥240199001-200808

main90119-10539iFJ75,FZJ75,79,HZJ75,79,PZJ75..PIC..(ARL,GCC,GEN)..CBU¥200199001-200007

sub90119-10556¥230

main90119-10556iFZJ79,HZJ79..(GCC,GEN)..CBU¥230199908-200701

51941ABRACKET, SPARE WHEEL CARRIER

main51941-90K02iHZJ75..RHD..PIC..GEN..CBU¥590199001-200701

51944BRACKET, SPARE WHEEL CARRIER, NO.2

main51944-90K00iHZJ75..RHD..PIC..GEN..CBU¥1,420199001-200701

51959CUSHION, SPARE WHEEL

main66443-90K00iHZJ79..ARL..CBU¥380199001-200701

51976FILM, SPARE WHEEL CARRIER, NO.2

main51976-60020iFZJ73..EFI¥360199608-200808

51998PAD, SPARE WHEEL BRACKET

main51998-90K01iFZJ75..HT..GEN;FJ7#,FZJ70,73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT¥230199001-200808

64771COVER, SPARE WHEEL

main64771-60150iFJ70..SOT;FJ70..4F,4FC;FJ73..LX..GEN;FZJ70,73,PZJ70,73..GEN¥27,800199001-200007

main64771-60160iFJ70,73,PZJ70,73..GEN¥27,700199001-199201

W(7.00-16-6 TIRE)

main64771-60170iFZJ70..LHD..HT..STD..GEN¥17,400199208-199305

W(7.50R16-6 OR 7.50R16-8 OR 7.50-16-6 TIRE)

main64771-60170iFJ70,73,PZJ70,73..GEN¥17,400199001-199208

W(7.50-16-6 TIRE)

main64771-60170iFJ70,73..GCC¥17,400199001-200701

main64771-60170iHZJ70..SOT¥17,400199401-200007

W(7.50 R 16-6 OR 7.50 R 16-8 TIRE)

main64771-60170iFZJ70,73,PZJ70,73..GEN¥17,400199108-199305

W(7.50-16-6 OR 7.50R16-8 TIRE)

main64771-60170iFZJ70..HT..GEN;FZJ73..GEN..CBR¥17,400199308-199908

W(7.50R16-8 OR 7.50R16-6 TIRE)

main64771-60170iPZJ70..LX¥17,400199212-199401

W(7.50-16-6 OR 7.50R16-8 OR 7.50R16-6 TIRE)

main64771-60170iFZJ70,73,PZJ70,73..GEN¥17,400199305-199308

W(7.50R16-8 TIRE OR 7.50-16-6 TIRE)

main64771-60180iFZJ71,74,HZJ71¥22,400199908-200701

W(265/70R16 TIRE)

main64771-60180iFJ70,73,PZJ70,73..GCC,GEN¥22,400199001-200007

W(31X10.50R15 TIRE)

main64771-60180iFZJ73..GEN..CBR;FZJ70,HZJ70..HT..GEN¥22,400199308-199908

W(31 X 10.50 R 15 TIRE)

main64771-60190iRJ70..SOT¥27,700199001-199604

main64771-60200iLJ72,RJ70..LHD;LJ79,RJ77..GEN¥27,700199001-199208

W(7.00-16-6 TIRE)

main64771-60210iRJ70..LX¥27,700199001-199604

W(7.50-16-6 TIRE)

main64771-60210iLJ79,RJ7#..STD;LJ72..LHD..STD¥27,700199201-199305

W(7.50-16-6 OR 7.50R16-6 TIRE)

main64771-60210iLJ79,RJ7#..STD;LJ72..LHD..STD¥27,700199208-199212

W(7.50-16-6 OR 7.50R16-8 TIRE)

main64771-60210iLJ79,RJ77..STD;LJ72..LHD..STD¥27,700199212-199510

W(7.50-16-6 OR 7.50R16-8 OR 7.50R16-6 TIRE)

main64771-60210iRJ77..LHD..LX..GEN¥27,700199208-199305

W(7.50R16-6 TIRE)

main64771-60220iLJ79..STD;KZJ7#,LJ72;RJ77..LX..GEN;LJ79,RJ70..LHD..LX¥35,500199001-199604

W(31X10.50R15 TIRE)

main64771-60220iLJ79..STD;KZJ7#,LJ72;RJ77..LX..GEN;LJ79,RJ70..LHD..LX¥35,500199308-199604

W(31 X 10.50 R 15 TIRE)

9011908701

main90119-08701¥90

9011908867

main90119-08867¥110

9011908A78

main90119-08A78¥80

9011910769

main90119-10769¥170

9017914064

main90179-14064¥260

9020112061

main90201-12061¥440

9038638004

main90386-38004¥110

9091007022

main90910-07022¥730

9161160820

main91611-60820¥200

9323915014

main93239-15014¥60

9413061200

main94130-61200¥100

30 parts on this diagram · 1 diagram in section
