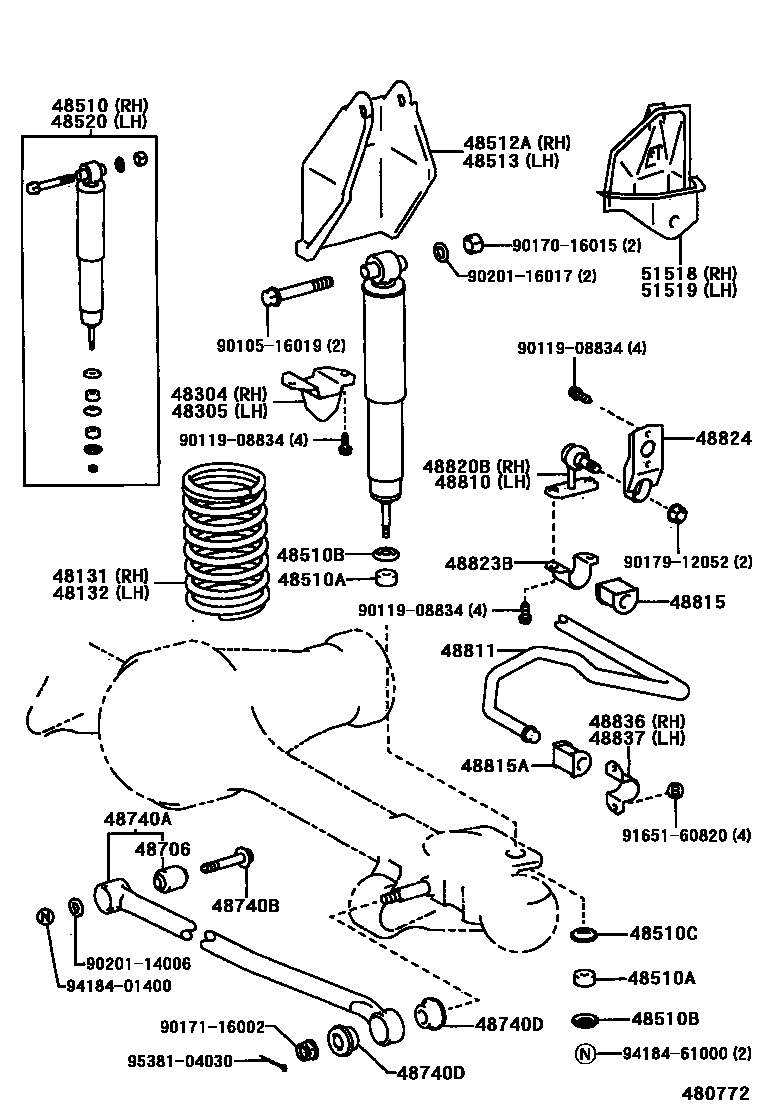

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0009 1FOR PAKISTAN GOVERNMENT 0011 1

48131SPRING, FRONT COIL, RH

main48131-60291iRJ70..RHD..GEN¥10,000199001-199201

main48131-60311iRJ70..LHD¥12,900199001-199305

main48131-60321iRJ70..RHD..GEN¥11,200199001-199201

W(WINCH)

sub48131-60341¥10,800

main48131-60321iRJ70..ARL;LJ70,72..LHD¥11,200199001-199305

sub48131-60341¥10,800

main48131-60341iRJ70..LHD¥10,800199001-199305

W(WINCH)

main48131-60351iLJ72..RHD¥11,200199004-199305

sub48131-60341¥10,800

main48131-60361iLJ70..ARL¥11,200199001-199208

main48131-60361iLJ72..RHD¥11,200199004-199305

W(WINCH)

main48131-60381iLJ70,72..LHD¥11,200199001-199305

W(WINCH)

sub48131-60371¥11,200

main48131-60401iRJ70..HT¥10,700199305-199604

W(WINCH)

sub48131-60251¥10,700

main48131-60431iRJ77..RHD¥11,800199004-199305

main48131-60451iRJ77..LHD¥11,800199004-199305

sub48131-60391¥11,800

main48131-60461iRJ77..RHD¥11,800199004-199305

W(WINCH)

sub48131-60411¥12,100

main48131-60481iRJ77..LHD¥11,800199004-199305

W(WINCH)

sub48131-60421¥11,800

main48131-60481iLJ77,79..LHD¥11,800199004-199305

sub48131-60421¥11,800

main48131-60491iLJ77,79..RHD¥12,400199004-199305

W(WINCH)

main48131-60511iLJ77,79..LHD¥12,100199004-199305

W(WINCH)

main48131-6A600iRJ70..HT¥9,800199305-199604

main48131-6A620iKZJ70¥12,000199305-199604

W(WINCH)

main48131-6A630iKZJ70¥12,000199305-199604

W(WINCH)

main48131-6A660iRJ77..GEN¥10,800199305-199604

main48131-6A680iKZJ77¥12,100199305-199604

W(WINCH)

main48131-6A690iKZJ77¥12,100199305-199604

W(WINCH)

main48131-6A730iLJ79;RJ77..GCC¥12,000199305-199604

W(WINCH)

main48131-6B150iHZJ71;FZJ71..GCC;FZJ71..RHD¥6,300199908-200808

main48131-6B180iFZJ74¥8,000199908-200701

W(WINCH)

main48131-6B210iFZJ74¥15,200199908-200701

W(WINCH)

main48131-6B260iFZJ79..GEN..IV¥9,800199908-200808

main48131-6B290iFZJ79..GCC;HZJ79..GCC,GEN¥9,700199908-200701

W(WINCH)

main48131-6B290iFZJ79..ARL¥9,700199908-200605

main48131-6B310iHZJ79..GCC¥10,700199908-200701

L=451.0,W(WINCH)

main48131-6B310iHZJ79..ARL..CBU¥10,700199908-200108

main48131-6B320iFZJ78..LHD..GEN¥9,000199908-200808

main48131-6B340iHZJ78..STD;FZJ78..GCC,GEN¥9,900199908-200701

W(WINCH)

main48131-6B340iFZJ78..ARL¥9,900199908-200605

main48131-6B380iFZJ79..GCC;HZJ79..LHD..GEN¥16,900199908-200701

W(WINCH & HEAVY DUTY SUSPENTION)

main48135-60010iHDJ7#¥10,900200108-200701

48132SPRING, FRONT COIL, LH

main48131-60301iRJ70..RHD..GEN¥12,400199001-199201

main48131-60311iRJ70..LHD¥12,900199001-199305

main48131-60321iLJ70,72..LHD¥11,200199001-199305

sub48131-60341¥10,800

main48131-60331iRJ70..RHD..GEN¥10,200199001-199201

W(WINCH)

main48131-60331iRJ70..ARL¥10,200199001-199108

main48131-60341iRJ70..LHD¥10,800199001-199305

W(WINCH)

main48131-60341iLJ72..RHD¥10,800199004-199305

main48131-60371iLJ70..ARL¥11,200199001-199208

main48131-60371iLJ72..RHD¥11,200199004-199305

W(WINCH)

main48131-60381iLJ70,72..LHD¥11,200199001-199305

W(WINCH)

sub48131-60371¥11,200

main48131-60391iLJ72..RHD¥11,800199305-199604

W(WINCH)

main48131-60401iRJ70..SOT¥10,700199305-199604

W(WINCH)

sub48131-60251¥10,700

main48131-60441iRJ77..RHD¥10,800199004-199305

main48131-60451iRJ77..LHD¥11,800199004-199305

sub48131-60391¥11,800

main48131-60471iRJ77..RHD¥11,800199004-199305

W(WINCH)

sub48131-60391¥11,800

main48131-60481iRJ77..LHD¥11,800199004-199305

W(WINCH)

sub48131-60421¥11,800

main48131-60481iLJ77,79..LHD¥11,800199004-199305

sub48131-60421¥11,800

main48131-60501iLJ77,79..RHD¥12,100199004-199305

W(WINCH)

main48131-60511iLJ77,79..LHD¥12,100199004-199305

W(WINCH)

main48131-6A600iRJ70..SOT¥9,800199305-199604

main48131-6A610iLJ72..RHD¥10,000199305-199604

main48131-6A620iKZJ70¥12,000199305-199604

W(WINCH)

main48131-6A630iKZJ70¥12,000199305-199604

W(WINCH)

main48131-6A650iRJ77..RHD¥10,300199305-199604

main48131-6A660iRJ77..RHD¥10,800199305-199604

W(WINCH)

main48131-6A670iKZJ77..RHD¥12,100199305-199604

W(WINCH)

main48131-6A680iLJ79..LHD;KZJ77..RHD¥12,100199305-199604

W(WINCH)

main48131-6A690iKZJ77..LHD¥12,100199305-199604

W(WINCH)

main48131-6A730iLJ79..LHD;RJ77..GCC¥12,000199305-199604

W(WINCH)

main48131-6B150iFZJ71..GCC;HZJ71..SOT¥6,300199908-200808

main48131-6B180iFZJ74¥8,000199908-200701

W(WINCH)

main48131-6B210iFZJ74¥15,200199908-200701

W(WINCH)

main48131-6B260iFZJ79..GEN..CBU¥9,800199908-200808

main48131-6B290iFZJ79..GEN¥9,700199908-200701

W(WINCH)

main48131-6B290iFZJ79..ARL¥9,700199908-200605

main48131-6B310iHZJ79..GCC¥10,700199908-200701

L=451.0,W(WINCH)

main48131-6B310iHZJ79..ARL..CBU¥10,700199908-200108

main48131-6B320iFZJ78..LHD..GEN¥9,000199908-200808

main48131-6B340iFZJ78..ARL¥9,900199908-200605

main48131-6B340iHZJ78..STD;FZJ78..GCC,GEN¥9,900199908-200701

W(WINCH)

main48131-6B380iFZJ79..GCC;HZJ79..GCC,GEN¥16,900199908-200701

W(WINCH & HEAVY DUTY SUSPENTION)

main48135-60010iHDJ7#¥10,900200108-200701

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-60042iLJ7#,RJ7#¥3,100199001-199604

main48304-60051iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT¥4,300199001-200405

48305BUMPER SUB-ASSY, FRONT SPRING, NO.2

main48305-60012iRJ70..SOT¥4,130199001-199604

main48305-60021iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT¥4,300199001-200405

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-69265iHZJ75..SA;FZJ73..STD..GEN¥7,300199001-199305

MARK 48511-60280,W(WINCH)

sub48511-69266¥7,400

main48511-69265iFJ73..LX..GEN;FJ70,FZJ70,73,PZJ70,73..GEN¥7,300199105-199911

MARK 48511-60280,COLOMBIA SPEC

sub48511-69266¥7,400

main48511-69265iFJ70,73,FZJ70,73..GCC¥7,300199001-199607

MARK 48511-60280

sub48511-69266¥7,400

main48511-69265iPZJ70,73¥7,300199305-199607

MARK 48511-60280,W(4-LEAF FRONT SPRING)

sub48511-69266¥7,400

main48511-69266iFZJ70,73..GCC¥7,400199607-200007

MARK 48511-60280,W(4-LEAF FRONT SPRING)

main48511-69266iFZJ73..EFI¥7,400199607-200405

MARK 48511-60280

main48511-69295iLJ7#,RJ7#¥8,600199001-199305

MARK 48511-60280

sub48511-69296¥8,600

main48511-69355iFZJ75,PZJ75..RHD..GEN..IV¥7,300199001-199607

MARK 48511-60171

sub48511-69356¥7,400

main48511-69356iHZJ75..GEN..IV;HZJ75..HT..GEN;FZJ75..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..(ARL,GCC)..(DSL,EFI)¥7,400199607-200405

MARK 48511-60171

main48511-69365iFZJ70..HT..GEN;FZJ73,HZJ70..GEN¥7,300199001-199607

MARK 48511-60291

sub48511-69366¥7,400

main48511-69365iFZJ70,73..GCC¥7,300199108-199607

MARK 48511-60291,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE

sub48511-69366¥7,400

main48511-69365iFJ70,73..GCC¥7,300199001-199108

MARK 48511-60291,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE OR W(WINCH)

sub48511-69366¥7,400

main48511-69366iFZJ73..GEN..CBR;FZJ70,HZJ70..HT..GEN¥7,400199607-200007

MARK 48511-60291

main48511-69366iFZJ73..GEN..CBR;FZJ70,HZJ70..HT..GEN¥7,400199607-199908

MARK 48511-60291,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE

main48511-69405iKZJ7#,LJ7#,RJ7#..HT¥8,600199305-199604

MARK 48511-60221

sub48511-69406¥8,600

main48511-69485iFZJ71,74,HDJ79,HZJ71¥8,700199908-200609

MARK 48511-60520

sub48511-69635

main48511-69495iHZJ79..ARL..CBU¥8,700199908-200609

MARK 48511-60530

sub48511-69655

main48511-69505iHZJ78..LX¥8,700199908-200609

MARK 48511-50540

sub48511-69645¥8,500

main48511-69505iHDJ78;HZJ78..STD;FZJ78..GCC,GEN¥8,700199908-200609

MARK 48511-50540,HEAVY DUTY SUSPENSION

sub48511-69645¥8,500

main48511-69635iFZJ71..GCC;FZJ71..RHD;FZJ74,HDJ79,HZJ71200609-200808

MARK 48511-60521

sub48511-69665¥7,100

main48511-69645iFZJ78..LHD..GEN¥8,500200609-200808

MARK 48511-50541,HEAVY DUTY SUSPENSION

main48511-69645iFZJ78..RHD;FZJ78..GCC;HDJ78,HZJ78¥8,500200609-200808

MARK 48511-50541

main48511-69655iHZJ79;FZJ79..CBU200609-200808

MARK 48511-60531

sub48511-69685¥7,100

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01031iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥200199001-200405

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02114iPZJ70,73;PZJ75..4F;RJ70..SOT¥160199001-200405

main90948-02141iHZJ78..LX;HZJ79..ARL..CBU¥280199908-200808

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main48509-60040iFZJ79..GEN..IV;FZJ71,78..LHD..GEN¥730200510-200808

main90948-02017iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F¥320199001-200405

main90948-02144iHZJ78..LX;HZJ79..ARL..CBU¥680199908-200509

48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48501-60010iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#¥3,330199001-200106

main48501-60020iFJ75..LHD..IV;FJ73..STD..GEN¥3,320199105-199908

COLOMBIA SPEC

sub48501-60010¥3,330

main48501-60020iFZJ75..LHD..IV¥3,320199305-199709

sub48501-60010¥3,330

main48512-60070iKZJ7#,LJ7#,RJ7#¥7,100199001-199604

48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48502-60010iFJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#¥3,330199001-200106

main48502-60020iFZJ75..LHD..IV¥3,320199305-199709

sub48502-60010¥3,330

main48502-60020iFZJ73..STD..GEN..CBR¥3,320199105-199908

COLOMBIA SPEC

sub48502-60010¥3,330

main48513-60040iKZJ7#,LJ7#,RJ7#¥7,100199001-199604

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-69265iFJ73..LX..GEN;FJ70,FZJ70,73,PZJ70,73..GEN¥7,300199105-199911

MARK 48511-60280,COLOMBIA SPEC

sub48511-69266¥7,400

main48511-69265iFJ70,FZJ70,73,LJ72,PZJ70..LX..GEN;FJ73,LJ70,77,79,RJ7#..LHD..5F..GEN¥7,300199001-199305

MARK 48511-60280,W(WINCH)

sub48511-69266¥7,400

main48511-69265iFJ70,73,FZJ70,73..GCC¥7,300199001-199607

MARK 48511-60280

sub48511-69266¥7,400

main48511-69265iFZJ70..HT..GEN;FZJ73,HZJ70..GEN¥7,300199305-199607

MARK 48511-60280,W(4-LEAF FRONT SPRING)

sub48511-69266¥7,400

main48511-69266iFZJ73..GEN..CBR;FZJ70,HZJ70..HT..GEN¥7,400199607-200007

MARK 48511-60280,W(4-LEAF FRONT SPRING)

main48511-69266iFZJ70,73..GCC¥7,400199607-200405

MARK 48511-60280

main48511-69295iLJ7#,RJ7#¥8,600199001-199305

MARK 48511-60280

sub48511-69296¥8,600

main48511-69355iFJ75,FZJ75,HJ75,HZJ75,PZJ75¥7,300199001-199607

MARK 48511-60171

sub48511-69356¥7,400

main48511-69356iFZJ75..GEN..IV..EFI¥7,400199607-200405

MARK 48511-60171

main48511-69365iFZJ70..HT..GEN;FZJ73,HZJ70..GEN¥7,300199001-199607

MARK 48511-60291

sub48511-69366¥7,400

main48511-69365iFZJ70..HT..GEN;FZJ73,HZJ70..GEN¥7,300199108-199607

MARK 48511-60291,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE

sub48511-69366¥7,400

main48511-69365iFJ70,73..GCC¥7,300199001-199108

MARK 48511-60291,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE OR W(WINCH)

sub48511-69366¥7,400

main48511-69366iFZJ73..GEN..CBR;FZJ70,HZJ70..HT..GEN¥7,400199607-200007

MARK 48511-60291

main48511-69366iFZJ73..GEN..CBR;FZJ70,HZJ70..HT..GEN¥7,400199607-199908

MARK 48511-60291,HARD SUSPENSION SPEC OR HEAVY DUTY PACKAGE

main48511-69405iKZJ7#,LJ7#,RJ7#..HT¥8,600199305-199604

MARK 48511-60221

sub48511-69406¥8,600

main48511-69485iFZJ71,74,HDJ79,HZJ71¥8,700199908-200609

MARK 48511-60520

sub48511-69635

main48511-69495iHZJ79..ARL..CBU¥8,700199908-200609

MARK 48511-60530

sub48511-69655

main48511-69505iFZJ79,HZJ79..GCC,GEN¥8,700199908-200609

MARK 48511-50540,HEAVY DUTY SUSPENSION

sub48511-69645¥8,500

main48511-69505iHZJ78..LX¥8,700199908-200609

MARK 48511-50540

sub48511-69645¥8,500

main48511-69635iFZJ71..LHD..GEN200609-200808

MARK 48511-60521

sub48511-69665¥7,100

main48511-69645iFZJ78..RHD;FZJ78..GCC;HDJ78,HZJ78¥8,500200609-200808

MARK 48511-50541,HEAVY DUTY SUSPENSION

main48511-69645iFZJ79..CBU;HZJ79..GCC,GEN¥8,500200609-200808

MARK 48511-50541

main48511-69655iHZJ79;FZJ79..CBU200609-200808

MARK 48511-60531

sub48511-69685¥7,100

48706BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD

main48706-60011iLJ7#,RJ7#¥1,030199001-199604

main48706-60030iHZJ78..LX;HZJ79..ARL..CBU¥1,200199908-200701

main48706-60070iFZJ71,78..GCC;FZJ79..LHD..CBU;FZJ74,HZJ71,78,79..LHD¥860199908-200808

48740AROD ASSY, FRONT LATERAL CONTROL

main48740-60023iLJ7#,RJ7#..RHD¥10,800199001-199604

main48740-60033iLJ7#,RJ7#..LHD¥10,800199001-199604

main48740-60100iHZJ79..ARL..IV;HZJ78..RHD..STD;FZJ71,HDJ7#,HZJ71..RHD;FZJ78,79,HZJ79..RHD..GEN¥12,000199908-200701

main48740-60110iFZJ71,78..GCC;FZJ79..LHD..CBU;FZJ74,HZJ71,78,79..LHD¥12,000199908-200808

48740BBOLT(FOR FRONT LATERAL CONTROL ROD)

main90105-14034iLJ70,RJ70¥510199001-199604

48740DBUSH(FOR FRONT LATERAL CONTROL ROD)

main90389-20001iLJ70,RJ70¥1,140199001-199604

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60010iLJ70,RJ70¥4,080199001-199604

48811BAR, STABILIZER, FRONT

main48804-60080iFZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71¥15,400199908-200808

main48804-60090iHZJ78..LX;HZJ79..ARL..CBU¥18,600199908-200808

main48811-60042iLJ7#,RJ7#¥14,800199001-199604

main48811-60051iHZJ75..4F;FJ75..HT..GCC;FJ75..RHD..GEN;FJ75..LHD..HT..4F;FJ75..LHD..PIC..GEN..CBU¥14,600199001-199108

main48811-60061iFZJ75,HZJ75..PIC..GCC¥18,000199001-199908

main48811-60100iFZJ75..HT;FJ75..HT..GCC;FJ75,HZJ75..ARL,GEN;FZJ75..PIC..(ARL,GEN);FJ70,73,FZJ70,73,HZJ70,PZJ7#¥15,500199001-200405

main48811-60110iKZJ77,LJ79,RJ77¥14,100199305-199604

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-26020iFZJ70..SOT;FZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR¥500199001-200405

main48815-26040iHZJ75..4F;FJ75..HT..GCC;FJ75..RHD..GEN;FJ75..LHD..HT..4F;FJ75..LHD..PIC..GEN..CBU¥810199001-199108

main48815-60020iFZJ75,HZJ75..PIC..GCC¥590199001-199908

main48815-60040iKZJ70,LJ72,RJ70..HT¥400199001-200808

main48815-60170iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV¥370199908-200808

48815ABUSH, FRONT STABILIZER BAR, NO.2

main48815-60030iKZJ7#,LJ7#,RJ7#¥400199001-199604

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60010iLJ70,RJ70¥4,080199001-199604

48823BCOVER, FRONT STABILIZER BRACKET

main48823-60030iHZJ78..LX;HZJ79..ARL..CBU¥520199001-200808

48824BRACKET, STABILIZER, FRONT

main48824-60041iRJ70..SOT¥2,220199001-199604

main48825-60020iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT¥1,690199001-200405

48836BRACKET, FRONT STABILIZER END, RH

main48836-60020iLJ70,RJ70¥660199001-199604

48837BRACKET, FRONT STABILIZER END, LH

main48836-60020iLJ70,RJ70¥660199001-199604

51518BRACKET, LOWER ARM, RH

main51518-60030iLJ70,RJ70¥4,400199001-199604

51519BRACKET, LOWER ARM, LH

main51519-60020iLJ70,RJ70¥4,400199001-199604

9010516019

main90105-16019¥680

9011908834

main90119-08834¥90

9017016015

main90170-16015¥240

9017116002

main90171-16002¥310

9017912052

main90179-12052¥190

9020114006

main90201-14006¥110

9020116017

main90201-16017¥190

9165160820

main91651-60820¥130

9418401400

main94184-01400¥300

9418461000

main94184-61000¥160

9538104030

main95381-04030¥50

37 parts on this diagram · 8 diagrams in section
