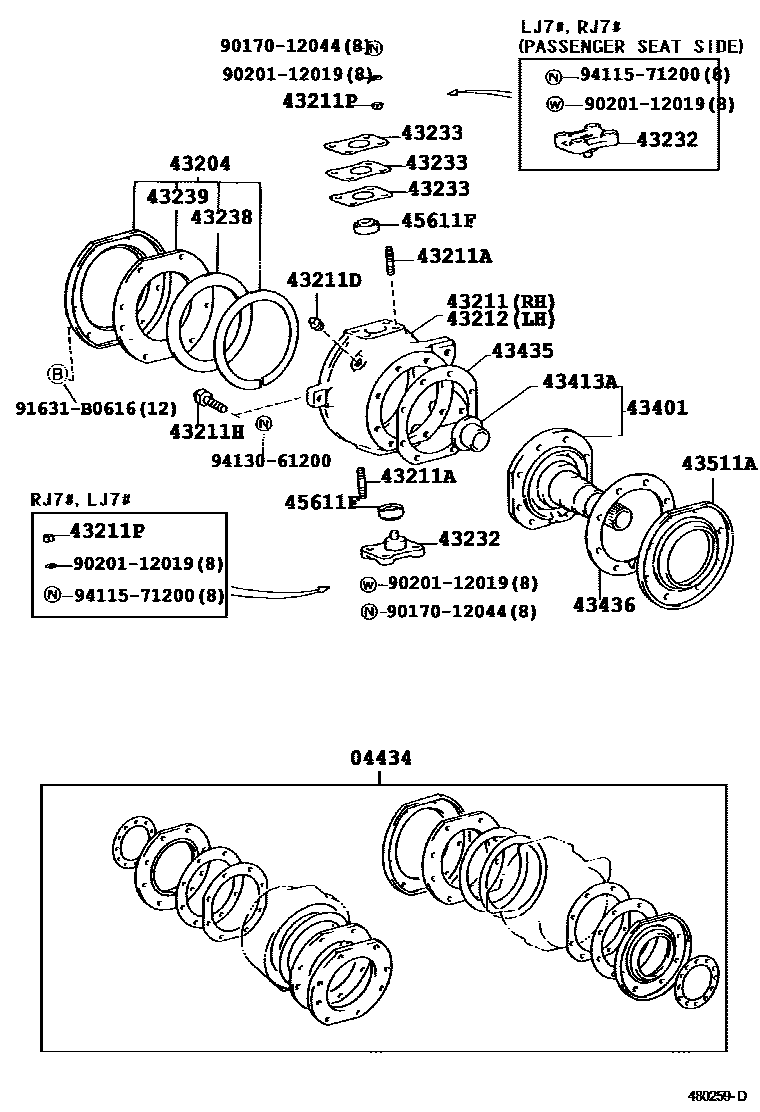

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04434GASKET KIT, FRONT AXLE OVERHAUL

main04434-60030iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199205

sub04434-60031

main04434-60031iFZJ70,75..GEN..CBU..EFI199205-200405

main04434-60040iHJ75199001-199108

main04434-60070iFZJ79..LX;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,HDJ7#,HZJ71;FZJ79,HZJ78..STD..(ARL,GEN)199908-200408

sub04434-60080

sub04434-60090

main04434-60080iHDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU200408-200808

main04434-60090iFZJ78,79..ARL200408-200701

W(DEFERENTIAL LOCK)

43204SEAL SUB-ASSY, STEERING KNUCKLE OIL

main43204-60020iHJ75199001-199108

main43204-60031iHZJ78..LX;HZJ79..ARL..CBU199908-200808

sub43204-60032

main43204-60040iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199205

sub43204-60041

main43204-60041iFZJ75,HZJ75..SA199205-200405

43211KNUCKLE, STEERING, RH

main43211-60050iHJ75199001-199108

main43211-60070iFJ7#,HZJ75,PZJ7#..STD..GEN199001-199201

W(FR DRUM BRAKE)

main43211-60070iFJ7#,HZJ75,LJ72,PZJ7#,RJ70..STD..GEN199001-199201

main43211-60090iFZJ70,75..GEN..CBU..EFI199001-200405

main43211-60090iFJ75..HT..5F..GEN199001-199604

W(FRONT DISC BRAKE)

main43211-60090iFJ75..RHD..GEN;FJ75..LHD..HT..4F;FJ70,PZJ73,RJ70..4F;FJ75..LHD..PIC..GEN..CBU;FJ73,HZJ75,LJ72,PZJ70,75..STD..GEN199001-199201

VENEZUELA SPEC OR W(FR DISC BRAKE)

main43211-60090iFJ75..LHD..IV199105-199201

VENEZUELA SPEC OR COLOMBIA SPEC OR W(FR DISC BRAKE)

main43211-60090iFJ75..LHD..IV199105-199201

COLOMBIA SPEC OR W(FR DISC BRAKE)

main43211-60110iHZJ78..LX;HZJ79..ARL..CBU199908-200808

sub43211-60111

sub96711-24037

43211ABOLT, STUD (FOR STEERING SET)

main90116-12007iFZJ70,73,75..GEN..EFI199001-200008

sub90126-12005

main90126-12005iHZJ78..LX;HZJ79..ARL..CBU200008-200808

sub90126-12010

sub90170-12021

43211DPLUG (FOR STEERING KNUCKLE)

main90345-53020iFZJ70,75..GEN..CBU..EFI199001-200808

43211HBOLT, ROUND HEXAGON

main90106-12005iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200405

43211PWASHER, CONE (FOR STEERING KNUCKLE)

main42323-60020iLJ7#,RJ7#199001-200405

43212KNUCKLE, STEERING, LH

main43212-60050iHJ75199001-199108

main43212-60070iFJ7#,HZJ75,LJ72,PZJ7#,RJ70..STD..GEN199001-199201

main43212-60070iFJ7#,HZJ75,PZJ7#..STD..GEN199001-199201

W(FR DRUM BRAKE)

main43212-60090iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200405

main43212-60090iFJ75..RHD..GEN;FJ75..LHD..HT..4F;FJ70,PZJ73,RJ70..4F;FJ75..LHD..PIC..GEN..CBU;FJ73,HZJ75,LJ72,PZJ70,75..STD..GEN199001-199604

W(FRONT DISC BRAKE)

main43212-60090iFJ75..RHD..GEN;FJ75..LHD..HT..4F;FJ70,PZJ73,RJ70..4F;FJ75..LHD..PIC..GEN..CBU;FJ73,HZJ75,LJ72,PZJ70,75..STD..GEN199001-199201

VENEZUELA SPEC OR W(FR DISC BRAKE)

main43212-60090iFJ75..LHD..IV199105-199201

VENEZUELA SPEC OR COLOMBIA SPEC OR W(FR DISC BRAKE)

main43212-60090iFJ75..LHD..IV199105-199201

COLOMBIA SPEC OR W(FR DISC BRAKE)

main43212-60110iHZJ78..LX;HZJ79..ARL..CBU199908-200808

sub43212-60111

sub96711-24037

43232CAP, STEERING KNUCKLE BEARING

main43232-35010iKZJ7#,LJ7#,RJ7#..HT199001-200405

main43232-60030iHZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,79,HDJ7#,HZJ71199908-200211

sub43232-60031

main43232-60031iFZJ79..GEN..IV;FZJ71,78..LHD..GEN200211-200808

43233SHIM, STEERING KNUCKLE ADJUST, NO.1

main43233-60011iFZJ75,HZJ75..SA199001-200405

T=0.20

main43233-60030iFZJ78,79..ARL199908-200808

T=0.20

main43234-60011iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

T=0.50

main43234-60020iFZJ78,79..ARL199908-200808

T=0.50

main43235-60010iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

T=1.0

main43235-60020iHZJ78..LX;HZJ79..ARL..CBU199908-200808

T=1.00

main43236-60010iFJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200405

T=0.1

main43236-60020iHZJ78..LX;HZJ79..ARL..CBU199908-200808

T=0.10

main43237-60030iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

T=0.30

43238SEAL, STEERING KNUCKLE OIL, INNER

main43238-60010iHJ75199001-199108

main43238-60021iFZJ78,79..ARL199908-200808

main43238-60030iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#199001-199205

sub43238-60031

main43238-60031iPZJ70,73;PZJ75..4F;RJ70..SOT199305-200405

main43238-60031iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#199205-199305

W(DIFFERENTIAL LOCK)

43239SEAL, STEERING KNUCKLE OIL, OUTER

main43239-60020iHJ75199001-199108

main43239-60030iHZJ78..LX;HZJ79..ARL..CBU199908-200808

main43239-60040iFJ7#,HZJ7#,LJ70,PZJ7#,RJ70199001-199004

sub43239-60041

main43239-60041iFZJ75,HZJ75..SA199004-200405

43401SPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-60060iFJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200405

main43401-60080iHZJ78..LX;HZJ79..ARL..CBU199908-200808

sub43401-60081

main43401-60090iFZJ71,74,78,79,HZJ71,78,79..GCC,GEN199908-200701

*DMALH

sub43401-60091

43413ABUSH, SOLID (FOR DRIVE SHAFT)

main90381-33002iFZJ75,HZJ75..SA199001-200405

43435GASKET, KNUCKLE SPINDLE

main43435-60011iKZJ7#,LJ7#,RJ7#..HT199001-200405

main43435-60020iHZJ78..LX;HZJ79..ARL..CBU199908-200808

43436GASKET, KNUCKLE SPINDLE OIL RETAINER

main43436-60011iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,LJ7#,PZJ7#,RJ7#199001-200808

43511ASEAL, DUST (FOR FRONT AXLE HUB)

main90313-93003iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main90313-93011iFZJ73,75..(PIC,SOT)..GEN..EFI199001-200405

45611FBEARING(FOR STEERING KNUCKLE ARM)

main90366-17001iHJ75199001-199108

sub90366-17007

main90366-17007iFJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#199001-200405

main90366-20003iFZJ78,79..ARL199908-200808

9017012044

main90170-12044

9020112019

main90201-12019

91631B0616

main91631-B0616

9411571200

main94115-71200

9413061200

main94130-61200

23 parts on this diagram · 3 diagrams in section
