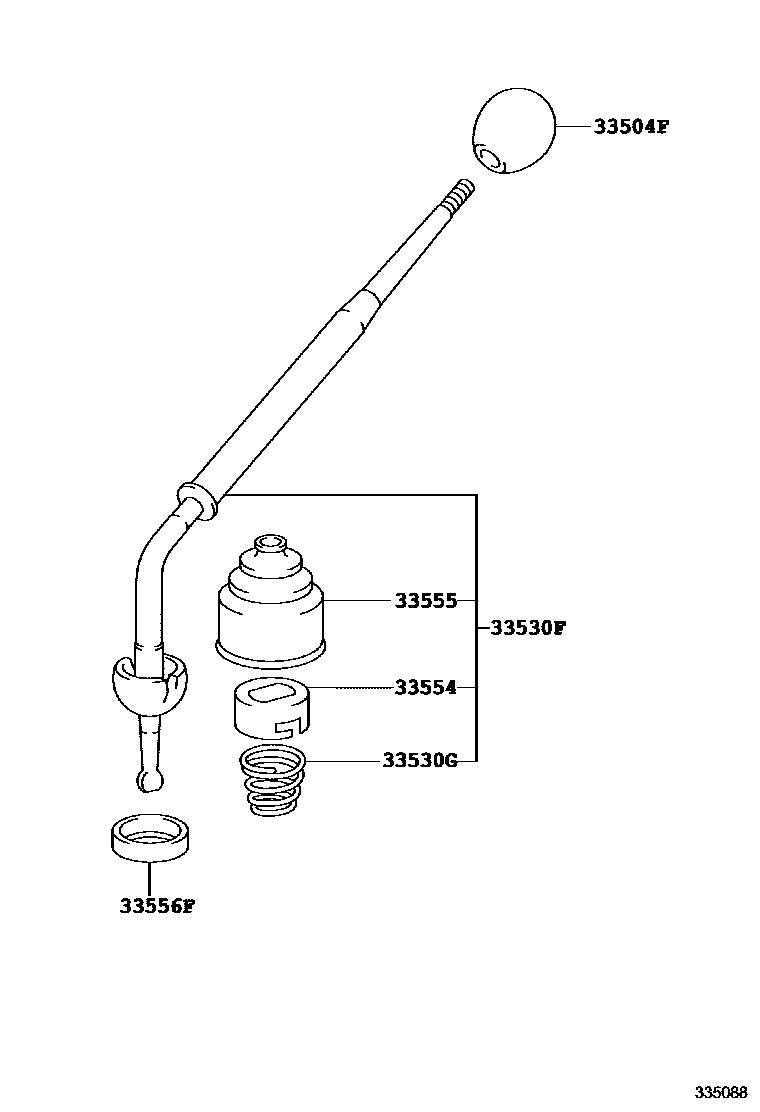

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14060-B0iLJ7#,RJ7#..STD199501-199604

GRAY,TRIM1#

sub33504-14060¥3,000

sub33504-14040¥3,000

main33504-14060-E0iLJ7#,RJ7#..STD199501-199604

OAK,TRIM4#

sub33504-14060¥3,000

sub33504-14040¥3,000

main33504-20062-01iPZJ70,75..HT..4F199305-199501

URETHANE,BLACK,TRIM1#,4#

sub33504-20062¥5,000

sub33504-14040¥3,000

main33504-20062-13iLJ72,79,PZJ70,75,RJ7#..HT..4F199001-199305

URETHANE,BLUISH GRAY,TRIM1#

sub33504-20062¥5,000

sub33504-14040¥3,000

main33504-20062-16iLJ72,79,PZJ70,75,RJ7#..HT..4F199001-199305

URETHANE,SABLE,TRIM4#

sub33504-20062¥5,000

sub33504-14040¥3,000

main33504-22101-13iLJ7#,RJ7#..HT..STD199001-199501

BLUISH GRAY,TRIM1#

sub33504-14040¥3,000

sub33504-22101¥2,710

main33504-22101-46iLJ72,79,PZJ7#,RJ7#..4F199001-199501

SABLE,TRIM4#

sub33504-14040¥3,000

sub33504-22101¥2,710

main33504-22111-13iHZJ75..GCC,GEN;FZJ75..PIC..GCC;FZJ70,75..STD..GEN;FZJ73,HZJ70,PZJ75..5F..STD..(GCC,GEN)199001-199501

BLUISH GRAY,TRIM1#

sub33504-14050¥3,000

sub33504-22111¥1,950

main33504-22111-56iHZJ75..GCC,GEN;FZJ75..PIC..GCC;FZJ70,75..STD..GEN;FZJ73,HZJ70,PZJ75..5F..STD..(GCC,GEN)199001-199501

SABLE,TRIM4#

sub33504-14050¥3,000

sub33504-22111¥1,950

main33504-24010-48iFZJ70,75..GEN..CBU..EFI199305-200405

GRAY,TRIM1#

sub33504-24010¥1,710

main33504-24010-48iFZJ70,75,HZJ7#..HT..STD..GEN199305-199908

URETHANE,GRAY,TRIM1#

sub33504-24010¥1,710

main33504-24010-59iHZJ7#..ARL,SA;FZJ75..PIC..(ARL,SA);FZJ70,75..HT..(ARL,GCC);FZJ70,73,HZJ70,KZJ7#,LJ79,RJ7#..LX199305-199501

SABLE,TRIM4#

sub33504-24010¥1,710

main33504-24010-59iPZJ70..5F..STD199305-199501

URETHANE,SABLE,TRIM4#

sub33504-24010¥1,710

main33504-24010-B1iHZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU199908-200808

SHADOW GRAY,TRIM1#

sub33504-24010¥1,710

main33504-24010-E3iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199501-200405

OAK,TRIM4#

sub33504-24010¥1,710

main33504-24010-E8iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

SANDAL WOOD,TRIM4#

sub33504-24010¥1,710

main33504-60040-B0iFJ70,75,HZJ75..4F199001-199201

BLUISH GRAY,TRIM1#

main33504-60040-E0iFJ70,75,HZJ75..4F199001-199201

SABLE,TRIM4#

main33504-60050-03iFJ70,75,HZJ75..HT..4F199001-199201

URETHANE,BLUISH GRAY,TRIM1#

sub33504-60050¥4,950

main33504-60050-06iFJ70,75,HZJ75..HT..4F199001-199201

URETHANE,SABLE,TRIM4#

sub33504-60050¥4,950

main33504-60060-03iFJ75..HT..GCC;FZJ75..PIC..(ARL,SA);FJ75,HZJ75,PZJ70..ARL,SA;FJ70,FZJ70,75..HT..(ARL,GCC);FJ70,FZJ70,LJ72,PZJ70..5F..LX..GEN;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77,79,PZJ7199001-199308

BLUISH GRAY,TRIM1#

sub33504-60060¥4,950

sub33504-24010¥1,710

main33504-60060-03iFJ70,75,FZJ70,75,HZJ75,LJ72,PZJ70..HT..5F..STD..GEN199001-199305

URETHANE,BLUISH GRAY,TRIM1#

sub33504-60060¥4,950

sub33504-24010¥1,710

main33504-60060-06iFJ75..HT..GCC;FZJ75..PIC..(ARL,SA);FJ75,HZJ75,PZJ70..ARL,SA;FJ70,FZJ70,75..HT..(ARL,GCC);FJ70,FZJ70,LJ72,PZJ70..5F..LX..GEN;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77,79,PZJ7199001-199308

SABLE,TRIM4#

sub33504-60060¥4,950

sub33504-24010¥1,710

main33504-60060-06iFJ75..HT..GCC;FZJ75..PIC..(ARL,SA);FJ75,HZJ75,PZJ70..ARL,SA;FJ70,FZJ70,75..HT..(ARL,GCC);FJ70,FZJ70,LJ72,PZJ70..5F..LX..GEN;FJ73,FZJ73,HJ75,HZJ70,73,LJ70,77,79,PZJ7199001-199305

URETHANE,SABLE,TRIM4#

sub33504-60060¥4,950

sub33504-24010¥1,710

main33542-60050-03iFJ70,73..4FC199001-199201

GRAY,TRIM1#

main33542-60050-06iFJ70,73..4FC199001-199201

SABLE,TRIM4#

main33542-60060-03iHZJ73..4FC199001-199108

GRAY,TRIM1#

sub33542-60060¥5,900

main33542-60060-06iHZJ73..4FC199001-199108

SABLE,TRIM4#

sub33542-60060¥5,900

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60070iFJ70,75..RHD..4F¥9,200199001-199201

main33530-60080iFJ70,75..LHD..4F¥9,200199001-199201

main33530-60090iHZJ75..SA;FJ7#,HJ75..RHD..5F¥9,200199001-199305

main33530-60100iFJ7#..LHD..5F¥9,200199001-199208

main33530-60111iLJ7#,RJ7#..RHD¥9,400199001-199604

main33530-60121iLJ7#,RJ7#..LHD¥9,400199001-199604

main33530-60210iHZJ7#..RHD..5F..(ARL,GEN)¥10,700199001-200007

main33530-60220iHZJ7#..LHD¥10,700199001-199908

main33530-60230iHZJ75..PIC..4F¥10,700199001-199201

main33530-60240iHZJ75..HT..4F¥10,700199001-199201

main33530-60250iPZJ75..5F¥9,400199001-199501

main33530-60260iPZJ70,75..LHD¥9,400199001-199401

main33530-60270iFZJ70,75..RHD¥8,700199201-199308

sub33530-60271¥8,700

main33530-60271iFZJ70..EFI;FZJ75..RHD..IV..CBR¥8,700199308-199608

sub33530-60272¥8,800

main33530-60272iFZJ70,75..RHD..(ARL,GEN)¥8,800199608-199911

main33530-60280iFZJ7#..LHD¥9,200199201-199308

sub33530-60281¥9,200

main33530-60281iFZJ70..SOT¥9,200199308-199608

sub33530-60282¥9,100

main33530-60282iFZJ70,75..GEN..CBU..EFI¥9,100199608-200405

main33530-60450iHZJ79..ARL..IV;HZJ79..RHD..GEN;HZJ71,78..RHD..STD¥9,400199908-200701

sub33530-60451¥7,100

main33530-60460iHZJ71,78,79..LHD¥11,400199908-200701

sub33530-60461

main33530-60470iFZJ71,78..GCC;FZJ74,79..LHD..CBU¥10,700199908-200808

main33530-60480iFZJ78,79..ARL¥6,600199908-200701

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26005iKZJ7#,LJ7#,RJ7#..HT¥240199001-199604

main90502-26008iHZJ71,78,79¥190199908-200701

sub90502-26009¥120

main90502-29001iFJ7#,HJ75,HZJ7#..MTM¥460199001-199002

sub90502-29002¥350

main90502-29002iFZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI;FZJ73,HZJ70..GCC,GEN;FZJ70,HZJ75..(HT,PIC)..(CBR,DSL)¥350199002-200007

main90502-29004iFZJ73,75..(PIC,SOT)..GEN..EFI¥280199608-200405

33554CAP, SHIFT LEVER

main33554-30012iHZJ71,78,79¥750199001-200701

main33554-60021iFZJ73,75..(PIC,SOT)..GEN..EFI¥1,710199001-200405

main33554-60060-03iFJ70,73..4FC199001-199201

BLUISH GRAY,TRIM1#

main33554-60060-06iFJ70,73..4FC199001-199201

SABLE,TRIM4#

main33554-60070-03iHZJ73..4FC199001-199108

BLUISH GRAY,TRIM1#

sub33554-60070¥470

main33554-60070-06iHZJ73..4FC199001-199108

SABLE,TRIM4#

sub33554-60070¥470

33555BOOT, SHIFT LEVER

main33555-55011iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU¥810199001-200007

main33555-60020iFJ70,73,HZJ73..4FC¥1,480199001-199201

main33555-60030iPZJ75..5F¥580199001-200701

main33555-60060iFZJ70,75..GEN..CBU..EFI¥340199201-200405

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33505-60020iHZJ70,75..RHD..(PIC,SOT)..(GEN,SA)..CBU¥3,090199001-200007

6 parts on this diagram · 9 diagrams in section
