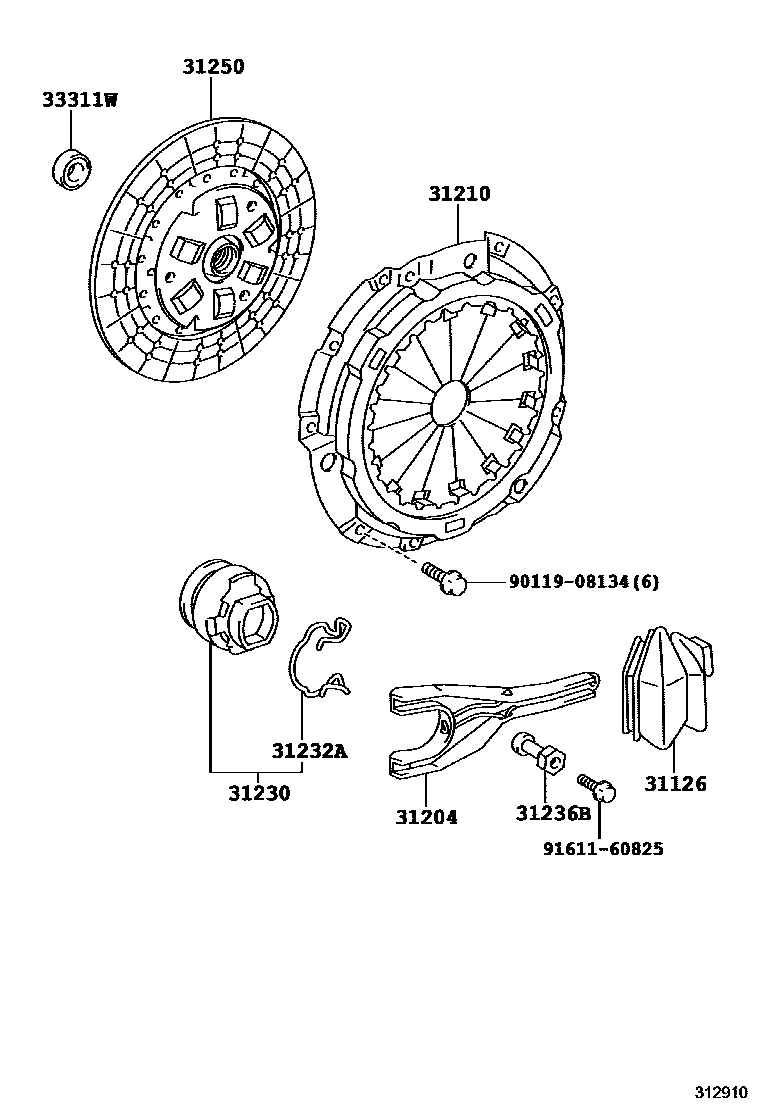

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRJ70..SOT¥940199001-199604

main31126-20070iLJ72,79¥990199004-199604

main31126-26020iLJ70,77¥530199104-199305

main31126-36090iHDJ7#¥930200108-200701

main31126-60021iHJ75¥780199001-199108

main31126-60050iPZJ70,73;PZJ75..4F¥730199001-200701

main31126-60060iFJ7#..MTM¥1,840199001-199208

main31126-60070iHZJ75..SA¥1,140199001-200007

main31126-60080iKZJ7#¥1,240199305-199604

sub31126-60081¥770

main31126-60090iFZJ73,75..PIC,SOT¥930200104-200808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRJ7#..HT¥1,420199001-199604

main31204-35031iLJ70,77¥1,440199001-199305

main31204-35050iLJ72,79¥1,590199004-199604

main31204-36110iHZJ75..SA¥2,260199001-200808

main31204-36142iHDJ7#¥3,400200108-200701

main31204-60070iHJ75¥5,500199001-199108

main31204-60090iKZJ7#¥3,810199305-199604

31210COVER ASSY, CLUTCH

main31210-35100iLJ72,79¥13,800199004-199604

sub31210-35101¥13,700

main31210-35110iRJ7#..HT¥13,800199001-199604

sub31210-53040¥13,700

main31210-35180iLJ77¥16,900199208-199305

sub31210-35181¥16,900

main31210-36160iHZJ75..RHD;HZJ71,78,79;HZJ75..LHD..CBU;HJ75,HZJ70,73..5F..(ARL,SA)¥22,500199001-200111

sub31210-36161¥22,500

main31210-36161iHZJ7#¥22,500200111-200701

sub31210-36330¥17,700

main31210-36240iHDJ7#¥24,500200108-200111

sub31210-36320¥24,500

main31210-36320iHDJ7#¥24,500200603-200701

main31210-60100iFJ7#..MTM¥22,500199001-199208

sub31210-60101

main31210-60130iPZJ75..5F¥21,100199001-199501

sub31210-60190¥21,100

main31210-60150iFZJ70,75..GEN..CBU..EFI¥22,500199201-200406

sub31210-60151¥22,500

main31210-60151iFZJ78,79..ARL¥22,500200407-200612

sub31210-60260¥22,500

main31210-60170iKZJ7#¥21,100199305-199604

sub31210-60171¥21,100

main31210-60210iHDJ7#¥24,500200111-200602

sub31210-36320¥24,500

31230BEARING ASSY, CLUTCH RELEASE

main31230-35050iLJ7#¥4,180199004-199410

sub31230-35060¥4,180

main31230-35060iLJ7#¥4,180199410-199604

sub31230-35061¥3,300

main31230-35070iLJ70,77,RJ7#¥4,180199001-199604

sub31230-35071¥3,300

main31230-36160iFJ7#..MTM¥5,300199001-199208

sub31230-36161

main31230-60130iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN¥7,400199001-200808

main31230-60140iPZJ7#¥7,400199001-199501

main31230-60170iKZJ7#¥1,880199305-199604

main31230-60200iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥7,400199908-200701

sub31230-60201¥5,800

main31230-60210iHDJ7#¥7,400200108-200701

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLJ7#¥190199001-199410

TYPE C:REFER TO ILLUSTRATION

main31232-35020iLJ7#¥190199410-199604

TYPE C

main31232-35030iLJ7#¥190199001-199604

TYPE D:REFER TO ILLUSTRATION

main31232-36010iPZJ7#¥160199001-199501

main31232-36020iHZJ78..STD;FZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71..CBU¥110199001-200808

main31232-36030iKZJ7#¥110199305-200701

TYPE A:REFER TO ILLUSTRATION

main31232-60020iHJ75¥230199001-199108

main31232-60030iKZJ7#¥200199305-199604

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-30060iRJ70..SOT¥740199001-199604

main31236-35030iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT¥330199001-200808

main31236-36060iHDJ7#¥480200108-200701

main31236-60030iHJ75¥780199001-199108

main31236-60050iFJ7#..MTM¥780199001-199208

main31236-60060iKZJ7#¥580199305-199604

31250DISC ASSY, CLUTCH

main31250-22290iRJ7#¥17,500199001-199203

sub31250-22320¥14,200

main31250-22320iRJ70..SOT¥14,200199203-199604

sub31250-35370¥13,800

main31250-25130iLJ77¥23,300199208-199305

sub31250-26180¥23,300

main31250-35220iLJ7#¥17,500199001-199505

sub31250-35221¥17,500

main31250-35221iLJ7#¥17,500199505-199604

sub31250-35222¥17,500

main31250-35340iKZJ7#¥24,700199305-199604

sub31250-35341¥24,700

main31250-36340iFJ7#..MTM¥17,300199001-199208

sub31250-36341

main31250-36490iFZJ7#¥25,700199208-199412

sub31250-36492¥25,700

main31250-36492iFZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV¥25,700199412-199904

sub31250-36493¥25,700

main31250-36493iFZJ75..SA¥25,700199904-200004

sub31250-36494¥25,700

main31250-36494iFZJ70,75..CBU¥25,700200004-200510

sub31250-36495¥25,700

main31250-36495iFZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN¥25,700200511-200808

sub31250-60440¥25,700

main31250-60170iHJ75¥25,700199001-199108

sub31250-60171

main31250-60220iHZJ7#..MTM¥25,700199001-199412

sub31250-60222¥25,700

main31250-60222iHZJ75..SA¥25,700199412-200004

sub31250-60223¥25,700

main31250-60223iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥25,700200004-200510

sub31250-60224¥25,700

main31250-60224iHZJ7#¥25,700200511-200701

sub31250-60430¥18,000

main31250-60240iPZJ70,73;PZJ75..4F¥16,700199001-199501

sub31250-35330¥16,500

main31250-60290iFZJ7#¥25,700199201-199208

sub31250-36490¥25,700

main31250-60342iHDJ7#¥32,100200108-200109

sub31250-60343¥32,100

main31250-60343iHDJ7#¥32,100200109-200508

sub31250-60390¥32,100

main31250-60390iHDJ7#¥32,100200509-200701

sub31250-60391¥32,100

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLJ7#,RJ7#¥520199001-199604

sub90363-12024¥520

main90363-12010iHZJ71,78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV¥1,300199001-200701

main90363-15004iFJ7#,HJ75..MTM¥630199001-199208

main90363-15017iFZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT¥1,300199001-200808

9011908134

main90119-08134¥80

9161160825

main91611-60825¥140

10 parts on this diagram · 7 diagrams in section
