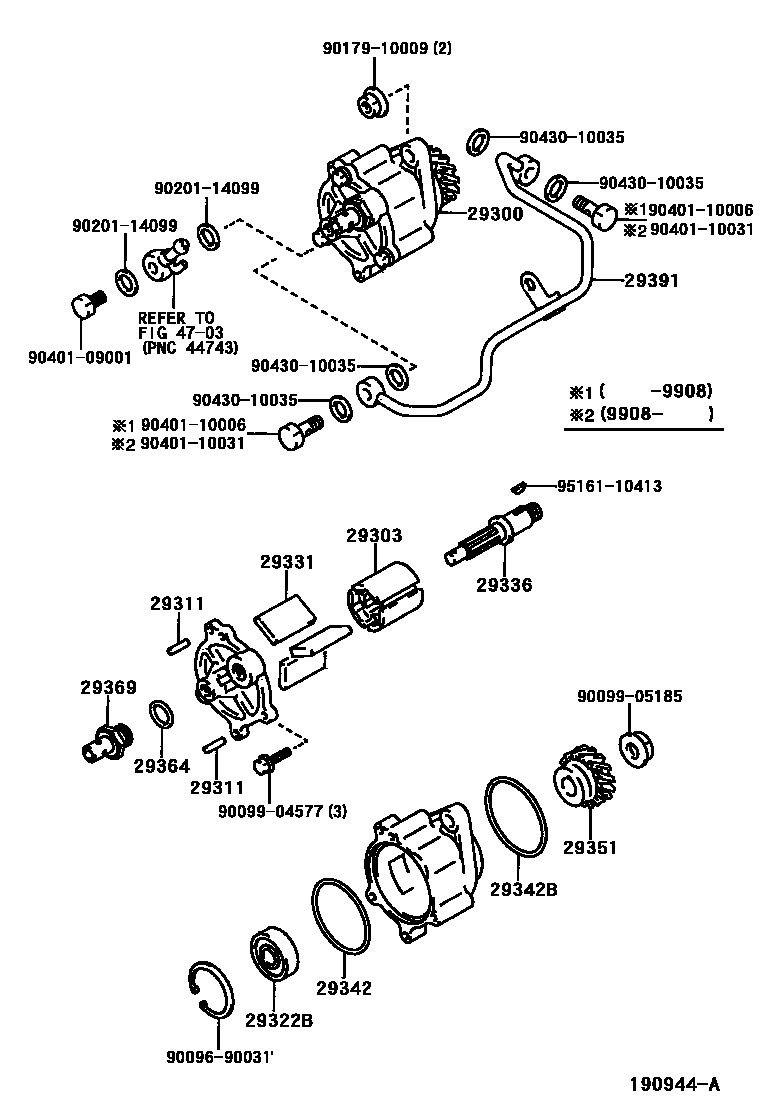

VACUUM PUMP

0001 1 0004 1 0005 1 0006 1

29300PUMP ASSY, VACUUM

main29300-17010i1HZ,1PZ..HZJ7#,PZJ7#199001-200701

main29300-54100i3L..LJ7#199001-199602

sub29300-54130

main29300-54130i3L..LJ7#199602-199604

main29300-56070i2H..HJ75199001-199108

main29300-67020i1KZT..KZJ7#199305-199604

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1HZ,1PZ..HZJ7#,PZJ7#199001-200701

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2H..HJ75199001-200701

29322BBEARING, VACUUM PUMP

main90099-10166i2LT,3L..LJ7#199001-199604

main90099-10185i1PZ..PZJ70,73;1PZ..PZJ75..4F199001-200701

29331BLADE, VACUUM PUMP, A

main29331-54130i3L..LJ7#199602-199604

main29331-56070i2H..HJ75199001-199108

main29331-58050i1PZ..PZJ70,73;1PZ..PZJ75..4F199001-199405

main29331-64030i2LT,3L..LJ7#199001-199602

main29331-67020i1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV199305-200701

29336SHAFT, VACUUM PUMP

main29336-58050i1HZ..HZJ75..SA199001-200701

main29336-64030i2LT,3L..LJ7#199001-199008

sub29336-64031

sub90099-10166

main29336-64031i3L..LJ7#199008-199604

29342PACKING, VACUUM PUMP

main29342-58010i1PZ..PZJ70,73;1PZ..PZJ75..4F199001-200701

main29342-58010i1KZT..KZJ7#199305-199604

NO.1

main29342-67020i1KZT..KZJ7#199305-199604

NO.2

main29342-68010i1KZT..KZJ7#199305-199604

NO.3

main96740-02063i2H..HJ75199001-199108

29342BRING, O

main29342-17010i1PZ..PZJ70,73;1PZ..PZJ75..4F199001-200701

main29342-64030i3L..LJ7#199001-199604

29351GEAR, VACUUM PUMP

main29351-17010i1HZ,1PZ..HZJ7#,PZJ7#199001-200701

main29351-67020i1KZT..KZJ7#199305-199604

29364WASHER, VACUUM PUMP

main29364-66010i1HZ,2H,2LT,3L,1PZ..HJ75,HZJ7#,LJ7#,PZJ7#199001-200701

29369VALVE SUB-ASSY, CHECK

main29369-56070i2H..HJ75199001-199108

main29369-64030i1HZ,2LT,3L,1PZ..HZJ7#,LJ7#,PZJ7#199001-200701

29391TUBE, VACUUM PUMP

main29391-17010i1HZ..HZJ75..SA199001-200007

main29391-17020i1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU199908-200701

4703

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017910009

main90179-10009

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040110031

main90401-10031

9043010035

main90430-10035

9516110413

main95161-10413

23 parts on this diagram · 4 diagrams in section
