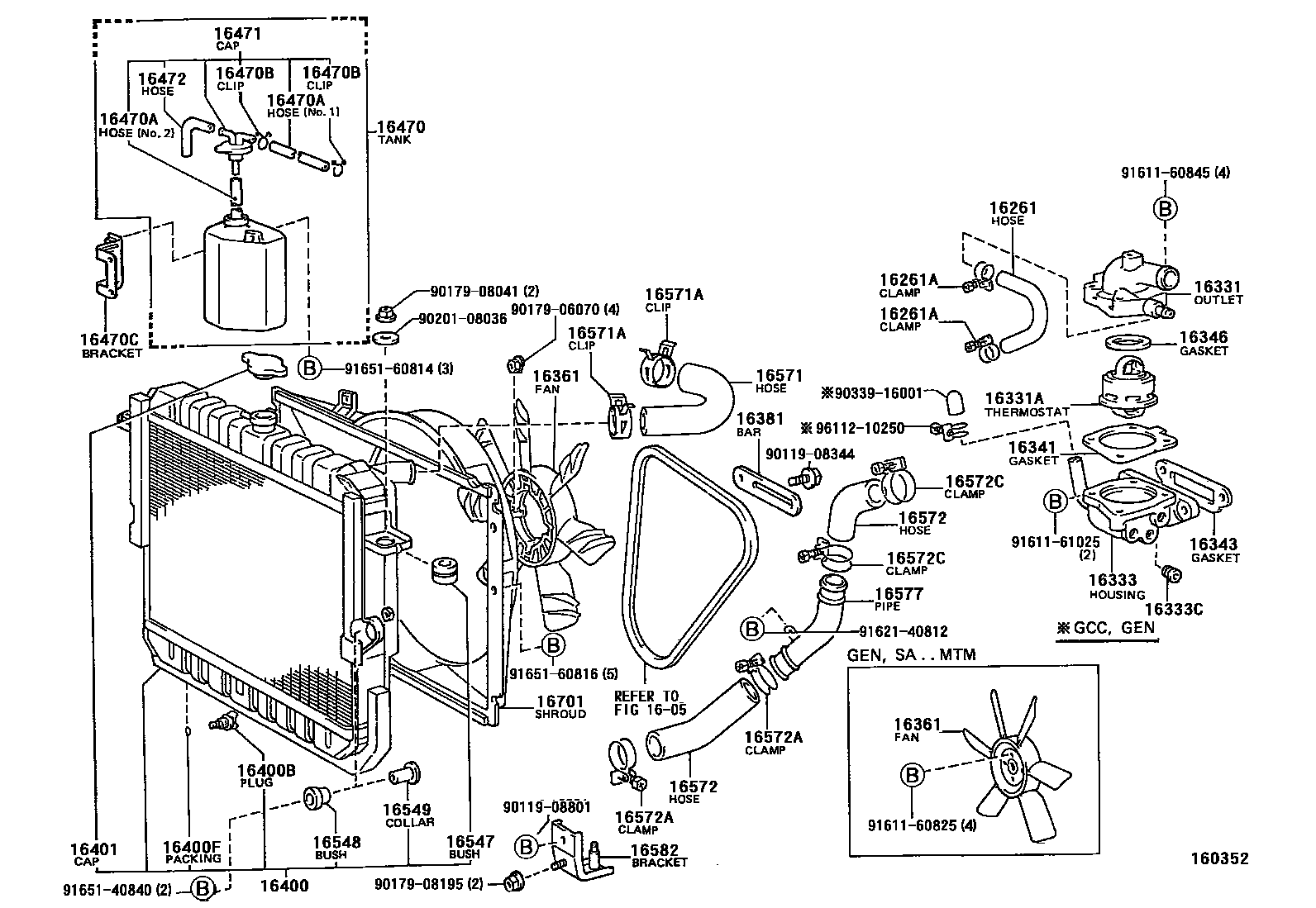

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

1605

16261HOSE, WATER BY-PASS

main16261-17010i1HZ..HZJ75..RHD..PIC..GEN..CBU199805-200701

main16261-35060i22R..RJ70199001-199006

sub16261-35061

main16261-35061i22R..RJ7#199006-199604

main16261-54080i2LT..LJ70,77199001-199305

main16261-54080i3L..LJ79..LHD;3L..LJ72..LHD..HT..STD199108-199305

COLD AREA SPEC & SWEDEN SPEC

main16261-54080i3L..LJ7#..LHD199305-199604

COLD AREA SPEC

main16261-61020i3F..FJ7#199001-199208

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022i1HZ..HZJ75..RHD..PIC..GEN..CBU199001-200701

main90467-15022i3L..LJ79..LHD;3L..LJ72..LHD..HT..STD199108-199305

COLD AREA SPEC & SWEDEN SPEC

main90467-15022i3L..LJ7#..LHD199305-199604

COLD AREA SPEC

main90467-20005i22R..RJ70199001-199604

sub96134-41900

main96112-10250i3F..FJ7#199001-199208

16331OUTLET, WATER

main16303-61010i3F..FJ7#199001-199208

main16304-17020i1HDFTE..HDJ7#200108-200701

main16304-66010i1FZF..FZJ73;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..(GCC,GEN)..CBU199201-199911

main16304-66020i1FZFE..FZJ70,73,75199208-199305

main16331-17010i1PZ..PZJ7#199001-200001

main16331-17030i1HZ..HZJ79..GCC199001-200701

main16331-35050i22R..RJ70199001-199009

sub16331-35051

main16331-35051i22R..RJ7#199009-199604

main16331-54090i3L..LJ7#199004-199604

main16331-54100i2LT..LJ70,77199001-199108

sub16331-54101

main16331-54101i2LT..LJ70,77199108-199305

main16331-66040i1FZFE..FZJ74,79..CBU;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN199908-200808

main16331-67030i1KZT..KZJ7#199305-199604

16331ATHERMOSTAT

main16340-54010i3L..LJ7#199505-199604

*WAX 88-100

main90916-03052i3F..FJ7#199001-199208

*WAX 88-100

main90916-03072i2LT,3L..LJ7#199001-199303

*WAX 88-100

sub90916-03099

main90916-03078i22R..RJ7#199001-199604

*WAX 88-100

main90916-03089i1PZ..PZJ7#199001-200701

*WAX 76-90

main90916-03094i1FZF..FZJ73;1FZFE..FZJ75;1FZF..FZJ75..LHD..IV;1FZF..FZJ70,75..(HT,PIC)..CBU199201-199709

*WAX 82-95

sub90916-03117

main90916-03097i1KZT..KZJ7#199305-199604

*WAX 82-95

sub90916-03118

main90916-03099i2LT,3L..LJ7#199303-199505

*WAX 88-100

main90916-03117i1FZF..FZJ75..SA199709-200808

*WAX 82-95

16333HOUSING, WATER OUTLET

main16304-61010i3F..FJ73..4FC;3F..FJ7#..ARL,GEN,SA199001-199208

main16304-61020i3F..FJ7#..5F..GCC199001-199201

main16333-54112i3L..LJ7#..LHD199108-199505

COLD AREA SPEC

main16333-54113i3L..LJ7#..LHD199505-199604

COLD AREA SPEC

main16333-54121i3L..LJ72,79199004-199108

sub16333-54122

main16333-54122i3L..LJ72,79199108-199505

main16333-54123i3L..LJ7#199505-199604

main16333-54131i2LT..LJ70,77199001-199108

sub16333-54132

main16333-54132i2LT..LJ70,77199108-199305

16333CPLUG, W/HEAD TAPER SCREW

main90344-53011i3F..FJ7#..5F..GCC199001-199201

16341GASKET, WATER OUTLET

main16341-17010i1PZ..PZJ7#199001-200701

main16341-35010i22R..RJ70199001-199604

main16341-54030i3L..LJ72,79199004-199110

sub16341-54040

main16341-54040i3L..LJ7#199110-199505

main16341-61030i3F..FJ7#199001-199208

main16341-66020i1FZ#..FZJ70,73,75199201-199305

main16341-67020i1KZT..KZJ7#199305-199604

16343GASKET, WATER OUTLET HOUSING

main16343-54030i2LT,3L..LJ7#199001-199110

sub16343-54040

main16343-54040i2LT,3L..LJ7#199110-199604

main16343-61020i3F..FJ7#199001-199208

16346GASKET, THERMOSTAT

main16346-66020i1FZFE..FZJ70;1FZF..FZJ70..SOT;1FZF..FZJ75..RHD..IV199001-200808

main16346-67010i1KZT..KZJ7#199305-199604

sub16346-30010

main90430-43002i3F..FJ7#199001-199208

16361FAN

main16361-17010i1HZ..HZJ7#199001-199305

main16361-17010i1HZ..HZJ70..ARL199305-200007

YELLOW PAINTED

main16361-17020i1HZ..HZJ75..ARL,GCC199305-199908

BLACK PAINTED

main16361-17020i1HZ..HZJ75..GCC199201-199305

main16361-17030i1HDFTE..HDJ7#200602-200701

main16361-17030i1HZ..HZJ79..ARL..IV;1HZ..HZJ71,78,79..GEN199908-200001

RED

main16361-17040i1HZ..HZJ71,78,79..GEN199908-200701

BLUE

main16361-17040i1HDFTE..HDJ7#200108-200602

main16361-38010i22R..RJ70199001-199604

main16361-41070i2H..HJ75199001-199108

sub16361-41071

main16361-54040i3L..LJ72,79199004-199604

main16361-54050i2LT..LJ70,77199001-199305

sub16361-67030

main16361-60090i3F..FJ70,75..GEN..CBU199001-199208

main16361-61050i3F..FJ70,75..GEN..CBU199001-199208

450X8,2STEP,10000CST

main16361-66020i1FZFE..FZJ71,74,78,79199201-200808

main16361-67020i1KZT..KZJ7#199305-199604

main16361-68040i1PZ..PZJ7#199001-199501

16381BAR, FAN BELT ADJUSTING

main16381-17010i1HZ..HZJ78,79..ARL..CBU199001-200701

main16381-17020i1HDFTE..HDJ7#200108-200701

main16381-17020i1HZ..HZJ79..ARL..IV;1HZ..HZJ78..STD..ARL199001-200701

W(ALTERNATOR 12V-100A IC)

main16381-35010i22R..RJ7#199001-199604

main16381-54120i3L..LJ7#199001-199604

sub16381-54121

main16381-61020i3F..FJ7#199001-199208

main16381-66020i1FZF..FZJ7#..GCC199201-199908

main16381-66030i1FZ#..FZJ7#..ARL,GEN,SA199201-199908

W(ALTERNATOR 12V-80A IC OR 12V-55A IC)

main16381-67020i1KZT..KZJ7#199305-199604

16400RADIATOR ASSY

main16400-17070i1PZ..PZJ7#199001-199608

sub16400-17080

main16400-17071i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199608-200007

main16400-17080i1HZ..HZJ75..GEN199201-199608

W(RADIO)

main16400-17080i1HZ..HZJ75..GCC199001-199305

main16400-17080i1HZ..HZJ75..4F..IV;1HZ..HZJ75..HT..4F;1HZ..HZJ75..RHD..GEN..CBU;1HZ..HZJ75..LHD..PIC..GEN199108-199302

W(AIR CONDITIONER)

main16400-17090i1HZ..HZJ73..4FC199001-199108

main16400-17220i1HZ..HZJ79..RHD..GEN199809-200007

KENYA SPEC

main16400-17280i1HZ..HZJ75..GCC199608-199908

main16400-17300i1HZ..HZJ71,78,79..GCC,GEN199908-200701

main16400-17360i1H#..HDJ7#,HZJ78,79..ARL200108-200701

main16400-35550i22R..RJ7#199001-199604

main16400-54840i2LT..LJ70,77199001-199305

sub16400-54841

main16400-54860i3L..LJ72,79199004-199307

sub16400-54861

main16400-54861i3L..LJ7#199307-199411

sub16400-54862

main16400-54862i3L..LJ7#199411-199604

main16400-61070i3F..FJ75..LHD..IV;3F..FJ70,75..(HT,SOT)..5F..GEN199001-199208

VENEZUELA SPEC

main16400-61200i3F..FJ7#..MTM199001-199208

main16400-61210i3F..FJ70,73..4FC199001-199201

main16400-66020i1FZ#..FZJ7#199201-199305

sub16400-66060

main16400-66021i1FZF..FZJ7#..GEN;1FZFE..FZJ75..ARL199608-200106

main16400-66060i1FZFE..FZJ70;1FZF..FZJ70..SOT;1FZF..FZJ75..RHD..IV199305-199908

COLOMBIA SPEC

main16400-66061i1FZF..FZJ7#..GCC199608-199610

sub16400-66062

sub16549-66010

sub16584-66010

main16400-66062i1FZF..FZJ7#..GCC199610-199908

main16400-66150i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN199908-200808

main16400-66160i1FZFE..FZJ71,74,78,79..GCC199908-200701

main16400-67020i1KZT..KZJ7#199305-199604

main16400-68121i2H..HJ75199001-199108

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210i1FZF..FZJ75..SA199201-200808

main16417-24200i3L..LJ7#199001-199608

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1KZT..KZJ7#199201-200808

main16418-24200i2LT,3L..LJ7#199001-199608

16401CAP SUB-ASSY, RADIATOR

main16401-54750i1PZ..PZJ7#199305-200106

main16401-54750i1HZ..HZJ79..RHD..GEN199908-200006

KENYA SPEC

main16401-67150i1FZFE..FZJ71,74,78,79199908-200808

main16401-71010i1FZ#,3F..FJ7#,FZJ70,73,75199001-200011

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-17010i1HZ..HZJ70..ARL199001-200701

sub16470-17011

main16470-35090i22R..RJ70199001-199604

main16470-54220i2LT..LJ70,77199001-199305

main16470-54230i3L..LJ7#199004-199604

sub16470-67010

sub90445-12078

main16470-61020i3F..FJ7#199001-199208

main16470-66010i1FZ#..FZJ70;1FZF..FZJ73,75;1FZFE..FZJ75..ARL199201-200808

main16470-67010i1KZT..KZJ7#199305-199604

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-67010i1KZT..KZJ7#199305-199604

NO.1

main90445-12078i1PZ..PZJ7#199001-199604

L=600(*H,L=180),NO.2

main90445-12078i2LT..LJ70,77199002-199305

L=600(*H,L=560),NO.1

main90445-12078i3L..LJ72,79199004-199305

L=600(*H,L=490),NO.1

main90445-12078i3L..LJ72,79199001-199604

L=600(*H,L=180),NO.1

main90445-12078i2LT..LJ70199001-199002

L=600(*H,L=580),NO.1

main90445-12078i3F..FJ7#199001-199208

L=600(*H,L=270),NO.1,NO.2

main90445-12078i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199511-200701

L=315

main90445-12078i1PZ..PZJ7#199305-199511

main90445-12078i1KZT..KZJ7#199305-199604

L=600(*H,L=500),NO.1

main90445-12129i22R..RJ7#199001-199604

L=480,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2LT,3L..LJ7#199001-200808

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-61010i3F..FJ7#199001-199208

16471CAP SUB-ASSY, RESERVE TANK

main16405-17010i1HZ..HZJ7#199001-200701

main16405-35050i22R..RJ7#199001-199604

main16405-54210i2LT..LJ70,77199001-199305

main16405-54220i3L..LJ7#199004-199604

sub16405-67020

sub90445-12078

main16405-61010i3F..FJ7#199001-199208

sub16405-17010

main16405-66010i1FZ#..FZJ7#199201-200808

main16405-67020i1KZT..KZJ7#199305-199604

16472HOSE, BREATHER

main85338-20030i1FZFE..FZJ74,79..CBU;1FZFE..FZJ71,78..GCC;1FZFE..FZJ71,78..RHD..GEN199201-200808

main85338-70100i22R..RJ7#199001-199604

main85338-74040i2LT,3L..LJ7#199001-200701

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-68070i1FZ#,3F..FJ7#,FZJ70,71,73,74,75,78,79199001-200808

16548BUSH, RADIATOR SUPPORT, NO.2

main16548-66060i1FZF..FZJ7#..GCC199608-199610

sub16584-66010

main16548-68070i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200808

main16584-66010i1FZF..FZJ7#..GCC199310-199608

16549COLLAR, RADIATOR SUPPORT, NO.2

main16549-66010i1FZFE..FZJ71,74,78,79..GCC199310-200701

main16549-66060i1FZF..FZJ7#..GCC199608-199610

sub16549-66010

main16549-68070i1FZ#..FZJ7#199001-200808

16571HOSE, RADIATOR, INLET

main16571-17020i1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV199001-200701

main16571-17030i1PZ..PZJ7#199001-199501

main16571-35100i22R..RJ7#199001-199604

main16571-54300i2LT..LJ70,77199001-199305

main16571-54340i3L..LJ72,79199004-199604

main16571-61160i3F..FJ7#199001-199208

main16571-67020i1KZT..KZJ7#199305-199604

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-50016i2H..HJ75199001-199108

sub96111-10500

main90467-37002i22R..RJ70199001-199104

sub90467-37005

main90467-37003i22R..RJ7#199001-199604

main90467-41002i1FZFE..FZJ79..GEN..IV;1FZFE..FZJ71,78..LHD..GEN199908-200808

sub90466-41008

main90467-41006i1FZFE..FZJ71,74,78,79199908-200204

NO.1

sub90467-41002

main90467-41006i1KZT..KZJ7#199405-199604

sub90467-41002

main90467-41007i1KZT..KZJ7#199305-199405

sub90467-41002

main90467-42001i1PZ..PZJ7#199001-200007

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-17020i1HZ..HZJ78,79..ARL199001-200701

main16572-17030i1PZ..PZJ7#199001-199501

main16572-17150i1H#..HDJ7#,HZJ78,79..ARL200108-200701

main16572-35130i22R..RJ7#199001-199604

main16572-54350i2LT..LJ70,77199001-199305

main16572-54360i3L..LJ72,79199004-199604

main16572-61030i3F..FJ75..LHD..IV;3F..FJ70,75..(HT,SOT)..5F..GEN199001-199208

WATER PUMP SIDE

main16572-61030i3F..FJ75..LHD..IV;3F..FJ70,75..(HT,SOT)..5F..GEN199001-199208

VENEZUELA SPEC

main16572-67020i1KZT..KZJ7#199305-199604

main16573-61080i3F..FJ7#199001-199208

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016i2H..HJ75199001-199108

PIPE SIDE

sub96111-10500

main90467-41002i1HZ..HZJ71,78,79..GCC,GEN199908-200701

RADIATOR SIDE

sub90466-41008

main90467-41005i3F..FJ7#199001-199208

PIPE SIDE

main90467-41006i1KZT..KZJ7#199405-199604

sub90467-41002

main90467-41007i1KZT..KZJ7#199305-199405

sub90467-41002

main90467-42001i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199001-200108

RADIATOR SIDE

sub90467-41002

main90467-43002i1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..GEN..CBU199803-200701

ENGINE SIDE

main90467-43002i1H#..HDJ7#,HZJ78,79..ARL200108-200701

main96111-10440i2LT,3L..LJ7#199001-199604

RADIATOR SIDE

main96111-10460i22R..RJ7#199001-199604

main96111-10490i1PZ..PZJ7#199001-199803

RADIATOR SIDE

main96111-10500i3L..LJ7#199001-199604

ENGINE SIDE

main96111-10500i3F..FJ7#199001-199208

RADIATOR SIDE

main96111-10530i1PZ..PZJ7#199001-199803

ENGINE SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90460-50016i2H..HJ75199001-199108

sub96111-10500

main96111-10500i3F..FJ7#199001-199208

16577PIPE, RADIATOR, NO.7

main16577-35060i22R..RJ70199001-199604

main16577-61150i3F..FJ7#199001-199208

16582BRACKET, RADIATOR, NO.1

main16582-68010i1PZ..PZJ7#199001-200808

16701SHROUD SUB-ASSY, FAN

main16711-17020i1HZ..HZJ75;1HZ..HZJ70..GEN199001-199608

sub16711-17090

main16711-17021i1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU199608-200007

main16711-17030i1PZ..PZJ7#199001-199501

main16711-17090i1HZ..HZJ75..RHD..PIC..GEN..CBU199608-200007

KENYA SPEC

main16711-17140i1HZ..HZJ78,79..ARL199908-200701

main16711-17150i1H#..HDJ7#,HZJ78,79..ARL200108-200701

sub16711-17151

main16711-35080i22R..RJ7#199001-199604

main16711-54380i2LT..LJ70,77199001-199305

main16711-54390i3L..LJ72,79199004-199108

sub16711-54391

main16711-54391i3L..LJ72,79199108-199604

main16711-61190i3F..FJ75..LHD..IV199105-199110

VENEZUELA SPEC & 450X8,2STEP,10000CST

main16711-61190i3F..FJ75..LHD..IV;3F..FJ70,75..(HT,SOT)..5F..GEN199001-199208

VENEZUELA SPEC

main16711-61280i3F..FJ70..4FC;3F..FJ7#..ARL,GCC199001-199110

main16711-61280i3F..FJ70..MTM..GEN;3F..FJ75..RHD..GEN;3F..FJ73,75..LHD..(HT,PIC)..GEN..CBU199001-199208

450X8,2STEP,10000CST

main16711-61280i3F..FJ75..LHD..IV199105-199110

450X8,2STEP,10000CST OR CLOUMBIA SPEC & W(HEATER)

main16711-61290i3F..FJ70..MTM..GEN;3F..FJ75..RHD..(GEN,SA);3F..FJ73,75..LHD..(HT,PIC)..GEN..CBU199001-199208

main16711-67020i1KZT..KZJ7#199305-199604

9011908344

main90119-08344

9011908801

main90119-08801

9017906070

main90179-06070

9017908041

main90179-08041

9017908195

main90179-08195

9020108036

main90201-08036

9033916001

main90339-16001

9161160825

main91611-60825

9161160845

main91611-60845

9161161025

main91611-61025

9162140812

main91621-40812

9165140840

main91651-40840

9165160814

main91651-60814

9165160816

main91651-60816

9611210250

main96112-10250

48 parts on this diagram · 15 diagrams in section
